SFR144A-ZS-MC34-GR5-R-AF12 (PK-40)

Name: Single Row Ball Bearings - 3.175x6.35x2.779 mm Flanged - Stainless Steel AISI 440C Bearing (Sold Per PK-40) - - SFR144A-ZS-MC34-GR5-R-AF12
Brand: Myonic
SKU: SFR144AZSMC34GR5RAF12
Price: 1555.05 AUD
Availability: BackOrder

Single Row Ball Bearings - 3.175x6.35x2.779 mm Flanged - Stainless Steel AISI 440C Bearing

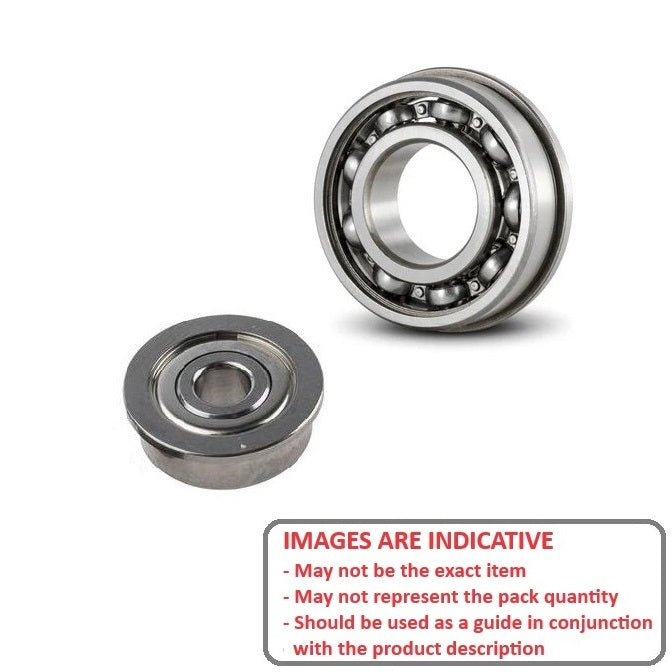

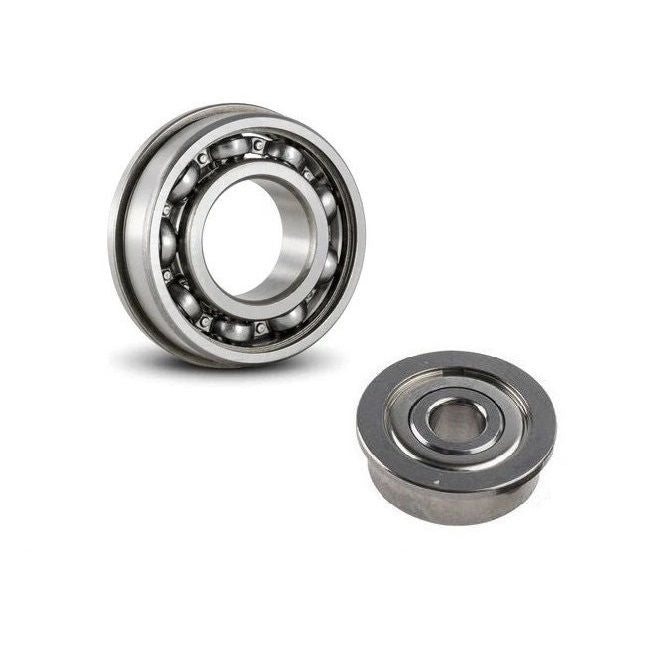

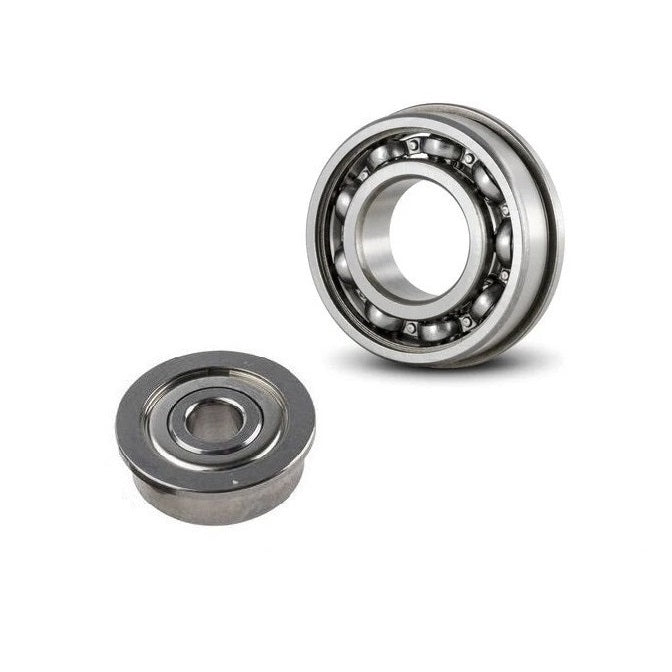

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

Myonic

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Bearings - Single Row Ball - Flanged - High Precision - Standard

Additional resources:
Tolerances
High Precision Bearings Catalogue PDF
Shafting

Price:

$1,555.05 AUD

~~$1,866.05 AUD~~ $1,555.05 AUD

Priced, Stocked and Sold Per 40 Units

Excludes GST and overseas Taxes & Duties

Backorder

Order 50 or more packs of 40 (2000 pcs)
for $1,399.55 AUD per 40 pack

Product Details

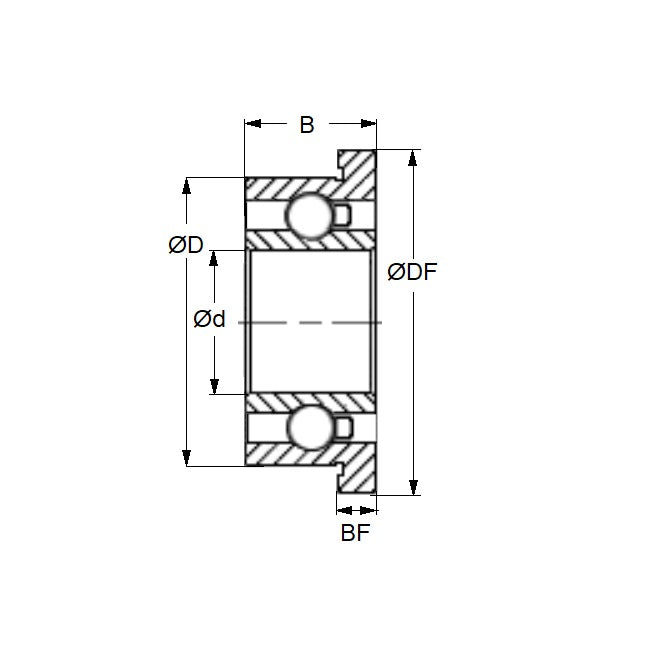

ID (d): 3.175mm
_{+ 0.000 / - 0.004}
_{(3.175mm is 0.125 in.)}

Stainless Steel AISI 440C

ID (d): 3.175mm
_{+ 0.000 / - 0.004}
_{(3.175mm is 0.125 in.)}
O.D. (D): 6.350mm
_{+ 0.000 / - 0.005}
_{(6.350mm is 0.25 in.)}
Width (B): 2.779mm
_{+ 0.000 / - 0.040}
_{(2.779mm is 0.109 in.)}
Flange Diameter (DF): 7.518mm
Flange Width (BF): 0.787mm
Precision Grade: Abec 7
Closure Type: Z
Bearing Type: Radial Flanged
Lubricant: Aeroshell Fluid 12 - AF12 Oil
Notes: Single Shield on Flanged Side

Brand: Myonic
Country of Origin: DE

Product Compliance and Data

Similar to

RMB® ULKZ4008X.1c-48-A5P-6/15-L0
SFR144ATRZSMC34GR5AF12
SFR144ATRZSRGR5MC34AF12
ULKZ4008X1c48A5P6/15L0
SSFR144ATRZSRGR5MC34AF12
SSFR144ATRZSMC34GR5AF12
FR144ABASIC

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
