SR144-MC34-GR7-R-L23 (40 Pcs)

Name: SR144-MC34-GR7-R-L23 (40 Pack) - Single Row Ball Bearings - 3.175x6.35x2.381 mm Unflanged - Bearing
Brand: Myonic
SKU: SR144MC34GR7RL23
Price: 1904.23 AUD
Availability: BackOrder

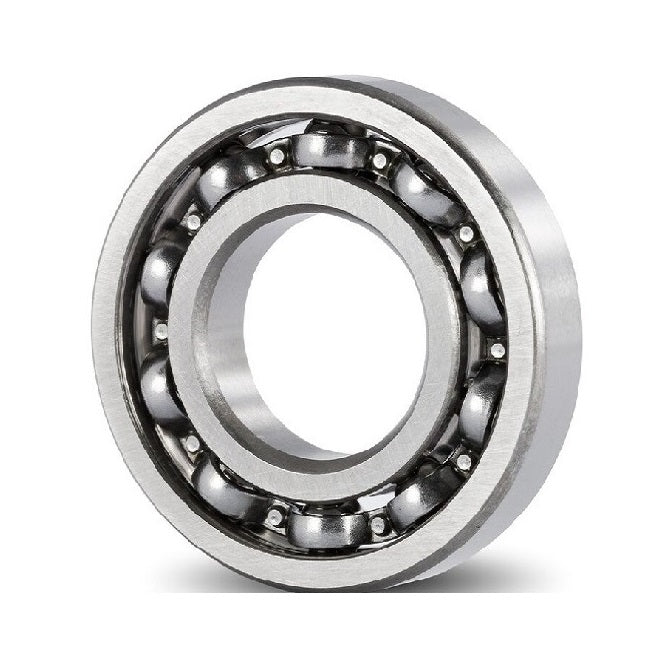

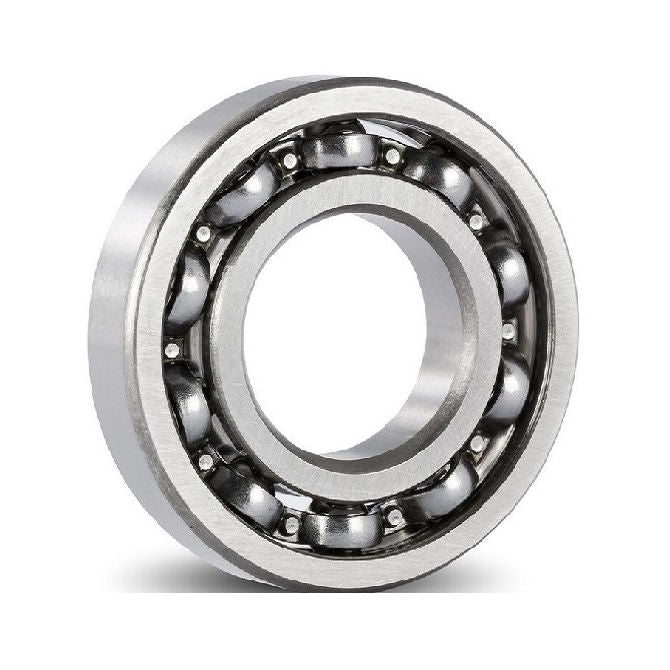

Single Row Ball Bearings - 3.175x6.35x2.381 mm Unflanged - Stainless Steel AISI 440C - Ribbon Retainer Low Torque Bearing

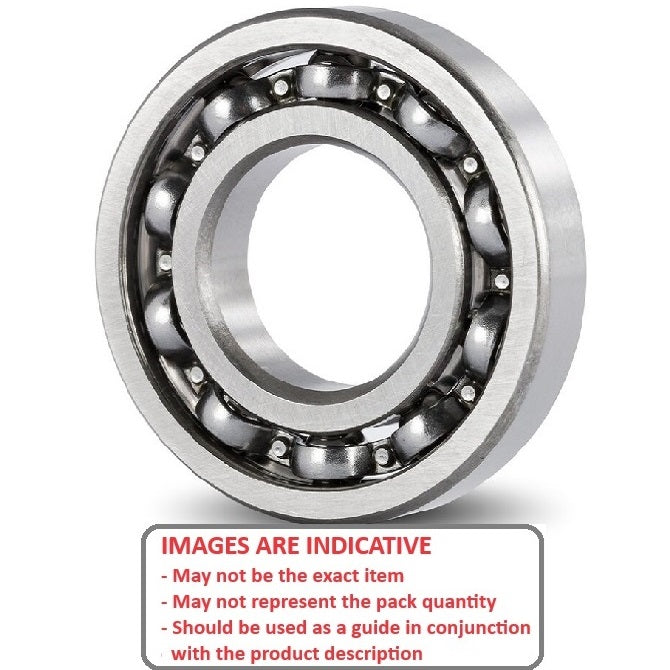

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

Myonic

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Bearings - Single Row Ball - Unflanged - High Precision - Standard

Additional resources:
Tolerances
High Precision Bearings Catalogue PDF
Shafting

Price:

$1,904.23 AUD

40 Per Sell Unit

Excludes GST and overseas Taxes & Duties

Backorder
Order 50 or more for $1,713.81 AUD

Product Details

ID (d): 3.175mm
_{+ 0.000 / - 0.004}
_{(3.175mm is 0.125 in.)}

Stainless Steel AISI 440C - Ribbon Retainer Low Torque

ID (d): 3.175mm
_{+ 0.000 / - 0.004}
_{(3.175mm is 0.125 in.)}
OD (D): 6.350mm
_{+ 0.000 / - 0.005}
_{(6.350mm is 0.25 in.)}
Width (B): 2.381mm
_{+ 0.000 / - 0.040}
_{(2.381mm is 0.094 in.)}
Precision Grade: Abec 7
Closure Type: Open
Bearing Type: Radial
Lubricant: Windsorlube L245X - L23 Oil

Brand: Myonic
Country of Origin: DE

Product Compliance and Data

Similar to

GRW 3175-P4
GRW S3175-P4
GRW SS3175-P4
P4SR144
P4-SR144
P4-R144
P4R144
SSR144RGR7MC34L23
SSR144MC3GR7L23
SSR144K3011
SSR144K30-11
UL4008X48A7P6/15L23
UL4008XA7P610L23
UL-4008X-48-A7P-6/15-L23
UL4008X-A7P-6-10-L23
UL4008XA7PL23
UL4008X-A7P-L23
SS3175P4
R144BASIC

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
