SR144-D28-ZS (100 Pcs)

Base Category: Bearings - Dental Applications

Top Level Category: Bearings - Dental Applications

Product Details

Precision dental handpiece bearing with narrow design and polyamide cage

ID (d): 3.175mm
_{+ 0.000 / - 0.004
(3.175mm is 0.125 in.)}

Stainless Steel AISI 440C - Dental Special

• ID (d): 3.175mm
  _{+ 0.000 / - 0.004
  (3.175mm is 0.125 in.)}

• OD (D): 6.350mm
  _{+ 0.000 / - 0.005
  (6.350mm is 0.25 in.)}

• Width (B): 2.381mm
  _{+ 0.000 / - 0.040
  (2.381mm is 0.094 in.)}

• Precision Grade: Abec 7 - ISC Japan Dental Bearing

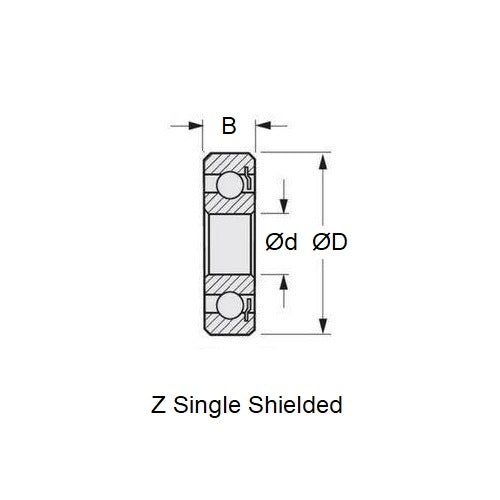

• Closure Type: Z
• Bearing Type: Radial
• Lubricant: Oil - Undisclosed

Brand: MBA
Country of Origin: DE

Product Compliance and Data

• Full Data Sheet
• RoHs Statement
• Reach Statement
• CoC Information

Similar to

• W.H. 02106302
• WH 02106302
• MPB 9A0051-811
• MPB 9A0051-821B
• MPB 9A0051-831
• GRW SS3175A-002Z-A7-K25GPRXBTHBL020
• NHBB SSR1-418X7ZMCM5A7P24LY60
• NHBB SSRI-418X7ZMCM5A7P24LY60
• 9A0051821B
• 9A0051811
• ULV3S4008X1238DL4A5PS2J111L23
• ULV3S4008X.1-238DL-4-A5P-S2-J111-L23
• SR144STAY134K3C10
• SR144STAY70
• SSR144STAY134
• SSRI418X7ZMCM5A7P24LY60
• SSR1418X7ZMCM5A7P24LY60
• SSR144STAY134K3C10
• SSR144STAY70
• SS3175A002ZA7K25GPRXBTHBL020

Used for

• Dental Handpiece Parts
• Faro - S380 - Bearings
• KMD - Colibri - Bearings
• Lares - 330E - Bearings
• Lares - 557 Push Button - Chuck End Bearing
• Lares - 557SR - Bearings
• Lares - 757 - Chuck End Bearing
• Lares - Workhorse - Chuck End Bearing
• NSK - CHQD - Cap End Bearing
• Siemens - 3000 - Bearings
• TKD - Miera - Bearings
• TKD - Thera - Bearings
• TKD - Titan - Bearings
• TKD - Turbina Mini Master - Bearings
• W.H. - Top Air 100 Series - Bearings
• W.H. - Top Air 200 Series - Bearings
• W.H. - Top Air 300 Series - Bearings
• Yoshida - Friction Grip - Bearings

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
