SR144-D28-ZS - Datasheet
MBA
Category Information
Bearings - Dental ApplicationsDental Applications Bearings. This listing shows the basic features of various bearings for dental applications.
- Bearings used in high-speed and low-speed dental handpieces play a crucial role in the performance and reliability of these dental tools.
- The purpose of bearings in dental handpieces varies depending on the speed requirements and operational characteristics of the handpiece.
- Key features of dental equipment bearings are high precision allowing for high speed rotaion, low friction and quiet operation. An expanded range may be available on special order. Please enquire.
- Please contact us for a dental application list.
Product Data

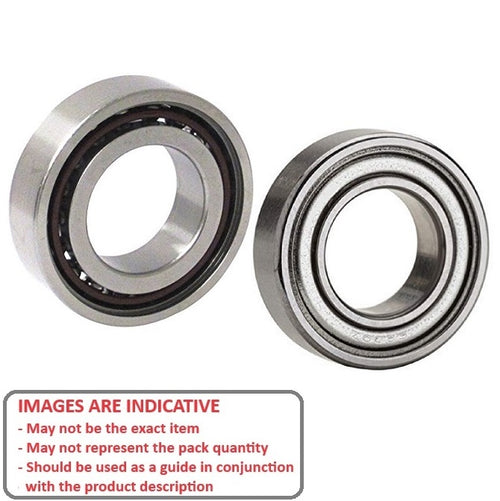

Precision dental handpiece bearing with narrow design and polyamide cage

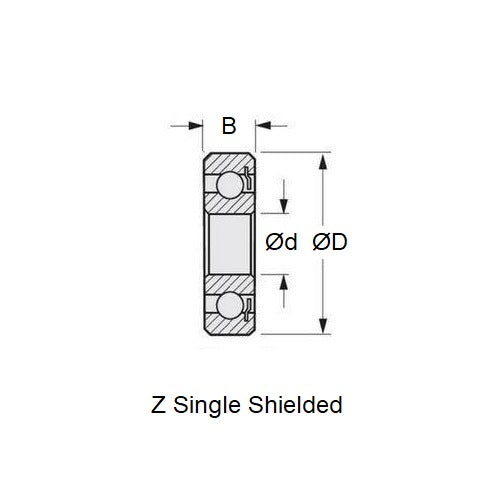

- ID (d)
:
3.175
mm
+ 0.000 / - 0.004
(Equiv. 0.125 in.) - OD (D)
6.350
mm
+ 0.000 / - 0.005
(Equiv. 0.25 in.) - Width (B)
2.381
mm
+ 0.000 / - 0.040
(Equiv. 0.094 in.) - Precision Grade Abec 7 - ISC Japan Dental Bearing
- Closure Type Z
- Bearing Type Radial
- Lubricant Oil - Undisclosed
- Material Stainless Steel AISI 440C - Dental Special
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- Dental Handpiece Parts
- Faro - S380 - Bearings
- KMD - Colibri - Bearings
- Lares - 330E - Bearings
- Lares - 557 Push Button - Chuck End Bearing
- Lares - 557SR - Bearings
- Lares - 757 - Chuck End Bearing
- Lares - Workhorse - Chuck End Bearing
- NSK - CHQD - Cap End Bearing
- Siemens - 3000 - Bearings
- TKD - Miera - Bearings
- TKD - Thera - Bearings
- TKD - Titan - Bearings
- TKD - Turbina Mini Master - Bearings
- W.H. - Top Air 100 Series - Bearings
- W.H. - Top Air 200 Series - Bearings
- W.H. - Top Air 300 Series - Bearings
- Yoshida - Friction Grip - Bearings
Cross References
- W.H. 02106302
- WH 02106302
- MPB 9A0051-811
- MPB 9A0051-821B
- MPB 9A0051-831
- GRW SS3175A-002Z-A7-K25GPRXBTHBL020
- NHBB SSR1-418X7ZMCM5A7P24LY60
- NHBB SSRI-418X7ZMCM5A7P24LY60
- 9A0051821B
- 9A0051811
- ULV3S4008X1238DL4A5PS2J111L23
- ULV3S4008X.1-238DL-4-A5P-S2-J111-L23
- SR144STAY134K3C10
- SR144STAY70
- SSR144STAY134
- SSRI418X7ZMCM5A7P24LY60
- SSR1418X7ZMCM5A7P24LY60
- SSR144STAY134K3C10
- SSR144STAY70
- SS3175A002ZA7K25GPRXBTHBL020
