P-FR2-8B-AGL

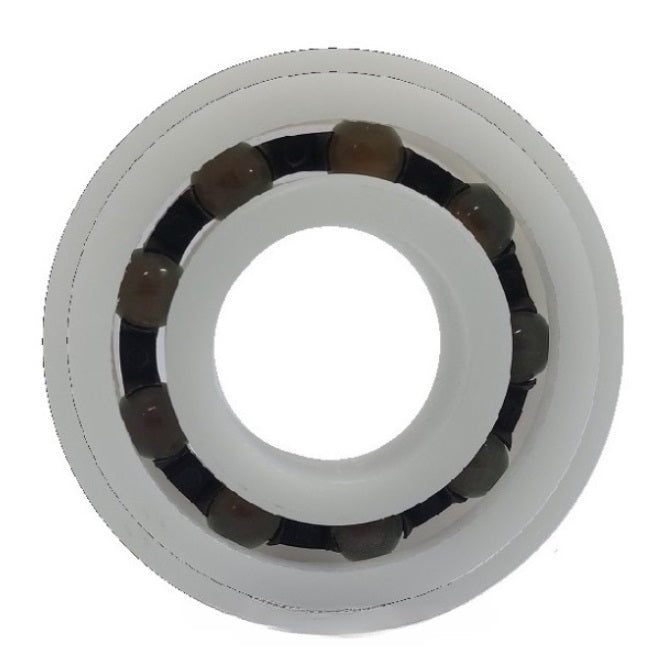

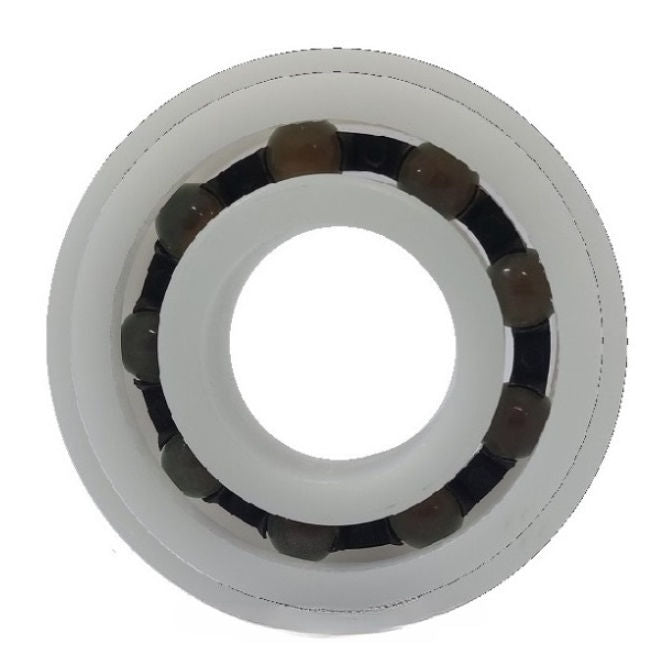

Plastic Bearings - 3.175x12.7x3.969 mm / 14.224 mm - Acetal with Glass Balls Bearing

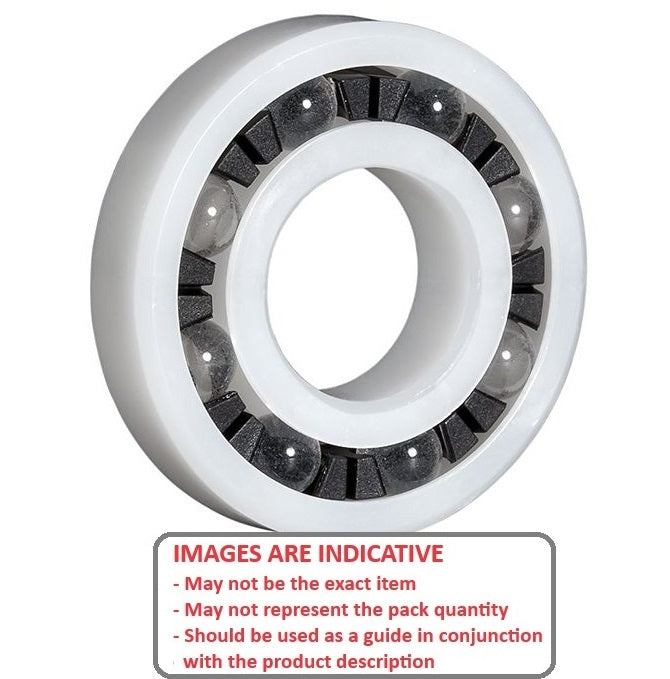

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Plastic Bearings - 3.175x12.7x3.969 mm / 14.224 mm - Acetal with Glass Balls
1 4

KMS

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Tolerances
Plastic Bearings PDF Catalogue
Shafting
Price:
$27.05 AUD
$32.45 AUD $27.05 AUD
Each
Excludes GST and overseas Taxes & Duties
 Backorder
Order 50 or more for $24.35 AUD
Backorder now! Backorders for more than the stock quantity are expected before Nov 07, 2025

Base Category: Bearings - Plastic

Top Level Category: Bearings - Plastic - Acetal - Single Row - Glass Balls

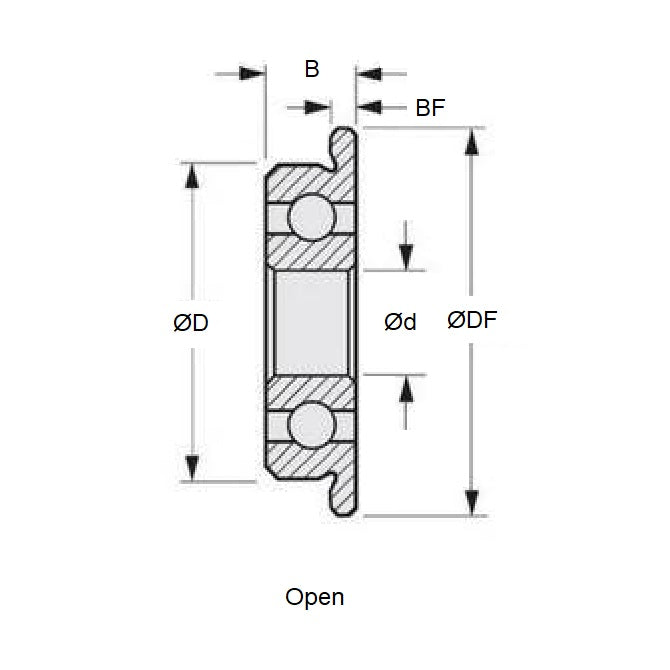

Product Details

ID (d): 3.175mm
+ 0.076 / - 0.000
(3.175mm is 0.125 in.)

Acetal with Glass Balls
  • ID (d): 3.175mm
    + 0.076 / - 0.000
    (3.175mm is 0.125 in.)
  • OD (D): 12.700mm
    + 0.000 / - 0.102
    (12.700mm is 0.5 in.)
  • Width (B): 3.969mm
    + 0.127 / - 0.000
    (3.969mm is 0.156 in.)
  • Flange Diameter: 14.224mm
  • Flange Thickness: 1.02mm
  • Max RPM in Air: 3100
  • Notes: Unlubricated
  • Type: Radial
  • Dynamic Load Rating: 6.8Kg
  • Static Load Rating: 4.5Kg

Brand: KMS
Country of Origin: US

Product Compliance and Data

Similar to

  • KMS AR2AWF-G
  • AR2AWFG
  • FR2-8B
  • FR28B

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
