P-FR2-8B-AGL - Datasheet

KMS

Category Information

Bearings - Plastic - Acetal - Single Row - Glass Balls

Glass Balls Single Row Acetal Plastic Bearings. Bearings for Extreme Corrosion Resistance - Low Speed - Low Load.

  • Plastic bearings, also known as polymer bearings, are bearings made from various types of plastics or polymer materials. Used in a wide range of applications across different industries where traditional metal bearings may not be suitable.
  • These bearings offer unique advantages such as corrosion resistance, low friction, lightweight construction, and non-magnetic properties. Uses include Food and Beverage Industry, Medical and Laboratory Equipment, Chemical Industry,HVAC Systems.
  • Plastic ball bearings do not use the same precision standards as those for precision ball bearings. An expanded range may be available on special order. Please enquire.

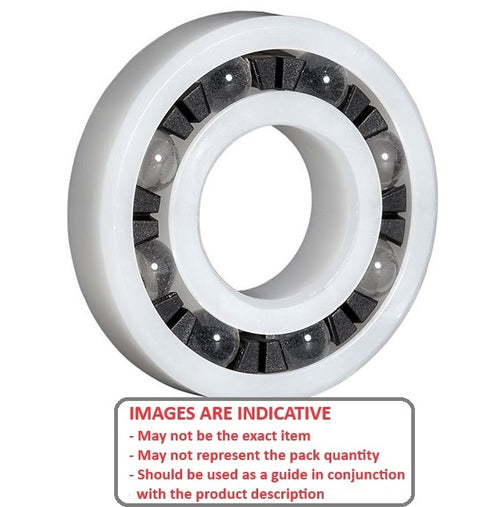

  • Races made from Acetal - Balls made from Ground Glass - Cages from Acetal or Nylon.
  • Lubrication - Water Lubrication or can be run dry - Must lubricate over 2500 RPM.
  • Temperature Range - Minus 30 oC to 100 oC Continuous.

Product Data

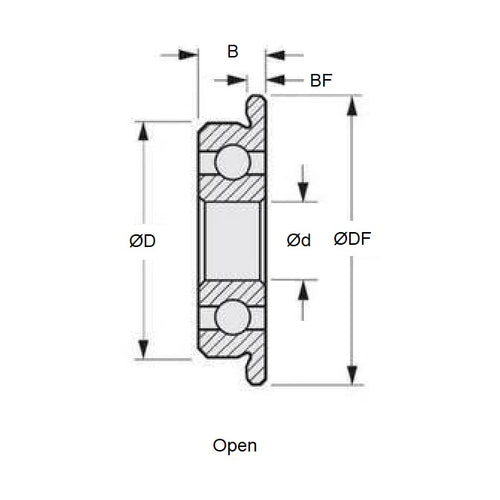

  • ID (d) : 3.175 mm + 0.076 / - 0.000
    (Equiv. 0.125 in.)
  • OD (D) 12.700 mm + 0.000 / - 0.102
    (Equiv. 0.5 in.)
  • Width (B) 3.969 mm + 0.127 / - 0.000
    (Equiv. 0.156 in.)
  • Flange Diameter 14.224 mm
  • Flange Thickness 1.02 mm
  • Max RPM in Air 3100
  • Notes Unlubricated
  • Type Radial
  • Dynamic Load Rating 6.8 Kg
  • Static Load Rating 4.5 Kg
  • Material Acetal with Glass Balls
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • KMS AR2AWF-G
  • FR2-8B
  • FR28B
  • AR2AWFG
