SR144A-D105-ZS-OPT (20 Pcs)

Base Category: Bearings - Dental Applications

Top Level Category: Bearings - Dental Applications

Product Details

Stepped OD with ceramic balls and polyamide cage for precision dental handpieces

ID (d): 3.175mm
_{+ 0.000 / - 0.004
(3.175mm is 0.125 in.)}

Stainless Steel AISI 440C - High Speed Torlon Retainer - Dental Special

• ID (d): 3.175mm
  _{+ 0.000 / - 0.004
  (3.175mm is 0.125 in.)}

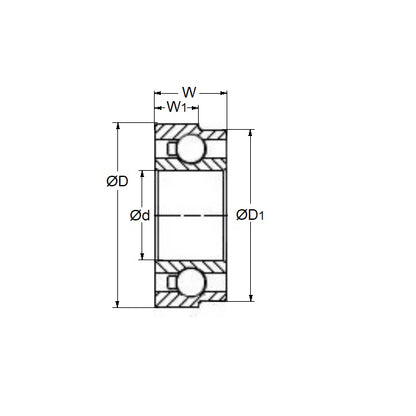

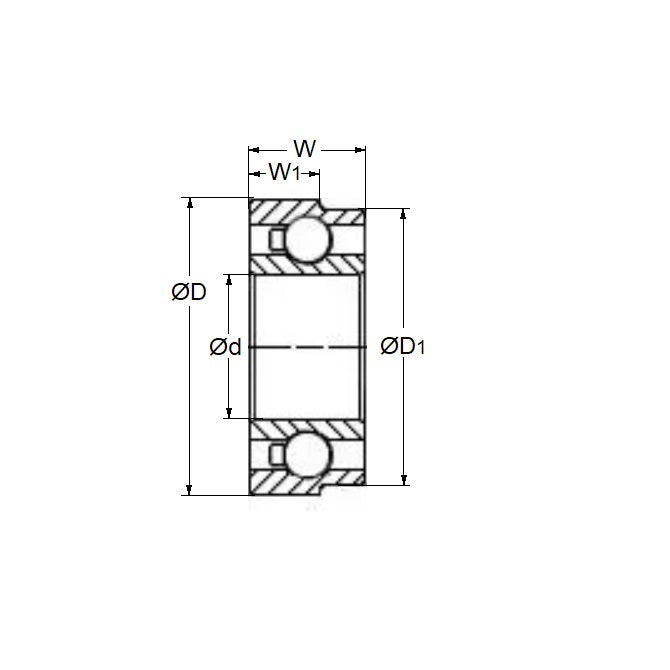

• OD (D): 6.350 / 5.979mm
  _{+ 0.000 / - 0.005
  (6.350 / 5.979mm is 0.25 in.)}

• Width (B): 2.779mm
  _{+ 0.000 / - 0.040
  (2.779mm is 0.109 in.)}

• Precision Grade: Abec 7 - Optimyn Dental Bearing
• Closure Type: ZS
• Bearing Type: D105 Dental Special
• Lubricant: Oil - Standard
• Additional Information: Outer ring is stepped from 6.35mm to 5.979mm

Brand: Myonic
Country of Origin: DE

Product Compliance and Data

• Full Data Sheet
• RoHs Statement
• Reach Statement
• CoC Information

Similar to

• OPTIMYN-418-WI-S-PAI
• OPTIMYN418WISPAI
• SG1294X1a237TO
• SG1294X.1a-237TO
• SSG1294X1a237TO
• SSG1294X.1a-237TO

Used for

• Dental Handpiece Parts
• Kavo - 614A - 624 - 625C - 625D - 627 - 630 - 640 FG - Bearings
• Kavo - 625B SuperTorque - Bearings
• Kavo - 630B - 630C PB SuperTorque - Bearings
• Kavo - 632D - 632E - Bearings
• Kavo - 639A Friction Grip - Bearings
• Kavo - 639B - 639C Push Button - Bearings
• Kavo - 642A FG - Bearings
• Kavo - 642B - 642C PB BellaTorque - Bearings
• MTI - Lynx - Bearings
• Siemens - TS1 / TS2 - Bearings

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
