SR144A-D105-ZS-OPT - Datasheet

Myonic

Dental Applications Bearings. This listing shows the basic features of various bearings for dental applications.

Bearings used in high-speed and low-speed dental handpieces play a crucial role in the performance and reliability of these dental tools.
The purpose of bearings in dental handpieces varies depending on the speed requirements and operational characteristics of the handpiece.
Key features of dental equipment bearings are high precision allowing for high speed rotaion, low friction and quiet operation. An expanded range may be available on special order. Please enquire.
Please contact us for a dental application list.

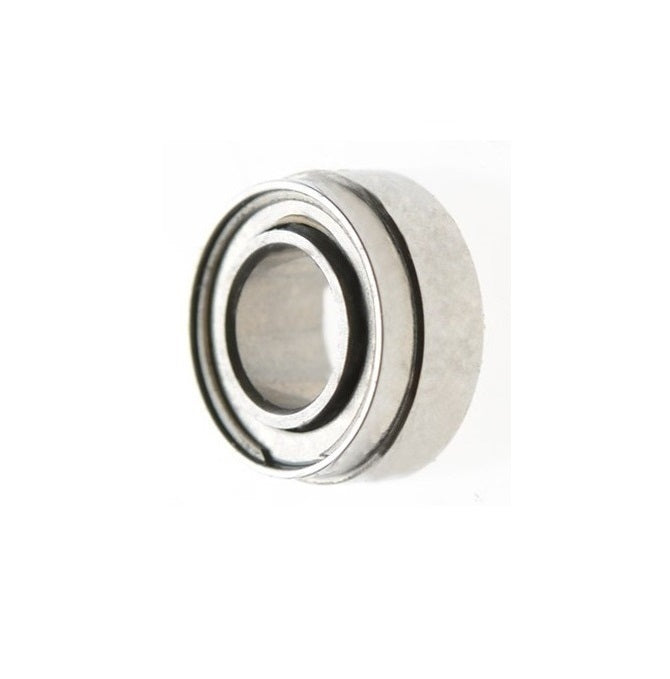

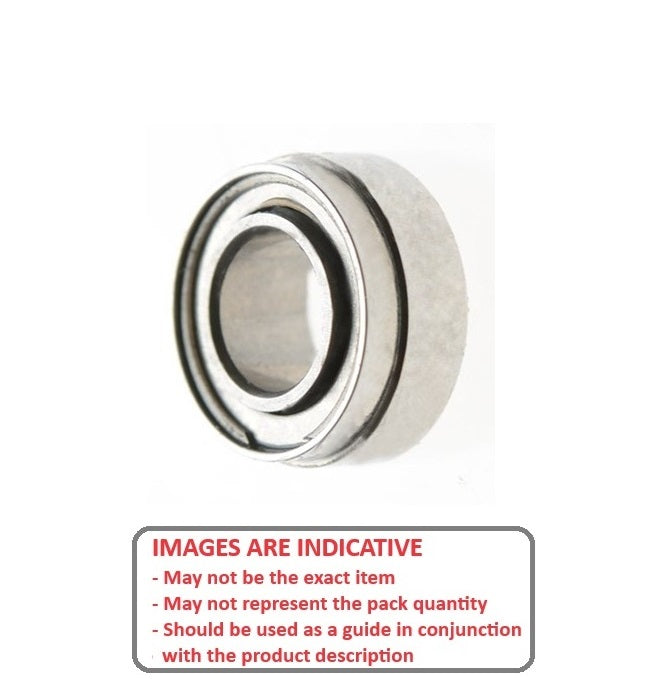

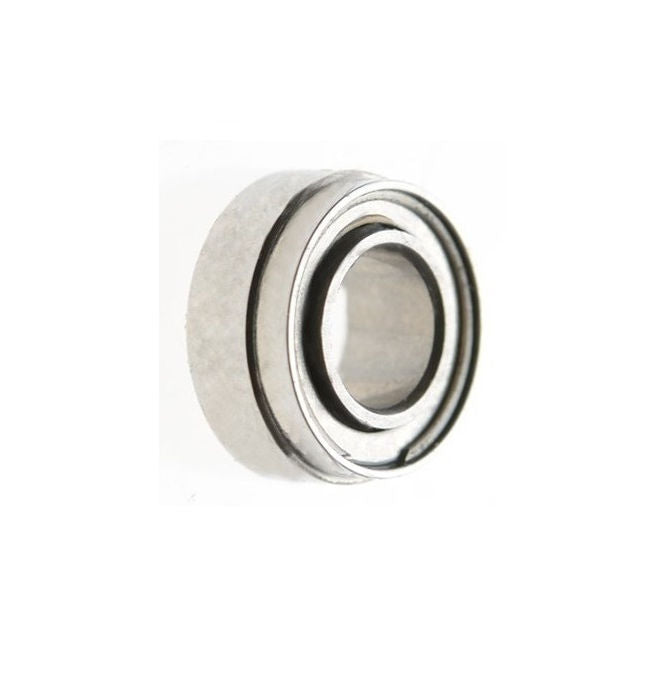

Stepped OD angular contact with ceramic balls and polyamide cage for precision dental handpieces

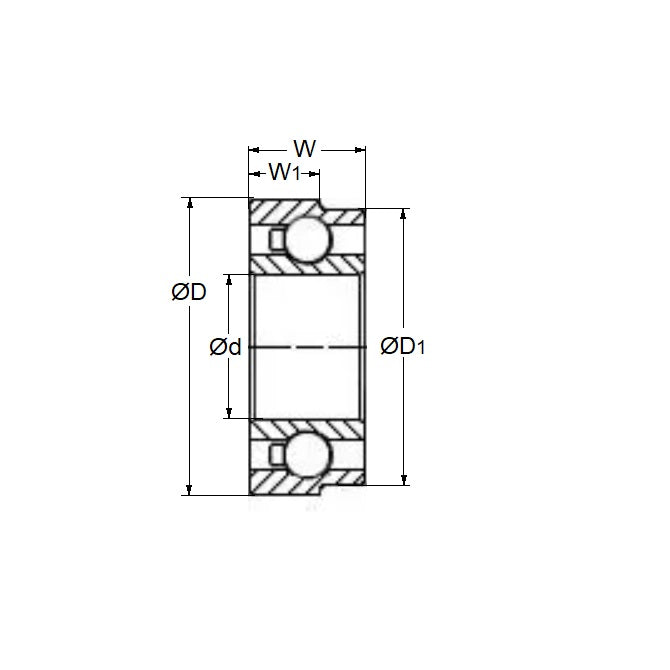

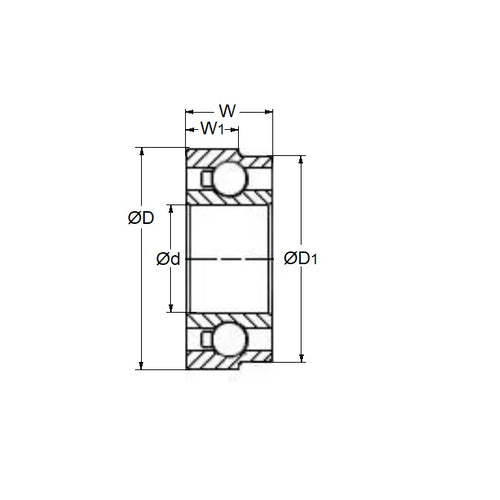

ID (d) : 3.175 mm _{+ 0.000 / - 0.004}
(Equiv. 0.125 in.)
OD (D) 6.350 mm _{+ 0.000 / - 0.005}
(Equiv. 0.25 in.)
Width (B) 2.779 mm _{+ 0.000 / - 0.040}
(Equiv. 0.109 in.)
Precision Grade Abec 7 - Optimyn Dental Bearing
Closure Type ZS
Bearing Type D105 Dental Special
Lubricant Oil - Standard
Additional Information Outer ring is stepped from 6.35mm to 5.979mm
Material Stainless Steel AISI 440C - High Speed Torlon Retainer - Dental Special

Country of Origin: DE
