RCL-030-073-ZD (PK-2)
Double Coil R Clips - 3x73 mm - Zinc Plated Clip
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleAssortment Kits
Split Pins
Order 50 or more packs of 2 (100 pcs)
for $7.97 AUD per 2 pack
Couldn't load pickup availability

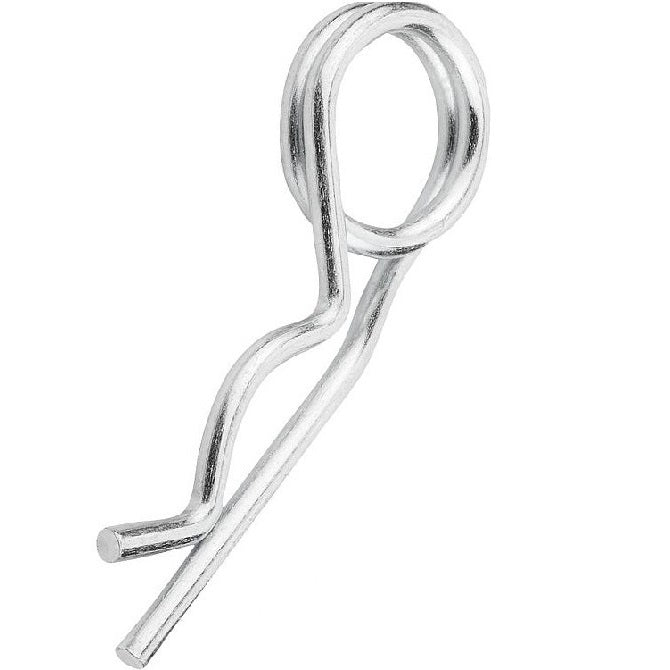

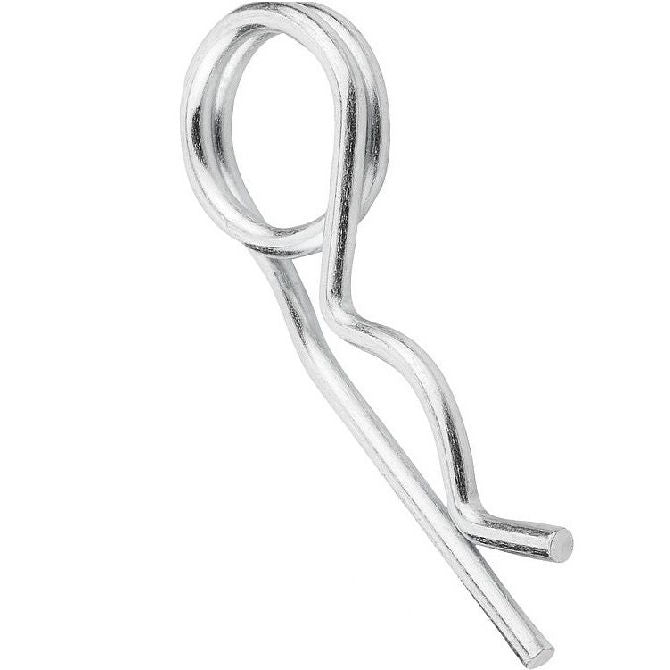

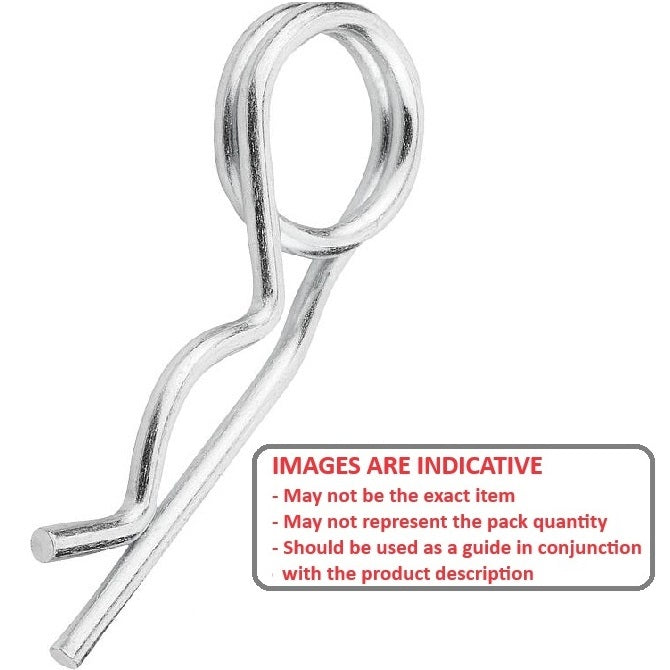

3x73 mm - Zinc Plated Double Coil R Clips - Carbon Spring Steel Zinc Plated - Sold per pack of 2:
Base Category: R Clips - Double Coil
Top Level Category: R Clips - Double Coil - Steel
Product Details

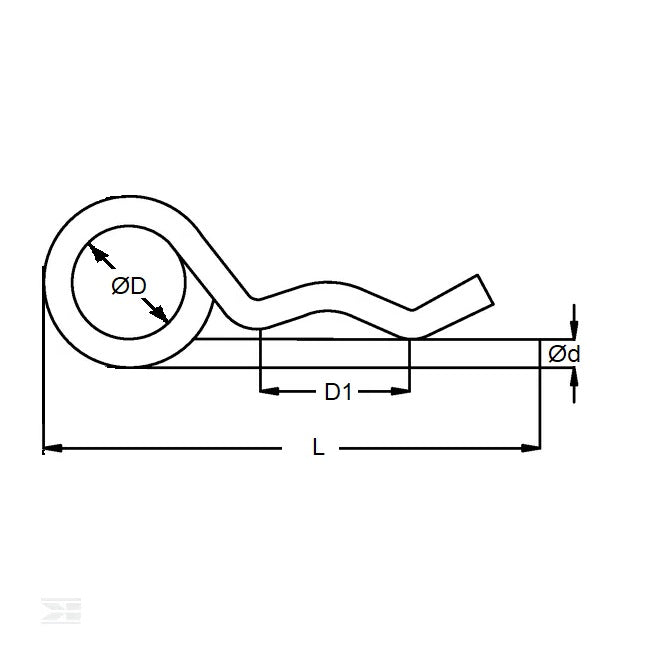

Wire Thickness (d): 3.00mm(3.00mm is 0.118 in.)
Carbon Spring Steel Zinc Plated
- Wire Thickness (d): 3.00mm
(3.00mm is 0.118 in.)
- Length (L): 73.0mm
(73.0mm is 2.874 in.)
- Material: Zinc Plated
- Drill Hole Size: 3.50mm
- Approx.Inside Eye (D): 16.00 to 18.00mm
- Shaft Size Range: 14.00 to 20.00mm
- Approx. Bridge Length (D1): 26mm
Brand: MBA
Country of Origin: GB
Product Compliance and Data
Similar to
- ALTPART
- 98335A770
- RPD362
- RPD3-62
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
RCL030073ZD, RCL030
