RCL-030-073-ZD - Datasheet
MBA
Category Information

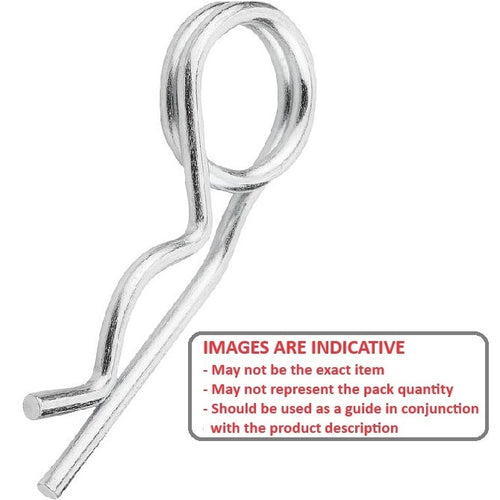

R Clips - Double Coil - SteelSteel Double Coil R Clips. Also known as internal hitch pins, bridge pins or humpback pins
- Material: Spring Wire
Product Data

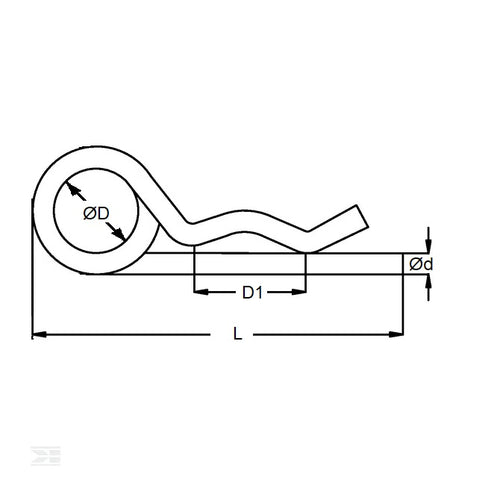

- Wire Thickness (d)
:
3.00
mm
(Equiv. 0.118 in.) - Length (L)
73.0
mm
(Equiv. 2.874 in.) - Material Zinc Plated
- Drill Hole Size 3.50 mm
- Inside Eye Diameter (D) 16.00 mm
- Shaft Size Range 14.00 to 20.00 mm
- Approx. Bridge Length (D1) 26 mm
- Material Carbon Spring Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- 98335A770
- RPD3-62
- RPD362
