MR52-MC3-AF12 (Each)
Single Row Ball Bearings - 2x5x2 mm Unflanged - Chrome Steel SAE 52100 Bearing
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Tolerances
Standard Bearings PDF Catalogue
Shafting
Order 50 or more
for $3.31 AUD Each
Couldn't load pickup availability
2x5x2 mm Single Row Ball Bearings - Chrome Steel SAE 52100 - Sold per Each:
Base Category: Bearings - Single Row Ball
Top Level Category: Bearings - Single Row Ball - Unflanged - Precision - Chrome Steel
Product Details

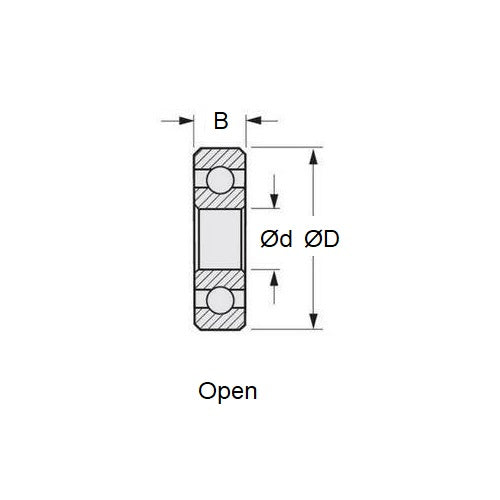

ID (d): 2.000mm+ 0.000 / - 0.0075
(2.000mm is 0.079 in.)
Chrome Steel SAE 52100
- ID (d): 2.000mm
+ 0.000 / - 0.0075
(2.000mm is 0.079 in.)
- O.D. (D): 5.000mm
+ 0.000 / - 0.0075
(5.000mm is 0.197 in.)
- Width (B): 2.000mm
+ 0.000 / - 0.125
(2.000mm is 0.079 in.)
- Precision Grade: Abec 1
- Closure Type: Open
- Bearing Type: Radial
Brand: MBA
Country of Origin: JP
Product Compliance and Data
Similar to
- Nachi® 2M05
- NTN® BC2-5
- BSC OB11
- BC25
- L520W02
- MR52
- MR52BASIC
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
MR52MC3AF12, MR52
