CCE-02900H-C (PK-5)

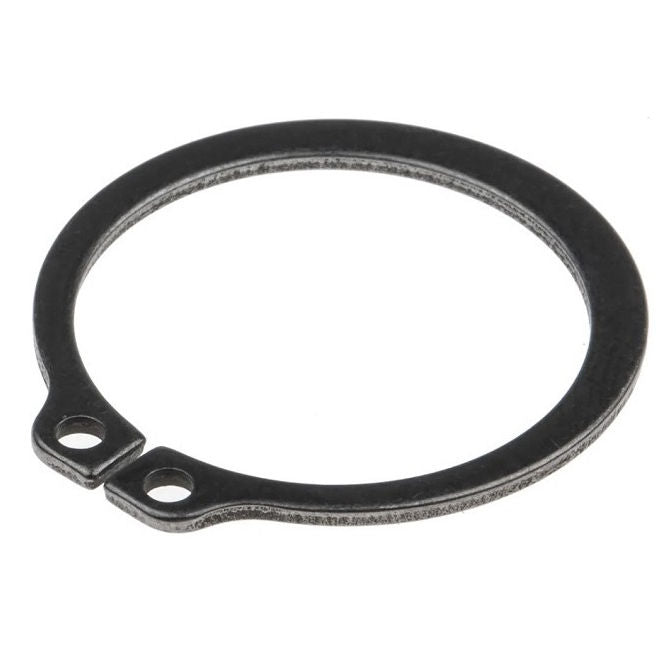

External Retaining Rings - 29x2x27.6 mm Circlips - Carbon Steel Circlip
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Order 50 or more packs of 5 (250 pcs)
for $6.35 AUD per 5 pack
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Product Details
Shaft Diameter (Ds): 29.00mm(29.00mm is 1.142 in.)
Carbon Steel
- Shaft Diameter (Ds): 29.00mm
(29.00mm is 1.142 in.)
- Clip Thickness (T): 2.00mm
+ 0.00 / - 0.07
(2.00mm is 0.079 in.)
- Groove Dia. (Dg): 27.60mm
+ 0.00 / - 0.21
(27.60mm is 1.087 in.)
- Approx. Loose Circlip ID (A): 26.90mm
- Groove Width (W): 2.15mm
- Clearance on Shaft (C1): 42.50mm
- Clearance in Groove (C1): 40.60mm
- Min. Lug Diameter (h): 2.00mm
- Min. Extension (n): 2.10
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 90030A115
- Seeger® AS-029
- Seeger® AS29X2
- Bossard® BN821-029
- Ellison® EXT-029
- BN821029
- D1460-0290
- D14600290
- EXT029
- AS029
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CCE02900HC, CCE02900H
