CCE-02800-C-V (PK-250)

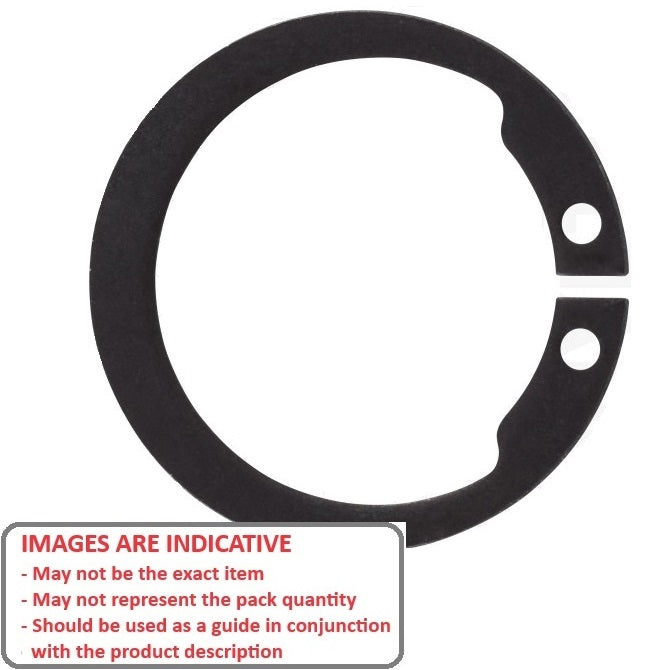

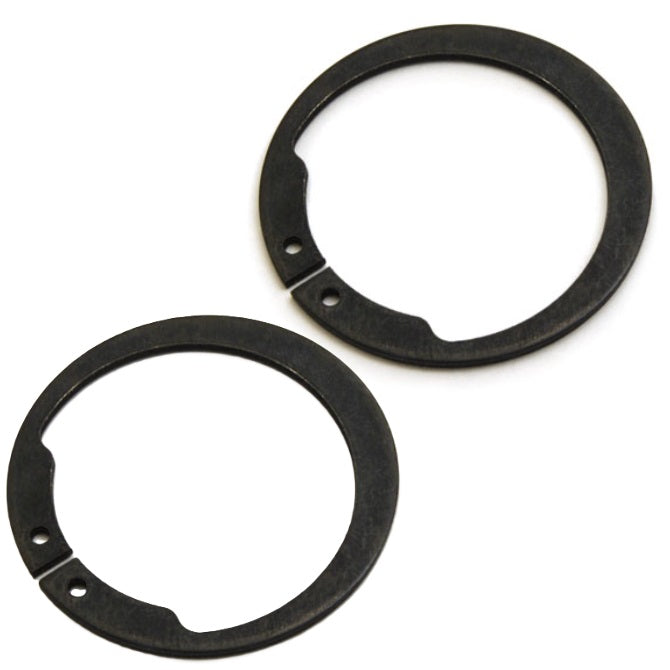

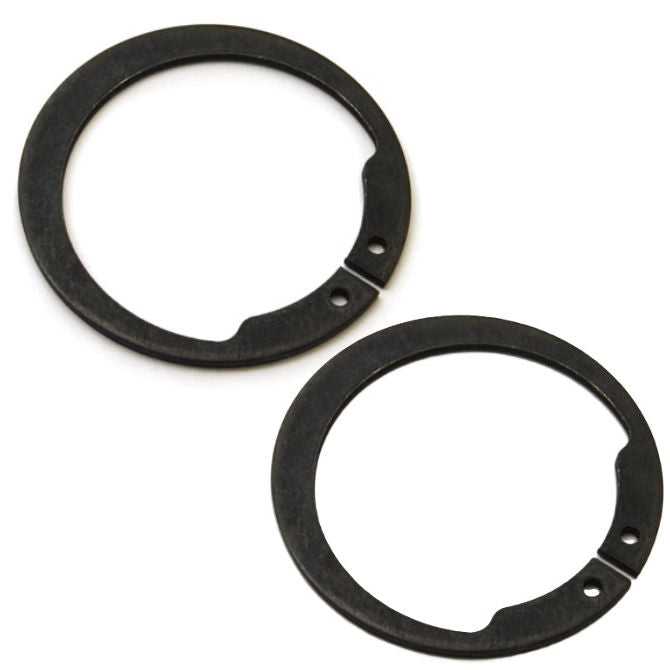

External Retaining Rings - 28x1.5x26.6 mm Circlips - Carbon Steel Circlip
ENQUIRE
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Circlips - Inverted
Product Details

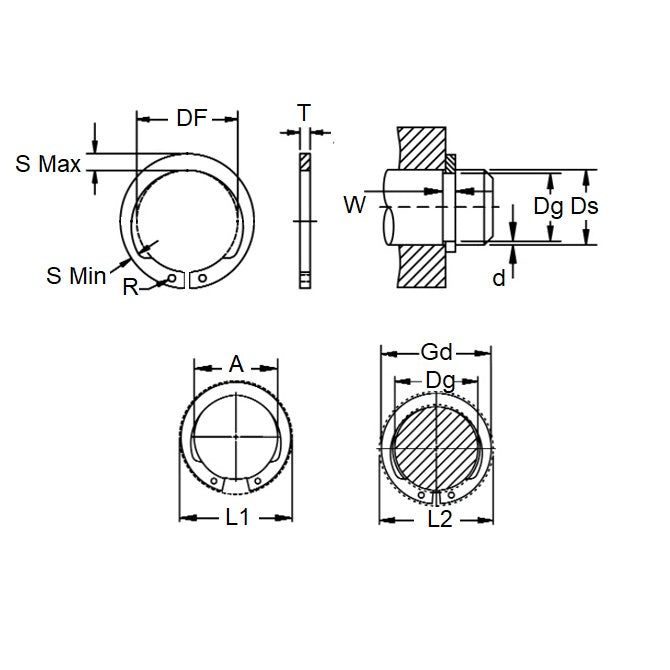

Shaft Diameter (Ds): 28.00mm(28.00mm is 1.102 in.)
Carbon Steel
- Shaft Diameter (Ds): 28.00mm
(28.00mm is 1.102 in.)
- Clip Thickness (T): 1.50mm
+ 0.00 / - 0.06
(1.50mm is 0.059 in.)
- Groove Dia. (Dg): 26.60mm
+ 0.00 / - 0.21
(26.60mm is 1.047 in.)
- Approx. Loose Circlip ID (A): 25.90mm
- Radial Wall (S) Approx.: 3.80mm
- Groove Width (W): 1.60mm
- Tool: PRS-E018
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Huyett® DSHI-028
- NoCor® DSHI-028
- M14080280
- M1408-0280
- DSHI028
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CCE02800CV, CCE02800
