Collection: Retaining Rings - External - Circlips - Inverted

Retaining Rings -> External -> Circlips -> Inverted

There are 65 products in the sub-categories of Retaining Rings - External - Circlips - Inverted. Scroll down or follow the link to Retaining Rings - External - Circlips - Inverted in the products table to see all these items combined into a handy table with filters.

Category Details

A selection of Inverted Circlips External Retaining Rings. N1408 / SHI / 16626 / 4100 / 5108 - Spring Steel and Stainless Steel. Retaining rings. Snap Rings (USA).

An expanded range may be available on special order. Please enquire.

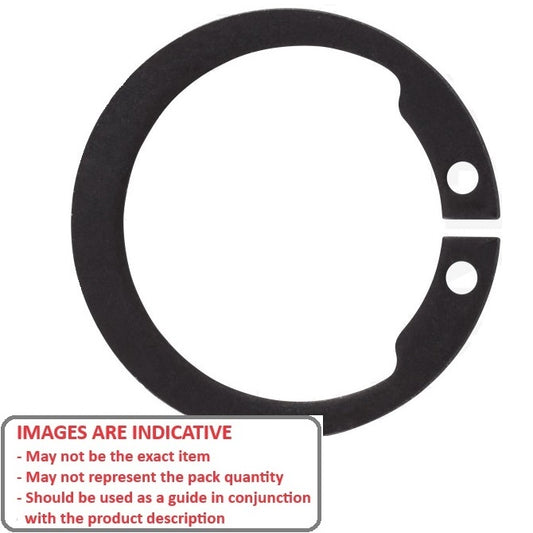

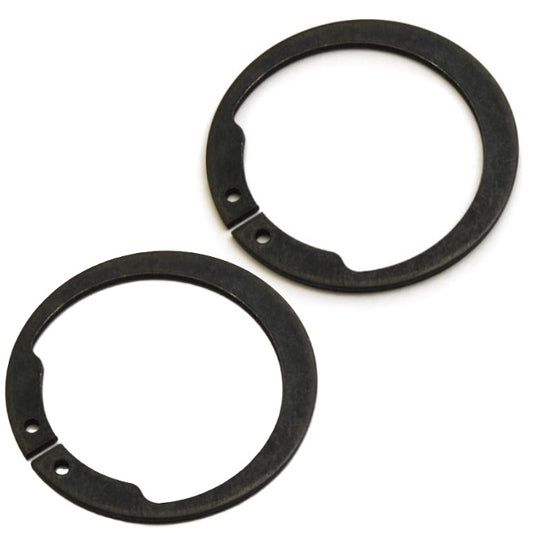

Tapered section ring with lugs inverted on the ID to allow use in tight areas with minimal clearance.
Less thrust load than standard circlips.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Retaining Rings - External - Circlips - Inverted category on the Small Parts & Bearings online store.

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S) Approx.	Groove Width (W)
Shaft Diameter (Ds) 10.00 mm (Equiv. 0.394 in.)	Clip Thickness (T) 0.60 mm _{+ 0.00 / - 0.11} (Equiv. 0.024 in.)	Groove Dia. (Dg) 9.50 mm _{+ 0.00 / - 0.05} (Equiv. 0.374 in.)	Approx. Loose Circlip ID (A) 9.20 mm	Radial Wall (S) Approx. 1.80 mm	Groove Width (W) 0.70 mm
Material: Carbon Spring Steel Tool: PRS-E009
Part Number: CCE-01000-C-V External Retaining Rings - 10x0.6x9.5 mm Circlips - Carbon Spring Steel Circlip Contact Us \| Special Order Only - Please contact us if you need a large quantity
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
Shaft Diameter (Ds) 10.00 mm (Equiv. 0.394 in.)	Clip Thickness (T) 0.60 mm _{+ 0.00 / - 0.11} (Equiv. 0.024 in.)	Groove Dia. (Dg) 9.50 mm _{+ 0.00 / - 0.05} (Equiv. 0.374 in.)	Approx. Loose Circlip ID (A) 9.20 mm
Material: Carbon Spring Steel Radial Wall (S) Approx.: 1.80 mm Groove Width (W): 0.70 mm Tool: PRS-E009
Part Number: CCE-01000-C-V External Retaining Rings - 10x0.6x9.5 mm Circlips - Carbon Spring Steel Circlip Contact Us \| Special Order Only - Please contact us if you need a large quantity \| Orders can be expected around Sat, Jul 22, 2028
Shaft Diameter (Ds) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.051} (Equiv. 0.035 in.)	Groove Dia. (Dg) 11.89 mm _{+/- 0.051} (Equiv. 0.468 in.)	Approx. Loose Circlip ID (A) 11.71 mm	Radial Wall (S) Approx. 1.04 mm	Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Carbon Steel Tool: PRS-E038 Additional stock available from USA subject to Prior Sale = 6175
Part Number: CCE-01270-C-V (10 Pcs) External Retaining Rings - 12.7x0.89x11.89 mm Circlips - Carbon Steel Circlip 97 units (970 pcs) Available Now \| Further orders can be expected around Mon, Nov 24, 2025 Regular price $6.77 AUD Regular price Sale price $6.77 AUD Unit price per 10 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required 97 units (970 pcs) Available Now. Backorder if more than 97.
Shaft Diameter (Ds) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.051} (Equiv. 0.035 in.)	Groove Dia. (Dg) 11.89 mm _{+/- 0.051} (Equiv. 0.468 in.)	Approx. Loose Circlip ID (A) 11.71 mm
Material: Carbon Steel Radial Wall (S) Approx.: 1.04 mm Groove Width (W): 0.99 mm + 0.08 / - 0.00 Tool: PRS-E038 Additional stock available from USA subject to Prior Sale = 6175
Part Number: CCE-01270-C-V (10 Pcs) External Retaining Rings - 12.7x0.89x11.89 mm Circlips - Carbon Steel Circlip 97 units (970 pcs) Available Now \| Further orders can be expected around Mon, Nov 24, 2025 Regular price $6.77 AUD Regular price Sale price $6.77 AUD Unit price per 10 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required 97 units (970 pcs) Available Now. Backorder if more than 97.
CCE-01270-C-V (10 Pcs) --- External Retaining Rings - 12.7x0.89x11.89 mm Circlips - Carbon Steel Circlip CCE-01270-C-V (10 Pcs) --- External Retaining Rings - 12.7x0.89x11.89 mm Circlips - Carbon Steel Circlip Regular price $6.77 AUD Regular price Sale price $6.77 AUD Unit price per 10 Per Sell Unit Excludes GST and overseas Taxes & Duties 97 Available Now
Shaft Diameter (Ds) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.051} (Equiv. 0.035 in.)	Groove Dia. (Dg) 11.89 mm _{+/- 0.051} (Equiv. 0.468 in.)	Approx. Loose Circlip ID (A) 11.71 mm	Radial Wall (S) Approx. 1.04 mm	Groove Width (W) 0.99 mm + 0.08 / - 0.00

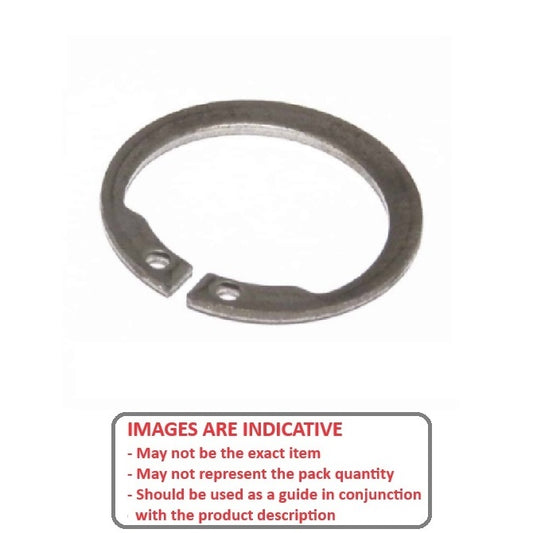

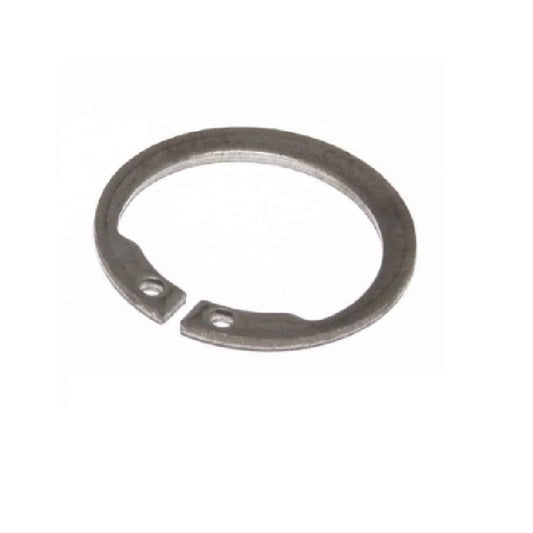

Material: Stainless Steel Grade PH15-7 Mo Tool: PRS-E038 Additional stock available from USA subject to Prior Sale = 1262
Part Number: CCE-01270-S15-V (4 Pcs) External Retaining Rings - 12.7x0.89x11.89 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $13.59 AUD Regular price ~~$30.94 AUD~~ Sale price $13.59 AUD Unit price per 4 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.051} (Equiv. 0.035 in.)	Groove Dia. (Dg) 11.89 mm _{+/- 0.051} (Equiv. 0.468 in.)	Approx. Loose Circlip ID (A) 11.71 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) Approx.: 1.04 mm Groove Width (W): 0.99 mm + 0.08 / - 0.00 Tool: PRS-E038 Additional stock available from USA subject to Prior Sale = 1262
Part Number: CCE-01270-S15-V (4 Pcs) External Retaining Rings - 12.7x0.89x11.89 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $13.59 AUD Regular price ~~$30.94 AUD~~ Sale price $13.59 AUD Unit price per 4 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCE-01270-S15-V (4 Pcs) --- External Retaining Rings - 12.7x0.89x11.89 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-01270-S15-V (4 Pcs) --- External Retaining Rings - 12.7x0.89x11.89 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $13.59 AUD Regular price ~~$30.94 AUD~~ Sale price $13.59 AUD Unit price per 4 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 14.29 mm (Equiv. 0.563 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.051} (Equiv. 0.035 in.)	Groove Dia. (Dg) 13.46 mm _{+/- 0.051} (Equiv. 0.53 in.)	Approx. Loose Circlip ID (A) 13.23 mm	Radial Wall (S) Approx. 1.09 mm	Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Carbon Steel Tool: PRS-E038 Additional stock available from USA subject to Prior Sale = 6322
Part Number: CCE-01429-C-V (50 Pcs) External Retaining Rings - 14.29x0.89x13.46 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $22.50 AUD Regular price ~~$52.60 AUD~~ Sale price $22.50 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 14.29 mm (Equiv. 0.563 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.051} (Equiv. 0.035 in.)	Groove Dia. (Dg) 13.46 mm _{+/- 0.051} (Equiv. 0.53 in.)	Approx. Loose Circlip ID (A) 13.23 mm
Material: Carbon Steel Radial Wall (S) Approx.: 1.09 mm Groove Width (W): 0.99 mm + 0.08 / - 0.00 Tool: PRS-E038 Additional stock available from USA subject to Prior Sale = 6322
Part Number: CCE-01429-C-V (50 Pcs) External Retaining Rings - 14.29x0.89x13.46 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $22.50 AUD Regular price ~~$52.60 AUD~~ Sale price $22.50 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCE-01429-C-V (50 Pcs) --- External Retaining Rings - 14.29x0.89x13.46 mm Circlips - Carbon Steel Circlip Sale CCE-01429-C-V (50 Pcs) --- External Retaining Rings - 14.29x0.89x13.46 mm Circlips - Carbon Steel Circlip Regular price $22.50 AUD Regular price ~~$52.60 AUD~~ Sale price $22.50 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 15.00 mm (Equiv. 0.591 in.)	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.11} (Equiv. 0.039 in.)	Groove Dia. (Dg) 14.30 mm _{+ 0.00 / - 0.06} (Equiv. 0.563 in.)	Approx. Loose Circlip ID (A) 13.80 mm	Radial Wall (S) Approx. 1.00 mm	Groove Width (W) 1.10 mm
Material: Carbon Steel Tool: PRS-E009 Additional stock available from USA subject to Prior Sale = 206
Part Number: CCE-01500-C-V (100 Pcs) External Retaining Rings - 15x1x14.3 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $32.95 AUD Regular price ~~$77.20 AUD~~ Sale price $32.95 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 15.00 mm (Equiv. 0.591 in.)	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.11} (Equiv. 0.039 in.)	Groove Dia. (Dg) 14.30 mm _{+ 0.00 / - 0.06} (Equiv. 0.563 in.)	Approx. Loose Circlip ID (A) 13.80 mm
Material: Carbon Steel Radial Wall (S) Approx.: 1.00 mm Groove Width (W): 1.10 mm Tool: PRS-E009 Additional stock available from USA subject to Prior Sale = 206
Part Number: CCE-01500-C-V (100 Pcs) External Retaining Rings - 15x1x14.3 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $32.95 AUD Regular price ~~$77.20 AUD~~ Sale price $32.95 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCE-01500-C-V (100 Pcs) --- External Retaining Rings - 15x1x14.3 mm Circlips - Carbon Steel Circlip Sale CCE-01500-C-V (100 Pcs) --- External Retaining Rings - 15x1x14.3 mm Circlips - Carbon Steel Circlip Regular price $32.95 AUD Regular price ~~$77.20 AUD~~ Sale price $32.95 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 15.09 mm (Equiv. 0.594 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.076} (Equiv. 0.035 in.)	Groove Dia. (Dg) 14.20 mm _{+/- 0.051} (Equiv. 0.559 in.)	Approx. Loose Circlip ID (A) 13.97 mm	Radial Wall (S) Approx. 1.17 mm	Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Carbon Steel Tool: PRS-E038 Additional stock available from USA subject to Prior Sale = 300
Part Number: CCE-01509-C-V (50 Pcs) External Retaining Rings - 15.09x0.89x14.2 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $26.32 AUD Regular price ~~$61.60 AUD~~ Sale price $26.32 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 15.09 mm (Equiv. 0.594 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.076} (Equiv. 0.035 in.)	Groove Dia. (Dg) 14.20 mm _{+/- 0.051} (Equiv. 0.559 in.)	Approx. Loose Circlip ID (A) 13.97 mm
Material: Carbon Steel Radial Wall (S) Approx.: 1.17 mm Groove Width (W): 0.99 mm + 0.08 / - 0.00 Tool: PRS-E038 Additional stock available from USA subject to Prior Sale = 300
Part Number: CCE-01509-C-V (50 Pcs) External Retaining Rings - 15.09x0.89x14.2 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $26.32 AUD Regular price ~~$61.60 AUD~~ Sale price $26.32 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCE-01509-C-V (50 Pcs) --- External Retaining Rings - 15.09x0.89x14.2 mm Circlips - Carbon Steel Circlip Sale CCE-01509-C-V (50 Pcs) --- External Retaining Rings - 15.09x0.89x14.2 mm Circlips - Carbon Steel Circlip Regular price $26.32 AUD Regular price ~~$61.60 AUD~~ Sale price $26.32 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 15.88 mm (Equiv. 0.625 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.076} (Equiv. 0.042 in.)	Groove Dia. (Dg) 14.94 mm _{+/- 0.051} (Equiv. 0.588 in.)	Approx. Loose Circlip ID (A) 14.71 mm	Radial Wall (S) Approx. 1.22 mm	Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Carbon Steel Additional stock available from USA subject to Prior Sale = 2549
Part Number: CCE-01588-C-V (100 Pcs) External Retaining Rings - 15.88x1.07x14.94 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $40.23 AUD Regular price ~~$94.40 AUD~~ Sale price $40.23 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 15.88 mm (Equiv. 0.625 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.076} (Equiv. 0.042 in.)	Groove Dia. (Dg) 14.94 mm _{+/- 0.051} (Equiv. 0.588 in.)	Approx. Loose Circlip ID (A) 14.71 mm
Material: Carbon Steel Radial Wall (S) Approx.: 1.22 mm Groove Width (W): 0.99 mm + 0.08 / - 0.00 Additional stock available from USA subject to Prior Sale = 2549
Part Number: CCE-01588-C-V (100 Pcs) External Retaining Rings - 15.88x1.07x14.94 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $40.23 AUD Regular price ~~$94.40 AUD~~ Sale price $40.23 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCE-01588-C-V (100 Pcs) --- External Retaining Rings - 15.88x1.07x14.94 mm Circlips - Carbon Steel Circlip Sale CCE-01588-C-V (100 Pcs) --- External Retaining Rings - 15.88x1.07x14.94 mm Circlips - Carbon Steel Circlip Regular price $40.23 AUD Regular price ~~$94.40 AUD~~ Sale price $40.23 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 16.00 mm (Equiv. 0.63 in.)	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.11} (Equiv. 0.039 in.)	Groove Dia. (Dg) 15.20 mm _{+ 0.00 / - 0.06} (Equiv. 0.598 in.)	Approx. Loose Circlip ID (A) 14.70 mm	Radial Wall (S) Approx. 2.30 mm	Groove Width (W) 1.10 mm
Material: Carbon Steel Tool: PRS-E009 Additional stock available from USA subject to Prior Sale = 3582
Part Number: CCE-01600-C-V (10 Pcs) External Retaining Rings - 16x1x15.2 mm Circlips - Carbon Steel Circlip 40 units (400 pcs) Available Now \| Further orders can be expected around Mon, Nov 24, 2025 Regular price $8.77 AUD Regular price Sale price $8.77 AUD Unit price per 10 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required 40 units (400 pcs) Available Now. Backorder if more than 40.
Shaft Diameter (Ds) 16.00 mm (Equiv. 0.63 in.)	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.11} (Equiv. 0.039 in.)	Groove Dia. (Dg) 15.20 mm _{+ 0.00 / - 0.06} (Equiv. 0.598 in.)	Approx. Loose Circlip ID (A) 14.70 mm
Material: Carbon Steel Radial Wall (S) Approx.: 2.30 mm Groove Width (W): 1.10 mm Tool: PRS-E009 Additional stock available from USA subject to Prior Sale = 3582
Part Number: CCE-01600-C-V (10 Pcs) External Retaining Rings - 16x1x15.2 mm Circlips - Carbon Steel Circlip 40 units (400 pcs) Available Now \| Further orders can be expected around Mon, Nov 24, 2025 Regular price $8.77 AUD Regular price Sale price $8.77 AUD Unit price per 10 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required 40 units (400 pcs) Available Now. Backorder if more than 40.
CCE-01600-C-V (10 Pcs) --- External Retaining Rings - 16x1x15.2 mm Circlips - Carbon Steel Circlip CCE-01600-C-V (10 Pcs) --- External Retaining Rings - 16x1x15.2 mm Circlips - Carbon Steel Circlip Regular price $8.77 AUD Regular price Sale price $8.77 AUD Unit price per 10 Per Sell Unit Excludes GST and overseas Taxes & Duties 40 Available Now
Shaft Diameter (Ds) 17.00 mm (Equiv. 0.669 in.)	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.11} (Equiv. 0.039 in.)	Groove Dia. (Dg) 16.20 mm _{+ 0.00 / - 0.06} (Equiv. 0.638 in.)	Approx. Loose Circlip ID (A) 15.70 mm	Radial Wall (S) Approx. 2.40 mm	Groove Width (W) 1.10 mm
Material: Carbon Steel Tool: PRS-E009
Part Number: CCE-01700-C-V (5 Pcs) External Retaining Rings - 17x1x16.2 mm Circlips - Carbon Steel Circlip 61 units (305 pcs) Available Now \| Further orders can be expected around Sat, Jan 17, 2026 Regular price $1.41 AUD Regular price ~~$3.92 AUD~~ Sale price $1.41 AUD Unit price per 5 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required 61 units (305 pcs) Available Now. Backorder if more than 61.
Shaft Diameter (Ds) 17.00 mm (Equiv. 0.669 in.)	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.11} (Equiv. 0.039 in.)	Groove Dia. (Dg) 16.20 mm _{+ 0.00 / - 0.06} (Equiv. 0.638 in.)	Approx. Loose Circlip ID (A) 15.70 mm
Material: Carbon Steel Radial Wall (S) Approx.: 2.40 mm Groove Width (W): 1.10 mm Tool: PRS-E009
Part Number: CCE-01700-C-V (5 Pcs) External Retaining Rings - 17x1x16.2 mm Circlips - Carbon Steel Circlip 61 units (305 pcs) Available Now \| Further orders can be expected around Sat, Jan 17, 2026 Regular price $1.41 AUD Regular price ~~$3.92 AUD~~ Sale price $1.41 AUD Unit price per 5 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required 61 units (305 pcs) Available Now. Backorder if more than 61.
CCE-01700-C-V (5 Pcs) --- External Retaining Rings - 17x1x16.2 mm Circlips - Carbon Steel Circlip Sale CCE-01700-C-V (5 Pcs) --- External Retaining Rings - 17x1x16.2 mm Circlips - Carbon Steel Circlip Regular price $1.41 AUD Regular price ~~$3.92 AUD~~ Sale price $1.41 AUD Unit price per 5 Per Sell Unit Excludes GST and overseas Taxes & Duties 61 Available Now Sale
Shaft Diameter (Ds) 17.46 mm (Equiv. 0.687 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.076} (Equiv. 0.042 in.)	Groove Dia. (Dg) 16.41 mm _{+/- 0.051} (Equiv. 0.646 in.)	Approx. Loose Circlip ID (A) 16.13 mm	Radial Wall (S) Approx. 1.32 mm	Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Additional stock available from USA subject to Prior Sale = 971
Part Number: CCE-01746-S15-V (3 Pcs) External Retaining Rings - 17.46x1.07x16.41 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $9.59 AUD Regular price ~~$21.72 AUD~~ Sale price $9.59 AUD Unit price per 3 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 17.46 mm (Equiv. 0.687 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.076} (Equiv. 0.042 in.)	Groove Dia. (Dg) 16.41 mm _{+/- 0.051} (Equiv. 0.646 in.)	Approx. Loose Circlip ID (A) 16.13 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) Approx.: 1.32 mm Groove Width (W): 1.17 mm + 0.08 / - 0.00 Additional stock available from USA subject to Prior Sale = 971
Part Number: CCE-01746-S15-V (3 Pcs) External Retaining Rings - 17.46x1.07x16.41 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $9.59 AUD Regular price ~~$21.72 AUD~~ Sale price $9.59 AUD Unit price per 3 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCE-01746-S15-V (3 Pcs) --- External Retaining Rings - 17.46x1.07x16.41 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-01746-S15-V (3 Pcs) --- External Retaining Rings - 17.46x1.07x16.41 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $9.59 AUD Regular price ~~$21.72 AUD~~ Sale price $9.59 AUD Unit price per 3 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 19.05 mm (Equiv. 0.75 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.076} (Equiv. 0.042 in.)	Groove Dia. (Dg) 17.88 mm _{+/- 0.051} (Equiv. 0.704 in.)	Approx. Loose Circlip ID (A) 17.60 mm	Radial Wall (S) Approx. 1.42 mm	Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Carbon Steel Additional stock available from USA subject to Prior Sale = 677
Part Number: CCE-01905-C-V (50 Pcs) External Retaining Rings - 19.05x1.07x17.88 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Thu, Dec 04, 2025 Regular price $32.32 AUD Regular price ~~$75.80 AUD~~ Sale price $32.32 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 19.05 mm (Equiv. 0.75 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.076} (Equiv. 0.042 in.)	Groove Dia. (Dg) 17.88 mm _{+/- 0.051} (Equiv. 0.704 in.)	Approx. Loose Circlip ID (A) 17.60 mm
Material: Carbon Steel Radial Wall (S) Approx.: 1.42 mm Groove Width (W): 1.17 mm + 0.08 / - 0.00 Additional stock available from USA subject to Prior Sale = 677
Part Number: CCE-01905-C-V (50 Pcs) External Retaining Rings - 19.05x1.07x17.88 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Thu, Dec 04, 2025 Regular price $32.32 AUD Regular price ~~$75.80 AUD~~ Sale price $32.32 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCE-01905-C-V (50 Pcs) --- External Retaining Rings - 19.05x1.07x17.88 mm Circlips - Carbon Steel Circlip Sale CCE-01905-C-V (50 Pcs) --- External Retaining Rings - 19.05x1.07x17.88 mm Circlips - Carbon Steel Circlip Regular price $32.32 AUD Regular price ~~$75.80 AUD~~ Sale price $32.32 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 19.05 mm (Equiv. 0.75 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.076} (Equiv. 0.042 in.)	Groove Dia. (Dg) 17.88 mm _{+/- 0.051} (Equiv. 0.704 in.)	Approx. Loose Circlip ID (A) 17.60 mm	Radial Wall (S) Approx. 1.42 mm	Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Additional stock available from USA subject to Prior Sale = 1152
Part Number: CCE-01905-S15-V (3 Pcs) External Retaining Rings - 19.05x1.07x17.88 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $10.59 AUD Regular price ~~$23.95 AUD~~ Sale price $10.59 AUD Unit price per 3 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 19.05 mm (Equiv. 0.75 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.076} (Equiv. 0.042 in.)	Groove Dia. (Dg) 17.88 mm _{+/- 0.051} (Equiv. 0.704 in.)	Approx. Loose Circlip ID (A) 17.60 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) Approx.: 1.42 mm Groove Width (W): 1.17 mm + 0.08 / - 0.00 Additional stock available from USA subject to Prior Sale = 1152
Part Number: CCE-01905-S15-V (3 Pcs) External Retaining Rings - 19.05x1.07x17.88 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $10.59 AUD Regular price ~~$23.95 AUD~~ Sale price $10.59 AUD Unit price per 3 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCE-01905-S15-V (3 Pcs) --- External Retaining Rings - 19.05x1.07x17.88 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-01905-S15-V (3 Pcs) --- External Retaining Rings - 19.05x1.07x17.88 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $10.59 AUD Regular price ~~$23.95 AUD~~ Sale price $10.59 AUD Unit price per 3 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 19.84 mm (Equiv. 0.781 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.076} (Equiv. 0.042 in.)	Groove Dia. (Dg) 18.62 mm _{+/- 0.051} (Equiv. 0.733 in.)	Approx. Loose Circlip ID (A) 18.34 mm	Radial Wall (S) Approx. 1.45 mm	Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Carbon Steel Tool: PRS-E038 Additional stock available from USA subject to Prior Sale = 1402
Part Number: CCE-01984-C-V (2 Pcs) External Retaining Rings - 19.84x1.07x18.62 mm Circlips - Carbon Steel Circlip 671 units (1342 pcs) Available Now \| Further orders can be expected around Mon, Nov 24, 2025 Regular price $4.14 AUD Regular price Sale price $4.14 AUD Unit price per 2 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required 671 units (1342 pcs) Available Now. Backorder if more than 671.
Shaft Diameter (Ds) 19.84 mm (Equiv. 0.781 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.076} (Equiv. 0.042 in.)	Groove Dia. (Dg) 18.62 mm _{+/- 0.051} (Equiv. 0.733 in.)	Approx. Loose Circlip ID (A) 18.34 mm
Material: Carbon Steel Radial Wall (S) Approx.: 1.45 mm Groove Width (W): 1.17 mm + 0.08 / - 0.00 Tool: PRS-E038 Additional stock available from USA subject to Prior Sale = 1402
Part Number: CCE-01984-C-V (2 Pcs) External Retaining Rings - 19.84x1.07x18.62 mm Circlips - Carbon Steel Circlip 671 units (1342 pcs) Available Now \| Further orders can be expected around Mon, Nov 24, 2025 Regular price $4.14 AUD Regular price Sale price $4.14 AUD Unit price per 2 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required 671 units (1342 pcs) Available Now. Backorder if more than 671.
CCE-01984-C-V (2 Pcs) --- External Retaining Rings - 19.84x1.07x18.62 mm Circlips - Carbon Steel Circlip CCE-01984-C-V (2 Pcs) --- External Retaining Rings - 19.84x1.07x18.62 mm Circlips - Carbon Steel Circlip Regular price $4.14 AUD Regular price Sale price $4.14 AUD Unit price per 2 Per Sell Unit Excludes GST and overseas Taxes & Duties 671 Available Now
Shaft Diameter (Ds) 20.00 mm (Equiv. 0.787 in.)	Clip Thickness (T) 1.20 mm _{+ 0.00 / - 0.15} (Equiv. 0.047 in.)	Groove Dia. (Dg) 19.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.748 in.)	Approx. Loose Circlip ID (A) 18.50 mm	Radial Wall (S) Approx. 2.80 mm	Groove Width (W) 1.30 mm
Material: Carbon Steel Tool: PRS-E013
Part Number: CCE-02000-C-V (500 Pcs) External Retaining Rings - 20x1.2x19 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jan 24, 2026 Regular price $254.23 AUD Regular price ~~$598.00 AUD~~ Sale price $254.23 AUD Unit price per 500 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 20.00 mm (Equiv. 0.787 in.)	Clip Thickness (T) 1.20 mm _{+ 0.00 / - 0.15} (Equiv. 0.047 in.)	Groove Dia. (Dg) 19.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.748 in.)	Approx. Loose Circlip ID (A) 18.50 mm
Material: Carbon Steel Radial Wall (S) Approx.: 2.80 mm Groove Width (W): 1.30 mm Tool: PRS-E013
Part Number: CCE-02000-C-V (500 Pcs) External Retaining Rings - 20x1.2x19 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jan 24, 2026 Regular price $254.23 AUD Regular price ~~$598.00 AUD~~ Sale price $254.23 AUD Unit price per 500 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCE-02000-C-V (500 Pcs) --- External Retaining Rings - 20x1.2x19 mm Circlips - Carbon Steel Circlip Sale CCE-02000-C-V (500 Pcs) --- External Retaining Rings - 20x1.2x19 mm Circlips - Carbon Steel Circlip Regular price $254.23 AUD Regular price ~~$598.00 AUD~~ Sale price $254.23 AUD Unit price per 500 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 20.64 mm (Equiv. 0.813 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.076} (Equiv. 0.042 in.)	Groove Dia. (Dg) 19.35 mm _{+/- 0.051} (Equiv. 0.762 in.)	Approx. Loose Circlip ID (A) 19.10 mm	Radial Wall (S) Approx. 1.52 mm	Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Carbon Steel Tool: PRS-E047 Additional stock available from USA subject to Prior Sale = 421
Part Number: CCE-02064-C-V (50 Pcs) External Retaining Rings - 20.64x1.07x19.35 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $31.14 AUD Regular price ~~$73.00 AUD~~ Sale price $31.14 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 20.64 mm (Equiv. 0.813 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.076} (Equiv. 0.042 in.)	Groove Dia. (Dg) 19.35 mm _{+/- 0.051} (Equiv. 0.762 in.)	Approx. Loose Circlip ID (A) 19.10 mm
Material: Carbon Steel Radial Wall (S) Approx.: 1.52 mm Groove Width (W): 1.17 mm + 0.08 / - 0.00 Tool: PRS-E047 Additional stock available from USA subject to Prior Sale = 421
Part Number: CCE-02064-C-V (50 Pcs) External Retaining Rings - 20.64x1.07x19.35 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $31.14 AUD Regular price ~~$73.00 AUD~~ Sale price $31.14 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCE-02064-C-V (50 Pcs) --- External Retaining Rings - 20.64x1.07x19.35 mm Circlips - Carbon Steel Circlip Sale CCE-02064-C-V (50 Pcs) --- External Retaining Rings - 20.64x1.07x19.35 mm Circlips - Carbon Steel Circlip Regular price $31.14 AUD Regular price ~~$73.00 AUD~~ Sale price $31.14 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 21.00 mm (Equiv. 0.827 in.)	Clip Thickness (T) 1.20 mm _{+ 0.00 / - 0.15} (Equiv. 0.047 in.)	Groove Dia. (Dg) 20.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.787 in.)	Approx. Loose Circlip ID (A) 19.35 mm	Radial Wall (S) Approx. 2.80 mm	Groove Width (W) 1.30 mm
Material: Carbon Spring Steel Tool: PRS-E013
Part Number: CCE-02100-C-V External Retaining Rings - 21x1.2x20 mm Circlips - Carbon Spring Steel Circlip Contact Us \| Special Order Only - Please contact us if you need a large quantity
Shaft Diameter (Ds) 21.00 mm (Equiv. 0.827 in.)	Clip Thickness (T) 1.20 mm _{+ 0.00 / - 0.15} (Equiv. 0.047 in.)	Groove Dia. (Dg) 20.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.787 in.)	Approx. Loose Circlip ID (A) 19.35 mm
Material: Carbon Spring Steel Radial Wall (S) Approx.: 2.80 mm Groove Width (W): 1.30 mm Tool: PRS-E013
Part Number: CCE-02100-C-V External Retaining Rings - 21x1.2x20 mm Circlips - Carbon Spring Steel Circlip Contact Us \| Special Order Only - Please contact us if you need a large quantity \| Orders can be expected around Sat, Jul 22, 2028
Shaft Diameter (Ds) 22.00 mm (Equiv. 0.866 in.)	Clip Thickness (T) 1.20 mm _{+ 0.00 / - 0.15} (Equiv. 0.047 in.)	Groove Dia. (Dg) 21.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.827 in.)	Approx. Loose Circlip ID (A) 20.50 mm	Radial Wall (S) Approx. 3.00 mm	Groove Width (W) 1.30 mm
Material: Carbon Steel Tool: PRS-E013
Part Number: CCE-02200-C-V (500 Pcs) External Retaining Rings - 22x1.2x21 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Thu, Dec 18, 2025 Regular price $510.14 AUD Regular price ~~$1,200.00 AUD~~ Sale price $510.14 AUD Unit price per 500 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 22.00 mm (Equiv. 0.866 in.)	Clip Thickness (T) 1.20 mm _{+ 0.00 / - 0.15} (Equiv. 0.047 in.)	Groove Dia. (Dg) 21.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.827 in.)	Approx. Loose Circlip ID (A) 20.50 mm
Material: Carbon Steel Radial Wall (S) Approx.: 3.00 mm Groove Width (W): 1.30 mm Tool: PRS-E013
Part Number: CCE-02200-C-V (500 Pcs) External Retaining Rings - 22x1.2x21 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Thu, Dec 18, 2025 Regular price $510.14 AUD Regular price ~~$1,200.00 AUD~~ Sale price $510.14 AUD Unit price per 500 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCE-02200-C-V (500 Pcs) --- External Retaining Rings - 22x1.2x21 mm Circlips - Carbon Steel Circlip Sale CCE-02200-C-V (500 Pcs) --- External Retaining Rings - 22x1.2x21 mm Circlips - Carbon Steel Circlip Regular price $510.14 AUD Regular price ~~$1,200.00 AUD~~ Sale price $510.14 AUD Unit price per 500 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 22.23 mm (Equiv. 0.875 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.076} (Equiv. 0.042 in.)	Groove Dia. (Dg) 20.85 mm _{+/- 0.051} (Equiv. 0.821 in.)	Approx. Loose Circlip ID (A) 20.57 mm	Radial Wall (S) Approx. 1.63 mm	Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Additional stock available from USA subject to Prior Sale = 766
Part Number: CCE-02223-S15-V External Retaining Rings - 22.23x1.07x20.85 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $8.59 AUD Regular price ~~$18.01 AUD~~ Sale price $8.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 22.23 mm (Equiv. 0.875 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.076} (Equiv. 0.042 in.)	Groove Dia. (Dg) 20.85 mm _{+/- 0.051} (Equiv. 0.821 in.)	Approx. Loose Circlip ID (A) 20.57 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) Approx.: 1.63 mm Groove Width (W): 1.17 mm + 0.08 / - 0.00 Additional stock available from USA subject to Prior Sale = 766
Part Number: CCE-02223-S15-V External Retaining Rings - 22.23x1.07x20.85 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $8.59 AUD Regular price ~~$18.01 AUD~~ Sale price $8.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCE-02223-S15-V --- External Retaining Rings - 22.23x1.07x20.85 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-02223-S15-V --- External Retaining Rings - 22.23x1.07x20.85 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $8.59 AUD Regular price ~~$18.01 AUD~~ Sale price $8.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 22.23 mm (Equiv. 0.875 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.076} (Equiv. 0.042 in.)	Groove Dia. (Dg) 20.85 mm _{+/- 0.051} (Equiv. 0.821 in.)	Approx. Loose Circlip ID (A) 20.57 mm	Radial Wall (S) Approx. 1.63 mm	Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Carbon Steel Additional stock available from USA subject to Prior Sale = 3696
Part Number: CCE-02223-C-V (50 Pcs) External Retaining Rings - 22.23x1.07x20.85 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $34.86 AUD Regular price ~~$81.80 AUD~~ Sale price $34.86 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 22.23 mm (Equiv. 0.875 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.076} (Equiv. 0.042 in.)	Groove Dia. (Dg) 20.85 mm _{+/- 0.051} (Equiv. 0.821 in.)	Approx. Loose Circlip ID (A) 20.57 mm
Material: Carbon Steel Radial Wall (S) Approx.: 1.63 mm Groove Width (W): 1.17 mm + 0.08 / - 0.00 Additional stock available from USA subject to Prior Sale = 3696
Part Number: CCE-02223-C-V (50 Pcs) External Retaining Rings - 22.23x1.07x20.85 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $34.86 AUD Regular price ~~$81.80 AUD~~ Sale price $34.86 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCE-02223-C-V (50 Pcs) --- External Retaining Rings - 22.23x1.07x20.85 mm Circlips - Carbon Steel Circlip Sale CCE-02223-C-V (50 Pcs) --- External Retaining Rings - 22.23x1.07x20.85 mm Circlips - Carbon Steel Circlip Regular price $34.86 AUD Regular price ~~$81.80 AUD~~ Sale price $34.86 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 23.00 mm (Equiv. 0.906 in.)	Clip Thickness (T) 1.20 mm _{+ 0.00 / - 0.15} (Equiv. 0.047 in.)	Groove Dia. (Dg) 22.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.866 in.)	Approx. Loose Circlip ID (A) 21.50 mm	Radial Wall (S) Approx. 3.10 mm	Groove Width (W) 1.30 mm
Material: Carbon Spring Steel Tool: PRS-E013
Part Number: CCE-02300-C-V (500 Pcs) External Retaining Rings - 23x1.2x22 mm Circlips - Carbon Spring Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jan 17, 2026 Regular price $376.68 AUD Regular price ~~$886.00 AUD~~ Sale price $376.68 AUD Unit price per 500 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 23.00 mm (Equiv. 0.906 in.)	Clip Thickness (T) 1.20 mm _{+ 0.00 / - 0.15} (Equiv. 0.047 in.)	Groove Dia. (Dg) 22.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.866 in.)	Approx. Loose Circlip ID (A) 21.50 mm
Material: Carbon Spring Steel Radial Wall (S) Approx.: 3.10 mm Groove Width (W): 1.30 mm Tool: PRS-E013
Part Number: CCE-02300-C-V (500 Pcs) External Retaining Rings - 23x1.2x22 mm Circlips - Carbon Spring Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jan 17, 2026 Regular price $376.68 AUD Regular price ~~$886.00 AUD~~ Sale price $376.68 AUD Unit price per 500 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCE-02300-C-V (500 Pcs) --- External Retaining Rings - 23x1.2x22 mm Circlips - Carbon Spring Steel Circlip Sale CCE-02300-C-V (500 Pcs) --- External Retaining Rings - 23x1.2x22 mm Circlips - Carbon Spring Steel Circlip Regular price $376.68 AUD Regular price ~~$886.00 AUD~~ Sale price $376.68 AUD Unit price per 500 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 23.81 mm (Equiv. 0.937 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.076} (Equiv. 0.042 in.)	Groove Dia. (Dg) 22.40 mm _{+/- 0.051} (Equiv. 0.882 in.)	Approx. Loose Circlip ID (A) 22.02 mm	Radial Wall (S) Approx. 1.73 mm	Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Tool: PRS-E047
Part Number: CCE-02381-S15-V (250 Pcs) External Retaining Rings - 23.81x1.07x22.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jan 17, 2026 Regular price $1,933.41 AUD Regular price ~~$4,547.00 AUD~~ Sale price $1,933.41 AUD Unit price per 250 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 23.81 mm (Equiv. 0.937 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.076} (Equiv. 0.042 in.)	Groove Dia. (Dg) 22.40 mm _{+/- 0.051} (Equiv. 0.882 in.)	Approx. Loose Circlip ID (A) 22.02 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) Approx.: 1.73 mm Groove Width (W): 1.17 mm + 0.08 / - 0.00 Tool: PRS-E047
Part Number: CCE-02381-S15-V (250 Pcs) External Retaining Rings - 23.81x1.07x22.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jan 17, 2026 Regular price $1,933.41 AUD Regular price ~~$4,547.00 AUD~~ Sale price $1,933.41 AUD Unit price per 250 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCE-02381-S15-V (250 Pcs) --- External Retaining Rings - 23.81x1.07x22.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-02381-S15-V (250 Pcs) --- External Retaining Rings - 23.81x1.07x22.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $1,933.41 AUD Regular price ~~$4,547.00 AUD~~ Sale price $1,933.41 AUD Unit price per 250 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 24.00 mm (Equiv. 0.945 in.)	Clip Thickness (T) 1.20 mm _{+ 0.00 / - 0.21} (Equiv. 0.047 in.)	Groove Dia. (Dg) 22.90 mm _{+ 0.00 / - 0.06} (Equiv. 0.902 in.)	Approx. Loose Circlip ID (A) 22.20 mm	Radial Wall (S) Approx. 3.20 mm	Groove Width (W) 1.30 mm
Material: Carbon Steel Tool: PRS-E013
Part Number: CCE-02400-C-V (500 Pcs) External Retaining Rings - 24x1.2x22.9 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Tue, Dec 02, 2025 Regular price $431.95 AUD Regular price ~~$1,016.00 AUD~~ Sale price $431.95 AUD Unit price per 500 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 24.00 mm (Equiv. 0.945 in.)	Clip Thickness (T) 1.20 mm _{+ 0.00 / - 0.21} (Equiv. 0.047 in.)	Groove Dia. (Dg) 22.90 mm _{+ 0.00 / - 0.06} (Equiv. 0.902 in.)	Approx. Loose Circlip ID (A) 22.20 mm
Material: Carbon Steel Radial Wall (S) Approx.: 3.20 mm Groove Width (W): 1.30 mm Tool: PRS-E013
Part Number: CCE-02400-C-V (500 Pcs) External Retaining Rings - 24x1.2x22.9 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Tue, Dec 02, 2025 Regular price $431.95 AUD Regular price ~~$1,016.00 AUD~~ Sale price $431.95 AUD Unit price per 500 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCE-02400-C-V (500 Pcs) --- External Retaining Rings - 24x1.2x22.9 mm Circlips - Carbon Steel Circlip Sale CCE-02400-C-V (500 Pcs) --- External Retaining Rings - 24x1.2x22.9 mm Circlips - Carbon Steel Circlip Regular price $431.95 AUD Regular price ~~$1,016.00 AUD~~ Sale price $431.95 AUD Unit price per 500 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 25.00 mm (Equiv. 0.984 in.)	Clip Thickness (T) 1.20 mm _{+ 0.00 / - 0.21} (Equiv. 0.047 in.)	Groove Dia. (Dg) 23.90 mm _{+ 0.00 / - 0.06} (Equiv. 0.941 in.)	Approx. Loose Circlip ID (A) 23.20 mm	Radial Wall (S) Approx. 3.40 mm	Groove Width (W) 1.30 mm
Material: Carbon Steel Tool: PRS-E013
Part Number: CCE-02500-C-V (5 Pcs) External Retaining Rings - 25x1.2x23.9 mm Circlips - Carbon Steel Circlip 25 units (125 pcs) Available Now \| Further orders can be expected around Sat, Jan 17, 2026 Regular price $9.05 AUD Regular price Sale price $9.05 AUD Unit price per 5 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required 25 units (125 pcs) Available Now. Backorder if more than 25.
Shaft Diameter (Ds) 25.00 mm (Equiv. 0.984 in.)	Clip Thickness (T) 1.20 mm _{+ 0.00 / - 0.21} (Equiv. 0.047 in.)	Groove Dia. (Dg) 23.90 mm _{+ 0.00 / - 0.06} (Equiv. 0.941 in.)	Approx. Loose Circlip ID (A) 23.20 mm
Material: Carbon Steel Radial Wall (S) Approx.: 3.40 mm Groove Width (W): 1.30 mm Tool: PRS-E013
Part Number: CCE-02500-C-V (5 Pcs) External Retaining Rings - 25x1.2x23.9 mm Circlips - Carbon Steel Circlip 25 units (125 pcs) Available Now \| Further orders can be expected around Sat, Jan 17, 2026 Regular price $9.05 AUD Regular price Sale price $9.05 AUD Unit price per 5 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required 25 units (125 pcs) Available Now. Backorder if more than 25.
CCE-02500-C-V (5 Pcs) --- External Retaining Rings - 25x1.2x23.9 mm Circlips - Carbon Steel Circlip CCE-02500-C-V (5 Pcs) --- External Retaining Rings - 25x1.2x23.9 mm Circlips - Carbon Steel Circlip Regular price $9.05 AUD Regular price Sale price $9.05 AUD Unit price per 5 Per Sell Unit Excludes GST and overseas Taxes & Duties 25 Available Now
Shaft Diameter (Ds) 25.40 mm (Equiv. 1 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.076} (Equiv. 0.042 in.)	Groove Dia. (Dg) 23.52 mm _{+/- 0.051} (Equiv. 0.926 in.)	Approx. Loose Circlip ID (A) 23.50 mm	Radial Wall (S) Approx. 1.83 mm	Groove Width (W) 1.17 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Tool: PRS-E047 Additional stock available from USA subject to Prior Sale = 46
Part Number: CCE-02540-S15-V External Retaining Rings - 25.4x1.07x23.52 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $9.77 AUD Regular price ~~$20.66 AUD~~ Sale price $9.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 25.40 mm (Equiv. 1 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.076} (Equiv. 0.042 in.)	Groove Dia. (Dg) 23.52 mm _{+/- 0.051} (Equiv. 0.926 in.)	Approx. Loose Circlip ID (A) 23.50 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) Approx.: 1.83 mm Groove Width (W): 1.17 mm + 0.10 / - 0.00 Tool: PRS-E047 Additional stock available from USA subject to Prior Sale = 46
Part Number: CCE-02540-S15-V External Retaining Rings - 25.4x1.07x23.52 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $9.77 AUD Regular price ~~$20.66 AUD~~ Sale price $9.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCE-02540-S15-V --- External Retaining Rings - 25.4x1.07x23.52 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-02540-S15-V --- External Retaining Rings - 25.4x1.07x23.52 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $9.77 AUD Regular price ~~$20.66 AUD~~ Sale price $9.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale

Country/region

Miniature Bearings Australia

Collection: Retaining Rings - External - Circlips - Inverted

Category Details

Filter

Filter

Subscribe to our emails
