T-0286-0532-BND (Each)

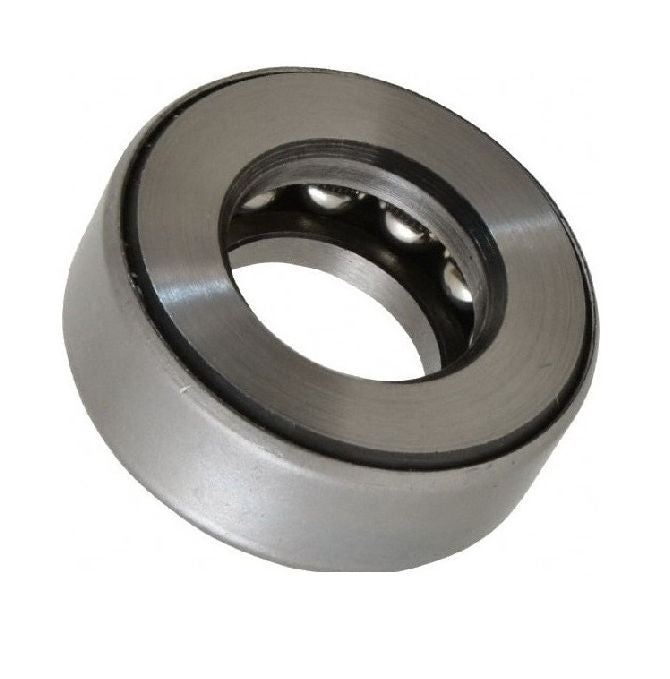

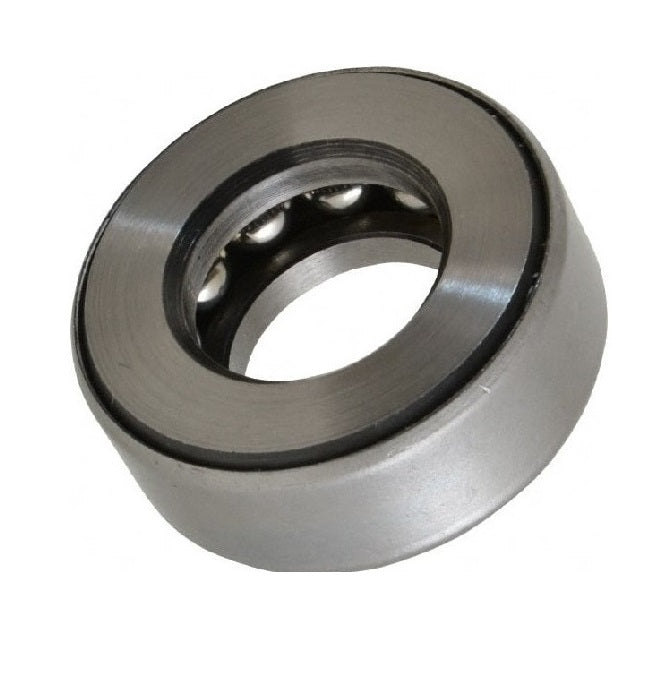

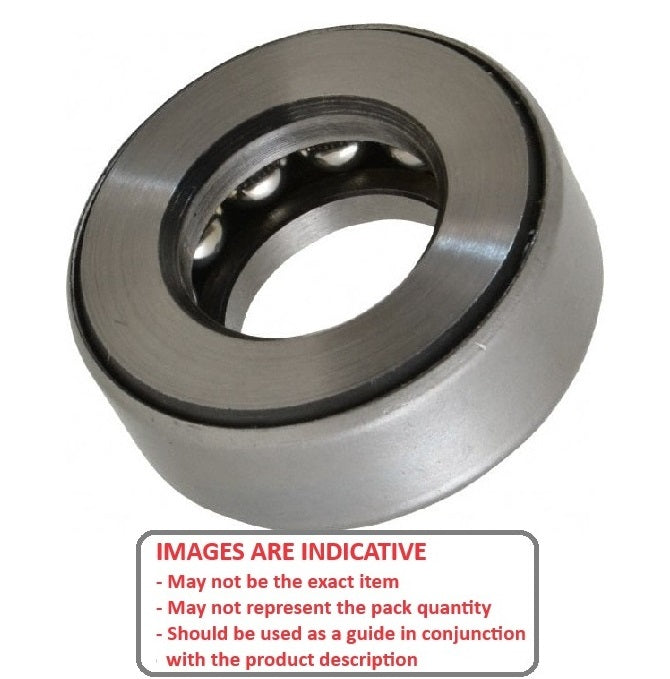

Thrust Ball Bearings - 28.575x53.188x15.875 mm / 29.36 mm Banded - Carbon Steel Bearing
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleThrust Bearings PDF Catalogue
Shafting
Order 50 or more
for $42.17 AUD Each
1-1/8x2-3/32x5/8 inch Bearing - 28.575x53.188x15.875 mm / 29.36 mm Thrust Ball Bearings - Carbon Steel - Sold per Each:
Base Category: Bearings - Thrust Ball
Top Level Category: Bearings - Thrust Ball - Banded

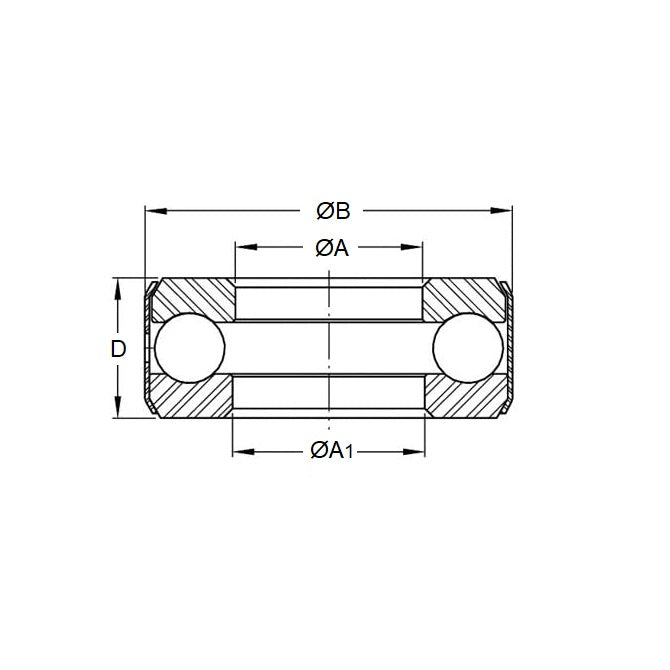

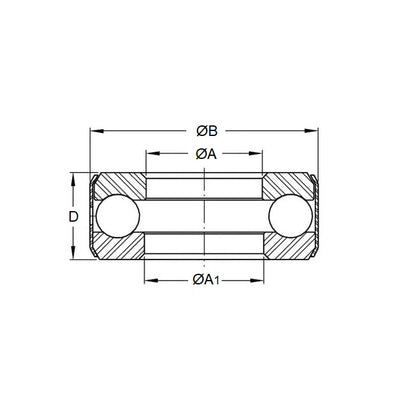

Product Details

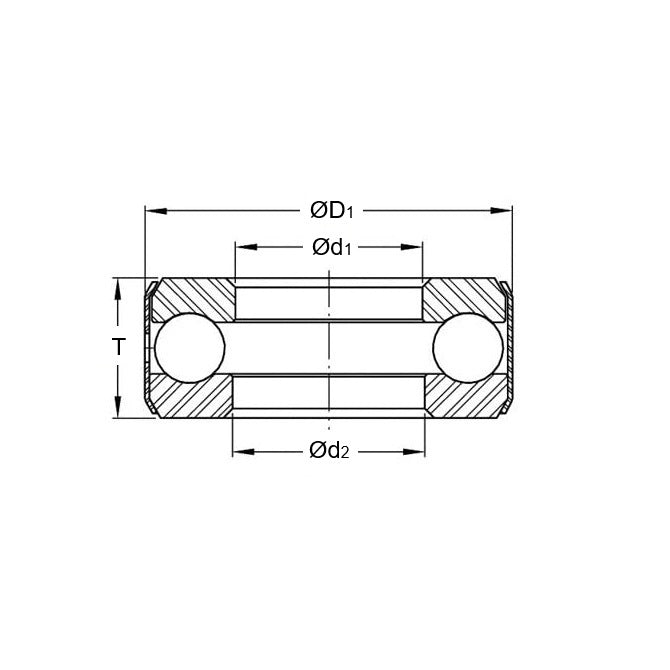

Shaft Diameter (d1): 28.575mm(28.575mm is 1.125 in.)
Carbon Steel
- Shaft Diameter (d1): 28.575mm
(28.575mm is 1.125 in.)
- O.D. (D1): 53.188mm
(53.188mm is 2.094 in.)
- Thickness (T): 15.875mm
(15.875mm is 0.625 in.)
- Bore (d2): 29.360mm
- Dynamic Load Capacity: 3080kgf
- Static Load Capacity: 6250kgf
- Max. Speed: 3600RPM
- Information: Unground Banded Thrust Bearing
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 60715K16
- NICE® 613-V
- INA D11
- Reid Tool® SKF-9105
- S9912YTB112209
- S9912Y-TB112209
- SKF9105
- 613V
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
T02860532BND, T0286
