Collection: Bearings - Thrust Ball - Banded

Bearings -> Thrust Ball -> Banded

There are 31 products in the sub-categories of Bearings - Thrust Ball - Banded. Scroll down or follow the link to Bearings - Thrust Ball - Banded in the products table to see all these items combined into a handy table with filters.

Category Details

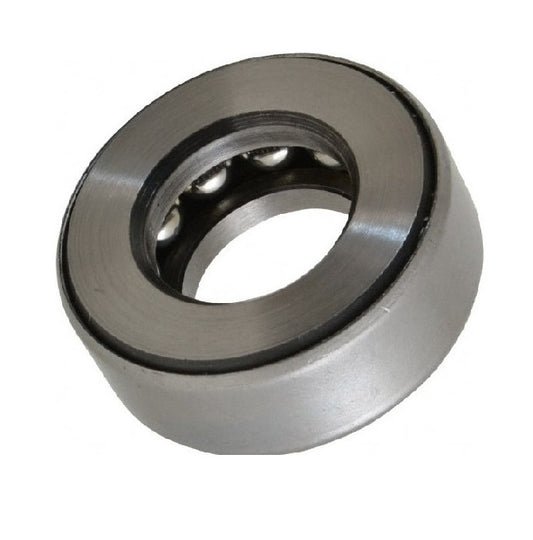

A selection of Banded Thrust Ball Bearings. 3 Piece Thrust Bearings Banded Type

Thrust ball bearings provide for axial loads. They are designed to handle forces that push or pull along the axis of a rotating shaft
Commonly used in automotive, electric motors, marine propulsion, pumps and compressors, aerospace applications, industrial machinery, and wind turbines.
An expanded range may be available on special order. Please enquire.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Bearings - Thrust Ball - Banded category on the Small Parts & Bearings online store.

Shaft Diameter (d1)	OD (D1)	Thickness (T)	Bore (d2)	OD (D2)	Dynamic Load Capacity
Shaft Diameter (d1) 6.350 mm (Equiv. 0.25 in.)	OD (D1) 21.438 mm (Equiv. 0.844 in.)	Thickness (T) 8.458 mm (Equiv. 0.333 in.)	Bore (d2) 6.985 mm		Dynamic Load Capacity 142 kgf
Material: Carbon Steel Static Load Capacity: 200 kgf Max. Speed: 1000 RPM
Part Number: T-0064-0214-BND Thrust Ball Bearings - 6.35x21.438x8.458 mm / 6.985 mm Banded - Carbon Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 16, 2025 Regular price $15.50 AUD Regular price ~~$18.60 AUD~~ Sale price $15.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.

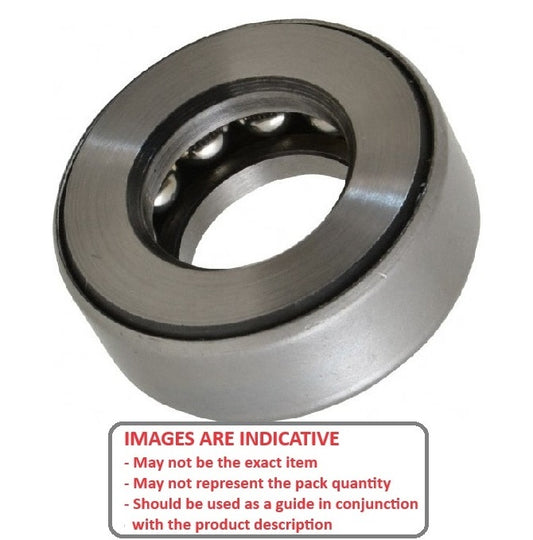

Shaft Diameter (d1)	OD (D1)	Thickness (T)	Bore (d2)	Indicative Image
Shaft Diameter (d1) 6.350 mm (Equiv. 0.25 in.)	OD (D1) 21.438 mm (Equiv. 0.844 in.)	Thickness (T) 8.458 mm (Equiv. 0.333 in.)	Bore (d2) 6.985 mm
Material: Carbon Steel Dynamic Load Capacity: 142 kgf Static Load Capacity: 200 kgf Max. Speed: 1000 RPM
Part Number: T-0064-0214-BND Thrust Ball Bearings - 6.35x21.438x8.458 mm / 6.985 mm Banded - Carbon Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 16, 2025 Regular price $15.50 AUD Regular price ~~$18.60 AUD~~ Sale price $15.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
T-0064-0214-BND --- Thrust Ball Bearings - 6.35x21.438x8.458 mm / 6.985 mm Banded - Carbon Steel Bearing Sale T-0064-0214-BND --- Thrust Ball Bearings - 6.35x21.438x8.458 mm / 6.985 mm Banded - Carbon Steel Bearing Regular price $15.50 AUD Regular price ~~$18.60 AUD~~ Sale price $15.50 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (d1) 9.525 mm (Equiv. 0.375 in.)	OD (D1) 26.594 mm (Equiv. 1.047 in.)	Thickness (T) 9.119 mm (Equiv. 0.359 in.)	Bore (d2) 10.160 mm		Dynamic Load Capacity 199 kgf
Material: Carbon Steel Static Load Capacity: 280 kgf Max. Speed: 1000 RPM
Part Number: T-0095-0266-BND Thrust Ball Bearings - 9.525x26.594x9.119 mm / 10.16 mm Banded - Carbon Steel Bearing 1 Available Now \| Further orders can be expected around Tue, Sep 16, 2025 Regular price $27.68 AUD Regular price Sale price $27.68 AUD Unit price per Each Quantity Required 1 Available Now. Backorder if more than 1.
Shaft Diameter (d1) 9.525 mm (Equiv. 0.375 in.)	OD (D1) 26.594 mm (Equiv. 1.047 in.)	Thickness (T) 9.119 mm (Equiv. 0.359 in.)	Bore (d2) 10.160 mm
Material: Carbon Steel Dynamic Load Capacity: 199 kgf Static Load Capacity: 280 kgf Max. Speed: 1000 RPM
Part Number: T-0095-0266-BND Thrust Ball Bearings - 9.525x26.594x9.119 mm / 10.16 mm Banded - Carbon Steel Bearing 1 Available Now \| Further orders can be expected around Tue, Sep 16, 2025 Regular price $27.68 AUD Regular price Sale price $27.68 AUD Unit price per Each Quantity Required 1 Available Now. Backorder if more than 1.
T-0095-0266-BND --- Thrust Ball Bearings - 9.525x26.594x9.119 mm / 10.16 mm Banded - Carbon Steel Bearing T-0095-0266-BND --- Thrust Ball Bearings - 9.525x26.594x9.119 mm / 10.16 mm Banded - Carbon Steel Bearing Regular price $27.68 AUD Regular price Sale price $27.68 AUD Unit price per 1 Available Now
Shaft Diameter (d1) 11.506 mm (Equiv. 0.453 in.)	OD (D1) 21.819 mm (Equiv. 0.859 in.)	Thickness (T) 7.138 mm (Equiv. 0.281 in.)	Bore (d2) 12.141 mm		Dynamic Load Capacity 136 kgf
Material: Carbon Steel Static Load Capacity: 201 kgf Max. Speed: 1000 RPM
Part Number: T-0115-0218-BND Thrust Ball Bearings - 11.506x21.819x7.138 mm / 12.141 mm Banded - Carbon Steel Bearing 2 Available Now \| Further orders can be expected around Tue, Sep 16, 2025 Regular price $22.14 AUD Regular price ~~$40.47 AUD~~ Sale price $22.14 AUD Unit price per Each Quantity Required 2 Available Now. Backorder if more than 2.
Shaft Diameter (d1) 11.506 mm (Equiv. 0.453 in.)	OD (D1) 21.819 mm (Equiv. 0.859 in.)	Thickness (T) 7.138 mm (Equiv. 0.281 in.)	Bore (d2) 12.141 mm
Material: Carbon Steel Dynamic Load Capacity: 136 kgf Static Load Capacity: 201 kgf Max. Speed: 1000 RPM
Part Number: T-0115-0218-BND Thrust Ball Bearings - 11.506x21.819x7.138 mm / 12.141 mm Banded - Carbon Steel Bearing 2 Available Now \| Further orders can be expected around Tue, Sep 16, 2025 Regular price $22.14 AUD Regular price ~~$40.47 AUD~~ Sale price $22.14 AUD Unit price per Each Quantity Required 2 Available Now. Backorder if more than 2.
T-0115-0218-BND --- Thrust Ball Bearings - 11.506x21.819x7.138 mm / 12.141 mm Banded - Carbon Steel Bearing Sale T-0115-0218-BND --- Thrust Ball Bearings - 11.506x21.819x7.138 mm / 12.141 mm Banded - Carbon Steel Bearing Regular price $22.14 AUD Regular price ~~$40.47 AUD~~ Sale price $22.14 AUD Unit price per 2 Available Now Sale
Shaft Diameter (d1) 12.700 mm (Equiv. 0.5 in.)	OD (D1) 25.400 mm (Equiv. 1 in.)	Thickness (T) 8.738 mm (Equiv. 0.344 in.)	Bore (d2) 13.335 mm		Dynamic Load Capacity 246 kgf
Material: Carbon Steel Static Load Capacity: 346 kgf Max. Speed: 1000 RPM
Part Number: T-0127-0254-BND Thrust Ball Bearings - 12.7x25.4x8.738 mm / 13.335 mm Banded - Carbon Steel Bearing 4 Available Now \| Further orders can be expected around Tue, Sep 16, 2025 Regular price $21.68 AUD Regular price Sale price $21.68 AUD Unit price per Each Quantity Required 4 Available Now. Backorder if more than 4.
Shaft Diameter (d1) 12.700 mm (Equiv. 0.5 in.)	OD (D1) 25.400 mm (Equiv. 1 in.)	Thickness (T) 8.738 mm (Equiv. 0.344 in.)	Bore (d2) 13.335 mm
Material: Carbon Steel Dynamic Load Capacity: 246 kgf Static Load Capacity: 346 kgf Max. Speed: 1000 RPM
Part Number: T-0127-0254-BND Thrust Ball Bearings - 12.7x25.4x8.738 mm / 13.335 mm Banded - Carbon Steel Bearing 4 Available Now \| Further orders can be expected around Tue, Sep 16, 2025 Regular price $21.68 AUD Regular price Sale price $21.68 AUD Unit price per Each Quantity Required 4 Available Now. Backorder if more than 4.
T-0127-0254-BND --- Thrust Ball Bearings - 12.7x25.4x8.738 mm / 13.335 mm Banded - Carbon Steel Bearing T-0127-0254-BND --- Thrust Ball Bearings - 12.7x25.4x8.738 mm / 13.335 mm Banded - Carbon Steel Bearing Regular price $21.68 AUD Regular price Sale price $21.68 AUD Unit price per 4 Available Now
Shaft Diameter (d1) 12.700 mm (Equiv. 0.5 in.)	OD (D1) 30.963 mm (Equiv. 1.219 in.)	Thickness (T) 14.300 mm (Equiv. 0.563 in.)	Bore (d2) 13.490 mm		Dynamic Load Capacity 1719 kgf
Material: Carbon Steel Static Load Capacity: 2500 kgf Max. Speed: 7000 RPM
Part Number: T-0127-0310-BND Thrust Ball Bearings - 12.7x30.963x14.3 mm / 13.49 mm Banded - Carbon Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $81.23 AUD Regular price ~~$97.47 AUD~~ Sale price $81.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (d1) 12.700 mm (Equiv. 0.5 in.)	OD (D1) 30.963 mm (Equiv. 1.219 in.)	Thickness (T) 14.300 mm (Equiv. 0.563 in.)	Bore (d2) 13.490 mm
Material: Carbon Steel Dynamic Load Capacity: 1719 kgf Static Load Capacity: 2500 kgf Max. Speed: 7000 RPM
Part Number: T-0127-0310-BND Thrust Ball Bearings - 12.7x30.963x14.3 mm / 13.49 mm Banded - Carbon Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $81.23 AUD Regular price ~~$97.47 AUD~~ Sale price $81.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
T-0127-0310-BND --- Thrust Ball Bearings - 12.7x30.963x14.3 mm / 13.49 mm Banded - Carbon Steel Bearing Sale T-0127-0310-BND --- Thrust Ball Bearings - 12.7x30.963x14.3 mm / 13.49 mm Banded - Carbon Steel Bearing Regular price $81.23 AUD Regular price ~~$97.47 AUD~~ Sale price $81.23 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (d1) 12.700 mm (Equiv. 0.5 in.)	OD (D1) 32.156 mm (Equiv. 1.266 in.)	Thickness (T) 11.100 mm (Equiv. 0.437 in.)	Bore (d2) 13.335 mm		Dynamic Load Capacity 364 kgf
Material: Carbon Steel Static Load Capacity: 513 kgf Max. Speed: 1000 RPM
Part Number: T-0127-0322-BND Thrust Ball Bearings - 12.7x32.156x11.1 mm / 13.335 mm Banded - Carbon Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 16, 2025 Regular price $21.14 AUD Regular price ~~$25.36 AUD~~ Sale price $21.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (d1) 12.700 mm (Equiv. 0.5 in.)	OD (D1) 32.156 mm (Equiv. 1.266 in.)	Thickness (T) 11.100 mm (Equiv. 0.437 in.)	Bore (d2) 13.335 mm
Material: Carbon Steel Dynamic Load Capacity: 364 kgf Static Load Capacity: 513 kgf Max. Speed: 1000 RPM
Part Number: T-0127-0322-BND Thrust Ball Bearings - 12.7x32.156x11.1 mm / 13.335 mm Banded - Carbon Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 16, 2025 Regular price $21.14 AUD Regular price ~~$25.36 AUD~~ Sale price $21.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
T-0127-0322-BND --- Thrust Ball Bearings - 12.7x32.156x11.1 mm / 13.335 mm Banded - Carbon Steel Bearing Sale T-0127-0322-BND --- Thrust Ball Bearings - 12.7x32.156x11.1 mm / 13.335 mm Banded - Carbon Steel Bearing Regular price $21.14 AUD Regular price ~~$25.36 AUD~~ Sale price $21.14 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (d1) 14.300 mm (Equiv. 0.563 in.)	OD (D1) 30.963 mm (Equiv. 1.219 in.)	Thickness (T) 14.300 mm (Equiv. 0.563 in.)	Bore (d2) 15.090 mm		Dynamic Load Capacity 1719 kgf
Material: Chrome Steel with Low Carbon Steel Band Static Load Capacity: 2500 kgf Max. Speed: 7000 RPM
Part Number: T-0143-0310-BND Thrust Ball Bearings - 14.3x30.963x14.3 mm / 15.09 mm Banded - Chrome Steel with Low Carbon Steel Band Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (d1) 14.300 mm (Equiv. 0.563 in.)	OD (D1) 30.963 mm (Equiv. 1.219 in.)	Thickness (T) 14.300 mm (Equiv. 0.563 in.)	Bore (d2) 15.090 mm
Material: Chrome Steel with Low Carbon Steel Band Dynamic Load Capacity: 1719 kgf Static Load Capacity: 2500 kgf Max. Speed: 7000 RPM
Part Number: T-0143-0310-BND Thrust Ball Bearings - 14.3x30.963x14.3 mm / 15.09 mm Banded - Chrome Steel with Low Carbon Steel Band Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (d1) 15.875 mm (Equiv. 0.625 in.)	OD (D1) 28.575 mm (Equiv. 1.125 in.)	Thickness (T) 8.738 mm (Equiv. 0.344 in.)	Bore (d2) 16.662 mm		Dynamic Load Capacity 401 kgf
Material: Carbon Steel Static Load Capacity: 565 kgf Max. Speed: 1000 RPM
Part Number: T-0159-0286-BND Thrust Ball Bearings - 15.875x28.575x8.738 mm / 16.662 mm Banded - Carbon Steel Bearing 4 Available Now \| Further orders can be expected around Tue, Sep 16, 2025 Regular price $24.59 AUD Regular price Sale price $24.59 AUD Unit price per Each Quantity Required 4 Available Now. Backorder if more than 4.
Shaft Diameter (d1) 15.875 mm (Equiv. 0.625 in.)	OD (D1) 28.575 mm (Equiv. 1.125 in.)	Thickness (T) 8.738 mm (Equiv. 0.344 in.)	Bore (d2) 16.662 mm
Material: Carbon Steel Dynamic Load Capacity: 401 kgf Static Load Capacity: 565 kgf Max. Speed: 1000 RPM
Part Number: T-0159-0286-BND Thrust Ball Bearings - 15.875x28.575x8.738 mm / 16.662 mm Banded - Carbon Steel Bearing 4 Available Now \| Further orders can be expected around Tue, Sep 16, 2025 Regular price $24.59 AUD Regular price Sale price $24.59 AUD Unit price per Each Quantity Required 4 Available Now. Backorder if more than 4.
T-0159-0286-BND --- Thrust Ball Bearings - 15.875x28.575x8.738 mm / 16.662 mm Banded - Carbon Steel Bearing T-0159-0286-BND --- Thrust Ball Bearings - 15.875x28.575x8.738 mm / 16.662 mm Banded - Carbon Steel Bearing Regular price $24.59 AUD Regular price Sale price $24.59 AUD Unit price per 4 Available Now
Shaft Diameter (d1) 15.875 mm (Equiv. 0.625 in.)	OD (D1) 34.138 mm (Equiv. 1.344 in.)	Thickness (T) 14.300 mm (Equiv. 0.563 in.)	Bore (d2) 16.660 mm		Dynamic Load Capacity 1830 kgf
Material: Carbon Steel Static Load Capacity: 2991 kgf Max. Speed: 6000 RPM
Part Number: T-0159-0341-BND Thrust Ball Bearings - 15.875x34.138x14.3 mm / 16.66 mm Banded - Carbon Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $85.95 AUD Regular price ~~$103.15 AUD~~ Sale price $85.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (d1) 15.875 mm (Equiv. 0.625 in.)	OD (D1) 34.138 mm (Equiv. 1.344 in.)	Thickness (T) 14.300 mm (Equiv. 0.563 in.)	Bore (d2) 16.660 mm
Material: Carbon Steel Dynamic Load Capacity: 1830 kgf Static Load Capacity: 2991 kgf Max. Speed: 6000 RPM
Part Number: T-0159-0341-BND Thrust Ball Bearings - 15.875x34.138x14.3 mm / 16.66 mm Banded - Carbon Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $85.95 AUD Regular price ~~$103.15 AUD~~ Sale price $85.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
T-0159-0341-BND --- Thrust Ball Bearings - 15.875x34.138x14.3 mm / 16.66 mm Banded - Carbon Steel Bearing Sale T-0159-0341-BND --- Thrust Ball Bearings - 15.875x34.138x14.3 mm / 16.66 mm Banded - Carbon Steel Bearing Regular price $85.95 AUD Regular price ~~$103.15 AUD~~ Sale price $85.95 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (d1) 15.875 mm (Equiv. 0.625 in.)	OD (D1) 36.119 mm (Equiv. 1.422 in.)	Thickness (T) 11.506 mm (Equiv. 0.453 in.)	Bore (d2) 16.662 mm		Dynamic Load Capacity 437 kgf
Material: Carbon Steel Static Load Capacity: 616 kgf Max. Speed: 1000 RPM
Part Number: T-0159-0361-BND Thrust Ball Bearings - 15.875x36.119x11.506 mm / 16.662 mm Banded - Carbon Steel Bearing 5 Available Now \| Further orders can be expected around Tue, Sep 16, 2025 Regular price $39.14 AUD Regular price Sale price $39.14 AUD Unit price per Each Quantity Required 5 Available Now. Backorder if more than 5.
Shaft Diameter (d1) 15.875 mm (Equiv. 0.625 in.)	OD (D1) 36.119 mm (Equiv. 1.422 in.)	Thickness (T) 11.506 mm (Equiv. 0.453 in.)	Bore (d2) 16.662 mm
Material: Carbon Steel Dynamic Load Capacity: 437 kgf Static Load Capacity: 616 kgf Max. Speed: 1000 RPM
Part Number: T-0159-0361-BND Thrust Ball Bearings - 15.875x36.119x11.506 mm / 16.662 mm Banded - Carbon Steel Bearing 5 Available Now \| Further orders can be expected around Tue, Sep 16, 2025 Regular price $39.14 AUD Regular price Sale price $39.14 AUD Unit price per Each Quantity Required 5 Available Now. Backorder if more than 5.
T-0159-0361-BND --- Thrust Ball Bearings - 15.875x36.119x11.506 mm / 16.662 mm Banded - Carbon Steel Bearing T-0159-0361-BND --- Thrust Ball Bearings - 15.875x36.119x11.506 mm / 16.662 mm Banded - Carbon Steel Bearing Regular price $39.14 AUD Regular price Sale price $39.14 AUD Unit price per 5 Available Now
Shaft Diameter (d1) 17.475 mm (Equiv. 0.688 in.)	OD (D1) 34.138 mm (Equiv. 1.344 in.)	Thickness (T) 14.300 mm (Equiv. 0.563 in.)	Bore (d2) 18.260 mm		Dynamic Load Capacity 1830 kgf
Material: Chrome Steel with Low Carbon Steel Band Static Load Capacity: 2991 kgf Max. Speed: 6000 RPM
Part Number: T-0175-0341-BND Thrust Ball Bearings - 17.475x34.138x14.3 mm / 18.26 mm Banded - Chrome Steel with Low Carbon Steel Band Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (d1) 17.475 mm (Equiv. 0.688 in.)	OD (D1) 34.138 mm (Equiv. 1.344 in.)	Thickness (T) 14.300 mm (Equiv. 0.563 in.)	Bore (d2) 18.260 mm
Material: Chrome Steel with Low Carbon Steel Band Dynamic Load Capacity: 1830 kgf Static Load Capacity: 2991 kgf Max. Speed: 6000 RPM
Part Number: T-0175-0341-BND Thrust Ball Bearings - 17.475x34.138x14.3 mm / 18.26 mm Banded - Chrome Steel with Low Carbon Steel Band Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (d1) 19.050 mm (Equiv. 0.75 in.)	OD (D1) 37.313 mm (Equiv. 1.469 in.)	Thickness (T) 14.300 mm (Equiv. 0.563 in.)	Bore (d2) 19.840 mm		Dynamic Load Capacity 1897 kgf
Material: Carbon Steel Static Load Capacity: 3259 kgf Max. Speed: 5500 RPM
Part Number: T-0191-0373-BND Thrust Ball Bearings - 19.05x37.313x14.3 mm / 19.84 mm Banded - Carbon Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $85.95 AUD Regular price ~~$103.15 AUD~~ Sale price $85.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (d1) 19.050 mm (Equiv. 0.75 in.)	OD (D1) 37.313 mm (Equiv. 1.469 in.)	Thickness (T) 14.300 mm (Equiv. 0.563 in.)	Bore (d2) 19.840 mm
Material: Carbon Steel Dynamic Load Capacity: 1897 kgf Static Load Capacity: 3259 kgf Max. Speed: 5500 RPM
Part Number: T-0191-0373-BND Thrust Ball Bearings - 19.05x37.313x14.3 mm / 19.84 mm Banded - Carbon Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $85.95 AUD Regular price ~~$103.15 AUD~~ Sale price $85.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
T-0191-0373-BND --- Thrust Ball Bearings - 19.05x37.313x14.3 mm / 19.84 mm Banded - Carbon Steel Bearing Sale T-0191-0373-BND --- Thrust Ball Bearings - 19.05x37.313x14.3 mm / 19.84 mm Banded - Carbon Steel Bearing Regular price $85.95 AUD Regular price ~~$103.15 AUD~~ Sale price $85.95 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (d1) 19.050 mm (Equiv. 0.75 in.)	OD (D1) 42.062 mm (Equiv. 1.656 in.)	Thickness (T) 13.843 mm (Equiv. 0.545 in.)	Bore (d2) 19.685 mm		Dynamic Load Capacity 547 kgf
Material: Carbon Steel Static Load Capacity: 770 kgf Max. Speed: 1000 RPM
Part Number: T-0191-0421-BND Thrust Ball Bearings - 19.05x42.062x13.843 mm / 19.685 mm Banded - Carbon Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 16, 2025 Regular price $25.05 AUD Regular price ~~$30.05 AUD~~ Sale price $25.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (d1) 19.050 mm (Equiv. 0.75 in.)	OD (D1) 42.062 mm (Equiv. 1.656 in.)	Thickness (T) 13.843 mm (Equiv. 0.545 in.)	Bore (d2) 19.685 mm
Material: Carbon Steel Dynamic Load Capacity: 547 kgf Static Load Capacity: 770 kgf Max. Speed: 1000 RPM
Part Number: T-0191-0421-BND Thrust Ball Bearings - 19.05x42.062x13.843 mm / 19.685 mm Banded - Carbon Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 16, 2025 Regular price $25.05 AUD Regular price ~~$30.05 AUD~~ Sale price $25.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
T-0191-0421-BND --- Thrust Ball Bearings - 19.05x42.062x13.843 mm / 19.685 mm Banded - Carbon Steel Bearing Sale T-0191-0421-BND --- Thrust Ball Bearings - 19.05x42.062x13.843 mm / 19.685 mm Banded - Carbon Steel Bearing Regular price $25.05 AUD Regular price ~~$30.05 AUD~~ Sale price $25.05 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (d1) 20.650 mm (Equiv. 0.813 in.)	OD (D1) 37.313 mm (Equiv. 1.469 in.)	Thickness (T) 14.300 mm (Equiv. 0.563 in.)	Bore (d2) 21.440 mm		Dynamic Load Capacity 1897 kgf
Material: Chrome Steel with Low Carbon Steel Band Static Load Capacity: 3259 kgf Max. Speed: 5500 RPM
Part Number: T-0207-0373-BND Thrust Ball Bearings - 20.65x37.313x14.3 mm / 21.44 mm Banded - Chrome Steel with Low Carbon Steel Band Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (d1) 20.650 mm (Equiv. 0.813 in.)	OD (D1) 37.313 mm (Equiv. 1.469 in.)	Thickness (T) 14.300 mm (Equiv. 0.563 in.)	Bore (d2) 21.440 mm
Material: Chrome Steel with Low Carbon Steel Band Dynamic Load Capacity: 1897 kgf Static Load Capacity: 3259 kgf Max. Speed: 5500 RPM
Part Number: T-0207-0373-BND Thrust Ball Bearings - 20.65x37.313x14.3 mm / 21.44 mm Banded - Chrome Steel with Low Carbon Steel Band Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (d1) 22.225 mm (Equiv. 0.875 in.)	OD (D1) 46.838 mm (Equiv. 1.844 in.)	Thickness (T) 15.875 mm (Equiv. 0.625 in.)	Bore (d2) 23.010 mm		Dynamic Load Capacity 2946 kgf
Material: Carbon Steel Static Load Capacity: 5446 kgf Max. Speed: 4100 RPM
Part Number: T-0222-0468-BND Thrust Ball Bearings - 22.225x46.838x15.875 mm / 23.01 mm Banded - Carbon Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $97.95 AUD Regular price ~~$117.55 AUD~~ Sale price $97.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (d1) 22.225 mm (Equiv. 0.875 in.)	OD (D1) 46.838 mm (Equiv. 1.844 in.)	Thickness (T) 15.875 mm (Equiv. 0.625 in.)	Bore (d2) 23.010 mm
Material: Carbon Steel Dynamic Load Capacity: 2946 kgf Static Load Capacity: 5446 kgf Max. Speed: 4100 RPM
Part Number: T-0222-0468-BND Thrust Ball Bearings - 22.225x46.838x15.875 mm / 23.01 mm Banded - Carbon Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $97.95 AUD Regular price ~~$117.55 AUD~~ Sale price $97.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
T-0222-0468-BND --- Thrust Ball Bearings - 22.225x46.838x15.875 mm / 23.01 mm Banded - Carbon Steel Bearing Sale T-0222-0468-BND --- Thrust Ball Bearings - 22.225x46.838x15.875 mm / 23.01 mm Banded - Carbon Steel Bearing Regular price $97.95 AUD Regular price ~~$117.55 AUD~~ Sale price $97.95 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (d1) 22.225 mm (Equiv. 0.875 in.)	OD (D1) 48.031 mm (Equiv. 1.891 in.)	Thickness (T) 15.088 mm (Equiv. 0.594 in.)	Bore (d2) 22.860 mm		Dynamic Load Capacity 620 kgf
Material: Carbon Steel Static Load Capacity: 874 kgf Max. Speed: 1000 RPM
Part Number: T-0222-0480-BND Thrust Ball Bearings - 22.225x48.031x15.088 mm / 22.86 mm Banded - Carbon Steel Bearing 3 Available Now \| Further orders can be expected around Tue, Sep 16, 2025 Regular price $59.32 AUD Regular price Sale price $59.32 AUD Unit price per Each Quantity Required 3 Available Now. Backorder if more than 3.
Shaft Diameter (d1) 22.225 mm (Equiv. 0.875 in.)	OD (D1) 48.031 mm (Equiv. 1.891 in.)	Thickness (T) 15.088 mm (Equiv. 0.594 in.)	Bore (d2) 22.860 mm
Material: Carbon Steel Dynamic Load Capacity: 620 kgf Static Load Capacity: 874 kgf Max. Speed: 1000 RPM
Part Number: T-0222-0480-BND Thrust Ball Bearings - 22.225x48.031x15.088 mm / 22.86 mm Banded - Carbon Steel Bearing 3 Available Now \| Further orders can be expected around Tue, Sep 16, 2025 Regular price $59.32 AUD Regular price Sale price $59.32 AUD Unit price per Each Quantity Required 3 Available Now. Backorder if more than 3.
T-0222-0480-BND --- Thrust Ball Bearings - 22.225x48.031x15.088 mm / 22.86 mm Banded - Carbon Steel Bearing T-0222-0480-BND --- Thrust Ball Bearings - 22.225x48.031x15.088 mm / 22.86 mm Banded - Carbon Steel Bearing Regular price $59.32 AUD Regular price Sale price $59.32 AUD Unit price per 3 Available Now
Shaft Diameter (d1) 23.825 mm (Equiv. 0.938 in.)	OD (D1) 46.838 mm (Equiv. 1.844 in.)	Thickness (T) 15.875 mm (Equiv. 0.625 in.)	Bore (d2) 24.610 mm		Dynamic Load Capacity 2946 kgf
Material: Chrome Steel with Low Carbon Steel Band Static Load Capacity: 5446 kgf Max. Speed: 4100 RPM
Part Number: T-0238-0468-BND Thrust Ball Bearings - 23.825x46.838x15.875 mm / 24.61 mm Banded - Chrome Steel with Low Carbon Steel Band Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (d1) 23.825 mm (Equiv. 0.938 in.)	OD (D1) 46.838 mm (Equiv. 1.844 in.)	Thickness (T) 15.875 mm (Equiv. 0.625 in.)	Bore (d2) 24.610 mm
Material: Chrome Steel with Low Carbon Steel Band Dynamic Load Capacity: 2946 kgf Static Load Capacity: 5446 kgf Max. Speed: 4100 RPM
Part Number: T-0238-0468-BND Thrust Ball Bearings - 23.825x46.838x15.875 mm / 24.61 mm Banded - Chrome Steel with Low Carbon Steel Band Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (d1) 25.000 mm (Equiv. 0.984 in.)	OD (D1) 44.450 mm (Equiv. 1.75 in.)	Thickness (T) 15.875 mm (Equiv. 0.625 in.)	Bore (d2) 26.187 mm		Dynamic Load Capacity 583 kgf
Material: Carbon Steel Static Load Capacity: 822 kgf Max. Speed: 1000 RPM
Part Number: T-0250-0445-BND Thrust Ball Bearings - 25x44.45x15.875 mm / 26.187 mm Banded - Carbon Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 16, 2025 Regular price $46.05 AUD Regular price ~~$55.25 AUD~~ Sale price $46.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (d1) 25.000 mm (Equiv. 0.984 in.)	OD (D1) 44.450 mm (Equiv. 1.75 in.)	Thickness (T) 15.875 mm (Equiv. 0.625 in.)	Bore (d2) 26.187 mm
Material: Carbon Steel Dynamic Load Capacity: 583 kgf Static Load Capacity: 822 kgf Max. Speed: 1000 RPM
Part Number: T-0250-0445-BND Thrust Ball Bearings - 25x44.45x15.875 mm / 26.187 mm Banded - Carbon Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 16, 2025 Regular price $46.05 AUD Regular price ~~$55.25 AUD~~ Sale price $46.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
T-0250-0445-BND --- Thrust Ball Bearings - 25x44.45x15.875 mm / 26.187 mm Banded - Carbon Steel Bearing Sale T-0250-0445-BND --- Thrust Ball Bearings - 25x44.45x15.875 mm / 26.187 mm Banded - Carbon Steel Bearing Regular price $46.05 AUD Regular price ~~$55.25 AUD~~ Sale price $46.05 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (d1) 25.400 mm (Equiv. 1 in.)	OD (D1) 50.013 mm (Equiv. 1.969 in.)	Thickness (T) 15.875 mm (Equiv. 0.625 in.)	Bore (d2) 26.190 mm		Dynamic Load Capacity 2991 kgf
Material: Carbon Steel Static Load Capacity: 5848 kgf Max. Speed: 3800 RPM
Part Number: T-0254-0500-BND Thrust Ball Bearings - 25.4x50.013x15.875 mm / 26.19 mm Banded - Carbon Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 16, 2025 Regular price $63.32 AUD Regular price Sale price $63.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (d1) 25.400 mm (Equiv. 1 in.)	OD (D1) 50.013 mm (Equiv. 1.969 in.)	Thickness (T) 15.875 mm (Equiv. 0.625 in.)	Bore (d2) 26.190 mm
Material: Carbon Steel Dynamic Load Capacity: 2991 kgf Static Load Capacity: 5848 kgf Max. Speed: 3800 RPM
Part Number: T-0254-0500-BND Thrust Ball Bearings - 25.4x50.013x15.875 mm / 26.19 mm Banded - Carbon Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 16, 2025 Regular price $63.32 AUD Regular price Sale price $63.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
T-0254-0500-BND --- Thrust Ball Bearings - 25.4x50.013x15.875 mm / 26.19 mm Banded - Carbon Steel Bearing T-0254-0500-BND --- Thrust Ball Bearings - 25.4x50.013x15.875 mm / 26.19 mm Banded - Carbon Steel Bearing Regular price $63.32 AUD Regular price Sale price $63.32 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (d1) 25.400 mm (Equiv. 1 in.)	OD (D1) 50.800 mm (Equiv. 2 in.)	Thickness (T) 16.002 mm (Equiv. 0.63 in.)	Bore (d2) 27.305 mm		Dynamic Load Capacity 797 kgf
Material: Carbon Steel Static Load Capacity: 1123 kgf Max. Speed: 1000 RPM
Part Number: T-0254-0508-BND Thrust Ball Bearings - 25.4x50.8x16.002 mm / 27.305 mm Banded - Carbon Steel Bearing 1 Available Now \| Further orders can be expected around Tue, Sep 16, 2025 Regular price $93.32 AUD Regular price ~~$172.27 AUD~~ Sale price $93.32 AUD Unit price per Each Quantity Required 1 Available Now. Backorder if more than 1.
Shaft Diameter (d1) 25.400 mm (Equiv. 1 in.)	OD (D1) 50.800 mm (Equiv. 2 in.)	Thickness (T) 16.002 mm (Equiv. 0.63 in.)	Bore (d2) 27.305 mm
Material: Carbon Steel Dynamic Load Capacity: 797 kgf Static Load Capacity: 1123 kgf Max. Speed: 1000 RPM
Part Number: T-0254-0508-BND Thrust Ball Bearings - 25.4x50.8x16.002 mm / 27.305 mm Banded - Carbon Steel Bearing 1 Available Now \| Further orders can be expected around Tue, Sep 16, 2025 Regular price $93.32 AUD Regular price ~~$172.27 AUD~~ Sale price $93.32 AUD Unit price per Each Quantity Required 1 Available Now. Backorder if more than 1.
T-0254-0508-BND --- Thrust Ball Bearings - 25.4x50.8x16.002 mm / 27.305 mm Banded - Carbon Steel Bearing Sale T-0254-0508-BND --- Thrust Ball Bearings - 25.4x50.8x16.002 mm / 27.305 mm Banded - Carbon Steel Bearing Regular price $93.32 AUD Regular price ~~$172.27 AUD~~ Sale price $93.32 AUD Unit price per 1 Available Now Sale
Shaft Diameter (d1) 25.806 mm (Equiv. 1.016 in.)	OD (D1) 44.450 mm (Equiv. 1.75 in.)	Thickness (T) 15.875 mm (Equiv. 0.625 in.)	Bore (d2) 27.305 mm		Dynamic Load Capacity 583 kgf
Material: Carbon Steel Static Load Capacity: 822 kgf Max. Speed: 1000 RPM
Part Number: T-0258-0445-BND Thrust Ball Bearings - 25.806x44.45x15.875 mm / 27.305 mm Banded - Carbon Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 16, 2025 Regular price $36.05 AUD Regular price ~~$43.25 AUD~~ Sale price $36.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (d1) 25.806 mm (Equiv. 1.016 in.)	OD (D1) 44.450 mm (Equiv. 1.75 in.)	Thickness (T) 15.875 mm (Equiv. 0.625 in.)	Bore (d2) 27.305 mm
Material: Carbon Steel Dynamic Load Capacity: 583 kgf Static Load Capacity: 822 kgf Max. Speed: 1000 RPM
Part Number: T-0258-0445-BND Thrust Ball Bearings - 25.806x44.45x15.875 mm / 27.305 mm Banded - Carbon Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 16, 2025 Regular price $36.05 AUD Regular price ~~$43.25 AUD~~ Sale price $36.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
T-0258-0445-BND --- Thrust Ball Bearings - 25.806x44.45x15.875 mm / 27.305 mm Banded - Carbon Steel Bearing Sale T-0258-0445-BND --- Thrust Ball Bearings - 25.806x44.45x15.875 mm / 27.305 mm Banded - Carbon Steel Bearing Regular price $36.05 AUD Regular price ~~$43.25 AUD~~ Sale price $36.05 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (d1) 27.000 mm (Equiv. 1.063 in.)	OD (D1) 50.013 mm (Equiv. 1.969 in.)	Thickness (T) 15.875 mm (Equiv. 0.625 in.)	Bore (d2) 27.790 mm		Dynamic Load Capacity 2991 kgf
Material: Carbon Steel Static Load Capacity: 5848 kgf Max. Speed: 3800 RPM
Part Number: T-0270-0500-BND Thrust Ball Bearings - 27x50.013x15.875 mm / 27.79 mm Banded - Carbon Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 16, 2025 Regular price $37.59 AUD Regular price ~~$45.11 AUD~~ Sale price $37.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (d1) 27.000 mm (Equiv. 1.063 in.)	OD (D1) 50.013 mm (Equiv. 1.969 in.)	Thickness (T) 15.875 mm (Equiv. 0.625 in.)	Bore (d2) 27.790 mm
Material: Carbon Steel Dynamic Load Capacity: 2991 kgf Static Load Capacity: 5848 kgf Max. Speed: 3800 RPM
Part Number: T-0270-0500-BND Thrust Ball Bearings - 27x50.013x15.875 mm / 27.79 mm Banded - Carbon Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 16, 2025 Regular price $37.59 AUD Regular price ~~$45.11 AUD~~ Sale price $37.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
T-0270-0500-BND --- Thrust Ball Bearings - 27x50.013x15.875 mm / 27.79 mm Banded - Carbon Steel Bearing Sale T-0270-0500-BND --- Thrust Ball Bearings - 27x50.013x15.875 mm / 27.79 mm Banded - Carbon Steel Bearing Regular price $37.59 AUD Regular price ~~$45.11 AUD~~ Sale price $37.59 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (d1) 28.575 mm (Equiv. 1.125 in.)	OD (D1) 53.188 mm (Equiv. 2.094 in.)	Thickness (T) 15.875 mm (Equiv. 0.625 in.)	Bore (d2) 29.360 mm		Dynamic Load Capacity 3080 kgf
Material: Carbon Steel Static Load Capacity: 6250 kgf Max. Speed: 3600 RPM
Part Number: T-0286-0532-BND Thrust Ball Bearings - 28.575x53.188x15.875 mm / 29.36 mm Banded - Carbon Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 16, 2025 Regular price $46.86 AUD Regular price ~~$56.24 AUD~~ Sale price $46.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (d1) 28.575 mm (Equiv. 1.125 in.)	OD (D1) 53.188 mm (Equiv. 2.094 in.)	Thickness (T) 15.875 mm (Equiv. 0.625 in.)	Bore (d2) 29.360 mm
Material: Carbon Steel Dynamic Load Capacity: 3080 kgf Static Load Capacity: 6250 kgf Max. Speed: 3600 RPM
Part Number: T-0286-0532-BND Thrust Ball Bearings - 28.575x53.188x15.875 mm / 29.36 mm Banded - Carbon Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 16, 2025 Regular price $46.86 AUD Regular price ~~$56.24 AUD~~ Sale price $46.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
T-0286-0532-BND --- Thrust Ball Bearings - 28.575x53.188x15.875 mm / 29.36 mm Banded - Carbon Steel Bearing Sale T-0286-0532-BND --- Thrust Ball Bearings - 28.575x53.188x15.875 mm / 29.36 mm Banded - Carbon Steel Bearing Regular price $46.86 AUD Regular price ~~$56.24 AUD~~ Sale price $46.86 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (d1) 30.175 mm (Equiv. 1.188 in.)	OD (D1) 53.188 mm (Equiv. 2.094 in.)	Thickness (T) 15.875 mm (Equiv. 0.625 in.)	Bore (d2) 30.960 mm		Dynamic Load Capacity 3080 kgf
Material: Chrome Steel with Low Carbon Steel Band Static Load Capacity: 6250 kgf Max. Speed: 3600 RPM
Part Number: T-0302-0532-BND Thrust Ball Bearings - 30.175x53.188x15.875 mm / 30.96 mm Banded - Chrome Steel with Low Carbon Steel Band Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (d1) 30.175 mm (Equiv. 1.188 in.)	OD (D1) 53.188 mm (Equiv. 2.094 in.)	Thickness (T) 15.875 mm (Equiv. 0.625 in.)	Bore (d2) 30.960 mm
Material: Chrome Steel with Low Carbon Steel Band Dynamic Load Capacity: 3080 kgf Static Load Capacity: 6250 kgf Max. Speed: 3600 RPM
Part Number: T-0302-0532-BND Thrust Ball Bearings - 30.175x53.188x15.875 mm / 30.96 mm Banded - Chrome Steel with Low Carbon Steel Band Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.

Country/region

Collection: Bearings - Thrust Ball - Banded

Category Details

Filter

Filter

Subscribe to our emails
