CCE-02700-C (PK-10)

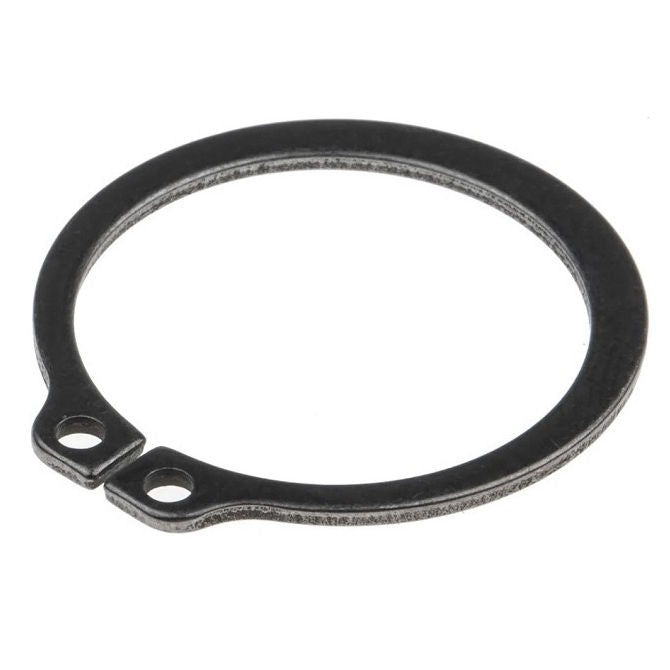

External Retaining Rings - 27x1.2x25.6 mm Circlips - Carbon Steel Circlip
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Order 50 or more packs of 10 (500 pcs)
for $6.01 AUD per 10 pack
Couldn't load pickup availability
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Product Details
Additional stock available from USA subject to Prior Sale = 790
Shaft Diameter (Ds): 27.00mm
(27.00mm is 1.063 in.)
Carbon Steel
- Shaft Diameter (Ds): 27.00mm
(27.00mm is 1.063 in.)
- Clip Thickness (T): 1.20mm
+ 0.00 / - 0.06
(1.20mm is 0.047 in.)
- Groove Dia. (Dg): 25.60mm
+ 0.00 / - 0.21
(25.60mm is 1.008 in.)
- Approx. Loose Circlip ID (A): 24.90mm
- Groove Width (W): 1.30mm
- Clearance on Shaft (C1): 36.70mm
- Clearance in Groove (C1): 34.80mm
- Min. Lug Diameter (h): 2.00mm
- Min. Extension (n): 2.10
- Standard: DIN471
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Ellison® 471-027
- ALTPART
- 98541A129
- Seeger® A-027
- Seeger® A27
- Seeger® A27-BLS
- Seeger® A27X1.2
- Bossard® BN818-027
- Waldes® D1400-027
- Huyett® DSH-027
- NoCor® DSH-027
- Rotor Clip® DSH-027
- Seeger® NZT.A27
- A27BLS
- BN818027
- A027
- D1400-0270APP
- D1400027
- D14000270
- D14000270APP
- 471027
- DSH027
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CCE02700C, CCE02700
