TB-25-60SR

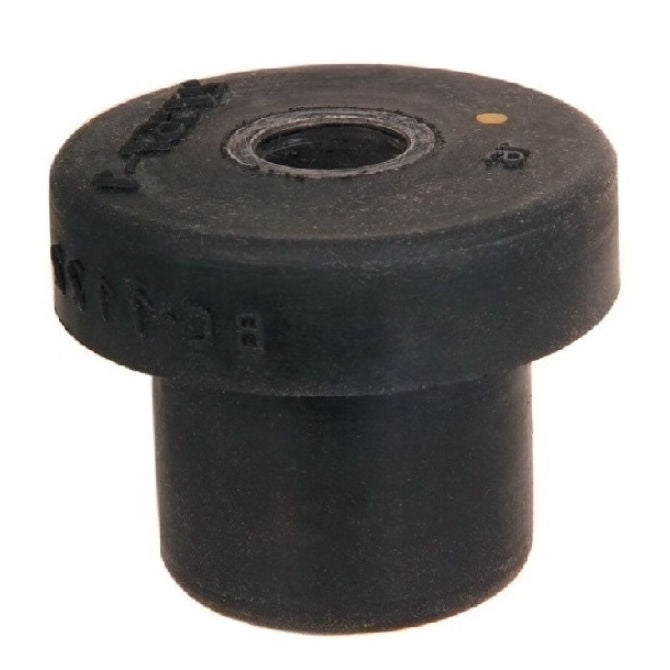

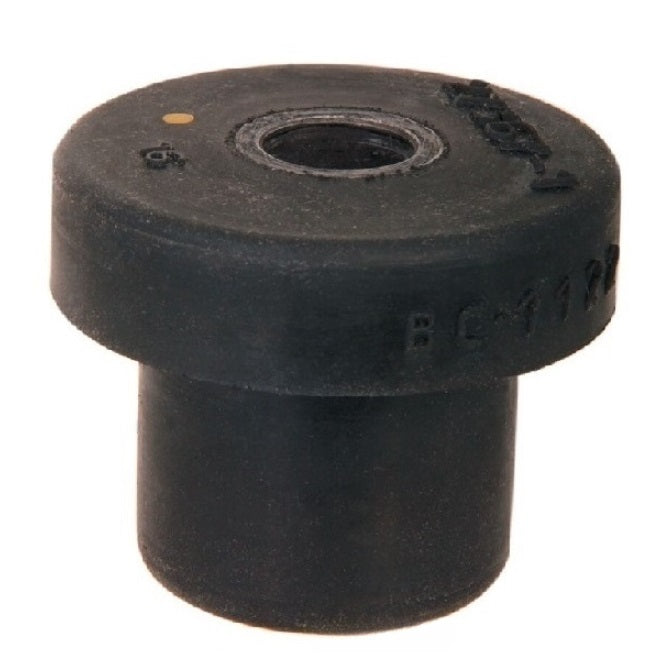

Bonded Mounts - 50 kg - 10x27 mm - Neoprene Rubber and Steel

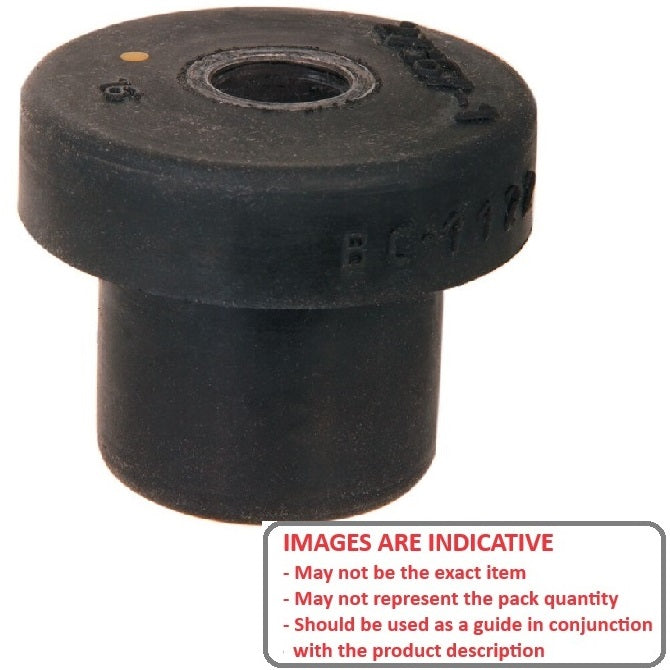

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

MBA

Additional resources:
Cylindrical Bobbin Mounts PDF Quick Guide
Price:
$9.14 AUD
$10.96 AUD $9.14 AUD
Each
Qty: 20 available now
Order 50 or more for $8.23 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jun 05, 2025

Base Category: Mounts - Bonded

Top Level Category: Mounts - Bonded - Tee Bush Centre Bolt

Product Details:

Max Static Load: 50kg
Neoprene Rubber and Steel

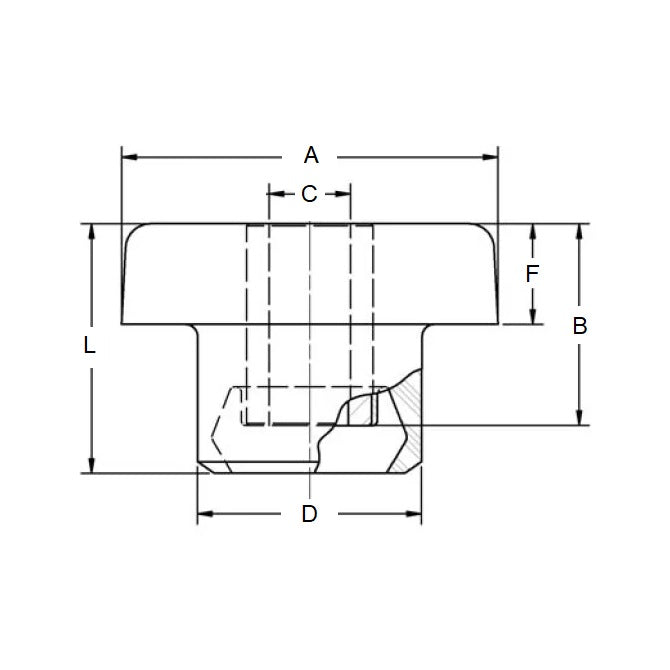

  • Bolt Hole Diameter (C): 10.0mm
  • Flange Diameter (A): 27.0mm
  • Flange Width (F): 6.0mm
  • Shoulder Diameter (D): 20.0mm
  • Overall Length (B): 22.1mm
  • Durometer Hardness: 60

Brand: MBA
Country of Origin: GB

Alternative Parts Include: TB25, AVI

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
