P-H-026-762FF-CB-N-0286U (Each)

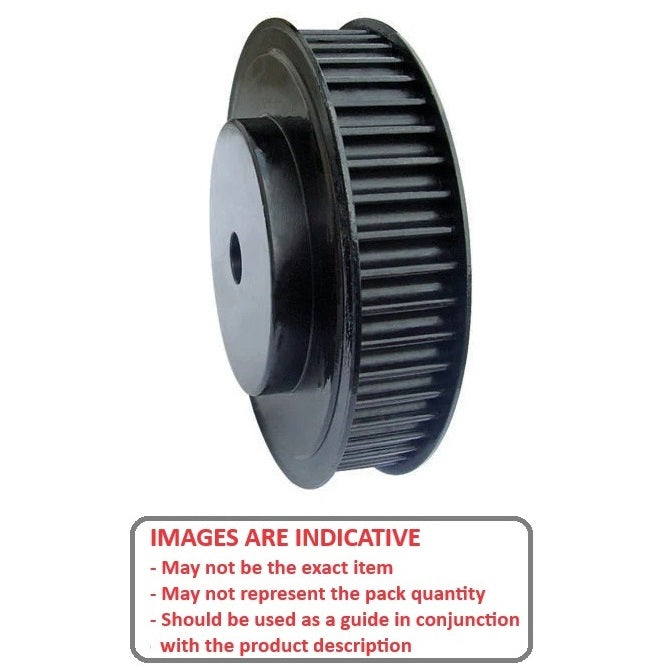

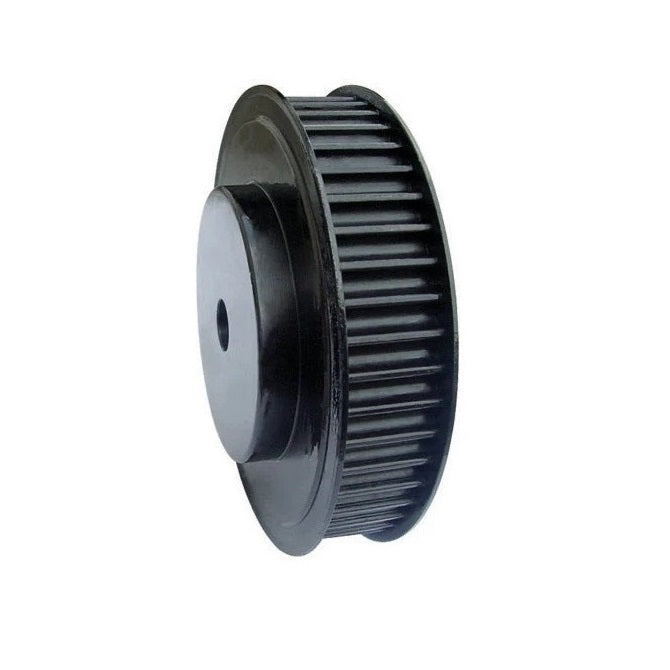

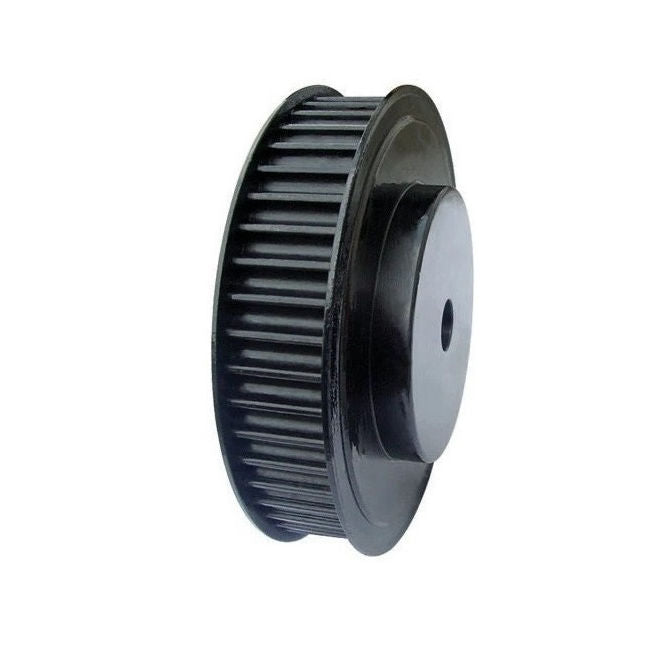

Inch Timing Pulleys - 26 tooth - 76.2x28.575 mm 12.700mm Pitch H - Cast Iron Pulley
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Timing Pulleys Catalogue PDF
H Section Timing Belts
Order 50 or more
for $494.79 AUD Each
26 tooth - 76.2x28.575 mm Inch Timing Pulleys - Cast Iron - Sold per Each:
Base Category: Pulleys - Inch Timing
Top Level Category: Pulleys - Inch Timing - 12.700mm Pitch H - 76.2mm Wide - Through Bore

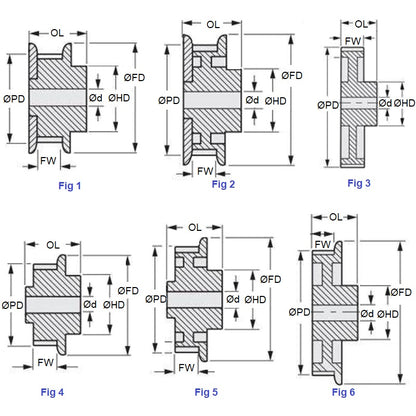

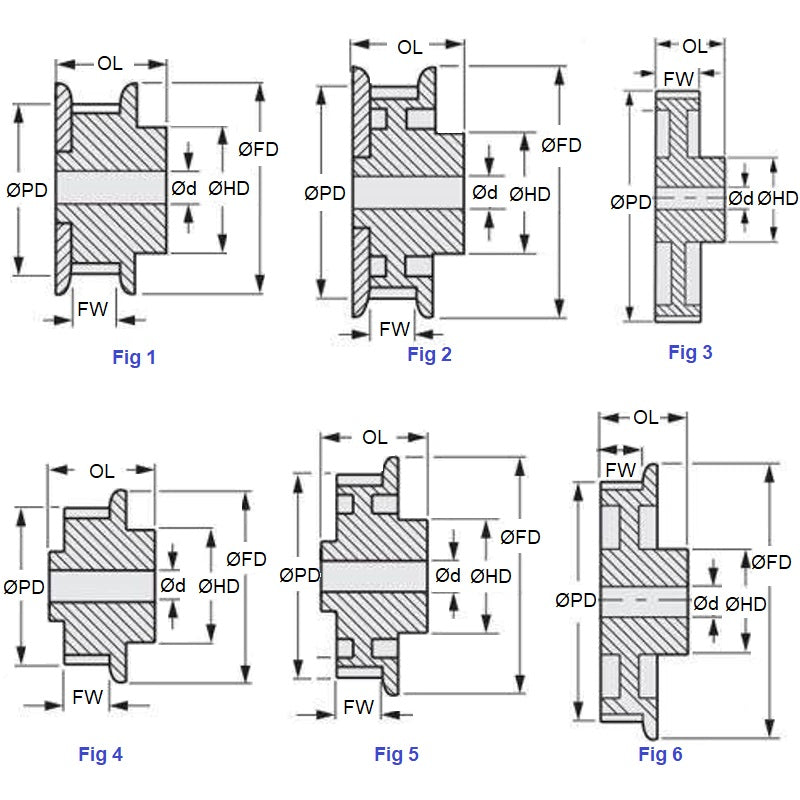

Product Details
Number of Teeth: 26Cast Iron
- Number of Teeth: 26
- Max Belt Width (W): 76.20mm
(76.20mm is 3 in.)
- Bore (d): 28.575mm
(28.575mm is 1.125 in.)
- Bore Type: Unfinished
- Type: 2
- Pitch Dia. (PD): 105.06mm
- Flange Diameter (FD): 111.0mm
- Overall Length: 112.7mm
- Hub Diameter (HD): 85.7
- Locking Type: None
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Gates® 26H300-6FS11
- 26H3006FS11
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
PH026762FFCBN0286U, PH026
