Collection: Pulleys - Inch Timing - 12.700mm Pitch H - 76.2mm Wide - Through Bore

Pulleys -> Inch Timing -> 12.700mm Pitch H -> 76.2mm Wide -> Through Bore

There are 9 products in the sub-categories of Pulleys - Inch Timing - 12.700mm Pitch H - 76.2mm Wide - Through Bore. Browse the Pulleys - Inch Timing - 12.700mm Pitch H - 76.2mm Wide - Through Bore products table.

Category Details

A selection of Through Bore 76.2mm Wide 12.700mm Pitch H Inch Timing Pulleys. Timing Pulleys to suit H Series 12.700mm Pitch. Unfinished Bore.

  • Timing pulleys combined with timing belts, provide power transmission without slippage.
  • Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
  • Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
  • Steel and Cast Iron
  • No grub screw
  • Hub requires drilling and tapping
  • Bore requires machining to finished size

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Pulleys - Inch Timing - 12.700mm Pitch H - 76.2mm Wide - Through Bore category on the Small Parts & Bearings online store.
Number of Teeth Max Belt Width (W) Bore (d) Bore Type Indicative
Number of Teeth
16

Max Belt Width (W)
76.20
mm

(Equiv. 3 in.)
Bore (d)
19.050
mm

(Equiv. 0.75 in.)
Bore Type
Unfinished

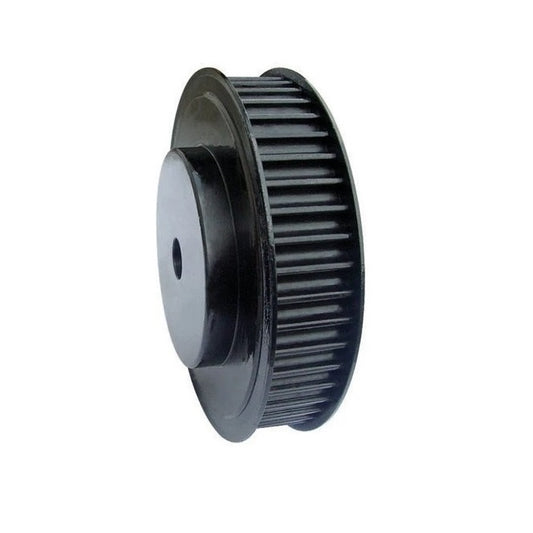

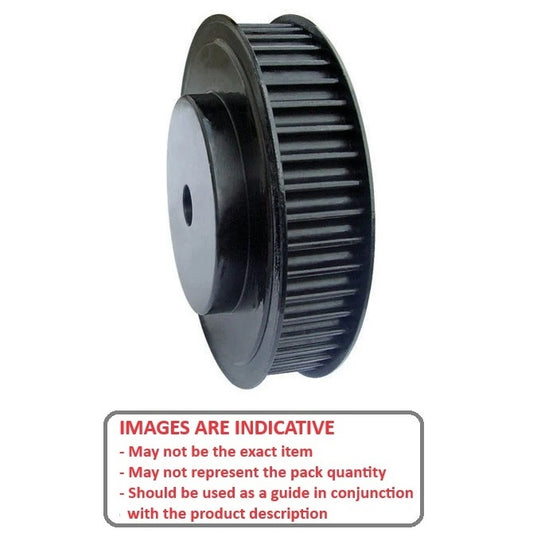

Inch Timing Pulleys - 16 tooth - 76.2x19.05 mm - Steel - Black Oxide
Material: Steel - Black Oxide    Type: 2    Pitch Dia. (PD): 64.65 mm    Flange Diameter (FD): 70.6 mm    Overall Length: 103.2 mm    Hub Diameter (HD): 47.6    Locking Type: None
Part Number: P-H-016-762FF-SB-N-0191U
Inch Timing Pulleys - 16 tooth - 76.2x19.05 mm 12.700mm Pitch H - Steel - Black Oxide Pulley
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
Regular price $294.68 AUD
Regular price Sale price $294.68 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth Max Belt Width (W) Bore (d) Bore Type Indicative
Number of Teeth
16

Max Belt Width (W)
76.20
mm

(Equiv. 3 in.)
Bore (d)
19.050
mm

(Equiv. 0.75 in.)
Bore Type
Unfinished
Inch Timing Pulleys - 16 tooth - 76.2x19.05 mm - Steel - Black Oxide
Material: Steel - Black Oxide    Type: 2    Pitch Dia. (PD): 64.65 mm    Flange Diameter (FD): 70.6 mm    Overall Length: 103.2 mm    Hub Diameter (HD): 47.6    Locking Type: None
Part Number: P-H-016-762FF-SB-N-0191U
Inch Timing Pulleys - 16 tooth - 76.2x19.05 mm 12.700mm Pitch H - Steel - Black Oxide Pulley
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
Regular price $294.68 AUD
Regular price Sale price $294.68 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth
17

Max Belt Width (W)
76.20
mm

(Equiv. 3 in.)
Bore (d)
19.050
mm

(Equiv. 0.75 in.)
Bore Type
Unfinished
Inch Timing Pulleys - 17 tooth - 76.2x19.05 mm - Steel - Black Oxide
Material: Steel - Black Oxide    Type: 2    Pitch Dia. (PD): 68.69 mm    Flange Diameter (FD): 76.2 mm    Overall Length: 103.2 mm    Hub Diameter (HD): 50.8    Locking Type: None
Part Number: P-H-017-762FF-SB-N-0191U
Inch Timing Pulleys - 17 tooth - 76.2x19.05 mm 12.700mm Pitch H - Steel - Black Oxide Pulley
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
Regular price $294.05 AUD
Regular price $352.85 AUD Sale price $294.05 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth
17

Max Belt Width (W)
76.20
mm

(Equiv. 3 in.)
Bore (d)
19.050
mm

(Equiv. 0.75 in.)
Bore Type
Unfinished
Inch Timing Pulleys - 17 tooth - 76.2x19.05 mm - Steel - Black Oxide
Material: Steel - Black Oxide    Type: 2    Pitch Dia. (PD): 68.69 mm    Flange Diameter (FD): 76.2 mm    Overall Length: 103.2 mm    Hub Diameter (HD): 50.8    Locking Type: None
Part Number: P-H-017-762FF-SB-N-0191U
Inch Timing Pulleys - 17 tooth - 76.2x19.05 mm 12.700mm Pitch H - Steel - Black Oxide Pulley
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
Regular price $294.05 AUD
Regular price $352.85 AUD Sale price $294.05 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth
18

Max Belt Width (W)
76.20
mm

(Equiv. 3 in.)
Bore (d)
19.050
mm

(Equiv. 0.75 in.)
Bore Type
Unfinished
Inch Timing Pulleys - 18 tooth - 76.2x19.05 mm - Steel - Black Oxide
Material: Steel - Black Oxide    Type: 2    Pitch Dia. (PD): 72.73 mm    Flange Diameter (FD): 78.7 mm    Overall Length: 103.2 mm    Hub Diameter (HD): 57.2    Locking Type: None
Part Number: P-H-018-762FF-SB-N-0191U
Inch Timing Pulleys - 18 tooth - 76.2x19.05 mm 12.700mm Pitch H - Steel - Black Oxide Pulley
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
Regular price $326.32 AUD
Regular price $391.58 AUD Sale price $326.32 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth
18

Max Belt Width (W)
76.20
mm

(Equiv. 3 in.)
Bore (d)
19.050
mm

(Equiv. 0.75 in.)
Bore Type
Unfinished
Inch Timing Pulleys - 18 tooth - 76.2x19.05 mm - Steel - Black Oxide
Material: Steel - Black Oxide    Type: 2    Pitch Dia. (PD): 72.73 mm    Flange Diameter (FD): 78.7 mm    Overall Length: 103.2 mm    Hub Diameter (HD): 57.2    Locking Type: None
Part Number: P-H-018-762FF-SB-N-0191U
Inch Timing Pulleys - 18 tooth - 76.2x19.05 mm 12.700mm Pitch H - Steel - Black Oxide Pulley
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
Regular price $326.32 AUD
Regular price $391.58 AUD Sale price $326.32 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth
19

Max Belt Width (W)
76.20
mm

(Equiv. 3 in.)
Bore (d)
19.050
mm

(Equiv. 0.75 in.)
Bore Type
Unfinished
Inch Timing Pulleys - 19 tooth - 76.2x19.05 mm - Steel - Black Oxide
Material: Steel - Black Oxide    Type: 2    Pitch Dia. (PD): 76.77 mm    Flange Diameter (FD): 82.7 mm    Overall Length: 103.2 mm    Hub Diameter (HD): 60.3    Locking Type: None
Part Number: P-H-019-762FF-SB-N-0191U
Inch Timing Pulleys - 19 tooth - 76.2x19.05 mm 12.700mm Pitch H - Steel - Black Oxide Pulley
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
Regular price $349.50 AUD
Regular price $419.40 AUD Sale price $349.50 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth
19

Max Belt Width (W)
76.20
mm

(Equiv. 3 in.)
Bore (d)
19.050
mm

(Equiv. 0.75 in.)
Bore Type
Unfinished
Inch Timing Pulleys - 19 tooth - 76.2x19.05 mm - Steel - Black Oxide
Material: Steel - Black Oxide    Type: 2    Pitch Dia. (PD): 76.77 mm    Flange Diameter (FD): 82.7 mm    Overall Length: 103.2 mm    Hub Diameter (HD): 60.3    Locking Type: None
Part Number: P-H-019-762FF-SB-N-0191U
Inch Timing Pulleys - 19 tooth - 76.2x19.05 mm 12.700mm Pitch H - Steel - Black Oxide Pulley
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
Regular price $349.50 AUD
Regular price $419.40 AUD Sale price $349.50 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth
20

Max Belt Width (W)
76.20
mm

(Equiv. 3 in.)
Bore (d)
19.050
mm

(Equiv. 0.75 in.)
Bore Type
Unfinished
Inch Timing Pulleys - 20 tooth - 76.2x19.05 mm - Cast Iron
Material: Cast Iron    Type: 2    Pitch Dia. (PD): 80.81 mm    Flange Diameter (FD): 86.9 mm    Overall Length: 106.4 mm    Hub Diameter (HD): 63.5    Locking Type: None
Part Number: P-H-020-762FF-CB-N-0191U
Inch Timing Pulleys - 20 tooth - 76.2x19.05 mm 12.700mm Pitch H - Cast Iron Pulley
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
Regular price $372.95 AUD
Regular price $447.55 AUD Sale price $372.95 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth
20

Max Belt Width (W)
76.20
mm

(Equiv. 3 in.)
Bore (d)
19.050
mm

(Equiv. 0.75 in.)
Bore Type
Unfinished
Inch Timing Pulleys - 20 tooth - 76.2x19.05 mm - Cast Iron
Material: Cast Iron    Type: 2    Pitch Dia. (PD): 80.81 mm    Flange Diameter (FD): 86.9 mm    Overall Length: 106.4 mm    Hub Diameter (HD): 63.5    Locking Type: None
Part Number: P-H-020-762FF-CB-N-0191U
Inch Timing Pulleys - 20 tooth - 76.2x19.05 mm 12.700mm Pitch H - Cast Iron Pulley
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
Regular price $372.95 AUD
Regular price $447.55 AUD Sale price $372.95 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth
24

Max Belt Width (W)
76.20
mm

(Equiv. 3 in.)
Bore (d)
28.575
mm

(Equiv. 1.125 in.)
Bore Type
Unfinished
Inch Timing Pulleys - 24 tooth - 76.2x28.575 mm - Cast Iron
Material: Cast Iron    Type: 2    Pitch Dia. (PD): 96.98 mm    Flange Diameter (FD): 102.9 mm    Overall Length: 109.5 mm    Hub Diameter (HD): 76.2    Locking Type: None
Part Number: P-H-024-762FF-CB-N-0286U
Inch Timing Pulleys - 24 tooth - 76.2x28.575 mm 12.700mm Pitch H - Cast Iron Pulley
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
Regular price $472.41 AUD
Regular price $566.89 AUD Sale price $472.41 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth
24

Max Belt Width (W)
76.20
mm

(Equiv. 3 in.)
Bore (d)
28.575
mm

(Equiv. 1.125 in.)
Bore Type
Unfinished
Inch Timing Pulleys - 24 tooth - 76.2x28.575 mm - Cast Iron
Material: Cast Iron    Type: 2    Pitch Dia. (PD): 96.98 mm    Flange Diameter (FD): 102.9 mm    Overall Length: 109.5 mm    Hub Diameter (HD): 76.2    Locking Type: None
Part Number: P-H-024-762FF-CB-N-0286U
Inch Timing Pulleys - 24 tooth - 76.2x28.575 mm 12.700mm Pitch H - Cast Iron Pulley
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
Regular price $472.41 AUD
Regular price $566.89 AUD Sale price $472.41 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth
26

Max Belt Width (W)
76.20
mm

(Equiv. 3 in.)
Bore (d)
28.575
mm

(Equiv. 1.125 in.)
Bore Type
Unfinished
Inch Timing Pulleys - 26 tooth - 76.2x28.575 mm - Cast Iron
Material: Cast Iron    Type: 2    Pitch Dia. (PD): 105.06 mm    Flange Diameter (FD): 111.0 mm    Overall Length: 112.7 mm    Hub Diameter (HD): 85.7    Locking Type: None
Part Number: P-H-026-762FF-CB-N-0286U
Inch Timing Pulleys - 26 tooth - 76.2x28.575 mm 12.700mm Pitch H - Cast Iron Pulley
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
Regular price $549.77 AUD
Regular price $659.73 AUD Sale price $549.77 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth
26

Max Belt Width (W)
76.20
mm

(Equiv. 3 in.)
Bore (d)
28.575
mm

(Equiv. 1.125 in.)
Bore Type
Unfinished
Inch Timing Pulleys - 26 tooth - 76.2x28.575 mm - Cast Iron
Material: Cast Iron    Type: 2    Pitch Dia. (PD): 105.06 mm    Flange Diameter (FD): 111.0 mm    Overall Length: 112.7 mm    Hub Diameter (HD): 85.7    Locking Type: None
Part Number: P-H-026-762FF-CB-N-0286U
Inch Timing Pulleys - 26 tooth - 76.2x28.575 mm 12.700mm Pitch H - Cast Iron Pulley
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
Regular price $549.77 AUD
Regular price $659.73 AUD Sale price $549.77 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth
28

Max Belt Width (W)
76.20
mm

(Equiv. 3 in.)
Bore (d)
28.575
mm

(Equiv. 1.125 in.)
Bore Type
Unfinished
Inch Timing Pulleys - 28 tooth - 76.2x28.575 mm - Cast Iron
Material: Cast Iron    Type: 2    Pitch Dia. (PD): 113.14 mm    Flange Diameter (FD): 119.1 mm    Overall Length: 112.7 mm    Hub Diameter (HD): 88.9    Locking Type: None
Part Number: P-H-028-762FF-CB-N-0286U
Inch Timing Pulleys - 28 tooth - 76.2x28.575 mm 12.700mm Pitch H - Cast Iron Pulley
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
Regular price $625.77 AUD
Regular price $750.93 AUD Sale price $625.77 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth
28

Max Belt Width (W)
76.20
mm

(Equiv. 3 in.)
Bore (d)
28.575
mm

(Equiv. 1.125 in.)
Bore Type
Unfinished
Inch Timing Pulleys - 28 tooth - 76.2x28.575 mm - Cast Iron
Material: Cast Iron    Type: 2    Pitch Dia. (PD): 113.14 mm    Flange Diameter (FD): 119.1 mm    Overall Length: 112.7 mm    Hub Diameter (HD): 88.9    Locking Type: None
Part Number: P-H-028-762FF-CB-N-0286U
Inch Timing Pulleys - 28 tooth - 76.2x28.575 mm 12.700mm Pitch H - Cast Iron Pulley
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
Regular price $625.77 AUD
Regular price $750.93 AUD Sale price $625.77 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth
30

Max Belt Width (W)
76.20
mm

(Equiv. 3 in.)
Bore (d)
28.575
mm

(Equiv. 1.125 in.)
Bore Type
Unfinished
Inch Timing Pulleys - 30 tooth - 76.2x28.575 mm - Cast Iron
Material: Cast Iron    Type: 2    Pitch Dia. (PD): 121.22 mm    Flange Diameter (FD): 127.1 mm    Overall Length: 112.7 mm    Hub Diameter (HD): 92.1    Locking Type: None
Part Number: P-H-030-762FF-CB-N-0286U
Inch Timing Pulleys - 30 tooth - 76.2x28.575 mm 12.700mm Pitch H - Cast Iron Pulley
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
Regular price $722.77 AUD
Regular price $867.33 AUD Sale price $722.77 AUD
Each
Quantity Required

Backorder: Out of Stock.
Number of Teeth
30

Max Belt Width (W)
76.20
mm

(Equiv. 3 in.)
Bore (d)
28.575
mm

(Equiv. 1.125 in.)
Bore Type
Unfinished
Inch Timing Pulleys - 30 tooth - 76.2x28.575 mm - Cast Iron
Material: Cast Iron    Type: 2    Pitch Dia. (PD): 121.22 mm    Flange Diameter (FD): 127.1 mm    Overall Length: 112.7 mm    Hub Diameter (HD): 92.1    Locking Type: None
Part Number: P-H-030-762FF-CB-N-0286U
Inch Timing Pulleys - 30 tooth - 76.2x28.575 mm 12.700mm Pitch H - Cast Iron Pulley
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
Regular price $722.77 AUD
Regular price $867.33 AUD Sale price $722.77 AUD
Each
Quantity Required

Backorder: Out of Stock.
