CCE-02699-S15 (PK-3)

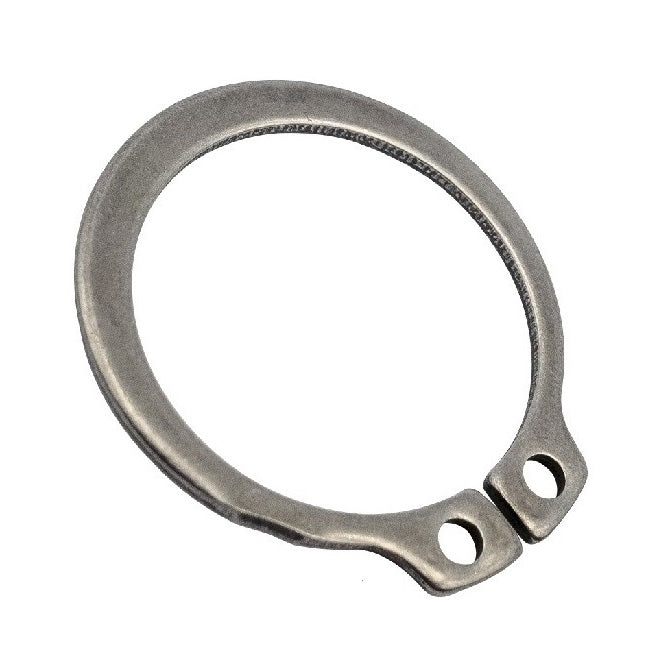

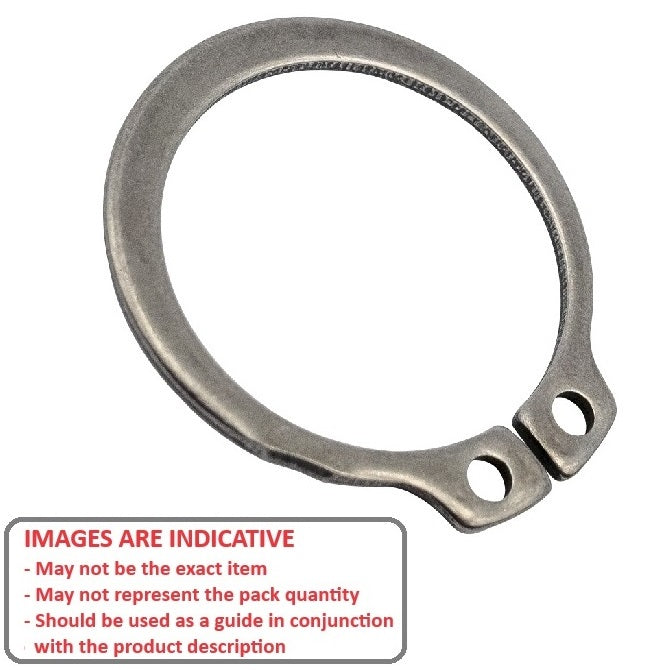

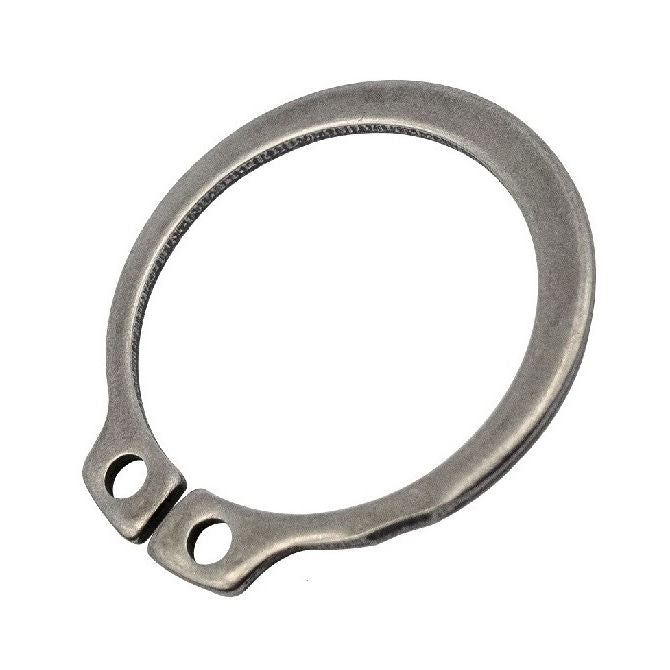

External Retaining Rings - 26.99x1.3x25.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Order 50 or more packs of 3 (150 pcs)
for $11.17 AUD per 3 pack
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Product Details
Additional stock available from USA subject to Prior Sale = 9502
Shaft Diameter (Ds): 26.99mm
(26.99mm is 1.063 in.)
Stainless Steel Grade PH15-7 Mo
- Shaft Diameter (Ds): 26.99mm
(26.99mm is 1.063 in.)
- Clip Thickness (T): 1.30mm
+/- 0.051
(1.30mm is 0.051 in.)
- Groove Dia. (Dg): 25.40mm
+/- 0.102
(25.40mm is 1 in.)
- Approx. Loose Circlip ID (A): 24.90mm
- Groove Width (W): 1.40mm
- Standard: MIL-16624
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 91590A136
- Huyett® SH-106-SS
- NoCor® SH-106-SS
- SH106SS
- N1400-0106KSF
- N14000106KSF
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CCE02699S15, CCE02699
