PWL-250-ST

Pawls Ratchets and Pawls - 25x98x13 mm - Carbon Steel Pawl

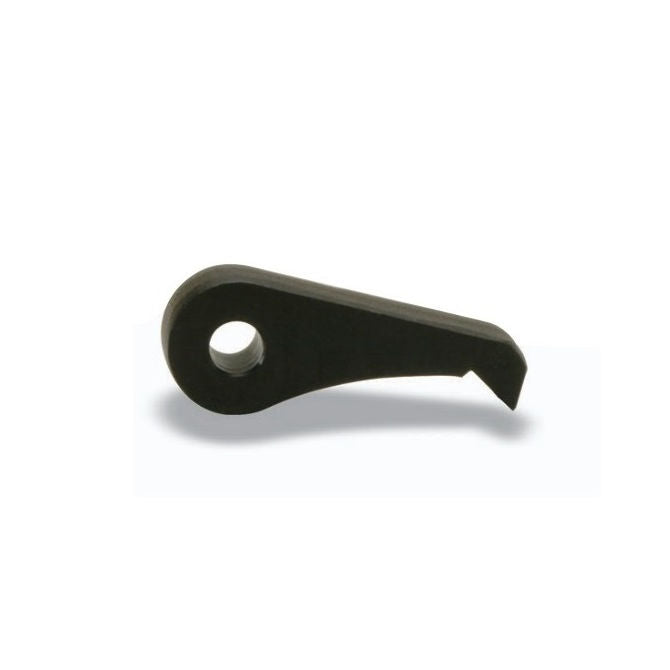

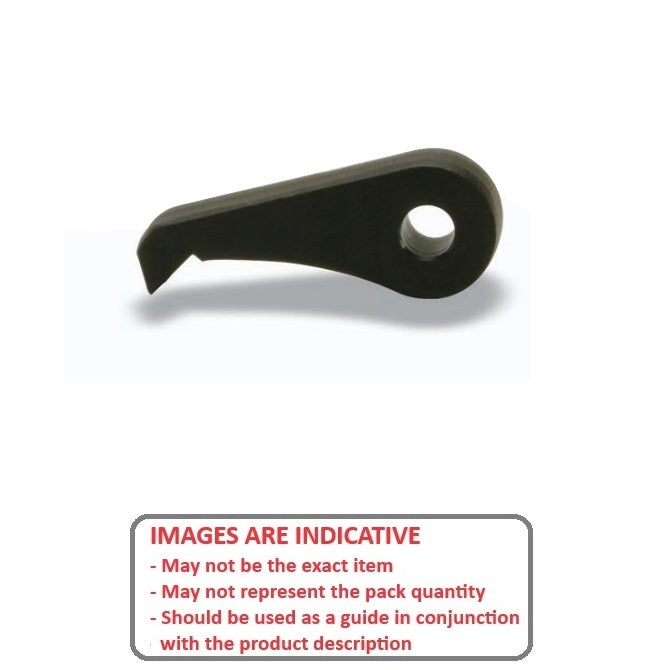

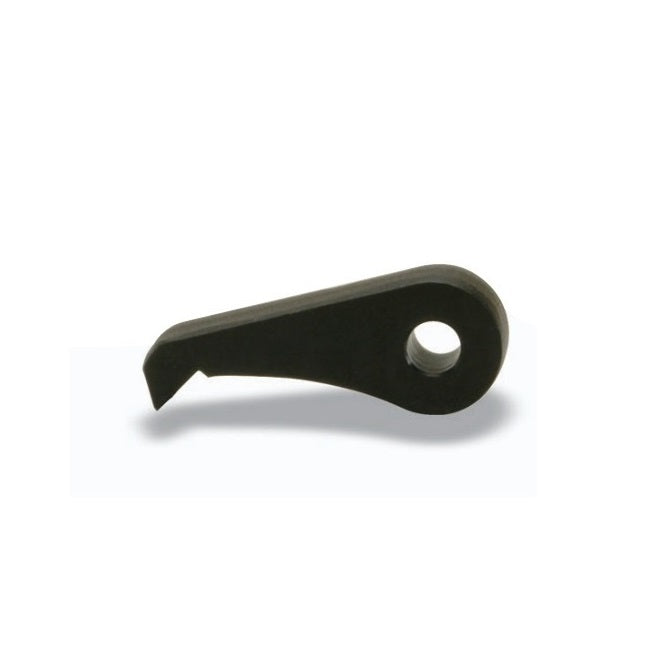

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Pawls Ratchets and Pawls - 25x98 - 13.00 -H8- - Carbon Steel - Hardened
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale
Price:
$118.77 AUD
$142.53 AUD $118.77 AUD
Each
Excludes GST and overseas Taxes & Duties
 Backorder
Order 50 or more for $106.89 AUD
Backorder now! Backorders for more than the stock quantity are expected before Nov 26, 2025

Base Category: Ratchets and Pawls - Pawls

Top Level Category: Ratchets and Pawls - Pawls

Product Details

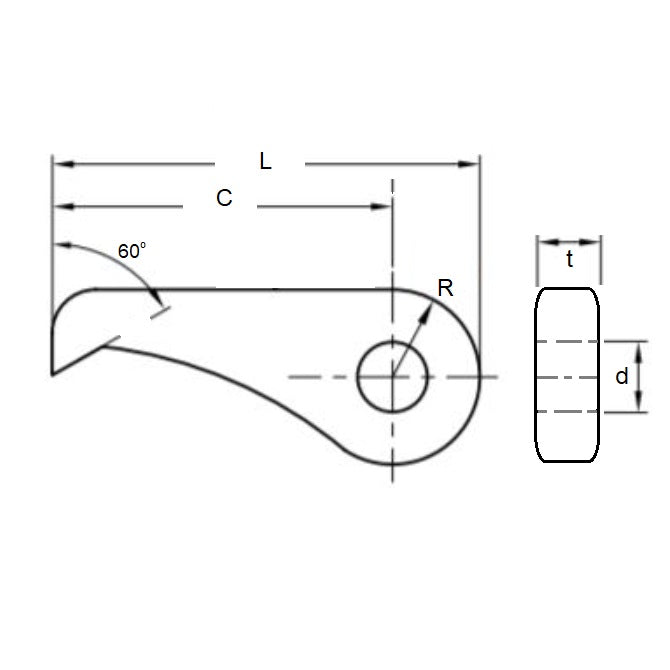

Thickness (t): 25mm
(25mm is 0.984 in.)

Carbon Steel
  • Overall Length (L): 98mm
    (98mm is 3.858 in.)
  • Mounting Hole Diameter: 13.00mm
    H8
    (13.00mm is 0.512 in.)
  • Swivel Radius (R): 18mm
  • Hole Centre (c): 80
  • Type: Type 2

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

  • SRT4C

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
