PWL-250-ST - Datasheet

MBA

Category Information

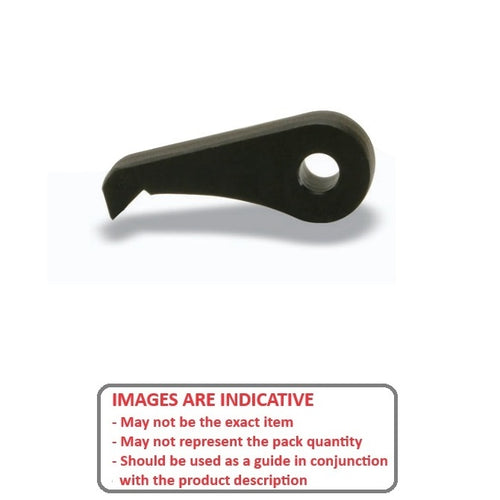

Ratchets and Pawls - Pawls

Pawls Ratchets and Pawls. Used with ratchets listed on this site.

  • An expanded range may be available on special order. Please enquire.

Product Data

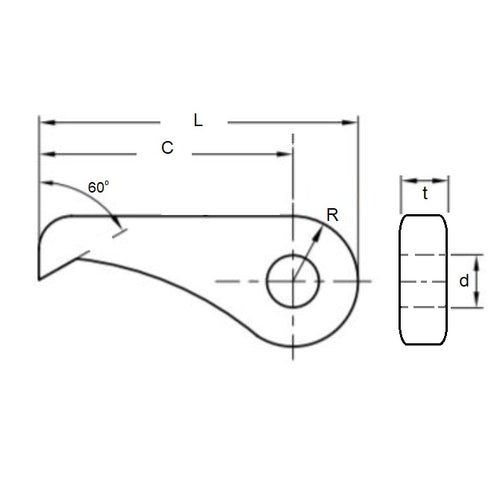

  • Thickness (t) : 25 mm
    (Equiv. 0.984 in.)
  • Overall Length (L) 98 mm
    (Equiv. 3.858 in.)
  • Mounting Hole Diameter 13.00 mm H8
    (Equiv. 0.512 in.)
  • Swivel Radius (R) 18 mm
  • Hole Centre (c) 80
  • Type Type 2
  • Material Carbon Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

    Cross References

    • SRT4C
