P-UC205-16-ASL (5 Pcs)

Name: P-UC205-16-ASL (5 Pack) - Spherical OD Bearings - 25.4x52x18 mm Suits Plastic Housings - Acetal Solid
Brand: KMS
SKU: PUC20516ASL
Price: 150.95 AUD
Availability: BackOrder

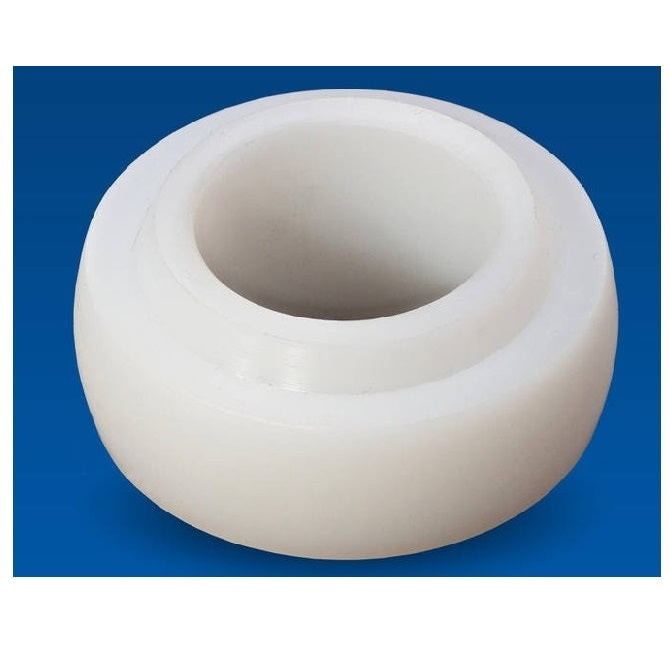

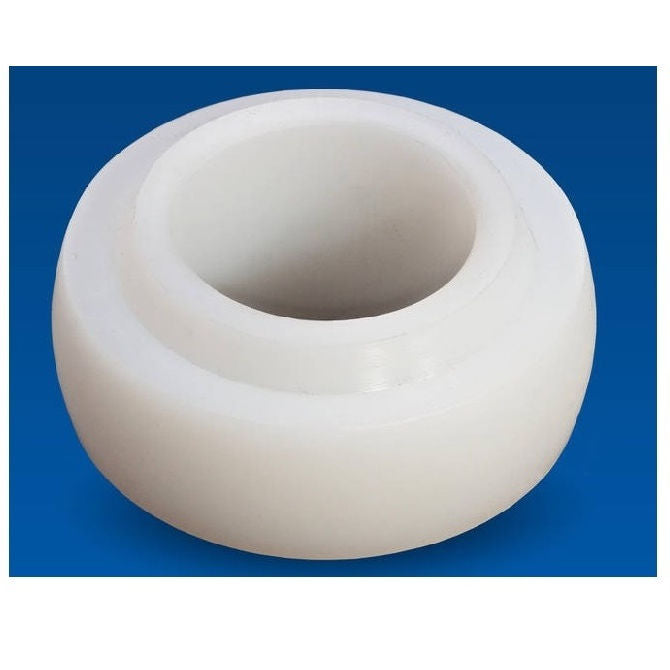

Spherical OD Bearings - 25.4x52x18 mm Suits Plastic Housings - Acetal Solid

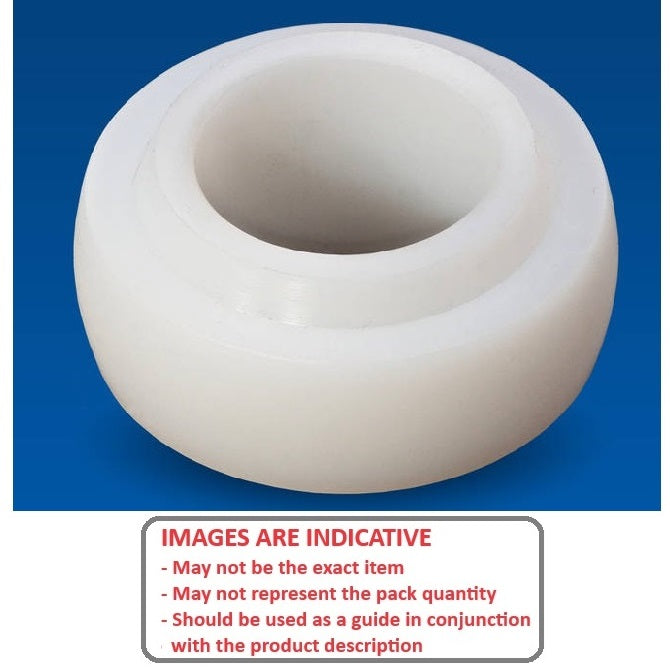

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

KMS

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Bearings - Spherical OD - Suits Plastic Housings - Acetal - Solid

Price:

$150.95 AUD

per 5
Backorder
Order 50 or more pack (250 pcs) for $135.86 AUD per 5

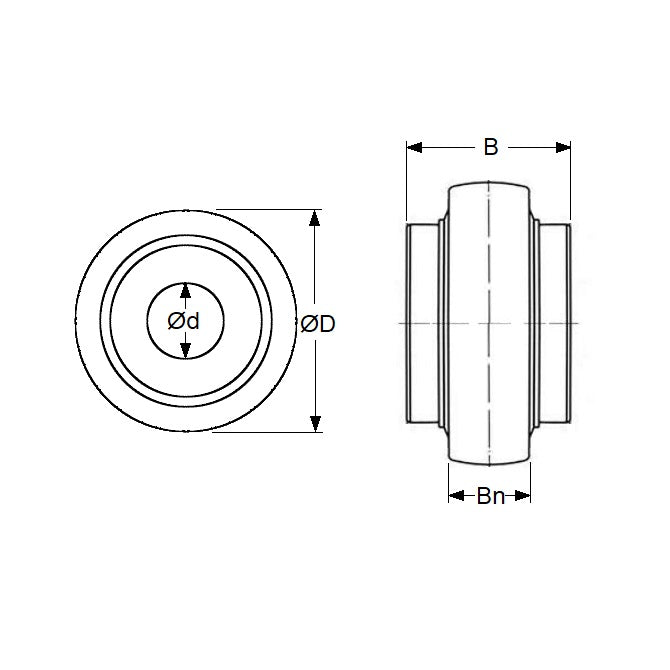

Product Details

Inside Diameter: 25.400mm
_{(25.400mm is 1 in.)}

Acetal Solid

Outside Diameter: 52.000mm
_{(52.000mm is 2.047 in.)}
Bearing Width: 18.000mm
_{(18.000mm is 0.709 in.)}
Suits Housing: P205PE / F205PE / FL205PE / FB205PE
Type: Solid Sleeve Type
Overall Width: 31.750mm
Max RPM: 300
Load Capacity (Dynamic): 165.2Kg
Load Capacity (Static): 189.7Kg

Brand: KMS
Country of Origin: US

Product Compliance and Data

Similar to

KMS SIB-1
KMS SIB205-1
SIB2051
SIB1
ASLUC20516

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
