P-UC205-16-ASL - Datasheet
KMS
Category Information

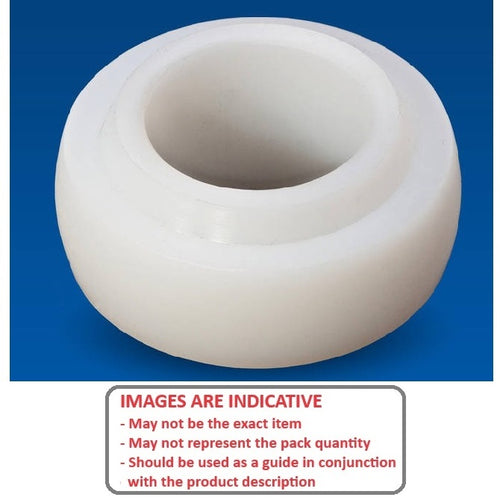

Bearings - Spherical OD - Suits Plastic Housings - Acetal - SolidSolid Acetal Suits Plastic Housings Spherical OD Bearings. Insert bearings ideal for wet conditions. Similar to wide inner ring bearings for P, F, Fl type housings but solid plastic.
- Spherical OD bearings are similar to a standard single row ball bearing, except that the spherical OD allows for them to be swivel assembled into a spherical seating housing.
- Load and speed calculations are for reference only. Testing is recommended.

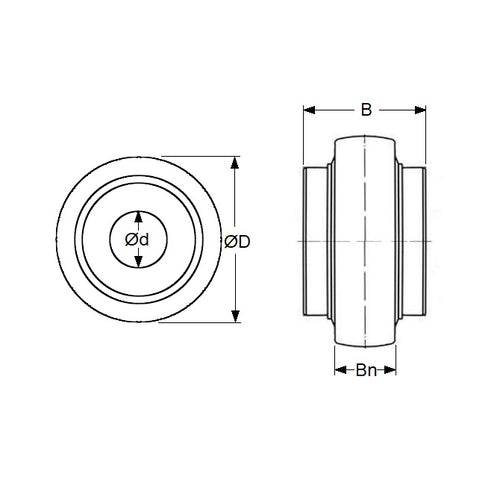

Product Data
- Inside Diameter
:
25.400
mm
(Equiv. 1 in.) - Outside Diameter
52.000
mm
(Equiv. 2.047 in.) - Bearing Width
18.000
mm
(Equiv. 0.709 in.) - Suits Housing P205PE / F205PE / FL205PE / FB205PE
- Type Solid Sleeve Type
- Overall Width 31.750 mm
- Max RPM 300
- Load Capacity (Dynamic) 165.2 Kg
- Load Capacity (Static) 189.7 Kg
- Material Acetal Solid
