QD-SDS-0254

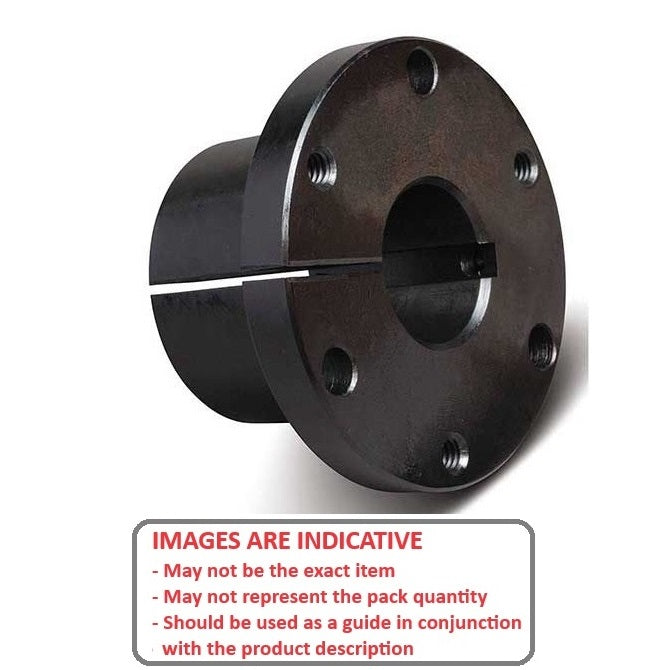

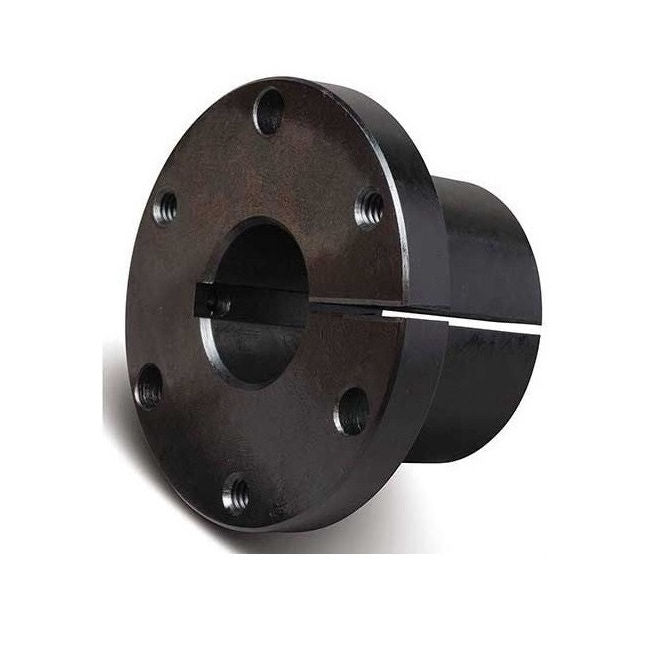

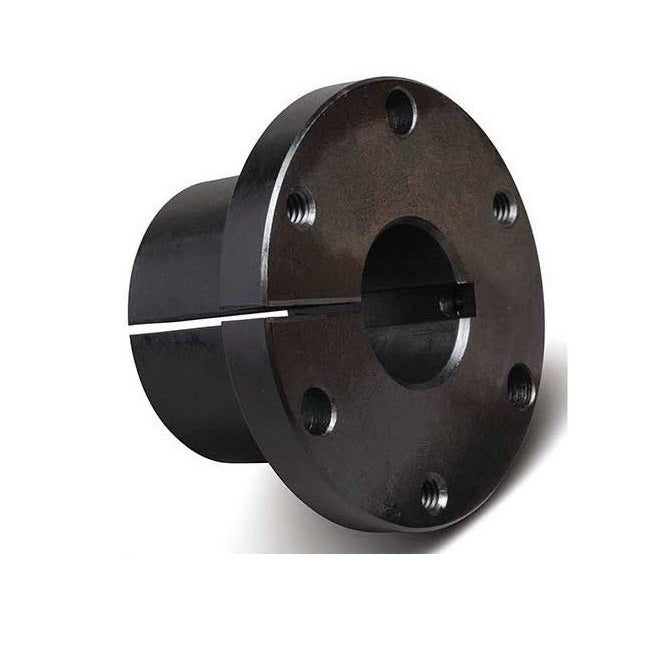

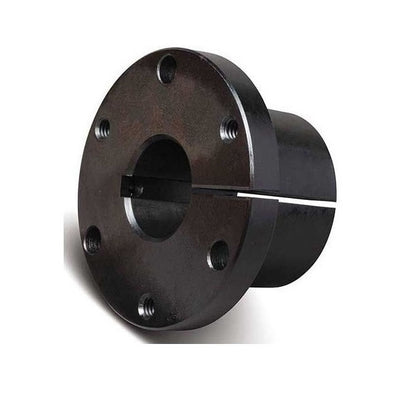

QD Bushings - 25.4 mm SDS 80.98 mm - Steel

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

MBA

Category: Bushings - QD
Price:
$99.23 AUD
$99.23 AUD
Each
Out Of Stock
Order 50 or more for $89.31 AUD Each
Pre-Order now! Backorders for more than the stock quantity are expected before Dec 23, 2027

Base Category: Bushings - QD

Top Level Category: Bushings - QD

Product Details:

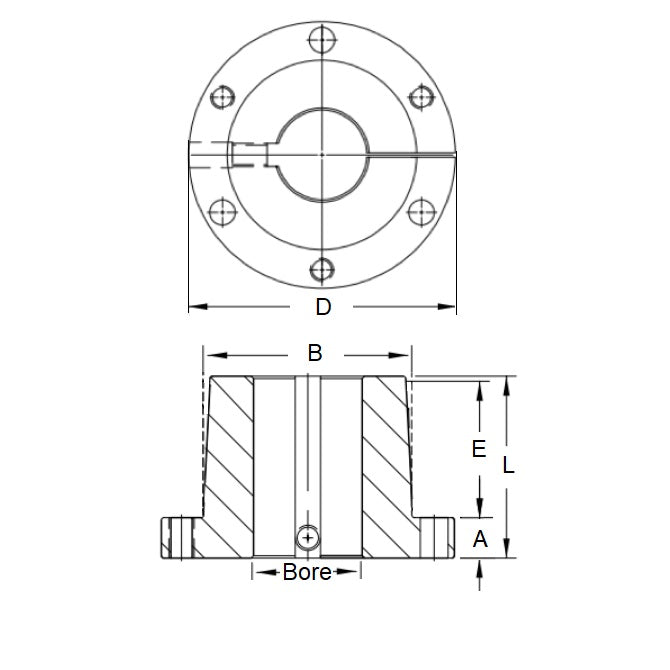

Bore: 25.400mm
Steel
  • Series: SDS
  • Flange OD (D): 80.98mm
  • Bolt Circle Dia.: 68.28mm
  • Overall Length (L): 34.93mm
  • Bush Length (E): 22.23mm
  • Large End OD (B): 55.55mm
  • Flange Thickness (A): 12.70mm

Brand: MBA
Country of Origin: CN

Alternative Parts Include: 6086K316, SDSx1, ALTPART, Martin

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
