Collection: Bushings - QD

Bushings -> QD

There are 473 products in the sub-categories of Bushings - QD. Scroll down or follow the link to Bushings - QD in the products table to see all these items combined into a handy table with filters.

Category Details

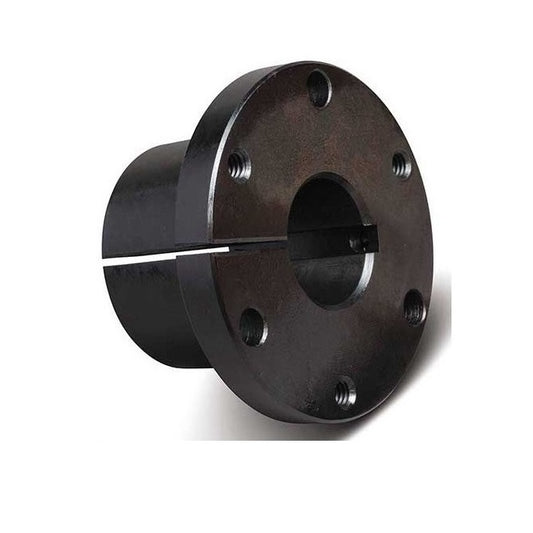

A selection of QD Bushings. Used with QD type cast iron vee pulleys, timing pulleys, sprockets, poly vee pulleys and other parts designed specifically for use with a QD bushing

Similar to a taperlock bush, but not interchangeable
QD bushings like taperlock bushings allow for use of a single stock pulley for many applications with different shaft sizes
Select the correct QD series to suit the pulley

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Bushings - QD category on the Small Parts & Bearings online store.

Bore	Series	Flange OD (D)	Bolt Circle Dia.	Overall Length (L)	Bush Length (E)
Bore 12.000 mm (Equiv. 0.472 in.)	Series JA	Flange OD (D) 50.50 mm (Equiv. 1.988 in.)	Bolt Circle Dia. 42.29 mm	Overall Length (L) 25.40 mm	Bush Length (E) 17.48 mm
Material: Steel Large End OD (B): 34.93 mm Flange Thickness (A): 9.53 mm
Part Number: QD-JA-0120 QD Bushings - 12 mm JA 50.5 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $35.59 AUD Regular price ~~$42.71 AUD~~ Sale price $35.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.

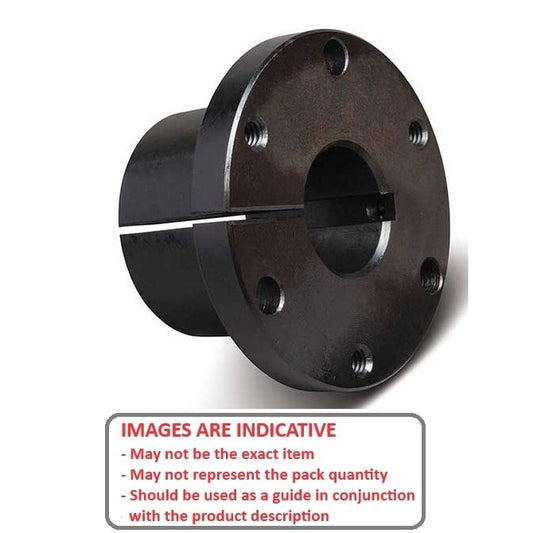

Bore	Series	Flange OD (D)	Bolt Circle Dia.	Indicative Image
Bore 12.000 mm (Equiv. 0.472 in.)	Series JA	Flange OD (D) 50.50 mm (Equiv. 1.988 in.)	Bolt Circle Dia. 42.29 mm
Material: Steel Overall Length (L): 25.40 mm Bush Length (E): 17.48 mm Large End OD (B): 34.93 mm Flange Thickness (A): 9.53 mm
Part Number: QD-JA-0120 QD Bushings - 12 mm JA 50.5 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $35.59 AUD Regular price ~~$42.71 AUD~~ Sale price $35.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
QD-JA-0120 --- QD Bushings - 12 mm JA 50.5 mm - Steel Bushing Sale QD-JA-0120 --- QD Bushings - 12 mm JA 50.5 mm - Steel Bushing Regular price $35.59 AUD Regular price ~~$42.71 AUD~~ Sale price $35.59 AUD Unit price per Out of stock! Backorder Now Sale
Bore 12.700 mm (Equiv. 0.5 in.)	Series L	Flange OD (D) 63.50 mm (Equiv. 2.5 in.)	Bolt Circle Dia. 50.80 mm	Overall Length (L) 34.40 mm	Bush Length (E) 25.40 mm
Material: Steel Large End OD (B): 41.25 mm Flange Thickness (A): 9.1 mm
Part Number: QD-L-0127 QD Bushings - 12.7 mm L 63.5 mm - Steel Bushing 1 Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $14.00 AUD Regular price ~~$26.60 AUD~~ Sale price $14.00 AUD Unit price per Each Quantity Required 1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Bore 12.700 mm (Equiv. 0.5 in.)	Series L	Flange OD (D) 63.50 mm (Equiv. 2.5 in.)	Bolt Circle Dia. 50.80 mm
Material: Steel Overall Length (L): 34.40 mm Bush Length (E): 25.40 mm Large End OD (B): 41.25 mm Flange Thickness (A): 9.1 mm
Part Number: QD-L-0127 QD Bushings - 12.7 mm L 63.5 mm - Steel Bushing 1 Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $14.00 AUD Regular price ~~$26.60 AUD~~ Sale price $14.00 AUD Unit price per Each Quantity Required 1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
QD-L-0127 --- QD Bushings - 12.7 mm L 63.5 mm - Steel Bushing Sale QD-L-0127 --- QD Bushings - 12.7 mm L 63.5 mm - Steel Bushing Regular price $14.00 AUD Regular price ~~$26.60 AUD~~ Sale price $14.00 AUD Unit price per 1 Available Now Sale
Bore 12.700 mm (Equiv. 0.5 in.)	Series JA	Flange OD (D) 50.50 mm (Equiv. 1.988 in.)	Bolt Circle Dia. 42.29 mm	Overall Length (L) 25.40 mm	Bush Length (E) 17.48 mm
Material: Steel Large End OD (B): 34.93 mm Flange Thickness (A): 9.53 mm
Part Number: QD-JA-0127 QD Bushings - 12.7 mm JA 50.5 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $35.59 AUD Regular price ~~$42.71 AUD~~ Sale price $35.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Bore 12.700 mm (Equiv. 0.5 in.)	Series JA	Flange OD (D) 50.50 mm (Equiv. 1.988 in.)	Bolt Circle Dia. 42.29 mm
Material: Steel Overall Length (L): 25.40 mm Bush Length (E): 17.48 mm Large End OD (B): 34.93 mm Flange Thickness (A): 9.53 mm
Part Number: QD-JA-0127 QD Bushings - 12.7 mm JA 50.5 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $35.59 AUD Regular price ~~$42.71 AUD~~ Sale price $35.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
QD-JA-0127 --- QD Bushings - 12.7 mm JA 50.5 mm - Steel Bushing Sale QD-JA-0127 --- QD Bushings - 12.7 mm JA 50.5 mm - Steel Bushing Regular price $35.59 AUD Regular price ~~$42.71 AUD~~ Sale price $35.59 AUD Unit price per Out of stock! Backorder Now Sale
Bore 12.700 mm (Equiv. 0.5 in.)	Series SH	Flange OD (D) 68.28 mm (Equiv. 2.688 in.)	Bolt Circle Dia. 57.15 mm	Overall Length (L) 33.35 mm	Bush Length (E) 22.23 mm
Material: Steel Large End OD (B): 47.52 mm Flange Thickness (A): 11.13 mm
Part Number: QD-SH-0127 QD Bushings - 12.7 mm SH 68.28 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $58.59 AUD Regular price ~~$70.31 AUD~~ Sale price $58.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Bore 12.700 mm (Equiv. 0.5 in.)	Series SH	Flange OD (D) 68.28 mm (Equiv. 2.688 in.)	Bolt Circle Dia. 57.15 mm
Material: Steel Overall Length (L): 33.35 mm Bush Length (E): 22.23 mm Large End OD (B): 47.52 mm Flange Thickness (A): 11.13 mm
Part Number: QD-SH-0127 QD Bushings - 12.7 mm SH 68.28 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $58.59 AUD Regular price ~~$70.31 AUD~~ Sale price $58.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
QD-SH-0127 --- QD Bushings - 12.7 mm SH 68.28 mm - Steel Bushing Sale QD-SH-0127 --- QD Bushings - 12.7 mm SH 68.28 mm - Steel Bushing Regular price $58.59 AUD Regular price ~~$70.31 AUD~~ Sale price $58.59 AUD Unit price per Out of stock! Backorder Now Sale
Bore 12.700 mm (Equiv. 0.5 in.)	Series SD	Flange OD (D) 80.98 mm (Equiv. 3.188 in.)	Bolt Circle Dia. 68.28 mm	Overall Length (L) 46.05 mm	Bush Length (E) 23.83 mm
Material: Steel Large End OD (B): 55.55 mm Flange Thickness (A): 12.70 mm
Part Number: QD-SD-0127 QD Bushings - 12.7 mm SD 80.98 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $83.86 AUD Regular price ~~$100.64 AUD~~ Sale price $83.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Bore 12.700 mm (Equiv. 0.5 in.)	Series SD	Flange OD (D) 80.98 mm (Equiv. 3.188 in.)	Bolt Circle Dia. 68.28 mm
Material: Steel Overall Length (L): 46.05 mm Bush Length (E): 23.83 mm Large End OD (B): 55.55 mm Flange Thickness (A): 12.70 mm
Part Number: QD-SD-0127 QD Bushings - 12.7 mm SD 80.98 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $83.86 AUD Regular price ~~$100.64 AUD~~ Sale price $83.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
QD-SD-0127 --- QD Bushings - 12.7 mm SD 80.98 mm - Steel Bushing Sale QD-SD-0127 --- QD Bushings - 12.7 mm SD 80.98 mm - Steel Bushing Regular price $83.86 AUD Regular price ~~$100.64 AUD~~ Sale price $83.86 AUD Unit price per Out of stock! Backorder Now Sale
Bore 12.700 mm (Equiv. 0.5 in.)	Series SDS	Flange OD (D) 80.98 mm (Equiv. 3.188 in.)	Bolt Circle Dia. 68.28 mm	Overall Length (L) 34.93 mm	Bush Length (E) 22.23 mm
Material: Steel Large End OD (B): 55.55 mm Flange Thickness (A): 12.70 mm
Part Number: QD-SDS-0127 QD Bushings - 12.7 mm SDS 80.98 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $78.77 AUD Regular price ~~$94.53 AUD~~ Sale price $78.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Bore 12.700 mm (Equiv. 0.5 in.)	Series SDS	Flange OD (D) 80.98 mm (Equiv. 3.188 in.)	Bolt Circle Dia. 68.28 mm
Material: Steel Overall Length (L): 34.93 mm Bush Length (E): 22.23 mm Large End OD (B): 55.55 mm Flange Thickness (A): 12.70 mm
Part Number: QD-SDS-0127 QD Bushings - 12.7 mm SDS 80.98 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $78.77 AUD Regular price ~~$94.53 AUD~~ Sale price $78.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
QD-SDS-0127 --- QD Bushings - 12.7 mm SDS 80.98 mm - Steel Bushing Sale QD-SDS-0127 --- QD Bushings - 12.7 mm SDS 80.98 mm - Steel Bushing Regular price $78.77 AUD Regular price ~~$94.53 AUD~~ Sale price $78.77 AUD Unit price per Out of stock! Backorder Now Sale
Bore 12.700 mm (Equiv. 0.5 in.)	Series SK	Flange OD (D) 98.43 mm (Equiv. 3.875 in.)	Bolt Circle Dia. 84.15 mm	Overall Length (L) 28.58 mm	Bush Length (E) 34.93 mm
Material: Steel Large End OD (B): 71.42 mm Flange Thickness (A): 14.30 mm
Part Number: QD-SK-0127 QD Bushings - 12.7 mm SK 98.43 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $112.50 AUD Regular price ~~$135.00 AUD~~ Sale price $112.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Bore 12.700 mm (Equiv. 0.5 in.)	Series SK	Flange OD (D) 98.43 mm (Equiv. 3.875 in.)	Bolt Circle Dia. 84.15 mm
Material: Steel Overall Length (L): 28.58 mm Bush Length (E): 34.93 mm Large End OD (B): 71.42 mm Flange Thickness (A): 14.30 mm
Part Number: QD-SK-0127 QD Bushings - 12.7 mm SK 98.43 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $112.50 AUD Regular price ~~$135.00 AUD~~ Sale price $112.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
QD-SK-0127 --- QD Bushings - 12.7 mm SK 98.43 mm - Steel Bushing Sale QD-SK-0127 --- QD Bushings - 12.7 mm SK 98.43 mm - Steel Bushing Regular price $112.50 AUD Regular price ~~$135.00 AUD~~ Sale price $112.50 AUD Unit price per Out of stock! Backorder Now Sale
Bore 12.700 mm (Equiv. 0.5 in.)	Series SF	Flange OD (D) 117.48 mm (Equiv. 4.625 in.)	Bolt Circle Dia. 98.43 mm	Overall Length (L) 50.80 mm	Bush Length (E) 38.10 mm
Material: Steel Large End OD (B): 79.38 mm Flange Thickness (A): 14.30 mm
Part Number: QD-SF-0127 QD Bushings - 12.7 mm SF 117.48 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $157.68 AUD Regular price ~~$189.22 AUD~~ Sale price $157.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Bore 12.700 mm (Equiv. 0.5 in.)	Series SF	Flange OD (D) 117.48 mm (Equiv. 4.625 in.)	Bolt Circle Dia. 98.43 mm
Material: Steel Overall Length (L): 50.80 mm Bush Length (E): 38.10 mm Large End OD (B): 79.38 mm Flange Thickness (A): 14.30 mm
Part Number: QD-SF-0127 QD Bushings - 12.7 mm SF 117.48 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $157.68 AUD Regular price ~~$189.22 AUD~~ Sale price $157.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
QD-SF-0127 --- QD Bushings - 12.7 mm SF 117.48 mm - Steel Bushing Sale QD-SF-0127 --- QD Bushings - 12.7 mm SF 117.48 mm - Steel Bushing Regular price $157.68 AUD Regular price ~~$189.22 AUD~~ Sale price $157.68 AUD Unit price per Out of stock! Backorder Now Sale
Bore 14.288 mm (Equiv. 0.563 in.)	Series JA	Flange OD (D) 50.50 mm (Equiv. 1.988 in.)	Bolt Circle Dia. 42.29 mm	Overall Length (L) 25.40 mm	Bush Length (E) 17.48 mm
Material: Steel Large End OD (B): 34.93 mm Flange Thickness (A): 9.53 mm
Part Number: QD-JA-0143 QD Bushings - 14.288 mm JA 50.5 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $35.59 AUD Regular price ~~$42.71 AUD~~ Sale price $35.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Bore 14.288 mm (Equiv. 0.563 in.)	Series JA	Flange OD (D) 50.50 mm (Equiv. 1.988 in.)	Bolt Circle Dia. 42.29 mm
Material: Steel Overall Length (L): 25.40 mm Bush Length (E): 17.48 mm Large End OD (B): 34.93 mm Flange Thickness (A): 9.53 mm
Part Number: QD-JA-0143 QD Bushings - 14.288 mm JA 50.5 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $35.59 AUD Regular price ~~$42.71 AUD~~ Sale price $35.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
QD-JA-0143 --- QD Bushings - 14.288 mm JA 50.5 mm - Steel Bushing Sale QD-JA-0143 --- QD Bushings - 14.288 mm JA 50.5 mm - Steel Bushing Regular price $35.59 AUD Regular price ~~$42.71 AUD~~ Sale price $35.59 AUD Unit price per Out of stock! Backorder Now Sale
Bore 14.288 mm (Equiv. 0.563 in.)	Series SH	Flange OD (D) 68.28 mm (Equiv. 2.688 in.)	Bolt Circle Dia. 57.15 mm	Overall Length (L) 33.35 mm	Bush Length (E) 22.23 mm
Material: Steel Large End OD (B): 47.52 mm Flange Thickness (A): 11.13 mm
Part Number: QD-SH-0143 QD Bushings - 14.288 mm SH 68.28 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $58.59 AUD Regular price ~~$70.31 AUD~~ Sale price $58.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Bore 14.288 mm (Equiv. 0.563 in.)	Series SH	Flange OD (D) 68.28 mm (Equiv. 2.688 in.)	Bolt Circle Dia. 57.15 mm
Material: Steel Overall Length (L): 33.35 mm Bush Length (E): 22.23 mm Large End OD (B): 47.52 mm Flange Thickness (A): 11.13 mm
Part Number: QD-SH-0143 QD Bushings - 14.288 mm SH 68.28 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $58.59 AUD Regular price ~~$70.31 AUD~~ Sale price $58.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
QD-SH-0143 --- QD Bushings - 14.288 mm SH 68.28 mm - Steel Bushing Sale QD-SH-0143 --- QD Bushings - 14.288 mm SH 68.28 mm - Steel Bushing Regular price $58.59 AUD Regular price ~~$70.31 AUD~~ Sale price $58.59 AUD Unit price per Out of stock! Backorder Now Sale
Bore 14.288 mm (Equiv. 0.563 in.)	Series SD	Flange OD (D) 80.98 mm (Equiv. 3.188 in.)	Bolt Circle Dia. 68.28 mm	Overall Length (L) 46.05 mm	Bush Length (E) 23.83 mm
Material: Steel Large End OD (B): 55.55 mm Flange Thickness (A): 12.70 mm
Part Number: QD-SD-0143 QD Bushings - 14.288 mm SD 80.98 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $83.86 AUD Regular price ~~$100.64 AUD~~ Sale price $83.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Bore 14.288 mm (Equiv. 0.563 in.)	Series SD	Flange OD (D) 80.98 mm (Equiv. 3.188 in.)	Bolt Circle Dia. 68.28 mm
Material: Steel Overall Length (L): 46.05 mm Bush Length (E): 23.83 mm Large End OD (B): 55.55 mm Flange Thickness (A): 12.70 mm
Part Number: QD-SD-0143 QD Bushings - 14.288 mm SD 80.98 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $83.86 AUD Regular price ~~$100.64 AUD~~ Sale price $83.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
QD-SD-0143 --- QD Bushings - 14.288 mm SD 80.98 mm - Steel Bushing Sale QD-SD-0143 --- QD Bushings - 14.288 mm SD 80.98 mm - Steel Bushing Regular price $83.86 AUD Regular price ~~$100.64 AUD~~ Sale price $83.86 AUD Unit price per Out of stock! Backorder Now Sale
Bore 14.288 mm (Equiv. 0.563 in.)	Series SDS	Flange OD (D) 80.98 mm (Equiv. 3.188 in.)	Bolt Circle Dia. 68.28 mm	Overall Length (L) 34.93 mm	Bush Length (E) 22.23 mm
Material: Steel Large End OD (B): 55.55 mm Flange Thickness (A): 12.70 mm
Part Number: QD-SDS-0143 QD Bushings - 14.288 mm SDS 80.98 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $78.77 AUD Regular price ~~$94.53 AUD~~ Sale price $78.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Bore 14.288 mm (Equiv. 0.563 in.)	Series SDS	Flange OD (D) 80.98 mm (Equiv. 3.188 in.)	Bolt Circle Dia. 68.28 mm
Material: Steel Overall Length (L): 34.93 mm Bush Length (E): 22.23 mm Large End OD (B): 55.55 mm Flange Thickness (A): 12.70 mm
Part Number: QD-SDS-0143 QD Bushings - 14.288 mm SDS 80.98 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $78.77 AUD Regular price ~~$94.53 AUD~~ Sale price $78.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
QD-SDS-0143 --- QD Bushings - 14.288 mm SDS 80.98 mm - Steel Bushing Sale QD-SDS-0143 --- QD Bushings - 14.288 mm SDS 80.98 mm - Steel Bushing Regular price $78.77 AUD Regular price ~~$94.53 AUD~~ Sale price $78.77 AUD Unit price per Out of stock! Backorder Now Sale
Bore 14.288 mm (Equiv. 0.563 in.)	Series SK	Flange OD (D) 98.43 mm (Equiv. 3.875 in.)	Bolt Circle Dia. 84.15 mm	Overall Length (L) 28.58 mm	Bush Length (E) 34.93 mm
Material: Steel Large End OD (B): 71.42 mm Flange Thickness (A): 14.30 mm
Part Number: QD-SK-0143 QD Bushings - 14.288 mm SK 98.43 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $112.50 AUD Regular price ~~$135.00 AUD~~ Sale price $112.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Bore 14.288 mm (Equiv. 0.563 in.)	Series SK	Flange OD (D) 98.43 mm (Equiv. 3.875 in.)	Bolt Circle Dia. 84.15 mm
Material: Steel Overall Length (L): 28.58 mm Bush Length (E): 34.93 mm Large End OD (B): 71.42 mm Flange Thickness (A): 14.30 mm
Part Number: QD-SK-0143 QD Bushings - 14.288 mm SK 98.43 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $112.50 AUD Regular price ~~$135.00 AUD~~ Sale price $112.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
QD-SK-0143 --- QD Bushings - 14.288 mm SK 98.43 mm - Steel Bushing Sale QD-SK-0143 --- QD Bushings - 14.288 mm SK 98.43 mm - Steel Bushing Regular price $112.50 AUD Regular price ~~$135.00 AUD~~ Sale price $112.50 AUD Unit price per Out of stock! Backorder Now Sale
Bore 14.288 mm (Equiv. 0.563 in.)	Series SF	Flange OD (D) 117.48 mm (Equiv. 4.625 in.)	Bolt Circle Dia. 98.43 mm	Overall Length (L) 50.80 mm	Bush Length (E) 38.10 mm
Material: Steel Large End OD (B): 79.38 mm Flange Thickness (A): 14.30 mm
Part Number: QD-SF-0143 QD Bushings - 14.288 mm SF 117.48 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $157.68 AUD Regular price ~~$189.22 AUD~~ Sale price $157.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Bore 14.288 mm (Equiv. 0.563 in.)	Series SF	Flange OD (D) 117.48 mm (Equiv. 4.625 in.)	Bolt Circle Dia. 98.43 mm
Material: Steel Overall Length (L): 50.80 mm Bush Length (E): 38.10 mm Large End OD (B): 79.38 mm Flange Thickness (A): 14.30 mm
Part Number: QD-SF-0143 QD Bushings - 14.288 mm SF 117.48 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $157.68 AUD Regular price ~~$189.22 AUD~~ Sale price $157.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
QD-SF-0143 --- QD Bushings - 14.288 mm SF 117.48 mm - Steel Bushing Sale QD-SF-0143 --- QD Bushings - 14.288 mm SF 117.48 mm - Steel Bushing Regular price $157.68 AUD Regular price ~~$189.22 AUD~~ Sale price $157.68 AUD Unit price per Out of stock! Backorder Now Sale
Bore 15.000 mm (Equiv. 0.591 in.)	Series JA	Flange OD (D) 50.50 mm (Equiv. 1.988 in.)	Bolt Circle Dia. 42.29 mm	Overall Length (L) 25.40 mm	Bush Length (E) 17.48 mm
Material: Steel Large End OD (B): 34.93 mm Flange Thickness (A): 9.53 mm
Part Number: QD-JA-0150 QD Bushings - 15 mm JA 50.5 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $35.59 AUD Regular price ~~$42.71 AUD~~ Sale price $35.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Bore 15.000 mm (Equiv. 0.591 in.)	Series JA	Flange OD (D) 50.50 mm (Equiv. 1.988 in.)	Bolt Circle Dia. 42.29 mm
Material: Steel Overall Length (L): 25.40 mm Bush Length (E): 17.48 mm Large End OD (B): 34.93 mm Flange Thickness (A): 9.53 mm
Part Number: QD-JA-0150 QD Bushings - 15 mm JA 50.5 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $35.59 AUD Regular price ~~$42.71 AUD~~ Sale price $35.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
QD-JA-0150 --- QD Bushings - 15 mm JA 50.5 mm - Steel Bushing Sale QD-JA-0150 --- QD Bushings - 15 mm JA 50.5 mm - Steel Bushing Regular price $35.59 AUD Regular price ~~$42.71 AUD~~ Sale price $35.59 AUD Unit price per Out of stock! Backorder Now Sale
Bore 15.875 mm (Equiv. 0.625 in.)	Series JA	Flange OD (D) 50.50 mm (Equiv. 1.988 in.)	Bolt Circle Dia. 42.29 mm	Overall Length (L) 25.40 mm	Bush Length (E) 17.48 mm
Material: Steel Large End OD (B): 34.93 mm Flange Thickness (A): 9.53 mm
Part Number: QD-JA-0159 QD Bushings - 15.875 mm JA 50.5 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $35.59 AUD Regular price ~~$42.71 AUD~~ Sale price $35.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Bore 15.875 mm (Equiv. 0.625 in.)	Series JA	Flange OD (D) 50.50 mm (Equiv. 1.988 in.)	Bolt Circle Dia. 42.29 mm
Material: Steel Overall Length (L): 25.40 mm Bush Length (E): 17.48 mm Large End OD (B): 34.93 mm Flange Thickness (A): 9.53 mm
Part Number: QD-JA-0159 QD Bushings - 15.875 mm JA 50.5 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $35.59 AUD Regular price ~~$42.71 AUD~~ Sale price $35.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
QD-JA-0159 --- QD Bushings - 15.875 mm JA 50.5 mm - Steel Bushing Sale QD-JA-0159 --- QD Bushings - 15.875 mm JA 50.5 mm - Steel Bushing Regular price $35.59 AUD Regular price ~~$42.71 AUD~~ Sale price $35.59 AUD Unit price per Out of stock! Backorder Now Sale
Bore 15.875 mm (Equiv. 0.625 in.)	Series SH	Flange OD (D) 68.28 mm (Equiv. 2.688 in.)	Bolt Circle Dia. 57.15 mm	Overall Length (L) 33.35 mm	Bush Length (E) 22.23 mm
Material: Steel Large End OD (B): 47.52 mm Flange Thickness (A): 11.13 mm
Part Number: QD-SH-0159 QD Bushings - 15.875 mm SH 68.28 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $58.59 AUD Regular price ~~$70.31 AUD~~ Sale price $58.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Bore 15.875 mm (Equiv. 0.625 in.)	Series SH	Flange OD (D) 68.28 mm (Equiv. 2.688 in.)	Bolt Circle Dia. 57.15 mm
Material: Steel Overall Length (L): 33.35 mm Bush Length (E): 22.23 mm Large End OD (B): 47.52 mm Flange Thickness (A): 11.13 mm
Part Number: QD-SH-0159 QD Bushings - 15.875 mm SH 68.28 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $58.59 AUD Regular price ~~$70.31 AUD~~ Sale price $58.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
QD-SH-0159 --- QD Bushings - 15.875 mm SH 68.28 mm - Steel Bushing Sale QD-SH-0159 --- QD Bushings - 15.875 mm SH 68.28 mm - Steel Bushing Regular price $58.59 AUD Regular price ~~$70.31 AUD~~ Sale price $58.59 AUD Unit price per Out of stock! Backorder Now Sale
Bore 15.875 mm (Equiv. 0.625 in.)	Series SD	Flange OD (D) 80.98 mm (Equiv. 3.188 in.)	Bolt Circle Dia. 68.28 mm	Overall Length (L) 46.05 mm	Bush Length (E) 23.83 mm
Material: Steel Large End OD (B): 55.55 mm Flange Thickness (A): 12.70 mm
Part Number: QD-SD-0159 QD Bushings - 15.875 mm SD 80.98 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $83.86 AUD Regular price ~~$100.64 AUD~~ Sale price $83.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Bore 15.875 mm (Equiv. 0.625 in.)	Series SD	Flange OD (D) 80.98 mm (Equiv. 3.188 in.)	Bolt Circle Dia. 68.28 mm
Material: Steel Overall Length (L): 46.05 mm Bush Length (E): 23.83 mm Large End OD (B): 55.55 mm Flange Thickness (A): 12.70 mm
Part Number: QD-SD-0159 QD Bushings - 15.875 mm SD 80.98 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $83.86 AUD Regular price ~~$100.64 AUD~~ Sale price $83.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
QD-SD-0159 --- QD Bushings - 15.875 mm SD 80.98 mm - Steel Bushing Sale QD-SD-0159 --- QD Bushings - 15.875 mm SD 80.98 mm - Steel Bushing Regular price $83.86 AUD Regular price ~~$100.64 AUD~~ Sale price $83.86 AUD Unit price per Out of stock! Backorder Now Sale
Bore 15.875 mm (Equiv. 0.625 in.)	Series SDS	Flange OD (D) 80.98 mm (Equiv. 3.188 in.)	Bolt Circle Dia. 68.28 mm	Overall Length (L) 34.93 mm	Bush Length (E) 22.23 mm
Material: Steel Large End OD (B): 55.55 mm Flange Thickness (A): 12.70 mm
Part Number: QD-SDS-0159 QD Bushings - 15.875 mm SDS 80.98 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $78.77 AUD Regular price ~~$94.53 AUD~~ Sale price $78.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Bore 15.875 mm (Equiv. 0.625 in.)	Series SDS	Flange OD (D) 80.98 mm (Equiv. 3.188 in.)	Bolt Circle Dia. 68.28 mm
Material: Steel Overall Length (L): 34.93 mm Bush Length (E): 22.23 mm Large End OD (B): 55.55 mm Flange Thickness (A): 12.70 mm
Part Number: QD-SDS-0159 QD Bushings - 15.875 mm SDS 80.98 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $78.77 AUD Regular price ~~$94.53 AUD~~ Sale price $78.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
QD-SDS-0159 --- QD Bushings - 15.875 mm SDS 80.98 mm - Steel Bushing Sale QD-SDS-0159 --- QD Bushings - 15.875 mm SDS 80.98 mm - Steel Bushing Regular price $78.77 AUD Regular price ~~$94.53 AUD~~ Sale price $78.77 AUD Unit price per Out of stock! Backorder Now Sale
Bore 15.875 mm (Equiv. 0.625 in.)	Series SK	Flange OD (D) 98.43 mm (Equiv. 3.875 in.)	Bolt Circle Dia. 84.15 mm	Overall Length (L) 28.58 mm	Bush Length (E) 34.93 mm
Material: Steel Large End OD (B): 71.42 mm Flange Thickness (A): 14.30 mm
Part Number: QD-SK-0159 QD Bushings - 15.875 mm SK 98.43 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $112.50 AUD Regular price ~~$135.00 AUD~~ Sale price $112.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Bore 15.875 mm (Equiv. 0.625 in.)	Series SK	Flange OD (D) 98.43 mm (Equiv. 3.875 in.)	Bolt Circle Dia. 84.15 mm
Material: Steel Overall Length (L): 28.58 mm Bush Length (E): 34.93 mm Large End OD (B): 71.42 mm Flange Thickness (A): 14.30 mm
Part Number: QD-SK-0159 QD Bushings - 15.875 mm SK 98.43 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $112.50 AUD Regular price ~~$135.00 AUD~~ Sale price $112.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
QD-SK-0159 --- QD Bushings - 15.875 mm SK 98.43 mm - Steel Bushing Sale QD-SK-0159 --- QD Bushings - 15.875 mm SK 98.43 mm - Steel Bushing Regular price $112.50 AUD Regular price ~~$135.00 AUD~~ Sale price $112.50 AUD Unit price per Out of stock! Backorder Now Sale
Bore 15.875 mm (Equiv. 0.625 in.)	Series SF	Flange OD (D) 117.48 mm (Equiv. 4.625 in.)	Bolt Circle Dia. 98.43 mm	Overall Length (L) 50.80 mm	Bush Length (E) 38.10 mm
Material: Steel Large End OD (B): 79.38 mm Flange Thickness (A): 14.30 mm
Part Number: QD-SF-0159 QD Bushings - 15.875 mm SF 117.48 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $157.68 AUD Regular price ~~$189.22 AUD~~ Sale price $157.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Bore 15.875 mm (Equiv. 0.625 in.)	Series SF	Flange OD (D) 117.48 mm (Equiv. 4.625 in.)	Bolt Circle Dia. 98.43 mm
Material: Steel Overall Length (L): 50.80 mm Bush Length (E): 38.10 mm Large End OD (B): 79.38 mm Flange Thickness (A): 14.30 mm
Part Number: QD-SF-0159 QD Bushings - 15.875 mm SF 117.48 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $157.68 AUD Regular price ~~$189.22 AUD~~ Sale price $157.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
QD-SF-0159 --- QD Bushings - 15.875 mm SF 117.48 mm - Steel Bushing Sale QD-SF-0159 --- QD Bushings - 15.875 mm SF 117.48 mm - Steel Bushing Regular price $157.68 AUD Regular price ~~$189.22 AUD~~ Sale price $157.68 AUD Unit price per Out of stock! Backorder Now Sale
Bore 16.000 mm (Equiv. 0.63 in.)	Series JA	Flange OD (D) 50.50 mm (Equiv. 1.988 in.)	Bolt Circle Dia. 42.29 mm	Overall Length (L) 25.40 mm	Bush Length (E) 17.48 mm
Material: Steel Large End OD (B): 34.93 mm Flange Thickness (A): 9.53 mm
Part Number: QD-JA-0160 QD Bushings - 16 mm JA 50.5 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $35.59 AUD Regular price ~~$42.71 AUD~~ Sale price $35.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Bore 16.000 mm (Equiv. 0.63 in.)	Series JA	Flange OD (D) 50.50 mm (Equiv. 1.988 in.)	Bolt Circle Dia. 42.29 mm
Material: Steel Overall Length (L): 25.40 mm Bush Length (E): 17.48 mm Large End OD (B): 34.93 mm Flange Thickness (A): 9.53 mm
Part Number: QD-JA-0160 QD Bushings - 16 mm JA 50.5 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $35.59 AUD Regular price ~~$42.71 AUD~~ Sale price $35.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
QD-JA-0160 --- QD Bushings - 16 mm JA 50.5 mm - Steel Bushing Sale QD-JA-0160 --- QD Bushings - 16 mm JA 50.5 mm - Steel Bushing Regular price $35.59 AUD Regular price ~~$42.71 AUD~~ Sale price $35.59 AUD Unit price per Out of stock! Backorder Now Sale
Bore 17.463 mm (Equiv. 0.688 in.)	Series JA	Flange OD (D) 50.50 mm (Equiv. 1.988 in.)	Bolt Circle Dia. 42.29 mm	Overall Length (L) 25.40 mm	Bush Length (E) 17.48 mm
Material: Steel Large End OD (B): 34.93 mm Flange Thickness (A): 9.53 mm
Part Number: QD-JA-0175 QD Bushings - 17.463 mm JA 50.5 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $35.59 AUD Regular price ~~$42.71 AUD~~ Sale price $35.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Bore 17.463 mm (Equiv. 0.688 in.)	Series JA	Flange OD (D) 50.50 mm (Equiv. 1.988 in.)	Bolt Circle Dia. 42.29 mm
Material: Steel Overall Length (L): 25.40 mm Bush Length (E): 17.48 mm Large End OD (B): 34.93 mm Flange Thickness (A): 9.53 mm
Part Number: QD-JA-0175 QD Bushings - 17.463 mm JA 50.5 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $35.59 AUD Regular price ~~$42.71 AUD~~ Sale price $35.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
QD-JA-0175 --- QD Bushings - 17.463 mm JA 50.5 mm - Steel Bushing Sale QD-JA-0175 --- QD Bushings - 17.463 mm JA 50.5 mm - Steel Bushing Regular price $35.59 AUD Regular price ~~$42.71 AUD~~ Sale price $35.59 AUD Unit price per Out of stock! Backorder Now Sale
Bore 17.463 mm (Equiv. 0.688 in.)	Series SH	Flange OD (D) 68.28 mm (Equiv. 2.688 in.)	Bolt Circle Dia. 57.15 mm	Overall Length (L) 33.35 mm	Bush Length (E) 22.23 mm
Material: Steel Large End OD (B): 47.52 mm Flange Thickness (A): 11.13 mm
Part Number: QD-SH-0175 QD Bushings - 17.463 mm SH 68.28 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $58.59 AUD Regular price ~~$70.31 AUD~~ Sale price $58.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Bore 17.463 mm (Equiv. 0.688 in.)	Series SH	Flange OD (D) 68.28 mm (Equiv. 2.688 in.)	Bolt Circle Dia. 57.15 mm
Material: Steel Overall Length (L): 33.35 mm Bush Length (E): 22.23 mm Large End OD (B): 47.52 mm Flange Thickness (A): 11.13 mm
Part Number: QD-SH-0175 QD Bushings - 17.463 mm SH 68.28 mm - Steel Bushing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 21, 2025 Regular price $58.59 AUD Regular price ~~$70.31 AUD~~ Sale price $58.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
QD-SH-0175 --- QD Bushings - 17.463 mm SH 68.28 mm - Steel Bushing Sale QD-SH-0175 --- QD Bushings - 17.463 mm SH 68.28 mm - Steel Bushing Regular price $58.59 AUD Regular price ~~$70.31 AUD~~ Sale price $58.59 AUD Unit price per Out of stock! Backorder Now Sale

Country/region

Collection: Bushings - QD

Category Details

Filter

Filter

Subscribe to our emails
