IDR-2342X1229X0635-UR

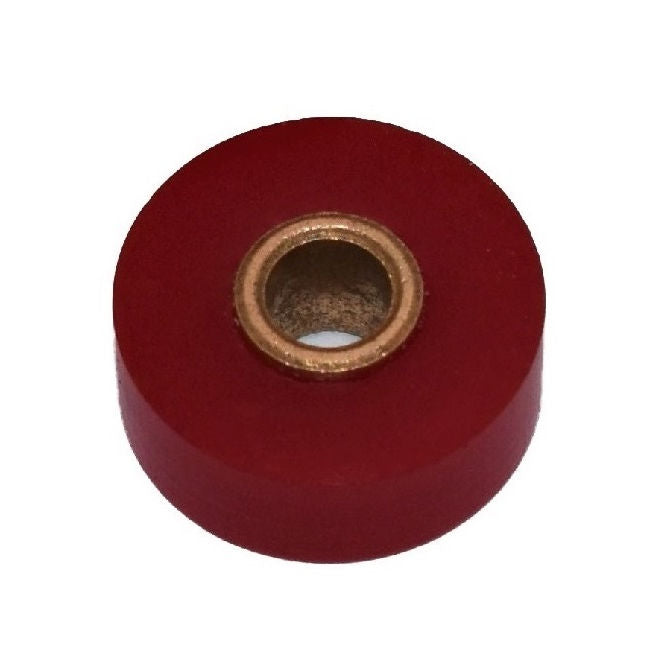

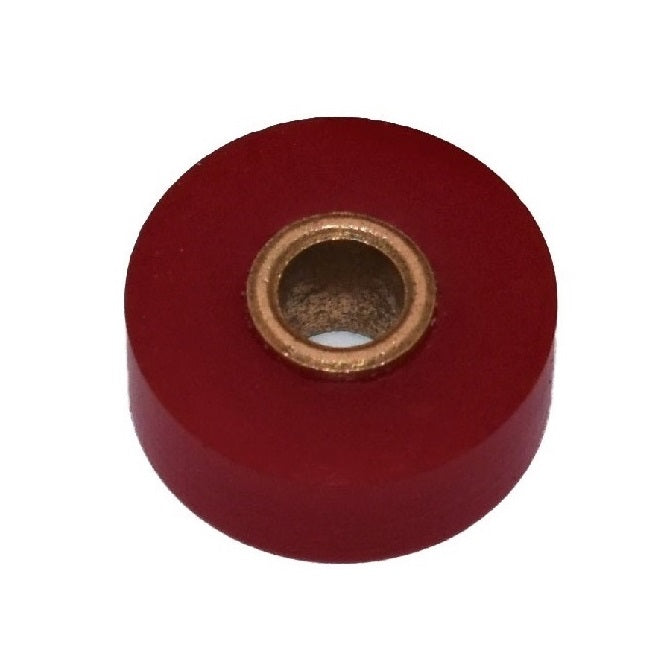

Idler with Bearing Rollers - 23.42x6.35x12.29 mm Urethane With Plain Sintered Bearing - Aluminium Alloy Roller

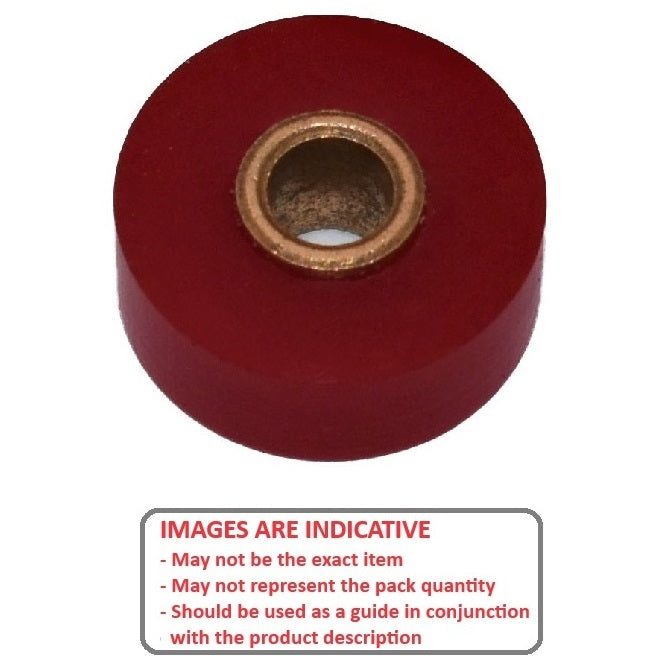

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Idler with Bearing Rollers - 23.42x6.35x12.29 mm - Aluminium Alloy
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale
Price:
$15.00 AUD
$28.50 AUD $15.00 AUD
Each
Qty: 1 available now
Only 1 may be ordered online. If you need a large quantity, please contact us.

Base Category: Rollers - Idler with Bearing

Top Level Category: Rollers - Idler with Bearing - Urethane With Plain Sintered Bearing

Product Details

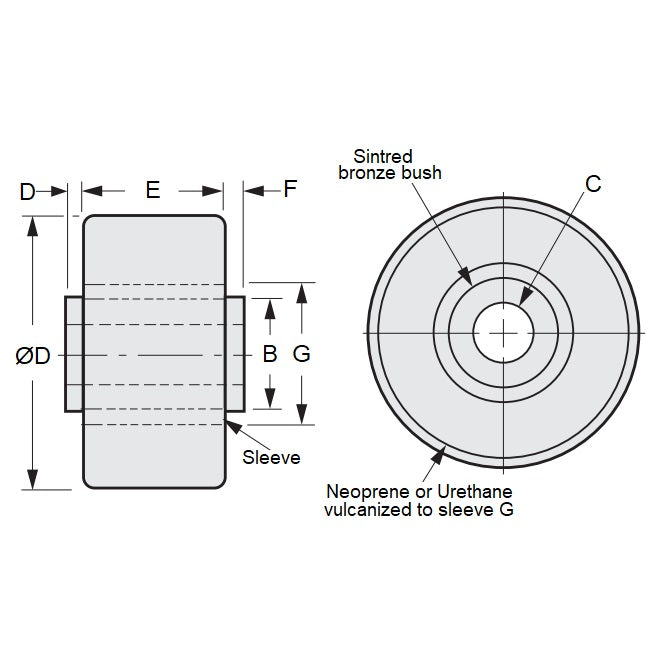

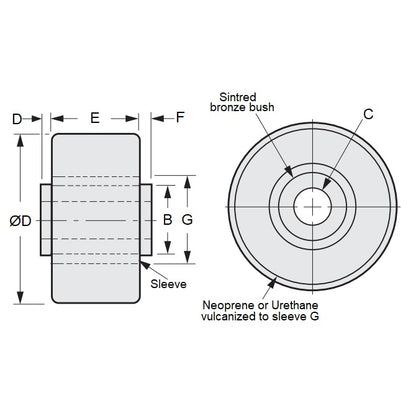

Outside Diameter (A): 23.42mm
(23.42mm is 0.922 in.)

Aluminium Alloy
  • Bore (d): 6.350mm
    (6.350mm is 0.25 in.)
  • Roller Width (B): 12.29mm
    (12.29mm is 0.484 in.)
  • Sleeve ID (d1): 9.525
  • Roller Material: Urethane Surface
  • Roller Hardness: 60 Durometer
  • Bearing Type: Sintered Bronze Bearing
  • Bearing Projection ( D / F ): 0.41 / 2.38mm
  • Sleeve OD (G): 17.46mm

Brand: MBA
Country of Origin: US

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Product Compliance and Data

Similar to

  • A 7Z 5-UR0925
  • A7Z5-UR0925
  • A7Z5UR0925

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
