IDR-2342X1229X0635-UR - Datasheet
MBA
Category Information

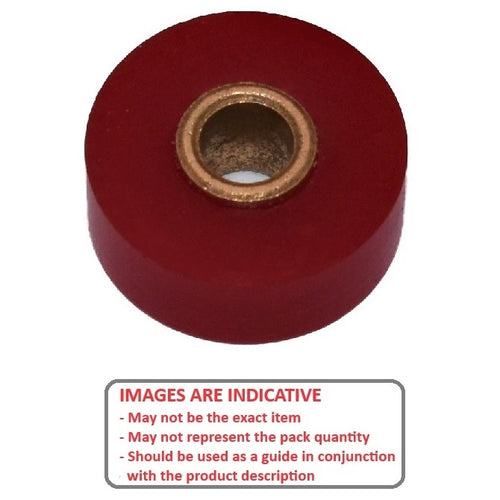

Rollers - Idler with Bearing - Urethane With Plain Sintered BearingUrethane With Plain Sintered Bearing Idler with Bearing Rollers. This is the main category in this series
- An expanded range may be available on special order. Please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

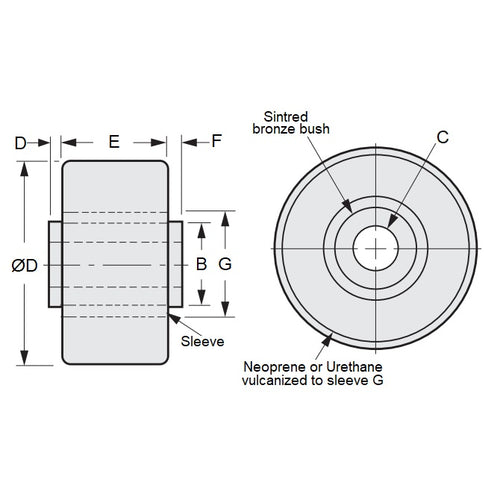

- Outside Diameter (A)
:
23.42
mm
(Equiv. 0.922 in.) - Bore (d)
6.350
mm
(Equiv. 0.25 in.) - Roller Width (B)
12.29
mm
(Equiv. 0.484 in.) - Sleeve ID (d1) 9.525
- Roller Material Urethane Surface
- Roller Hardness 60 Durometer
- Bearing Type Sintered Bronze Bearing
- Bearing Projection ( D / F ) 0.41 / 2.38 mm
- Sleeve OD (G) 17.46 mm
- Material Aluminium Alloy
Product Compliance and Data
Additional Resources
Cross References
- A 7Z 5-UR0925
- A7Z5-UR0925
- A7Z5UR0925
