CCE-02000-C-V (PK-500)

Name: External Retaining Rings - 20x1.2x19 mm Circlips - Carbon Steel Circlip (Sold Per PK-500) - - CCE-02000-C-V
Brand: MBA
SKU: CCE02000CV
Price: 254.23 AUD
Availability: BackOrder

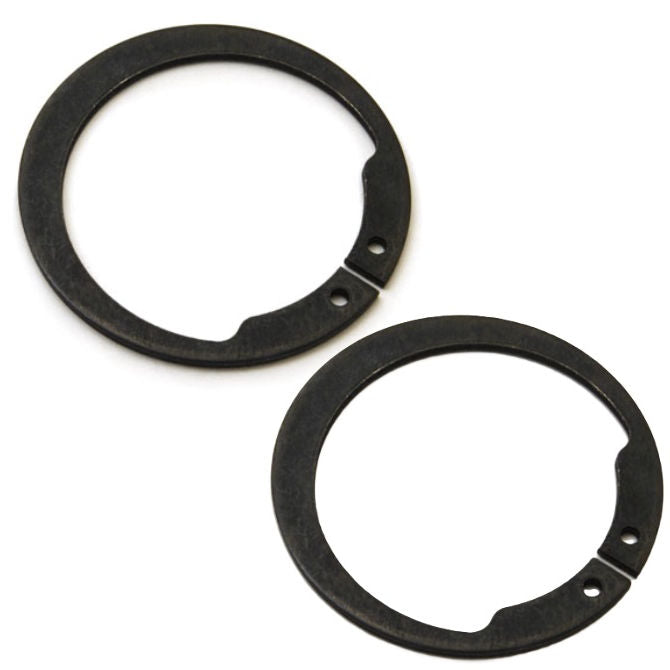

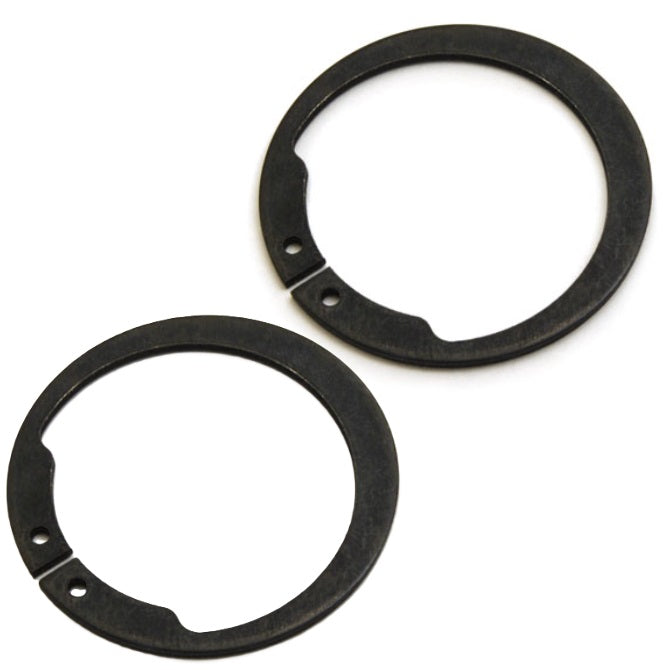

External Retaining Rings - 20x1.2x19 mm Circlips - Carbon Steel Circlip

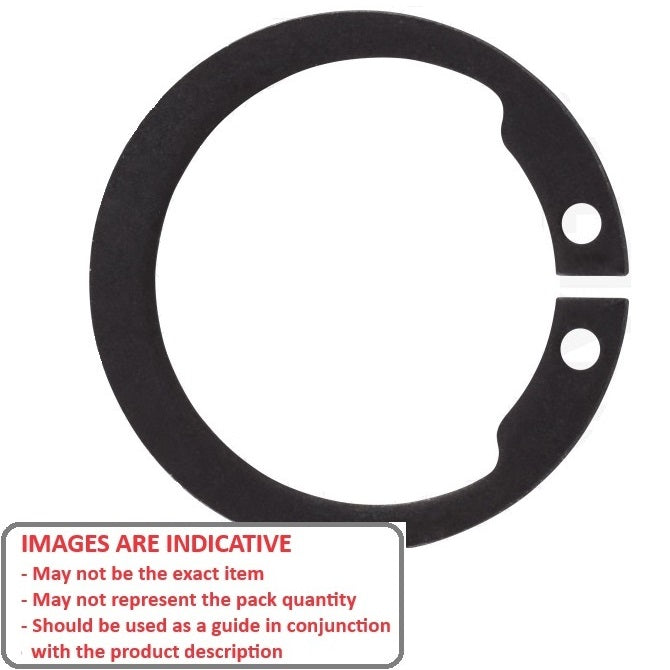

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Retaining Rings - External - Circlips - Inverted

Additional resources:
Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits

Price:

$254.23 AUD

~~$598.00 AUD~~ $254.23 AUD

Priced, Stocked and Sold Per 500 Units

Excludes GST and overseas Taxes & Duties

Backorder

Order 50 or more pack (25000 pcs)
for $228.81 AUD per 500

Product Details

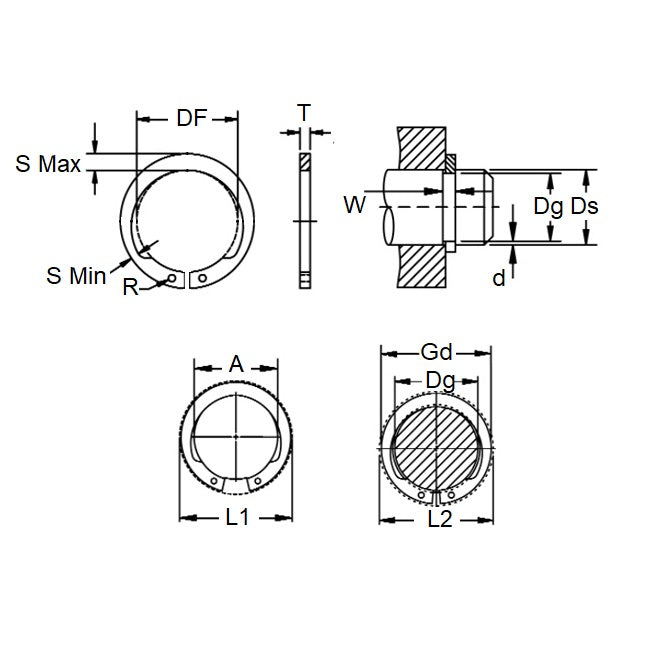

Shaft Diameter (Ds): 20.00mm
_{(20.00mm is 0.787 in.)}

Carbon Steel

Shaft Diameter (Ds): 20.00mm
_{(20.00mm is 0.787 in.)}
Clip Thickness (T): 1.20mm
_{+ 0.00 / - 0.06}
_{(1.20mm is 0.047 in.)}
Groove Dia. (Dg): 19.00mm
_{+ 0.00 / - 0.15}
_{(19.00mm is 0.748 in.)}
Approx. Loose Circlip ID (A): 18.50mm
Radial Wall (S) Approx.: 2.80mm
Groove Width (W): 1.30mm
Tool: PRS-E013

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

Huyett® DSHI-020
NoCor® DSHI-020
M1408-0200
M14080200
DSHI020

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
