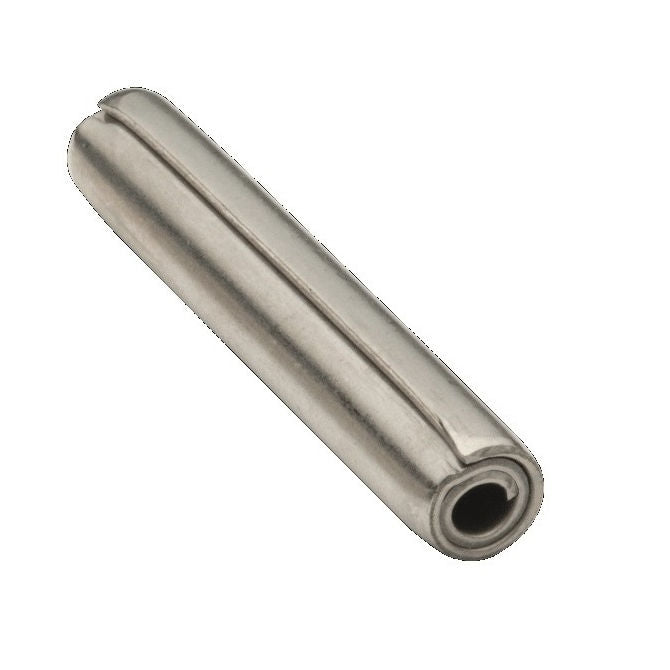

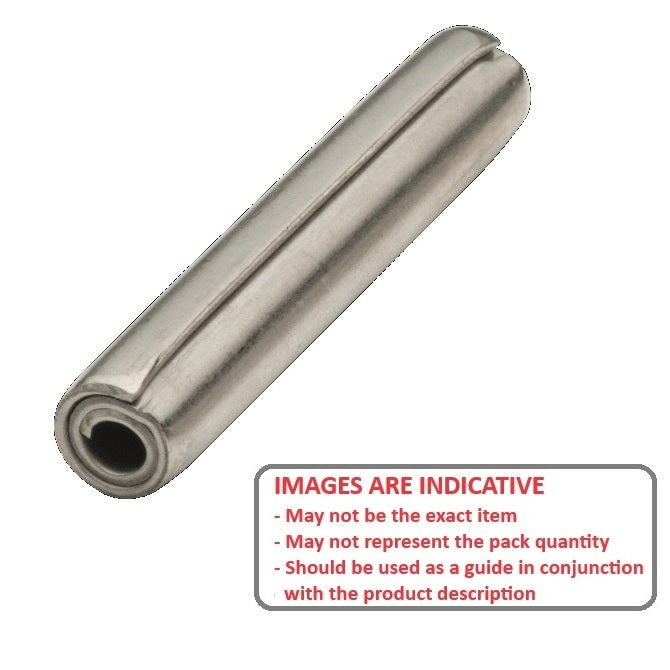

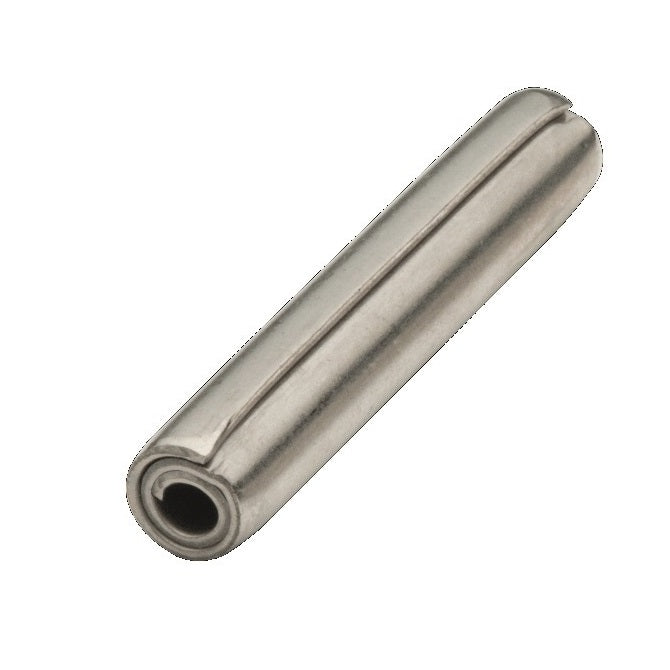

PSP-024-008H-S2 (PK-1000)
Coiled Pins - 2.38x7.93 - 2.38 - 2.46 - Stainless Steel 304 Similar to A2, 18-8 HRB80 Pin
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleMaster Pins Catalogue PDF
Roll Pins
Order 50 or more packs of 1000 (50000 pcs)
for $867.65 AUD per 1000 pack
3/32x5/16 inch Pin - 2.38x7.93 - 2.38 - 2.46 Coiled Pins - Stainless Steel 304 (Similar to A2, 18-8) HRB80 - Sold per pack of 1000:
Base Category: Pins - Coiled
Top Level Category: Pins - Coiled - Stainless - Heavy Duty
Product Details
Nominal Hole Diameter: 2.38mm(2.38mm is 0.094 in.)
Stainless Steel 304 (Similar to A2, 18-8) HRB80
- Nominal Hole Diameter: 2.38mm
(2.38mm is 0.094 in.)
- Length: 7.93mm
+/- 0.25
(7.93mm is 0.312 in.)
- Drill Size: 2.38 - 2.46mm
(2.38 - 2.46mm is 0.094 in.)
- Loose Diameter: 2.49 - 2.57mm
- ISO: Heavy Duty ASME B18.8.2 / ISO 8748
- Hardness: Unhardened
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Huyett® SPC3P-093-0312H
- NoCor® SPC3P-093-0312H
- SPC3P0930312H
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
PSP024008HS2, PSP024
