SFR133-MC34-GR5-R-L23 (PK-40)

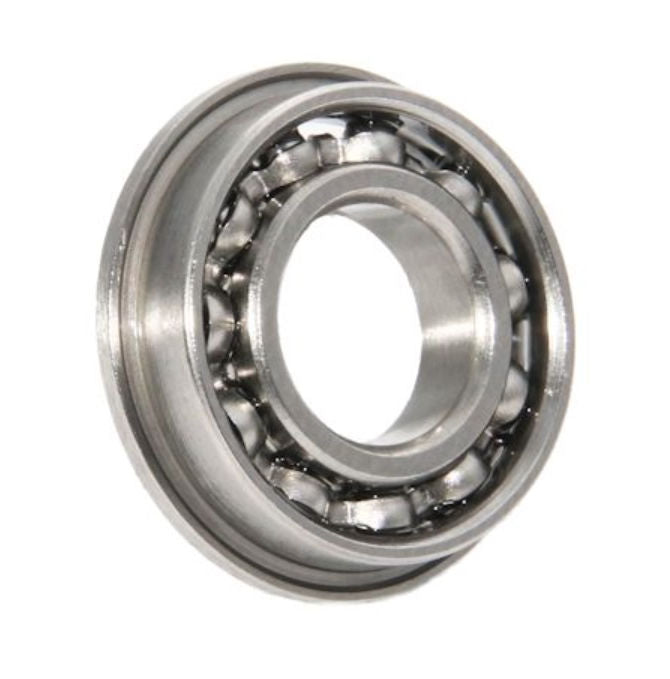

3/32x3/16x1/16 inch Bearing - 2.381x4.763x1.588 mm Single Row Ball Bearings - Stainless Steel AISI 440C - Sold per pack of 40:

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Flanged - High Precision - Standard

Product Details

ID (d): 2.381mm
_{+ 0.000 / - 0.005
(2.381mm is 0.094 in.)}

Stainless Steel AISI 440C

• ID (d): 2.381mm
  _{+ 0.000 / - 0.005
  (2.381mm is 0.094 in.)}

• O.D. (D): 4.763mm
  _{+ 0.000 / - 0.005
  (4.763mm is 0.188 in.)}

• Width (B): 1.588mm
  _{+ 0.000 / - 0.040
  (1.588mm is 0.063 in.)}

• Flange Diameter (DF): 5.944mm
• Flange Width (BF): 0.457mm
• Precision Grade: Abec 5
• Closure Type: Open
• Bearing Type: Radial Flanged
• Lubricant: Windsorlube L245X - L23 Oil

Brand: Myonic
Country of Origin: DE

Product Compliance and Data

• Full Data Sheet
• RoHs Statement
• Reach Statement
• CoC Information

Similar to

• GRW F2380-P5
• GRW SF2380-P5
• GRW SSF2380-P5
• RMB® ULK3006X-48-A5P-6/15-L23
• RMB® ULK3006X-A5P-L23
• SSFR133RGR5MC34L23
• SSFR133MC3GR5L23
• SF2380P5
• SFR133MC34GR5RL23
• ULK3006X48A5P6/15L23
• ULK3006XA5PL23
• SSF2380P5
• P5FR133
• P5SFR133
• P5-SFR133
• P5-FR133
• FR133BASIC

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
SFR133MC34GR5RL23, FR133
