FR133-MC3-AF12 (Each)

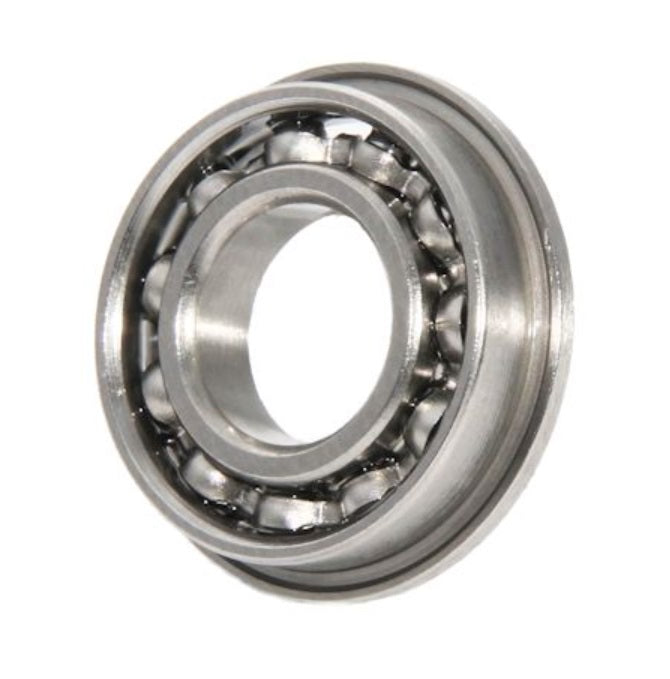

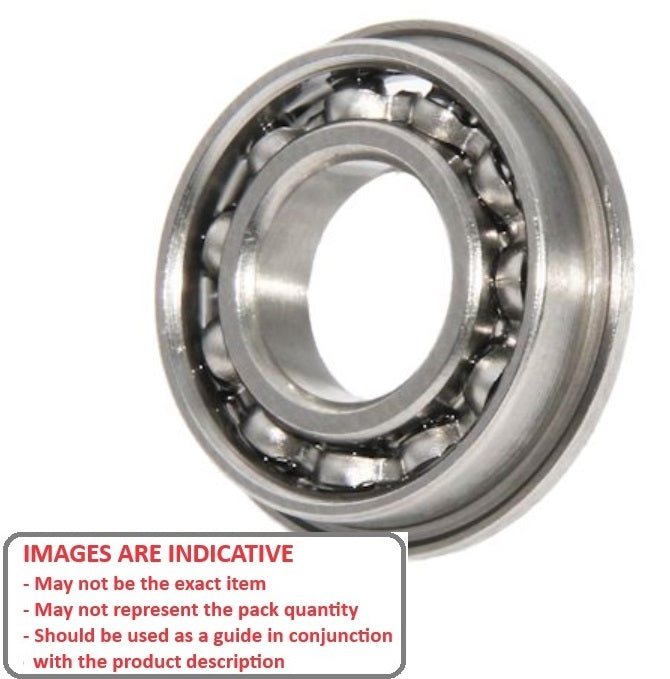

Single Row Ball Bearings - 2.381x4.763x1.588 mm Flanged - Chrome Steel SAE 52100 Bearing
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Tolerances
Standard Bearings PDF Catalogue
Shafting
Couldn't load pickup availability
3/32x3/16x1/16 Bearing - 2.381x4.763x1.588 mm Single Row Ball Bearings - Chrome Steel SAE 52100 - Sold per Each
Base Category: Bearings - Single Row Ball
Top Level Category: Bearings - Single Row Ball - Flanged - Precision - Chrome Steel
Product Details
Deleted Item. Available while stocks last.

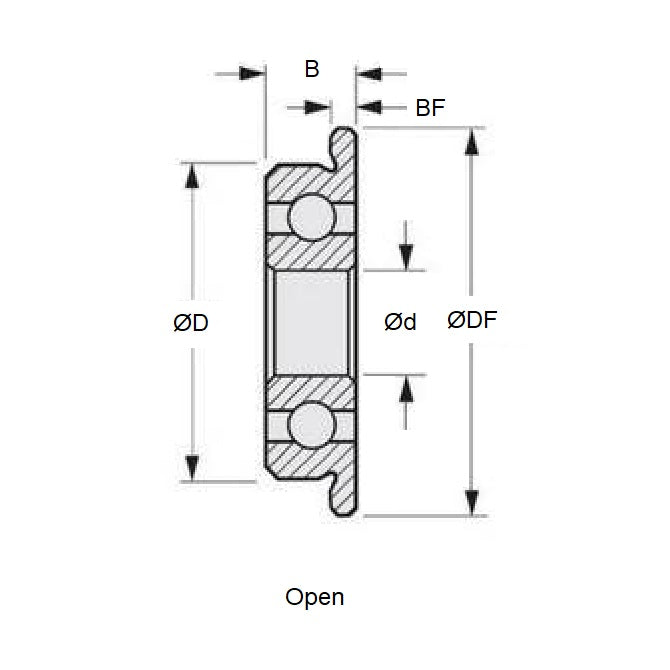

ID (d): 2.381mm
+ 0.000 / - 0.0075
(2.381mm is 0.094 in.)
Chrome Steel SAE 52100
- ID (d): 2.381mm
+ 0.000 / - 0.0075
(2.381mm is 0.094 in.)
- O.D. (D): 4.763mm
+ 0.000 / - 0.0075
(4.763mm is 0.188 in.)
- Width (B): 1.588mm
+ 0.000 / - 0.125
(1.588mm is 0.063 in.)
- Flange Diameter (DF): 5.944mm
- Flange Width (BF): 0.457mm
- Precision Grade: Abec 1
- Closure Type: Open
- Bearing Type: Radial Flanged
Brand: MBA
Country of Origin: JP
Product Compliance and Data
Similar to
- MPB 3332FC
- GRW F2380
- ADR FAX3-32
- NTN® FLR133
- ISO FR133
- NHBB® FR133
- FAG® RF0612
- R1F-3332
- R1F3332
- FAX332
- FR133BASIC
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
FR133MC3AF12, FR133
