DP024-011-CH-1 (50 Pcs)

Name: DP024-011-CH-1 (50 Pack) - Dowel Pins - 2.381x11.11 Standard - Steel Alloy - Heat Treated and Ground Rc 58-62 Pin
Brand: NoCor
SKU: DP024011CH1
Price: 9.14 AUD
Availability: LimitedAvailability

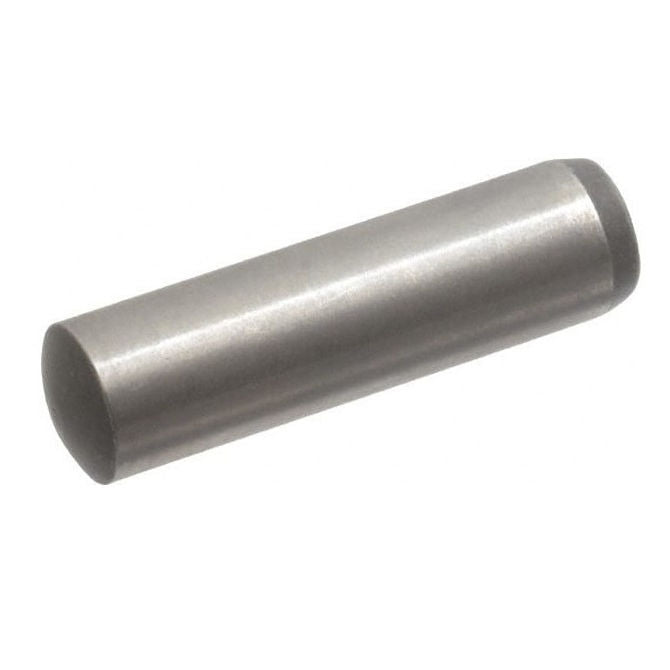

Dowel Pins - 2.381x11.11 Standard - Steel Alloy - Heat Treated and Ground Rc 58-62 Pin

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

NoCor

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Pins - Dowel - Standard - Chamfered Ends - Carbon Steel

Additional resources:
Dowel Pins Catalogue PDF
Master Pins Catalogue PDF

Price:

$9.14 AUD

~~$22.03 AUD~~ $9.14 AUD

50 Per Sell Unit

Excludes GST and overseas Taxes & Duties

Qty: 2 available now

Product Details

Additional stock available from USA subject to Prior Sale = 39403

Diameter (D): 2.381mm
_{+ 0.002 / + 0.008}
_{(2.381mm is 0.094 in.)}

Steel Alloy - Heat Treated and Ground Rc 58-62

Diameter (D): 2.381mm
_{+ 0.002 / + 0.008}
_{(2.381mm is 0.094 in.)}
Length (L): 11.11mm
_{+/- 0.350}
_{(11.11mm is 0.437 in.)}
Approx. Overall Length: 11.11mm
_{+/ - 0.350}
_{(11.11mm is 0.437 in.)}

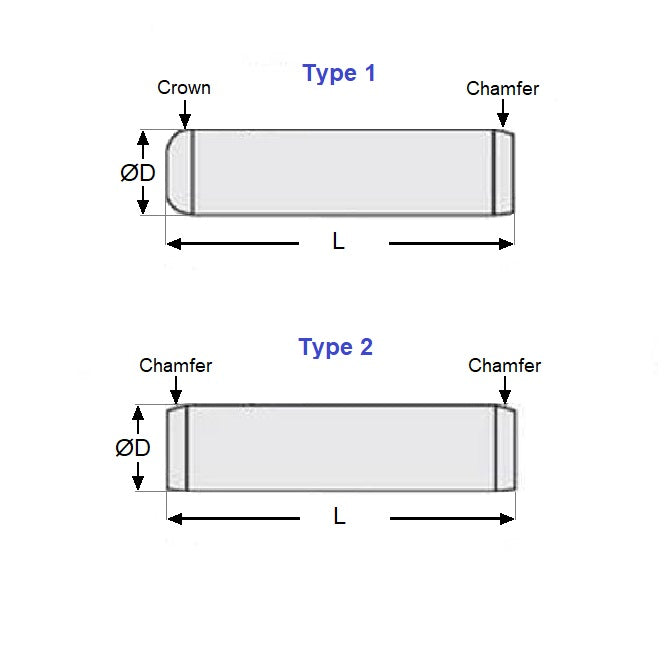

Type: 1 (Chamfer One End)
Standard: Based on DIN 6325

Brand: NoCor
Country of Origin: US

Product Compliance and Data

Similar to

Brighton Best 241055

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
