SMR5-0235-T4HB-MC3-AF12

Single Row Ball Bearings - 2.35x5x1.5 mm Unflanged - Stainless Steel AISI 420C - Polyamide Cage Bearing

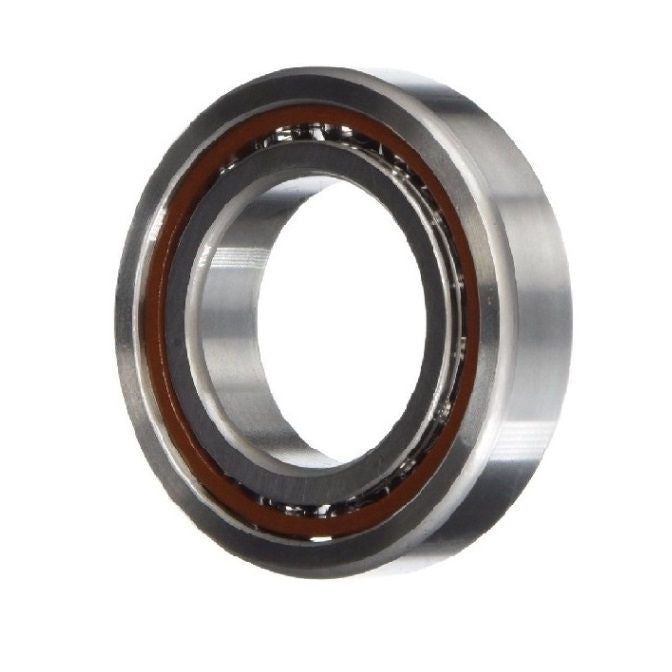

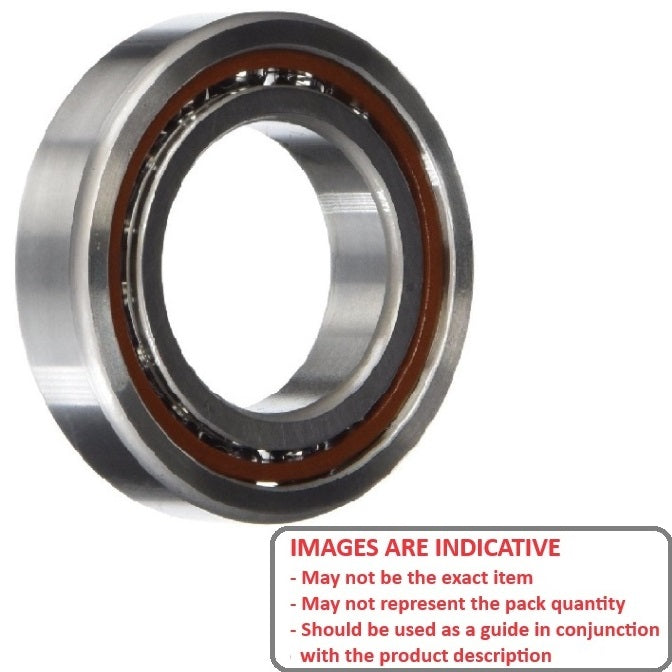

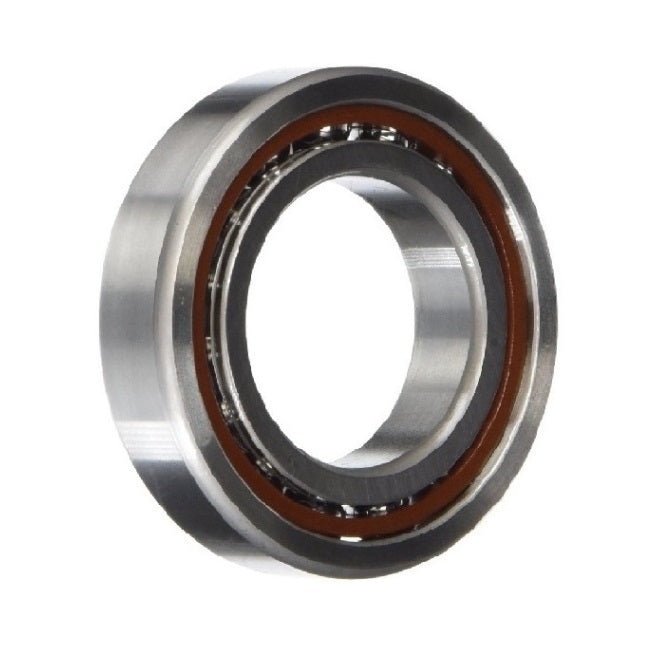

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Single Row Ball Bearings - 2.35x5x1.5 mm - Stainless Steel AISI 420C - Polyamide Cage
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting
Price:
$27.41 AUD
$50.37 AUD $27.41 AUD
Excludes GST and overseas Taxes & Duties
 Each
Qty: 2 available now
Order 50 or more for $24.67 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Oct 24, 2025

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Unflanged - Precision - High Speed Cage

Product Details

ID (d): 2.350mm
+ 0.000 / - 0.0075
(2.350mm is 0.093 in.)

Stainless Steel AISI 420C - Polyamide Cage
  • ID (d): 2.350mm
    + 0.000 / - 0.0075
    (2.350mm is 0.093 in.)
  • OD (D): 5.000mm
    + 0.000 / - 0.0075
    (5.000mm is 0.197 in.)
  • Width (B): 1.500mm
    + 0.000 / - 0.125
    (1.500mm is 0.059 in.)
  • Precision Grade: Abec 1
  • Closure Type: Open
  • Bearing Type: Radial

Brand: MBA
Country of Origin: DE

Product Compliance and Data

Similar to

  • KaVo 2200730
  • Kavo 2200730 in 553 7201 Stem
  • KaVo 220NK0730
  • MR5-2.35
  • MR5235
  • MR5-2.35BASIC

Used for

  • Dental Handpiece Parts
  • Kavo - Intra 25LN - Stem Bearing

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
