RT-060-0400-060-120-HH

Ratchets Ratchets and Pawls - Pitch 2.094 CP 60 - 40 mm With Hub - Carbon Steel - Hardened 48-53 HRC Ratchet

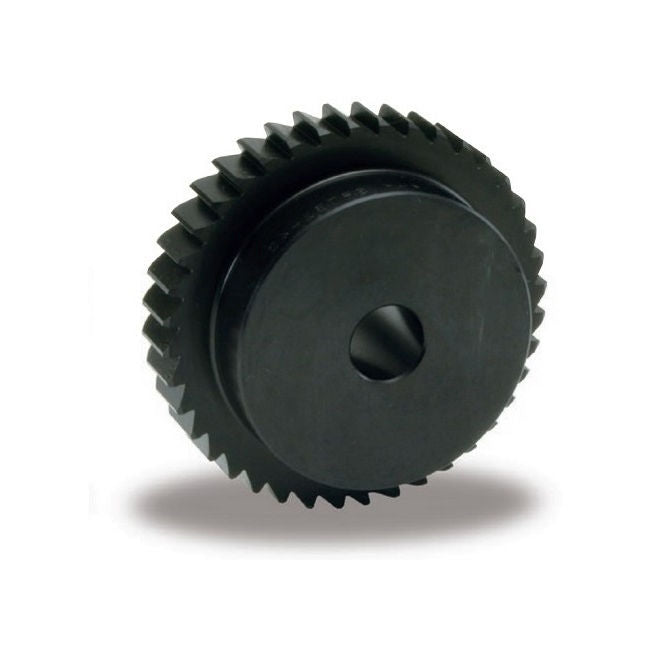

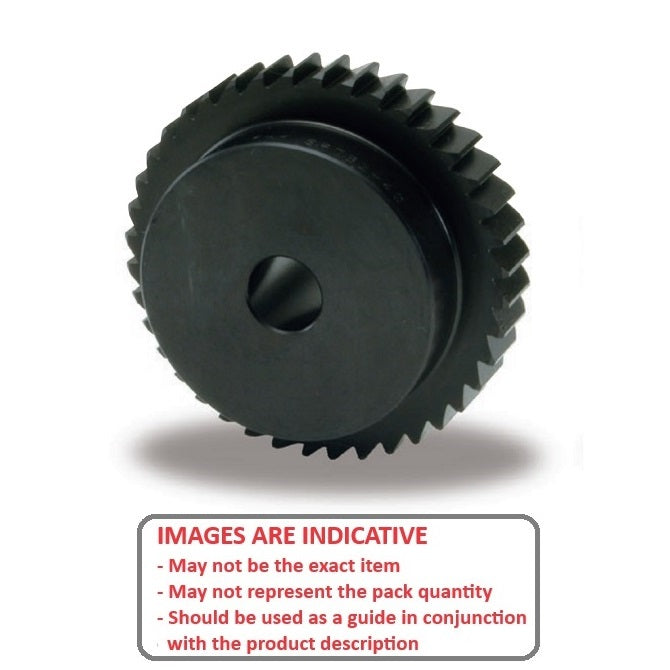

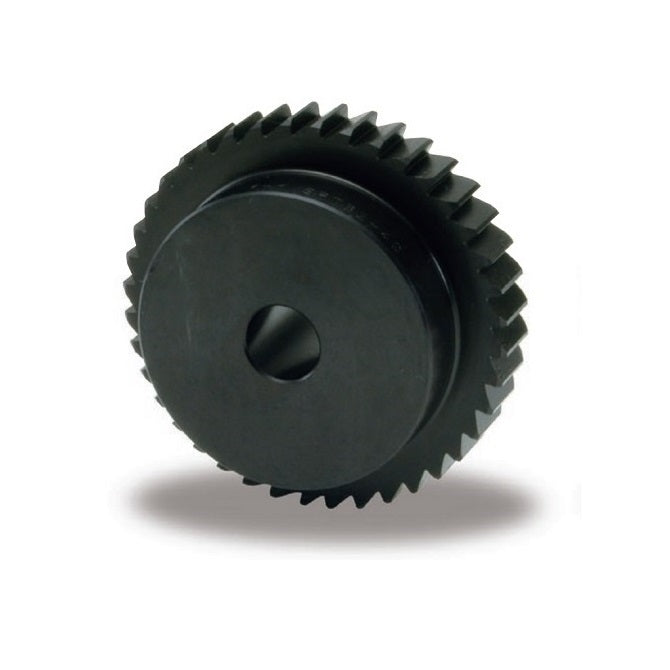

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
Skip to product information
1 of 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale
Discontinued
This item is discontinued. Please contact us for a special quote if you require a large quantity.

Base Category: Ratchets and Pawls - Ratchets

Top Level Category: Ratchets and Pawls - Ratchets - With Hub

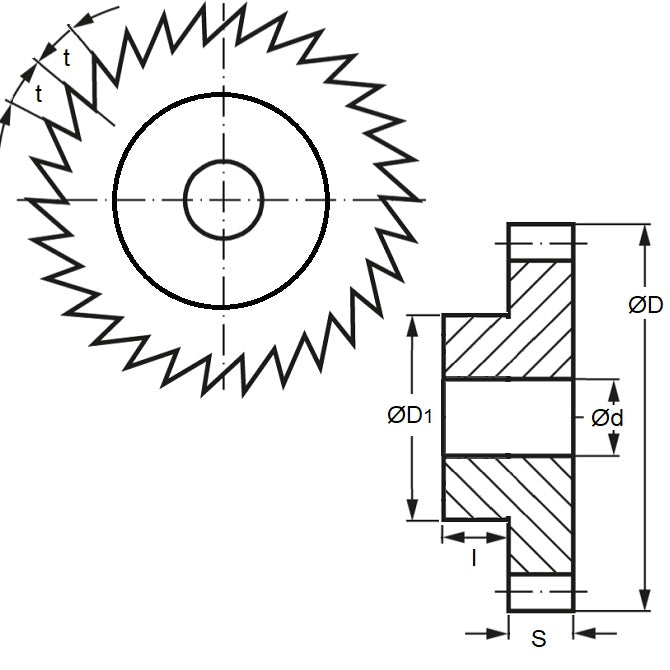

Product Details

Pitch: 2.094 CP

Carbon Steel - Hardened 48-53 HRC
  • Teeth (No.): 60
  • Outside Diameter: 40mm
    (40mm is 1.575 in.)
  • Bore: 12.00mm
  • Face Width: 6mm
  • Hub Diameter: 30mm
  • Hub Projection: 10mm
  • Additional Info: Pawl ordered separately
  • Teeth Depth: 1mm
  • Bore Config: 4.0x1.8 Keway

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • SRTB2360J12
  • SRTB2/360J12

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
