WRE-0191-SQ-HC (Pack of 300)
External Retaining Rings - 19.05x2.36x17.88 mm Snap Rings - Carbon Spring Steel
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Snap Rings and Spiral Rings PDF
Order 50 or more packs of 300 (15000 pcs)
for $0.00 AUD per 300 pack
3/4 inch Ring - 19.05x2.36x17.88 mm External Retaining Rings - Carbon Spring Steel - Sold Per 300:
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Snap Rings - Carbon Steel
Product Details

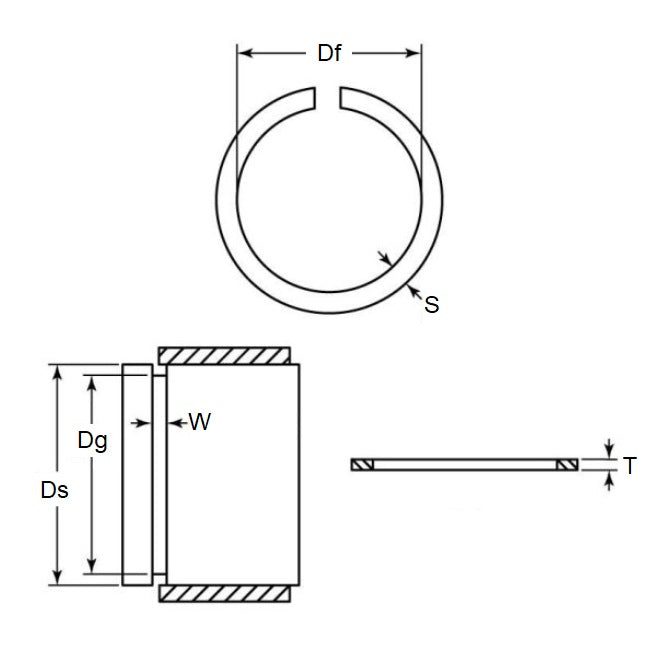

Shaft or Bearing OD (d1): 19.05mm(19.05mm is 0.75 in.)
Carbon Spring Steel
- Shaft or Bearing OD (d1): 19.05mm
(19.05mm is 0.75 in.)
- Clip Thickness (T): 2.36mm
+/- 0.05
(2.36mm is 0.093 in.)
- Groove Dia. (Dg): 17.88mm
+ 0.08 / - 0.00
(17.88mm is 0.704 in.)
- Approx. Loose Circlip ID (A): 17.70mm
+ 0.00 / - 0.65
- Radial Wall (S) Approx.: 2.36mm
+/- 0.05
- Groove Width (W): 2.54mm
- Approx. Loose Clip OD: 22.42
- Info: Axial Assembly - Closed Gap
- Section Profile: Square Section
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Eaton 300-131
- Arcon® XSC-131
- Huyett® XSC-131
- NoCor® XSC-131
- XSC131
- A0700-131
- A0700131
- 300131
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
WRE0191SQHC, WRE0191
