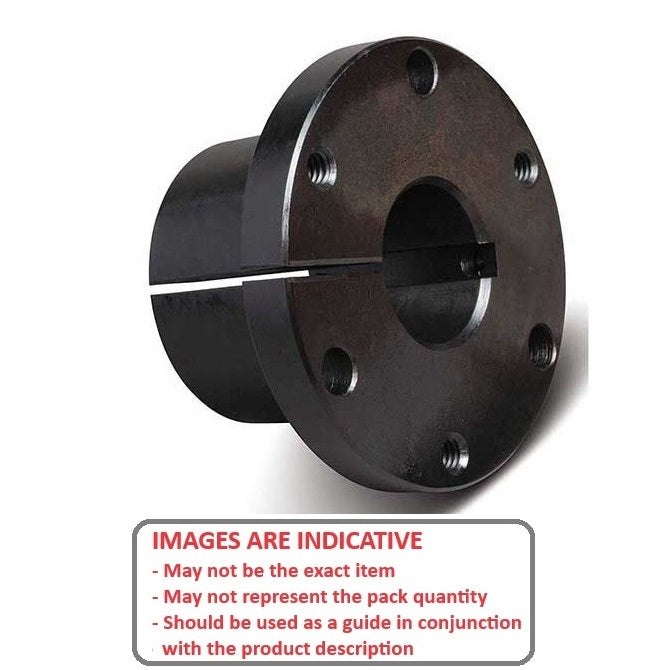

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

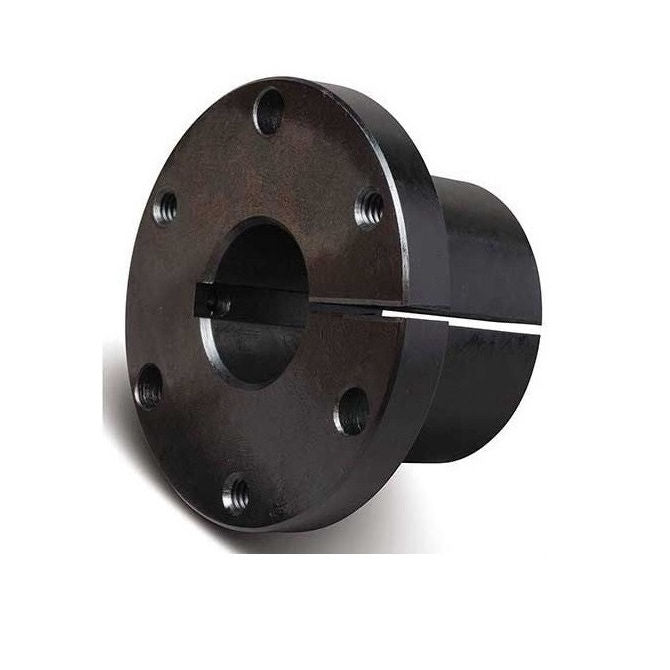

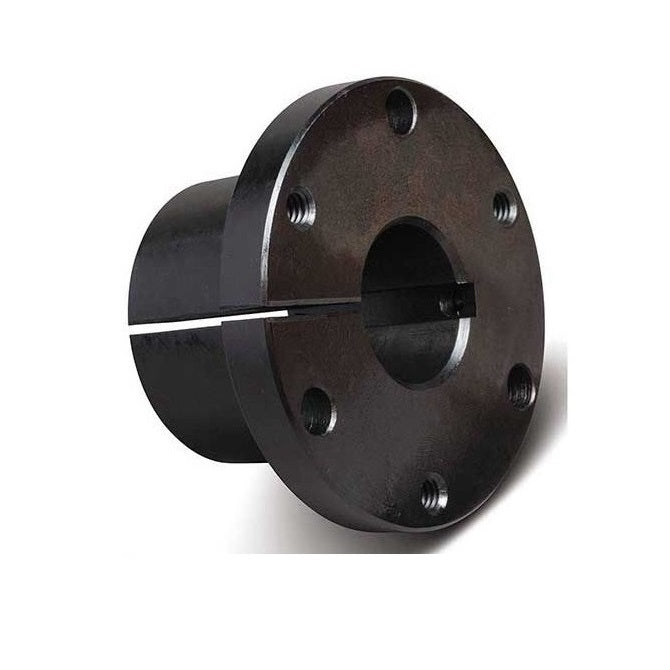

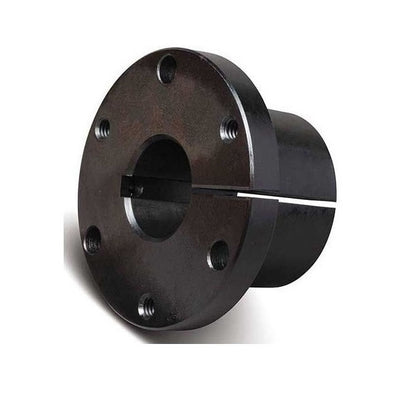

QD Bushings - 19.05 mm x SD x 80.98 mm
QD-SD-0191

QD Bushings - 19.05 mm x SD x 80.98 mm
QD-SD-0191

MBA

Category: Bushings - QD
Price:
$53.77 AUD
$53.77 AUD
Each
Out Of Stock
Order 50 or more for $48.39 AUD Each
Pre-Order now! Backorders for more than the stock quantity are expected before May 12, 2025

Base Category: Bushings - QD

Top Level Category: Bushings - QD

Product Details:

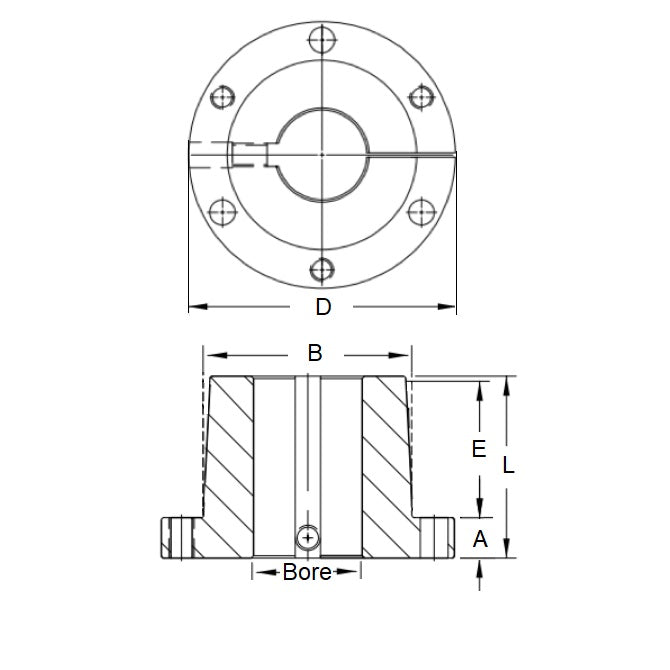

Bore: 19.050mm
Steel
  • Series: SD
  • Flange OD (D): 80.98mm
  • Bolt Circle Dia.: 68.28mm
  • Overall Length (L): 46.05mm
  • Bush Length (E): 23.83mm
  • Large End OD (B): 55.55mm
  • Flange Thickness (A): 12.70mm

Brand: MBA
Country of Origin: US

Alternative Parts Include: 6086K413, SDx3-4, Martin

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
