BLP-191-0508-K1-C (Each)

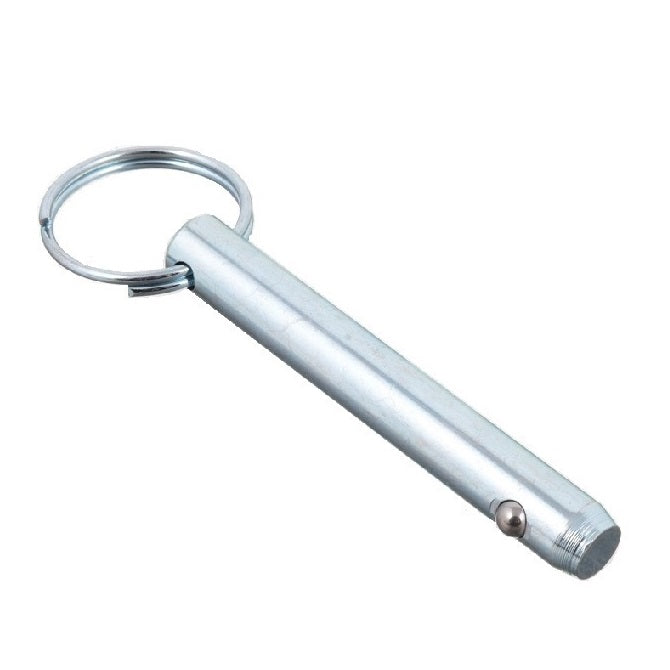

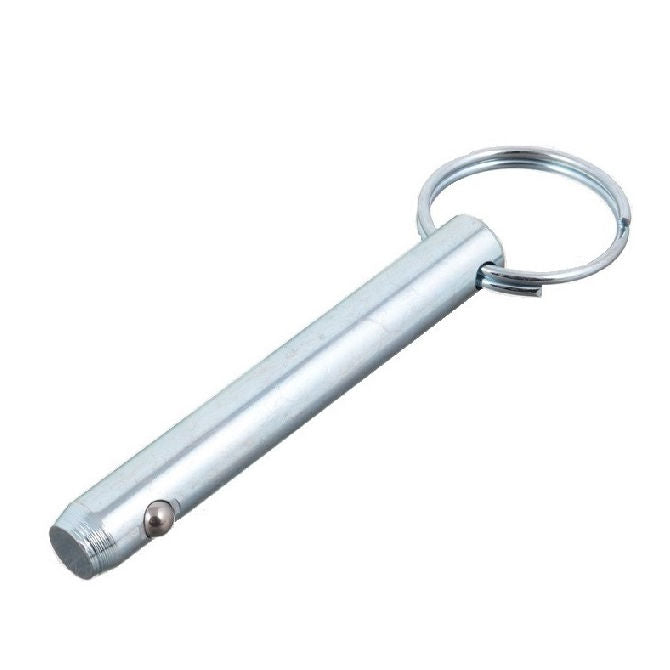

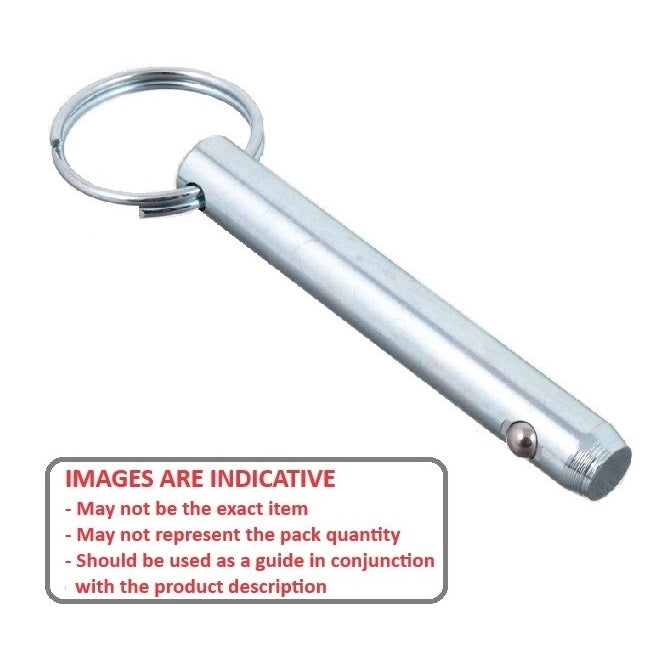

Ball Lock Pins - 19.05x50.8 mm - Carbon Steel Keyring Style Pin
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Master Pins Catalogue PDF
Flanged Receptacles for Ball Lock Pins
Order 50 or more
for $15.51 AUD Each
3/4x2 inch Pin - 19.05x50.8 mm - Carbon Steel Ball Lock Pins - Carbon Steel - Sold per Each:
Base Category: Pins - Ball Lock
Top Level Category: Pins - Ball Lock - Keyring Style - Single Ball - Steel
Product Details
Additional stock available from USA subject to Prior Sale = 707

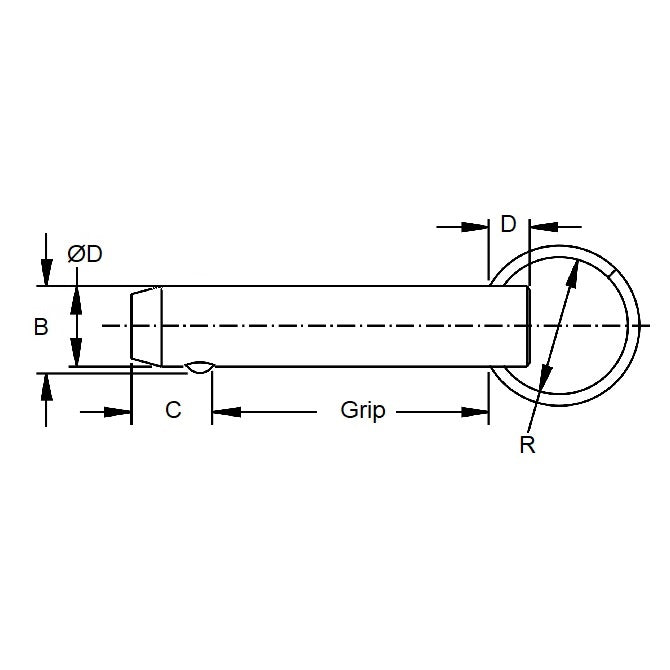

Nominal Diameter: 19.05mm
(19.05mm is 0.75 in.)
- Nominal Diameter: 19.05mm
(19.05mm is 0.75 in.)
- Grip Length (B): 50.80mm
(50.80mm is 2 in.)
- Pin Material Grade: Carbon Steel
- Locking Ball to End (C): 23.80mm
- Open Ball Distance (B): 21.74mm
- Ring Diameter (R ): 38.10mm
- Depth of Ring in Pin (D): 9.53mm
- Detent Style: 1 Ball Plain Pin No Shoulder
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 98320A740
- Huyett® DTP-0750-2000
- NoCor® DTP-0750-2000
- Reid Tool® FPC12-20R
- FPC1220R
- DTP07502000
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
BLP1910508K1C, BLP1910508
