6003A (Each)

Name: Single Row Ball Bearings - 17x35x8 mm Unflanged - Chrome Steel SAE 52100 Bearing - 6003A
Brand: MBA
SKU: 6003A
Price: 16.32 AUD
Availability: LimitedAvailability

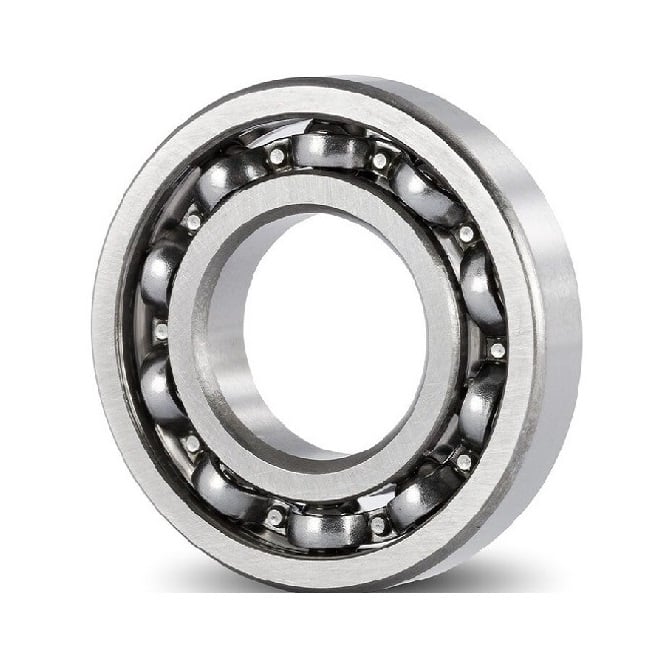

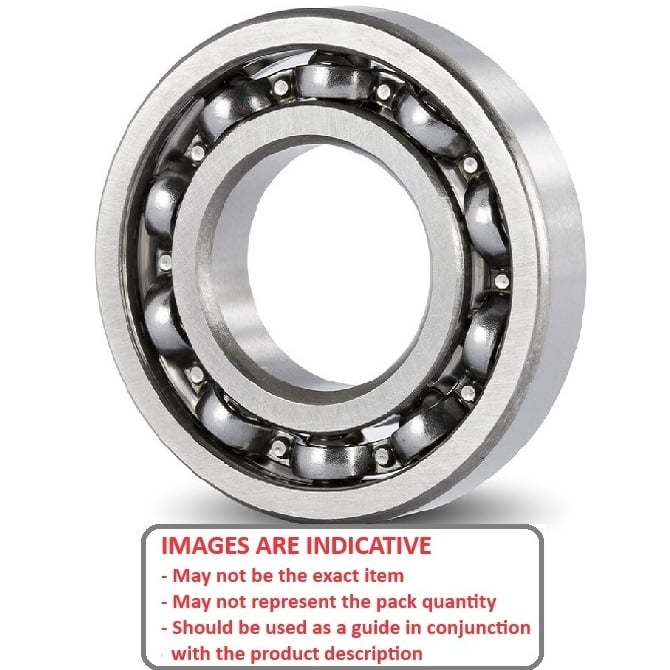

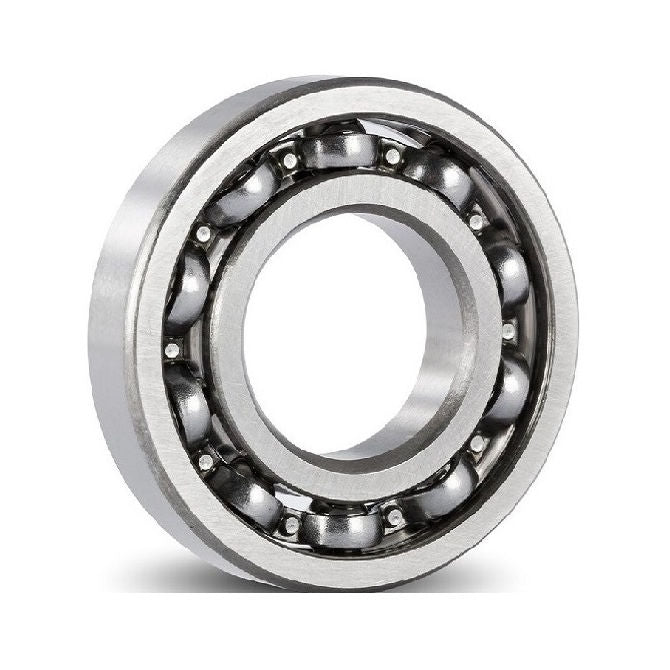

Single Row Ball Bearings - 17x35x8 mm Unflanged - Chrome Steel SAE 52100 Bearing

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Bearings - Single Row Ball - Unflanged - Precision - Chrome Steel

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting

Price:

$16.32 AUD

Each

Excludes GST and overseas Taxes & Duties

Qty: 1 available now

Order 50 or more
for $14.69 AUD Each

Product Details

Non ISO Width

ID (d): 17.000mm
_{+ 0.000 / - 0.0075}
_{(17.000mm is 0.669 in.)}

Chrome Steel SAE 52100

ID (d): 17.000mm
_{+ 0.000 / - 0.0075}
_{(17.000mm is 0.669 in.)}
O.D. (D): 35.000mm
_{+ 0.000 / - 0.011}
_{(35.000mm is 1.378 in.)}
Width (B): 8.000mm
_{+ 0.000 / - 0.125}
_{(8.000mm is 0.315 in.)}
Precision Grade: Abec 1
Closure Type: Open
Bearing Type: Radial

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

Schluter® 0412
FAG® 16003
KSK 16003
Nachi® 16003
SKF 16003
SNR 16003
WIB 16003
6003ABASIC

Used for

RC Helicopter Parts
RC Nitro Engine Parts
Schluter® - Hellstar - Rear Bearing 17-35-8mm
ASP® - 91 New - Rear Bearing 17-35-8mm
GMS - 61 Ring - 40 - Rear Bearing 17-35-8mm
GMS - 76 Ring - 47 - Rear Bearing 17-35-8mm
Irvine® - 72 - 2 Stroke - Rear Bearing 17-35-8mm
Magnum Power® - Pro - 40 - Rear Bearing 17-35-8mm
Magnum Power® - XLS 91A - 40 - Rear Bearing 17-35-8mm
Magnum® - 61 Pro - 2 Stroke - Rear Bearing 17-35-8mm
Mutunuc® - Taiwan - 21 - Rear Bearing 17-35-8mm
OS Engines® - 61 FX - 2 Stroke - Rear Bearing 17-35-8mm
OS Engines® - 61 RF-H RC LS - Rear Bearing 17-35-8mm
OS Engines® - 61 RX-H - 2 Stroke - Rear Bearing 17-35-8mm
OS Engines® - 61 SF ABC LS - Rear Bearing 17-35-8mm
OS Engines® - 61 SF RC W-Muffler LS - Rear Bearing 17-35-8mm
OS Engines® - 61 SF-H ABC LS - Rear Bearing 17-35-8mm
OS Engines® - 61 SF-H RC LS - Rear Bearing 17-35-8mm
OS Engines® - 61 SFN-H ABC W-7H - Rear Bearing 17-35-8mm
OS Engines® - 61 SFN-H RC W-7H - Rear Bearing 17-35-8mm
OS Engines® - 61 SX-H - 2 Stroke - Rear Bearing 17-35-8mm
OS Engines® - 90 FR - Rear Bearing 17-35-8mm
OS Engines® - 91 FR RC W-Muffler LS - Rear Bearing 17-35-8mm
OS Engines® - 91 FX - 2 Stroke - Rear Bearing 17-35-8mm
OS Engines® - 91 SXHC - Rear Bearing 17-35-8mm
OS Engines® - FR5 5Cylinder 4C - 35 - Rear Bearing 17-35-8mm
OS Engines® - FR5 5Cylinder 4C - 60 - Rear Bearing 17-35-8mm
OS Engines® - FR5-300 CYN 300 - Rear Bearing 17-35-8mm
OS Engines® - FSR - 45 - Rear Bearing 17-35-8mm
OS Engines® - FSR - 50 - Rear Bearing 17-35-8mm
OS Engines® - FSR RC LS - 61 - Rear Bearing 17-35-8mm
OS Engines® - FT Twin RC 4C - 120 - Rear Bearing 17-35-8mm
OS Engines® - FT Twin RC 4C - 160 - Rear Bearing 17-35-8mm
OS Engines® - FT240 -FT300 TW RC - 4 Stroke - Rear Bearing 17-35-8mm
OS Engines® - FX - 40 - Rear Bearing 17-35-8mm
OS Engines® - FX - 46 - Rear Bearing 17-35-8mm
OS Engines® - HWC - 60 - Rear Bearing 17-35-8mm
OS Engines® - RF ABC LS - 21 - Rear Bearing 17-35-8mm
OS Engines® - RF-HS - 61 - Rear Bearing 17-35-8mm
OS Engines® - RF-P Hanno Special - 61 - Rear Bearing 17-35-8mm
OS Engines® - RX-H - 140 - Rear Bearing 17-35-8mm
OS Engines® - RX-HGL - 140 - Rear Bearing 17-35-8mm
OS Engines® - SF - 40 - Rear Bearing 17-35-8mm
OS Engines® - SF ABC - 46 - Rear Bearing 17-35-8mm
OS Engines® - SF Ring - 40 - Rear Bearing 17-35-8mm
OS Engines® - SF-H ABC RC LS - 46 - Rear Bearing 17-35-8mm
OS Engines® - SF-H RC LS - 61 - Rear Bearing 17-35-8mm
OS Engines® - SF-HS - 61 - Rear Bearing 17-35-8mm
OS Engines® - SFN-H RC With 7H - 40 - Rear Bearing 17-35-8mm
OS Engines® - SF-P - 61 - Rear Bearing 17-35-8mm
OS Engines® - SX-H - 32 - Rear Bearing 17-35-8mm
OS Engines® - SX-H Ring - 50 - Rear Bearing 17-35-8mm
OS Engines® - SX-H Ring C Spec - 61 - Rear Bearing 17-35-8mm
OS Engines® - SX-H Ring C Spec With Pump - 91 - Rear Bearing 17-35-8mm
OS Engines® - SX-HGL WC - 91 - Rear Bearing 17-35-8mm
OS Engines® - SZ-H - 32 - Rear Bearing 17-35-8mm
OS Engines® - SZ-H - 37 - Rear Bearing 17-35-8mm
OS Engines® - VF - 12 - Rear Bearing 17-35-8mm
OS Engines® - WC - 21 - Rear Bearing 17-35-8mm
Saito® - 160 - 120 - Rear Bearing 17-35-8mm
Saito® - 35 All Models - Rear Bearing 17-35-8mm
Saito® - FA 125 - 90 - Rear Bearing 17-35-8mm
Saito® - FA 90 - Rear Bearing 17-35-8mm
Saito® - FA180 - 91 - Rear Bearing 17-35-8mm
Saito® - S Goldhead - 50 - Rear Bearing 17-35-8mm
Super Tigre® - G - 29 - Rear Bearing 17-35-8mm
Super Tigre® - G61 ABC - 34 - Rear Bearing 17-35-8mm
Super Tigre® - G61 Ring - 51 - Rear Bearing 17-35-8mm
Super Tigre® - G75 Ring - 51 - Rear Bearing 17-35-8mm
Super Tigre® - G90 Ring New Version - 61 - Rear Bearing 17-35-8mm
Thunder Tiger® - 61 Pro - 2 Stroke - Rear Bearing 17-35-8mm
Thunder Tiger® - 61H - 2 Stroke - Rear Bearing 17-35-8mm
Thunder Tiger® - EK4 - -21 - Rear Bearing 17-35-8mm
Thunder Tiger® - H - 70 - Rear Bearing 17-35-8mm
Thunder Tiger® - Pro - 40 - Rear Bearing 17-35-8mm
Thunder Tiger® - Pro - 46 - Rear Bearing 17-35-8mm
Thunder Tiger® - Pro H - 36 - Rear Bearing 17-35-8mm
Thunder Tiger® - Pro H BB - 46 - Rear Bearing 17-35-8mm
Webra® - 40 All Models - Rear Bearing 17-35-8mm
YS - 80 - 61 - Rear Bearing 17-35-8mm
YS - 80 - 91 - Rear Bearing 17-35-8mm
YS - 80 ST - 140 - Rear Bearing 17-35-8mm
YS - 80 ST - 91 - Rear Bearing 17-35-8mm
YS - Old - 53 - Rear Bearing 17-35-8mm
YS - ST H - 120 - Rear Bearing 17-35-8mm
YS - ST2 61 Heli - 120 - Rear Bearing 17-35-8mm
YS - ST4 91 Heli - 61 - Rear Bearing 17-35-8mm

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
