RS-068 (Pack of 5)

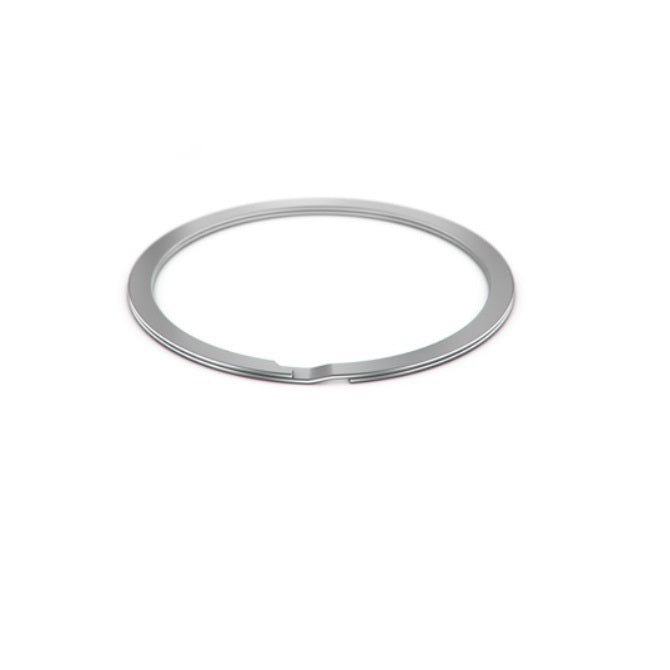

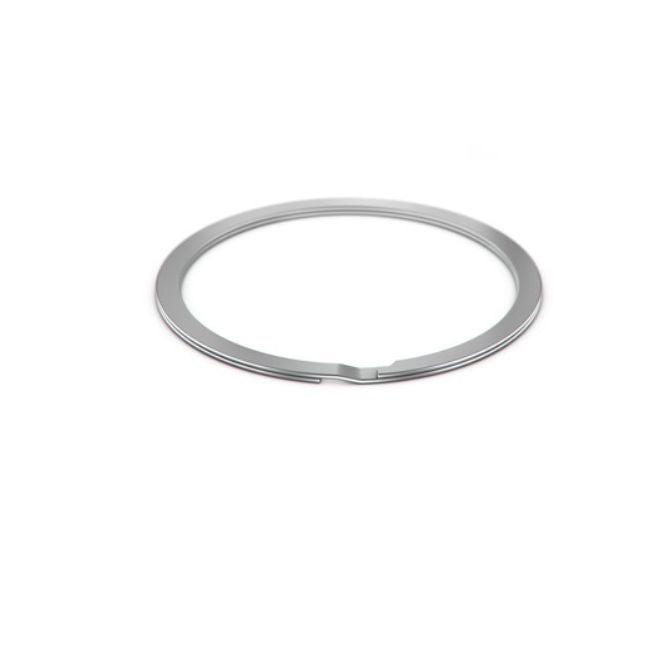

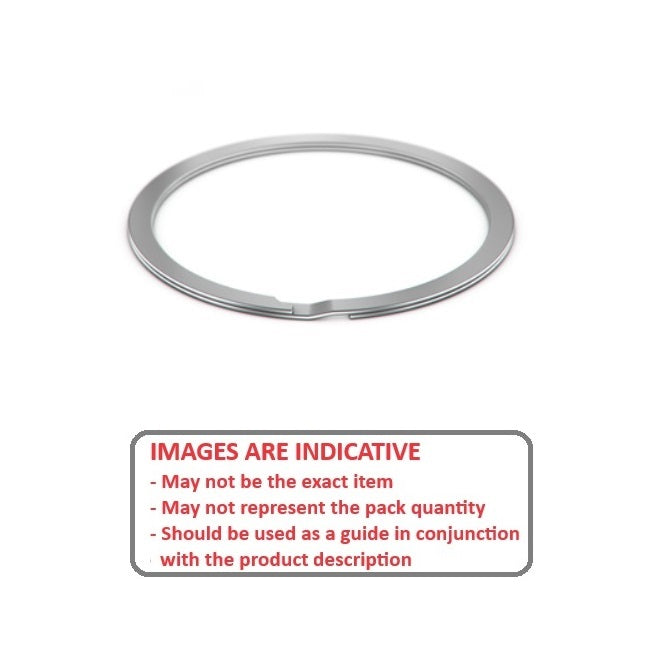

External Retaining Rings - 17.27x0.64x16.67 mm Spiral Rings - Carbon Spring Steel Spiral Ring
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Spiral Rings and Snap Rings PDF
Order 50 or more packs of 5 (250 pcs)
for $32.27 AUD per 5 pack
17.27x0.64x16.67 mm External Retaining Rings - Carbon Spring Steel - Sold Per 5:
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Product Details
Additional stock available from USA subject to Prior Sale = 125

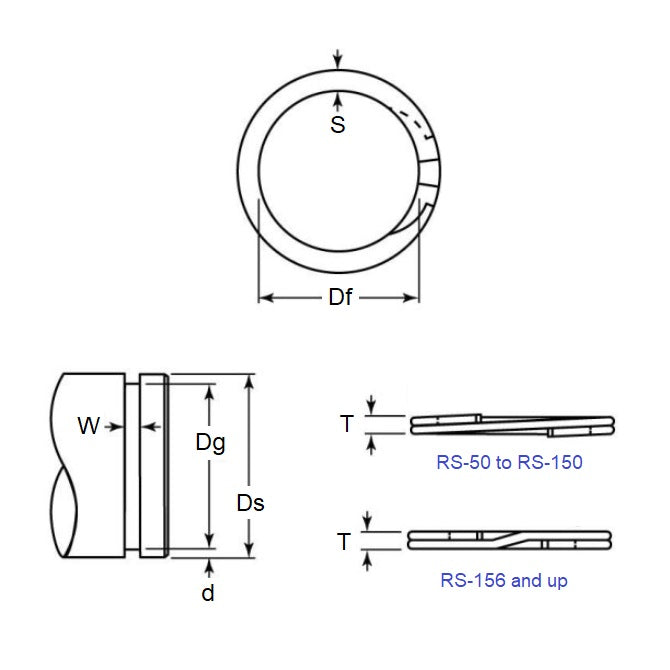

Shaft Diameter (Ds): 17.27mm
(17.27mm is 0.68 in.)
Carbon Spring Steel
- Shaft Diameter (Ds): 17.27mm
(17.27mm is 0.68 in.)
- Clip Thickness (T): 0.64mm
+/- 0.06
(0.64mm is 0.025 in.)
- Groove Dia. (Dg): 16.67mm
(16.67mm is 0.656 in.)
- Approx. Loose Circlip ID (A): 16.23mm
+ 0.00 / - 0.33
- Radial Wall (S) Approx.: 1.40mm
+/- 0.10
- Groove Width (W): 0.80mm
+/- 0.07
- Approx. Loose Clip OD: 19.03
+/- 0.04
- Groove Depth (d): 0.41
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Huyett® RS-068
- Smalley® RS-068
- Spirolox® RS-068
- Smalley® WS-068
- RS068
- WS068
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
