P-MXL-016-032FH-AL-G-040 (Each)

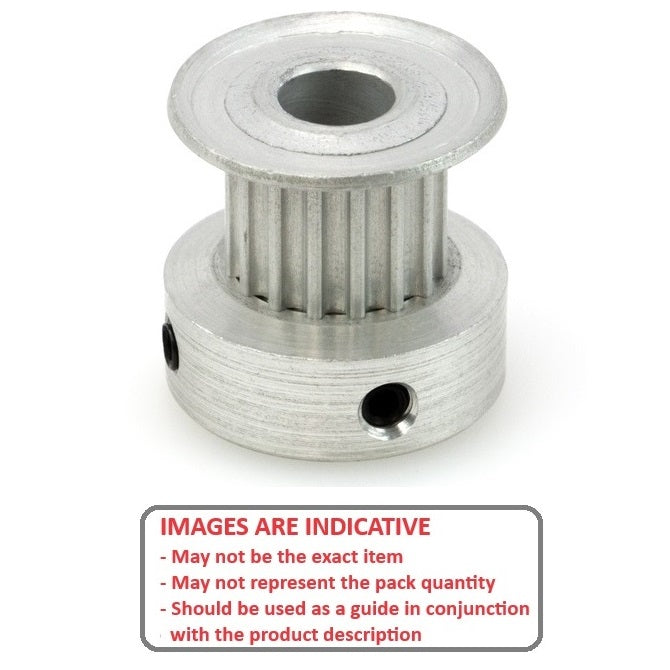

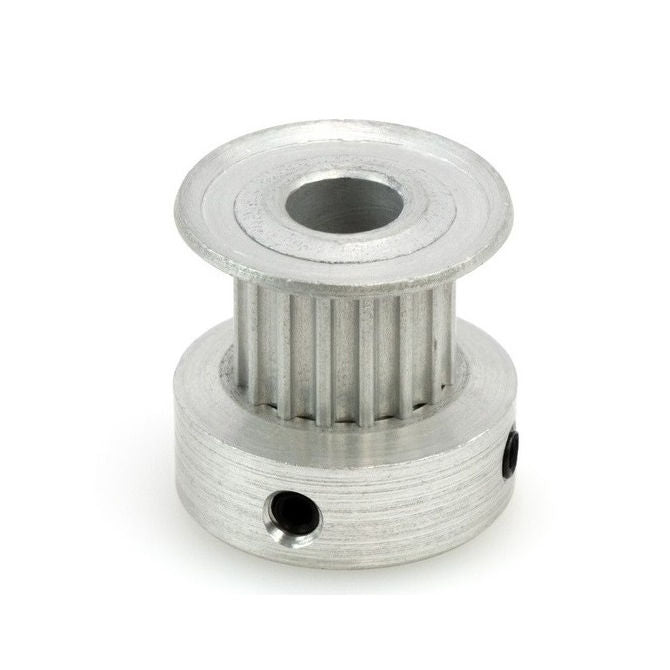

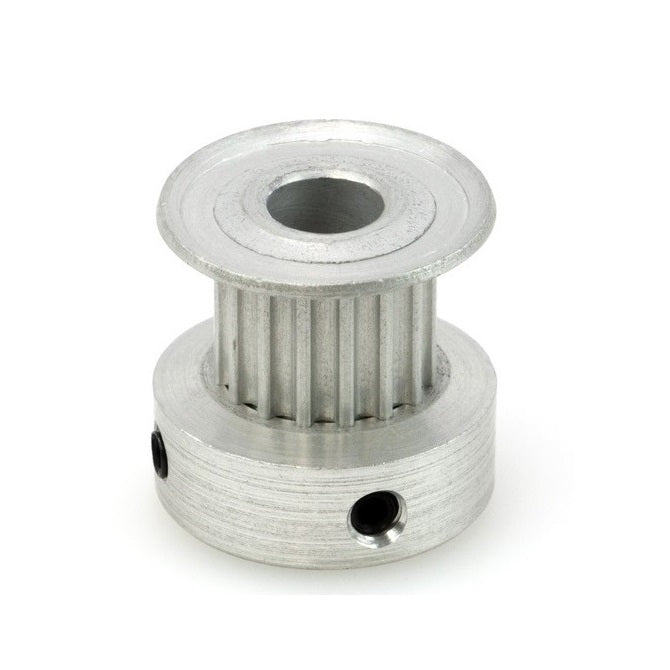

Inch Timing Pulleys - 16 tooth - 3.2x4 mm 2.032mm Pitch MXL - Aluminium Pulley
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Timing Pulleys Catalogue PDF
Pulley Flanges
MXL Section Timing Belts
Couldn't load pickup availability
16 tooth - 3.2x4 mm Inch Timing Pulleys - Aluminium - Sold per Each:
Base Category: Pulleys - Inch Timing
Top Level Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 3.2mm Wide
Product Details
Deleted Item. Available while stocks last.
Number of Teeth: 16
Aluminium
- Number of Teeth: 16
- Max Belt Width: 3.20mm
(3.20mm is 0.126 in.)
- Bore (d): 4.000mm
(4.000mm is 0.157 in.)
- Bore Type: Finished

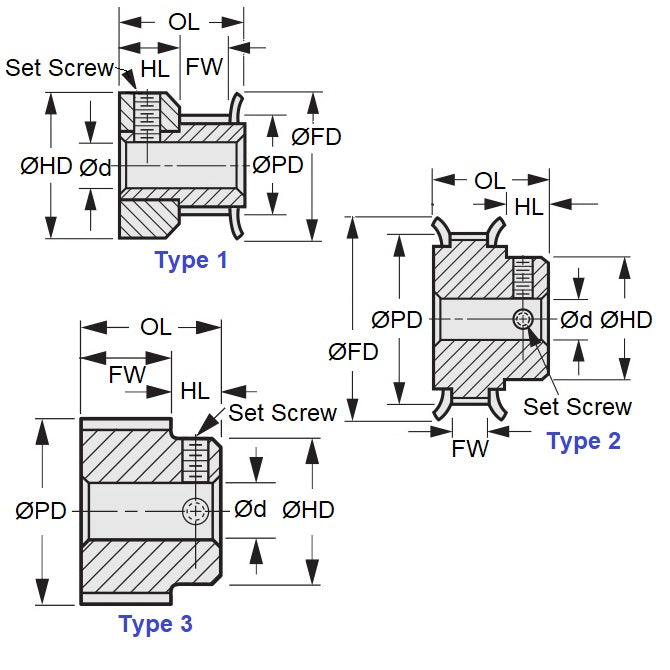

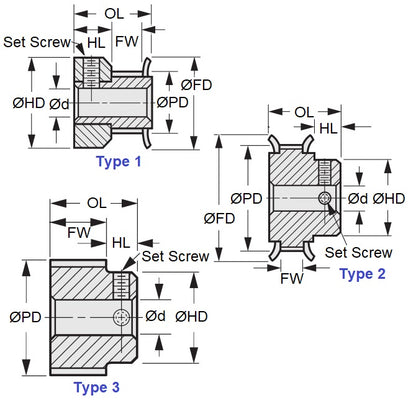

- Type: 1
- Pitch Dia. (PD): 10.34mm
- Flange Diameter (FD): 14.7mm
- Overall Length: 11.1mm
- Hub Diameter (HD): 14.7
- Locking Type: Set Screw
Brand: MBA
Country of Origin: US
Please contact us if you would like a price and delivery for a larger quantity than the available stock.
Product Compliance and Data
Similar to
- A 6N16M016DF3004
- A6N16M016DF3004
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
PMXL016032FHALG040, PMXL016
