Collection: Pulleys - Inch Timing - 2.032mm Pitch MXL - 3.2mm Wide

Pulleys -> Inch Timing -> 2.032mm Pitch MXL -> 3.2mm Wide

There are 45 products in the sub-categories of Pulleys - Inch Timing - 2.032mm Pitch MXL - 3.2mm Wide. Scroll down or follow the link to Pulleys - Inch Timing - 2.032mm Pitch MXL - 3.2mm Wide in the products table to see all these items combined into a handy table with filters.

Category Details

A selection of 3.2mm Wide 2.032mm Pitch MXL Inch Timing Pulleys. Timing Pulleys to suit MXL 2.032mm Pitch Timing Belts. Suits belts 3.0 to 3.2mm wide.

Timing pulleys combined with timing belts, provide power transmission without slippage.
Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
2.032mm metric is equivalent to 0.080 pitch imperial

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Pulleys - Inch Timing - 2.032mm Pitch MXL - 3.2mm Wide category on the Small Parts & Bearings online store.

Number of Teeth	Max Belt Width	Bore (d)	Bore Type	Indicative Image
Number of Teeth 10	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 6.47 mm Flange Diameter (FD): 10.8 mm Overall Length: 11.1 mm Hub Diameter (HD): 10.8 Locking Type: Set Screw
Part Number: P-MXL-010-032FH-AL-G-032 Inch Timing Pulleys - 10 tooth - 3.2x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $19.41 AUD Regular price ~~$23.29 AUD~~ Sale price $19.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth	Max Belt Width	Bore (d)	Bore Type	Indicative Image
Number of Teeth 10	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 6.47 mm Flange Diameter (FD): 10.8 mm Overall Length: 11.1 mm Hub Diameter (HD): 10.8 Locking Type: Set Screw
Part Number: P-MXL-010-032FH-AL-G-032 Inch Timing Pulleys - 10 tooth - 3.2x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $19.41 AUD Regular price ~~$23.29 AUD~~ Sale price $19.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-010-032FH-AL-G-032 --- Inch Timing Pulleys - 10 tooth - 3.2x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-010-032FH-AL-G-032 --- Inch Timing Pulleys - 10 tooth - 3.2x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $19.41 AUD Regular price ~~$23.29 AUD~~ Sale price $19.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Number of Teeth 10	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 3.000 mm (Equiv. 0.118 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 6.47 mm Flange Diameter (FD): 10.8 mm Overall Length: 11.1 mm Hub Diameter (HD): 10.8 Locking Type: Set Screw
Part Number: P-MXL-010-032FH-AL-G-030 Inch Timing Pulleys - 10 tooth - 3.2x3 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $19.41 AUD Regular price ~~$23.29 AUD~~ Sale price $19.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 10	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 3.000 mm (Equiv. 0.118 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 6.47 mm Flange Diameter (FD): 10.8 mm Overall Length: 11.1 mm Hub Diameter (HD): 10.8 Locking Type: Set Screw
Part Number: P-MXL-010-032FH-AL-G-030 Inch Timing Pulleys - 10 tooth - 3.2x3 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $19.41 AUD Regular price ~~$23.29 AUD~~ Sale price $19.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-010-032FH-AL-G-030 --- Inch Timing Pulleys - 10 tooth - 3.2x3 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-010-032FH-AL-G-030 --- Inch Timing Pulleys - 10 tooth - 3.2x3 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $19.41 AUD Regular price ~~$23.29 AUD~~ Sale price $19.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Number of Teeth 11	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 7.11 mm Flange Diameter (FD): 11.4 mm Overall Length: 11.1 mm Hub Diameter (HD): 11.4 Locking Type: Set Screw
Part Number: P-MXL-011-032FH-AL-G-032 Inch Timing Pulleys - 11 tooth - 3.2x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $19.86 AUD Regular price ~~$23.84 AUD~~ Sale price $19.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 11	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 7.11 mm Flange Diameter (FD): 11.4 mm Overall Length: 11.1 mm Hub Diameter (HD): 11.4 Locking Type: Set Screw
Part Number: P-MXL-011-032FH-AL-G-032 Inch Timing Pulleys - 11 tooth - 3.2x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $19.86 AUD Regular price ~~$23.84 AUD~~ Sale price $19.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-011-032FH-AL-G-032 --- Inch Timing Pulleys - 11 tooth - 3.2x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-011-032FH-AL-G-032 --- Inch Timing Pulleys - 11 tooth - 3.2x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $19.86 AUD Regular price ~~$23.84 AUD~~ Sale price $19.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Number of Teeth 11	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 3.000 mm (Equiv. 0.118 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 7.11 mm Flange Diameter (FD): 11.4 mm Overall Length: 11.1 mm Hub Diameter (HD): 11.4 Locking Type: Set Screw
Part Number: P-MXL-011-032FH-AL-G-030 Inch Timing Pulleys - 11 tooth - 3.2x3 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $19.86 AUD Regular price ~~$23.84 AUD~~ Sale price $19.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 11	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 3.000 mm (Equiv. 0.118 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 7.11 mm Flange Diameter (FD): 11.4 mm Overall Length: 11.1 mm Hub Diameter (HD): 11.4 Locking Type: Set Screw
Part Number: P-MXL-011-032FH-AL-G-030 Inch Timing Pulleys - 11 tooth - 3.2x3 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $19.86 AUD Regular price ~~$23.84 AUD~~ Sale price $19.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-011-032FH-AL-G-030 --- Inch Timing Pulleys - 11 tooth - 3.2x3 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-011-032FH-AL-G-030 --- Inch Timing Pulleys - 11 tooth - 3.2x3 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $19.86 AUD Regular price ~~$23.84 AUD~~ Sale price $19.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Number of Teeth 12	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 7.76 mm Flange Diameter (FD): 12.2 mm Overall Length: 11.1 mm Hub Diameter (HD): 12.2 Locking Type: Set Screw
Part Number: P-MXL-012-032FH-AL-G-032 Inch Timing Pulleys - 12 tooth - 3.2x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $26.77 AUD Regular price Sale price $26.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 12	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 7.76 mm Flange Diameter (FD): 12.2 mm Overall Length: 11.1 mm Hub Diameter (HD): 12.2 Locking Type: Set Screw
Part Number: P-MXL-012-032FH-AL-G-032 Inch Timing Pulleys - 12 tooth - 3.2x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $26.77 AUD Regular price Sale price $26.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-012-032FH-AL-G-032 --- Inch Timing Pulleys - 12 tooth - 3.2x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley P-MXL-012-032FH-AL-G-032 --- Inch Timing Pulleys - 12 tooth - 3.2x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $26.77 AUD Regular price Sale price $26.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Number of Teeth 12	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 3.000 mm (Equiv. 0.118 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 7.76 mm Flange Diameter (FD): 12.2 mm Overall Length: 11.1 mm Hub Diameter (HD): 12.2 Locking Type: Set Screw
Part Number: P-MXL-012-032FH-AL-G-030 Inch Timing Pulleys - 12 tooth - 3.2x3 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $20.05 AUD Regular price ~~$24.05 AUD~~ Sale price $20.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 12	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 3.000 mm (Equiv. 0.118 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 7.76 mm Flange Diameter (FD): 12.2 mm Overall Length: 11.1 mm Hub Diameter (HD): 12.2 Locking Type: Set Screw
Part Number: P-MXL-012-032FH-AL-G-030 Inch Timing Pulleys - 12 tooth - 3.2x3 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $20.05 AUD Regular price ~~$24.05 AUD~~ Sale price $20.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-012-032FH-AL-G-030 --- Inch Timing Pulleys - 12 tooth - 3.2x3 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-012-032FH-AL-G-030 --- Inch Timing Pulleys - 12 tooth - 3.2x3 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $20.05 AUD Regular price ~~$24.05 AUD~~ Sale price $20.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Number of Teeth 14	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.05 mm Flange Diameter (FD): 13.5 mm Overall Length: 11.1 mm Hub Diameter (HD): 13.5 Locking Type: Set Screw

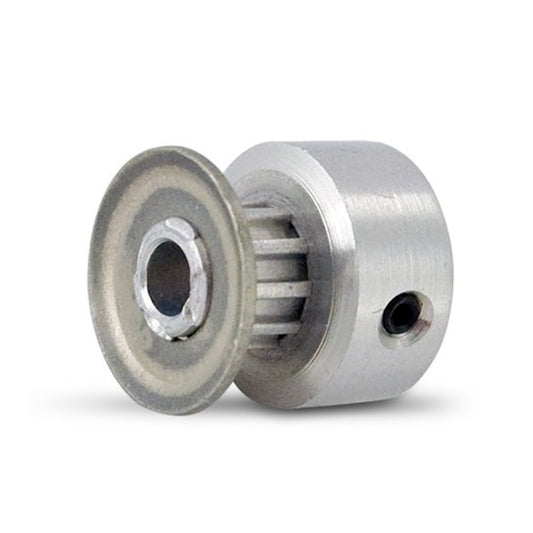

Part Number: P-MXL-014-032FH-AL-G-032 Inch Timing Pulleys - 14 tooth - 3.2x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $20.14 AUD Regular price ~~$24.16 AUD~~ Sale price $20.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 14	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.05 mm Flange Diameter (FD): 13.5 mm Overall Length: 11.1 mm Hub Diameter (HD): 13.5 Locking Type: Set Screw
Part Number: P-MXL-014-032FH-AL-G-032 Inch Timing Pulleys - 14 tooth - 3.2x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $20.14 AUD Regular price ~~$24.16 AUD~~ Sale price $20.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-014-032FH-AL-G-032 --- Inch Timing Pulleys - 14 tooth - 3.2x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-014-032FH-AL-G-032 --- Inch Timing Pulleys - 14 tooth - 3.2x3.175 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $20.14 AUD Regular price ~~$24.16 AUD~~ Sale price $20.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Number of Teeth 14	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 3.000 mm (Equiv. 0.118 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.05 mm Flange Diameter (FD): 13.5 mm Overall Length: 11.1 mm Hub Diameter (HD): 13.5 Locking Type: Set Screw
Part Number: P-MXL-014-032FH-AL-G-030 Inch Timing Pulleys - 14 tooth - 3.2x3 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $23.77 AUD Regular price Sale price $23.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 14	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 3.000 mm (Equiv. 0.118 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.05 mm Flange Diameter (FD): 13.5 mm Overall Length: 11.1 mm Hub Diameter (HD): 13.5 Locking Type: Set Screw
Part Number: P-MXL-014-032FH-AL-G-030 Inch Timing Pulleys - 14 tooth - 3.2x3 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $23.77 AUD Regular price Sale price $23.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-014-032FH-AL-G-030 --- Inch Timing Pulleys - 14 tooth - 3.2x3 mm 2.032mm Pitch MXL - Aluminium Pulley P-MXL-014-032FH-AL-G-030 --- Inch Timing Pulleys - 14 tooth - 3.2x3 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $23.77 AUD Regular price Sale price $23.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Number of Teeth 15	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.70 mm Flange Diameter (FD): 14.1 mm Overall Length: 11.1 mm Hub Diameter (HD): 14.1 Locking Type: Set Screw
Part Number: P-MXL-015-032FH-AL-G-048 Inch Timing Pulleys - 15 tooth - 3.2x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley 39 Available Now \| Further orders can be expected around Sun, Dec 21, 2025 Regular price $16.05 AUD Regular price ~~$30.49 AUD~~ Sale price $16.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 39 Available Now. Backorder if more than 39.
Number of Teeth 15	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.70 mm Flange Diameter (FD): 14.1 mm Overall Length: 11.1 mm Hub Diameter (HD): 14.1 Locking Type: Set Screw
Part Number: P-MXL-015-032FH-AL-G-048 Inch Timing Pulleys - 15 tooth - 3.2x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley 39 Available Now \| Further orders can be expected around Sun, Dec 21, 2025 Regular price $16.05 AUD Regular price ~~$30.49 AUD~~ Sale price $16.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 39 Available Now. Backorder if more than 39.
P-MXL-015-032FH-AL-G-048 --- Inch Timing Pulleys - 15 tooth - 3.2x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-015-032FH-AL-G-048 --- Inch Timing Pulleys - 15 tooth - 3.2x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $16.05 AUD Regular price ~~$30.49 AUD~~ Sale price $16.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 39 Available Now Sale
Number of Teeth 15	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 5.000 mm (Equiv. 0.197 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.70 mm Flange Diameter (FD): 14.1 mm Overall Length: 11.1 mm Hub Diameter (HD): 14.1 Locking Type: Set Screw

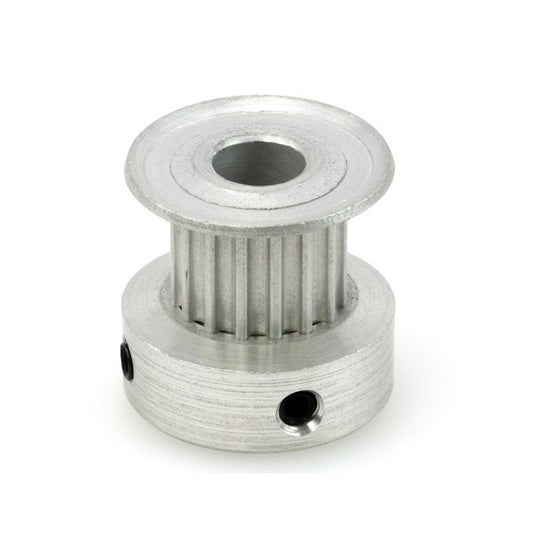

Part Number: P-MXL-015-032FH-AL-G-050 Inch Timing Pulleys - 15 tooth - 3.2x5 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $20.23 AUD Regular price ~~$24.27 AUD~~ Sale price $20.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 15	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 5.000 mm (Equiv. 0.197 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.70 mm Flange Diameter (FD): 14.1 mm Overall Length: 11.1 mm Hub Diameter (HD): 14.1 Locking Type: Set Screw
Part Number: P-MXL-015-032FH-AL-G-050 Inch Timing Pulleys - 15 tooth - 3.2x5 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $20.23 AUD Regular price ~~$24.27 AUD~~ Sale price $20.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-015-032FH-AL-G-050 --- Inch Timing Pulleys - 15 tooth - 3.2x5 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-015-032FH-AL-G-050 --- Inch Timing Pulleys - 15 tooth - 3.2x5 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $20.23 AUD Regular price ~~$24.27 AUD~~ Sale price $20.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Number of Teeth 16	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 4.000 mm (Equiv. 0.157 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 10.34 mm Flange Diameter (FD): 14.7 mm Overall Length: 11.1 mm Hub Diameter (HD): 14.7 Locking Type: Set Screw Deleted Item. Available while stocks last.
Part Number: P-MXL-016-032FH-AL-G-040 Inch Timing Pulleys - 16 tooth - 3.2x4 mm 2.032mm Pitch MXL - Aluminium Pulley 2 Available Now \| Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $28.00 AUD Regular price ~~$53.20 AUD~~ Sale price $28.00 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 2 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Number of Teeth 16	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 4.000 mm (Equiv. 0.157 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 10.34 mm Flange Diameter (FD): 14.7 mm Overall Length: 11.1 mm Hub Diameter (HD): 14.7 Locking Type: Set Screw Deleted Item. Available while stocks last.
Part Number: P-MXL-016-032FH-AL-G-040 Inch Timing Pulleys - 16 tooth - 3.2x4 mm 2.032mm Pitch MXL - Aluminium Pulley 2 Available Now \| Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $28.00 AUD Regular price ~~$53.20 AUD~~ Sale price $28.00 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 2 Available Now. These are priced to quit. Please contact us for a quote if you require more.
P-MXL-016-032FH-AL-G-040 --- Inch Timing Pulleys - 16 tooth - 3.2x4 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-016-032FH-AL-G-040 --- Inch Timing Pulleys - 16 tooth - 3.2x4 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $28.00 AUD Regular price ~~$53.20 AUD~~ Sale price $28.00 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 2 Available Now Sale
Number of Teeth 16	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 10.34 mm Flange Diameter (FD): 14.7 mm Overall Length: 11.1 mm Hub Diameter (HD): 14.7 Locking Type: Set Screw
Part Number: P-MXL-016-032FH-AL-G-048 Inch Timing Pulleys - 16 tooth - 3.2x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley 4 Available Now \| Further orders can be expected around Sun, Dec 21, 2025 Regular price $31.23 AUD Regular price Sale price $31.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 4 Available Now. Backorder if more than 4.
Number of Teeth 16	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 10.34 mm Flange Diameter (FD): 14.7 mm Overall Length: 11.1 mm Hub Diameter (HD): 14.7 Locking Type: Set Screw
Part Number: P-MXL-016-032FH-AL-G-048 Inch Timing Pulleys - 16 tooth - 3.2x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley 4 Available Now \| Further orders can be expected around Sun, Dec 21, 2025 Regular price $31.23 AUD Regular price Sale price $31.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 4 Available Now. Backorder if more than 4.
P-MXL-016-032FH-AL-G-048 --- Inch Timing Pulleys - 16 tooth - 3.2x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley P-MXL-016-032FH-AL-G-048 --- Inch Timing Pulleys - 16 tooth - 3.2x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $31.23 AUD Regular price Sale price $31.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 4 Available Now
Number of Teeth 16	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 5.000 mm (Equiv. 0.197 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 10.34 mm Flange Diameter (FD): 14.7 mm Overall Length: 11.1 mm Hub Diameter (HD): 14.7 Locking Type: Set Screw
Part Number: P-MXL-016-032FH-AL-G-050 Inch Timing Pulleys - 16 tooth - 3.2x5 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $20.50 AUD Regular price ~~$24.60 AUD~~ Sale price $20.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 16	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 5.000 mm (Equiv. 0.197 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 10.34 mm Flange Diameter (FD): 14.7 mm Overall Length: 11.1 mm Hub Diameter (HD): 14.7 Locking Type: Set Screw
Part Number: P-MXL-016-032FH-AL-G-050 Inch Timing Pulleys - 16 tooth - 3.2x5 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $20.50 AUD Regular price ~~$24.60 AUD~~ Sale price $20.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-016-032FH-AL-G-050 --- Inch Timing Pulleys - 16 tooth - 3.2x5 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-016-032FH-AL-G-050 --- Inch Timing Pulleys - 16 tooth - 3.2x5 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $20.50 AUD Regular price ~~$24.60 AUD~~ Sale price $20.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Number of Teeth 18	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 11.64 mm Flange Diameter (FD): 16.1 mm Overall Length: 12.3 mm Hub Diameter (HD): 7.9 Locking Type: Set Screw

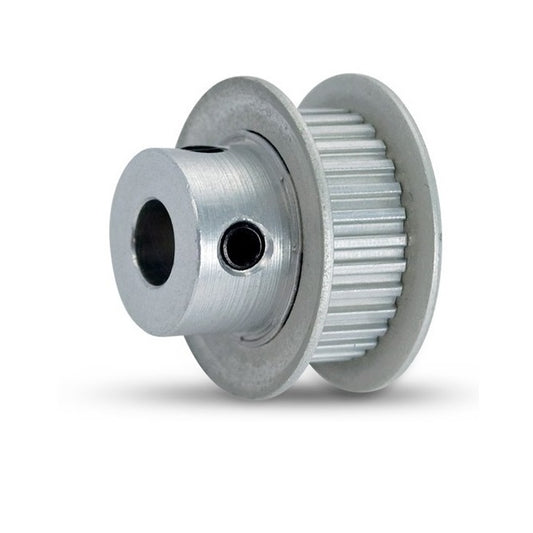

Part Number: P-MXL-018-032FF-AL-G-048 Inch Timing Pulleys - 18 tooth - 3.2x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $20.86 AUD Regular price ~~$25.04 AUD~~ Sale price $20.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 18	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 11.64 mm Flange Diameter (FD): 16.1 mm Overall Length: 12.3 mm Hub Diameter (HD): 7.9 Locking Type: Set Screw
Part Number: P-MXL-018-032FF-AL-G-048 Inch Timing Pulleys - 18 tooth - 3.2x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $20.86 AUD Regular price ~~$25.04 AUD~~ Sale price $20.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-018-032FF-AL-G-048 --- Inch Timing Pulleys - 18 tooth - 3.2x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-018-032FF-AL-G-048 --- Inch Timing Pulleys - 18 tooth - 3.2x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $20.86 AUD Regular price ~~$25.04 AUD~~ Sale price $20.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Number of Teeth 18	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 5.000 mm (Equiv. 0.197 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 11.64 mm Flange Diameter (FD): 16.1 mm Overall Length: 12.3 mm Hub Diameter (HD): 7.9 Locking Type: Set Screw
Part Number: P-MXL-018-032FF-AL-G-050 Inch Timing Pulleys - 18 tooth - 3.2x5 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $20.86 AUD Regular price ~~$25.04 AUD~~ Sale price $20.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 18	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 5.000 mm (Equiv. 0.197 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 11.64 mm Flange Diameter (FD): 16.1 mm Overall Length: 12.3 mm Hub Diameter (HD): 7.9 Locking Type: Set Screw
Part Number: P-MXL-018-032FF-AL-G-050 Inch Timing Pulleys - 18 tooth - 3.2x5 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $20.86 AUD Regular price ~~$25.04 AUD~~ Sale price $20.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-018-032FF-AL-G-050 --- Inch Timing Pulleys - 18 tooth - 3.2x5 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-018-032FF-AL-G-050 --- Inch Timing Pulleys - 18 tooth - 3.2x5 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $20.86 AUD Regular price ~~$25.04 AUD~~ Sale price $20.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Number of Teeth 18	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 11.64 mm Flange Diameter (FD): 16.1 mm Overall Length: 11.1 mm Hub Diameter (HD): 16.1 Locking Type: Set Screw
Part Number: P-MXL-018-032FH-AL-G-064 Inch Timing Pulleys - 18 tooth - 3.2x6.35 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $20.05 AUD Regular price ~~$24.05 AUD~~ Sale price $20.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 18	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 11.64 mm Flange Diameter (FD): 16.1 mm Overall Length: 11.1 mm Hub Diameter (HD): 16.1 Locking Type: Set Screw
Part Number: P-MXL-018-032FH-AL-G-064 Inch Timing Pulleys - 18 tooth - 3.2x6.35 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $20.05 AUD Regular price ~~$24.05 AUD~~ Sale price $20.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-018-032FH-AL-G-064 --- Inch Timing Pulleys - 18 tooth - 3.2x6.35 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-018-032FH-AL-G-064 --- Inch Timing Pulleys - 18 tooth - 3.2x6.35 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $20.05 AUD Regular price ~~$24.05 AUD~~ Sale price $20.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Number of Teeth 20	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 12.93 mm Flange Diameter (FD): 17.4 mm Overall Length: 12.3 mm Hub Diameter (HD): 9.3 Locking Type: Set Screw
Part Number: P-MXL-020-032FF-AL-G-048 Inch Timing Pulleys - 20 tooth - 3.2x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $21.32 AUD Regular price ~~$25.58 AUD~~ Sale price $21.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 20	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 12.93 mm Flange Diameter (FD): 17.4 mm Overall Length: 12.3 mm Hub Diameter (HD): 9.3 Locking Type: Set Screw
Part Number: P-MXL-020-032FF-AL-G-048 Inch Timing Pulleys - 20 tooth - 3.2x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $21.32 AUD Regular price ~~$25.58 AUD~~ Sale price $21.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-020-032FF-AL-G-048 --- Inch Timing Pulleys - 20 tooth - 3.2x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-020-032FF-AL-G-048 --- Inch Timing Pulleys - 20 tooth - 3.2x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $21.32 AUD Regular price ~~$25.58 AUD~~ Sale price $21.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Number of Teeth 20	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 12.93 mm Flange Diameter (FD): 17.4 mm Overall Length: 11.1 mm Hub Diameter (HD): 17.4 Locking Type: Set Screw
Part Number: P-MXL-020-032FH-AL-G-064 Inch Timing Pulleys - 20 tooth - 3.2x6.35 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $21.50 AUD Regular price ~~$25.80 AUD~~ Sale price $21.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 20	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 12.93 mm Flange Diameter (FD): 17.4 mm Overall Length: 11.1 mm Hub Diameter (HD): 17.4 Locking Type: Set Screw
Part Number: P-MXL-020-032FH-AL-G-064 Inch Timing Pulleys - 20 tooth - 3.2x6.35 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $21.50 AUD Regular price ~~$25.80 AUD~~ Sale price $21.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-020-032FH-AL-G-064 --- Inch Timing Pulleys - 20 tooth - 3.2x6.35 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-020-032FH-AL-G-064 --- Inch Timing Pulleys - 20 tooth - 3.2x6.35 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $21.50 AUD Regular price ~~$25.80 AUD~~ Sale price $21.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Number of Teeth 20	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 5.000 mm (Equiv. 0.197 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 12.93 mm Flange Diameter (FD): 17.4 mm Overall Length: 12.3 mm Hub Diameter (HD): 9.2 Locking Type: Set Screw
Part Number: P-MXL-020-032FF-AL-G-050 Inch Timing Pulleys - 20 tooth - 3.2x5 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $21.23 AUD Regular price ~~$25.47 AUD~~ Sale price $21.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 20	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 5.000 mm (Equiv. 0.197 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 12.93 mm Flange Diameter (FD): 17.4 mm Overall Length: 12.3 mm Hub Diameter (HD): 9.2 Locking Type: Set Screw
Part Number: P-MXL-020-032FF-AL-G-050 Inch Timing Pulleys - 20 tooth - 3.2x5 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $21.23 AUD Regular price ~~$25.47 AUD~~ Sale price $21.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-020-032FF-AL-G-050 --- Inch Timing Pulleys - 20 tooth - 3.2x5 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-020-032FF-AL-G-050 --- Inch Timing Pulleys - 20 tooth - 3.2x5 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $21.23 AUD Regular price ~~$25.47 AUD~~ Sale price $21.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Number of Teeth 21	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 13.58 mm Flange Diameter (FD): 18.0 mm Overall Length: 12.3 mm Hub Diameter (HD): 9.9 Locking Type: Set Screw
Part Number: P-MXL-021-032FF-AL-G-048 Inch Timing Pulleys - 21 tooth - 3.2x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $21.68 AUD Regular price ~~$26.02 AUD~~ Sale price $21.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 21	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 13.58 mm Flange Diameter (FD): 18.0 mm Overall Length: 12.3 mm Hub Diameter (HD): 9.9 Locking Type: Set Screw
Part Number: P-MXL-021-032FF-AL-G-048 Inch Timing Pulleys - 21 tooth - 3.2x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $21.68 AUD Regular price ~~$26.02 AUD~~ Sale price $21.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-021-032FF-AL-G-048 --- Inch Timing Pulleys - 21 tooth - 3.2x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-021-032FF-AL-G-048 --- Inch Timing Pulleys - 21 tooth - 3.2x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $21.68 AUD Regular price ~~$26.02 AUD~~ Sale price $21.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Number of Teeth 21	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 5.000 mm (Equiv. 0.197 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 13.58 mm Flange Diameter (FD): 18.0 mm Overall Length: 12.3 mm Hub Diameter (HD): 9.9 Locking Type: Set Screw
Part Number: P-MXL-021-032FF-AL-G-050 Inch Timing Pulleys - 21 tooth - 3.2x5 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $21.68 AUD Regular price ~~$26.02 AUD~~ Sale price $21.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 21	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 5.000 mm (Equiv. 0.197 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 13.58 mm Flange Diameter (FD): 18.0 mm Overall Length: 12.3 mm Hub Diameter (HD): 9.9 Locking Type: Set Screw
Part Number: P-MXL-021-032FF-AL-G-050 Inch Timing Pulleys - 21 tooth - 3.2x5 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $21.68 AUD Regular price ~~$26.02 AUD~~ Sale price $21.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-021-032FF-AL-G-050 --- Inch Timing Pulleys - 21 tooth - 3.2x5 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-021-032FF-AL-G-050 --- Inch Timing Pulleys - 21 tooth - 3.2x5 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $21.68 AUD Regular price ~~$26.02 AUD~~ Sale price $21.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Number of Teeth 21	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 13.58 mm Flange Diameter (FD): 18.0 mm Overall Length: 11.1 mm Hub Diameter (HD): 18.0 Locking Type: Set Screw
Part Number: P-MXL-021-032FH-AL-G-064 Inch Timing Pulleys - 21 tooth - 3.2x6.35 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $21.95 AUD Regular price ~~$26.35 AUD~~ Sale price $21.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 21	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 13.58 mm Flange Diameter (FD): 18.0 mm Overall Length: 11.1 mm Hub Diameter (HD): 18.0 Locking Type: Set Screw
Part Number: P-MXL-021-032FH-AL-G-064 Inch Timing Pulleys - 21 tooth - 3.2x6.35 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $21.95 AUD Regular price ~~$26.35 AUD~~ Sale price $21.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-021-032FH-AL-G-064 --- Inch Timing Pulleys - 21 tooth - 3.2x6.35 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-021-032FH-AL-G-064 --- Inch Timing Pulleys - 21 tooth - 3.2x6.35 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $21.95 AUD Regular price ~~$26.35 AUD~~ Sale price $21.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Number of Teeth 22	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 14.22 mm Flange Diameter (FD): 18.8 mm Overall Length: 11.1 mm Hub Diameter (HD): 18.8 Locking Type: Set Screw
Part Number: P-MXL-022-032FH-AL-G-064 Inch Timing Pulleys - 22 tooth - 3.2x6.35 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $22.68 AUD Regular price ~~$27.22 AUD~~ Sale price $22.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 22	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Bore Type Finished
Material: Aluminium Type: 1 Pitch Dia. (PD): 14.22 mm Flange Diameter (FD): 18.8 mm Overall Length: 11.1 mm Hub Diameter (HD): 18.8 Locking Type: Set Screw
Part Number: P-MXL-022-032FH-AL-G-064 Inch Timing Pulleys - 22 tooth - 3.2x6.35 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $22.68 AUD Regular price ~~$27.22 AUD~~ Sale price $22.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.

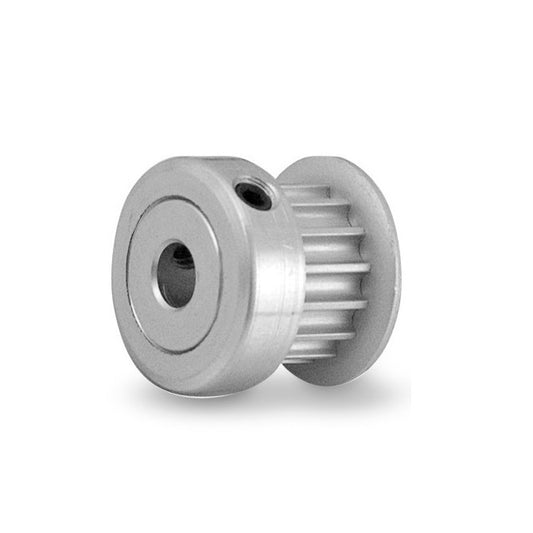

P-MXL-022-032FH-AL-G-064 --- Inch Timing Pulleys - 22 tooth - 3.2x6.35 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-022-032FH-AL-G-064 --- Inch Timing Pulleys - 22 tooth - 3.2x6.35 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $22.68 AUD Regular price ~~$27.22 AUD~~ Sale price $22.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale

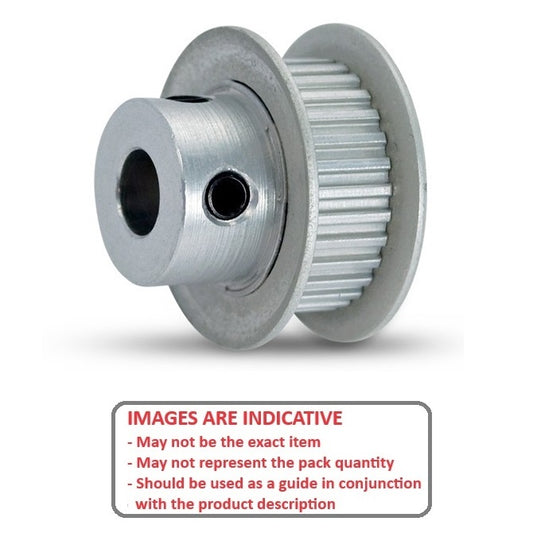

Number of Teeth 22	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 14.22 mm Flange Diameter (FD): 18.8 mm Overall Length: 12.3 mm Hub Diameter (HD): 9.9 Locking Type: Set Screw
Part Number: P-MXL-022-032FF-AL-G-048 Inch Timing Pulleys - 22 tooth - 3.2x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $22.32 AUD Regular price ~~$26.78 AUD~~ Sale price $22.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 22	Max Belt Width 3.20 mm (Equiv. 0.126 in.)	Bore (d) 4.763 mm (Equiv. 0.188 in.)	Bore Type Finished
Material: Aluminium Type: 2 Pitch Dia. (PD): 14.22 mm Flange Diameter (FD): 18.8 mm Overall Length: 12.3 mm Hub Diameter (HD): 9.9 Locking Type: Set Screw
Part Number: P-MXL-022-032FF-AL-G-048 Inch Timing Pulleys - 22 tooth - 3.2x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 21, 2025 Regular price $22.32 AUD Regular price ~~$26.78 AUD~~ Sale price $22.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-MXL-022-032FF-AL-G-048 --- Inch Timing Pulleys - 22 tooth - 3.2x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Sale P-MXL-022-032FF-AL-G-048 --- Inch Timing Pulleys - 22 tooth - 3.2x4.763 mm 2.032mm Pitch MXL - Aluminium Pulley Regular price $22.32 AUD Regular price ~~$26.78 AUD~~ Sale price $22.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale

Country/region

Miniature Bearings Australia

Collection: Pulleys - Inch Timing - 2.032mm Pitch MXL - 3.2mm Wide

Category Details

Filter

Filter

Subscribe to our emails
