HF3-15M-N

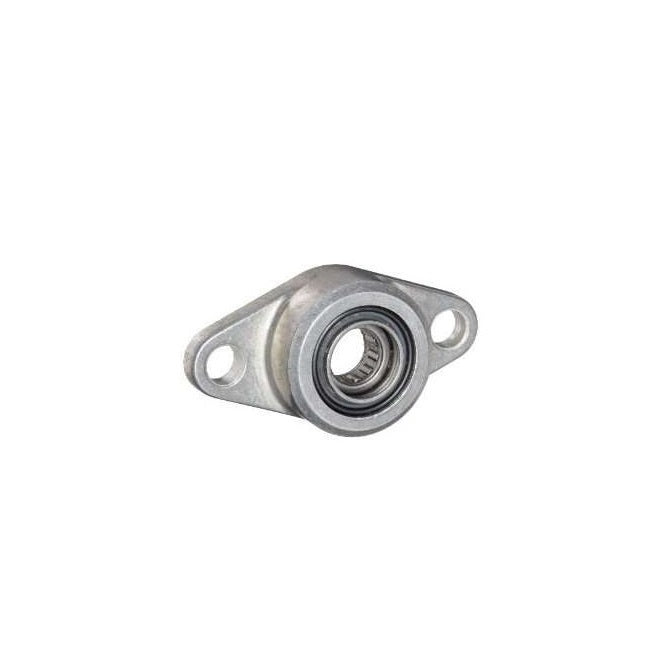

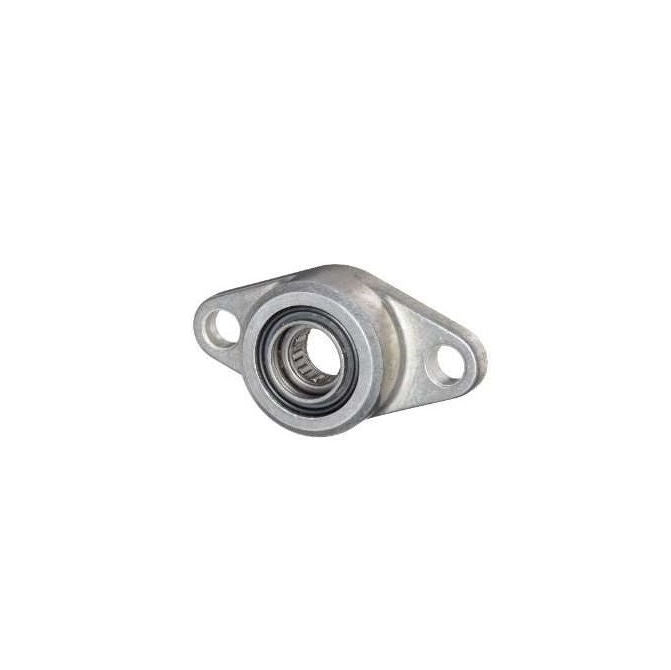

Flanged 2 Bolt Housing and Bearing Assembly - 15x63.5x82.5 mm Aligning - Steel

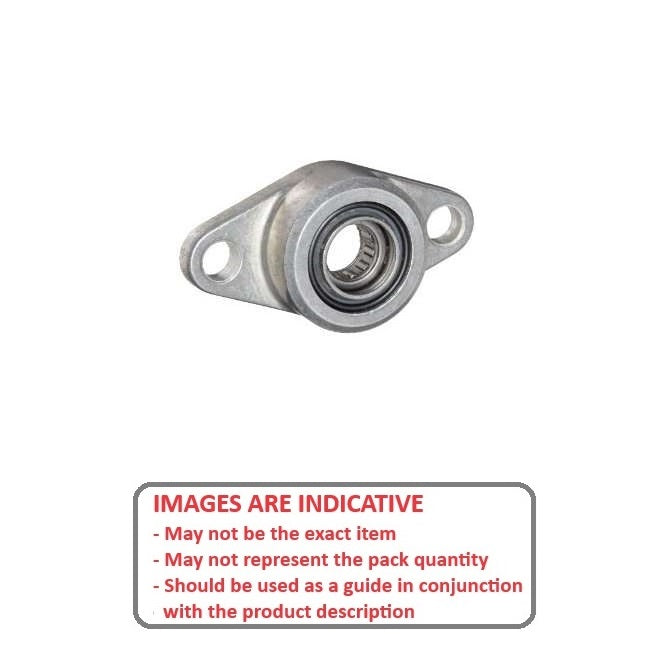

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Flanged 2 Bolt Housing Assembly - 15x63.5x82.5 mm - Steel
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale
Price:
$15.00 AUD
$28.50 AUD $15.00 AUD
Each
Excludes GST and overseas Taxes & Duties
 Qty: 1 available now
Only 1 may be ordered online. If you need a large quantity, please contact us.

Base Category: Housing and Bearing Assembly - Flanged 2 Bolt

Top Level Category: Housing and Bearing Assembly - Flanged 2 Bolt - Aligning - Needle Roller

Product Details


Deleted Item. Available while stocks last.

Nominal Shaft Size: 15.000mm
(15.000mm is 0.591 in.)

Steel
  • Nominal Shaft Size: 15.000mm
    (15.000mm is 0.591 in.)

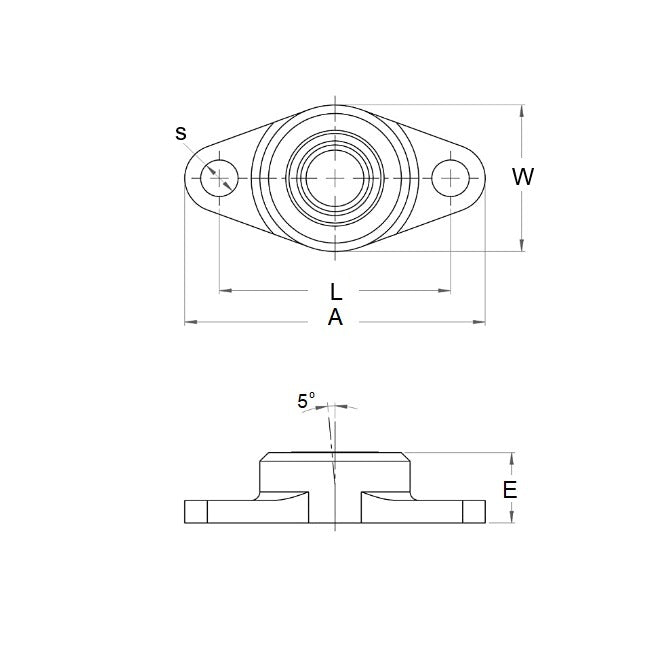

  • Width (W): 63.50mm
    (63.50mm is 2.5 in.)
  • Overall Length (A): 82.50mm
    (82.50mm is 3.248 in.)
  • Overall Height (E): 41.50mm
  • Min to Max Shaft Dia.: 14.989 to 15.000mm
  • Max. Radial Dynamic Load: 3110N
  • Bolt Hole Centres (L): 22.00mm
  • Max Speed: 16000

Brand: MBA
Country of Origin: US

Please contact us if you would like a price and delivery for a larger quantity than the available stock.
