HF3-15M-N - Datasheet

MBA

Category Information

Housing Assembly - Flanged 2 Bolt - Self Aligning - Needle Roller

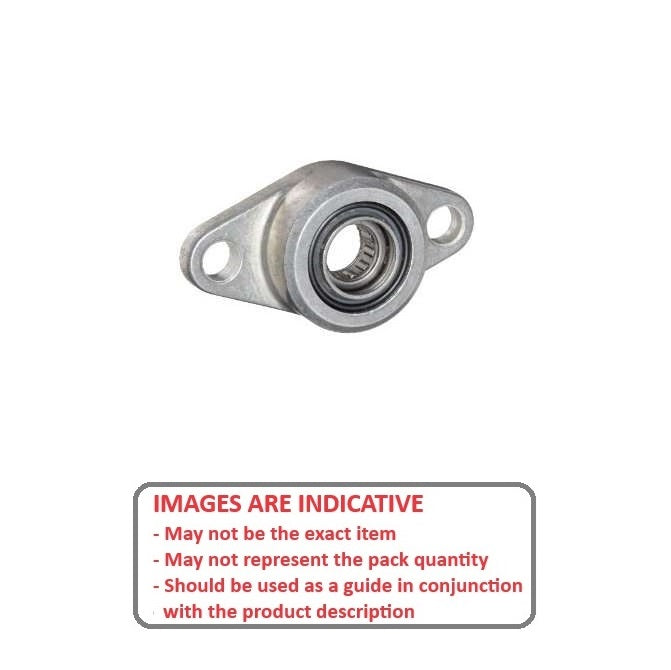

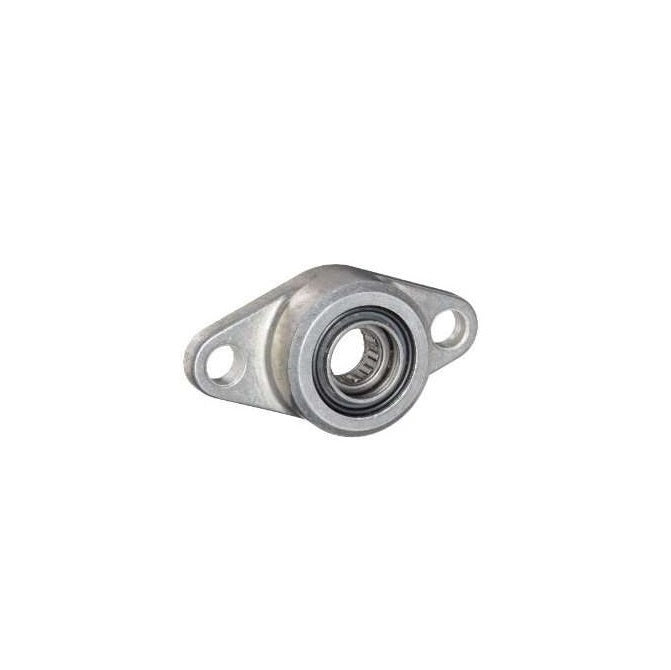

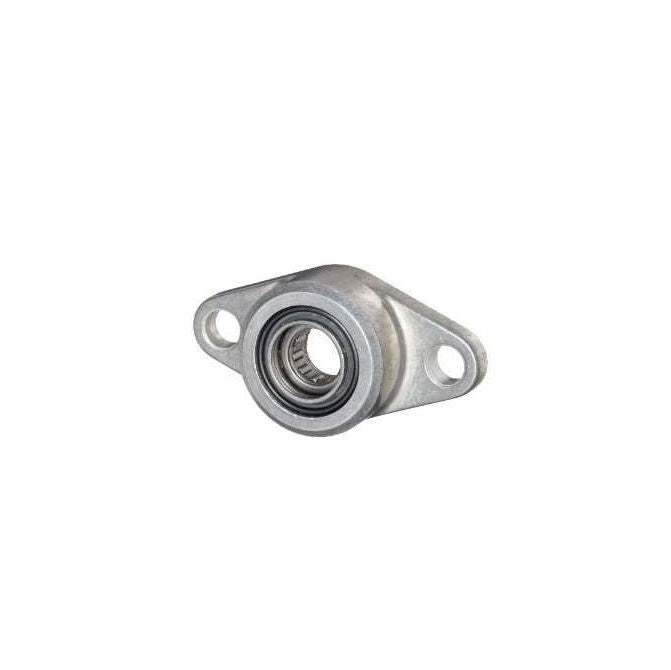

Needle Roller Self Aligning Flanged 2 Bolt Housing Assembly. Low profile self aligning flange mounted needle roller bearings

  • An expanded range may be available on special order. Please enquire.
  • +/- 5% Static Alignment

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

  • Nominal Shaft Size : 15.000 mm
    (Equiv. 0.591 in.)

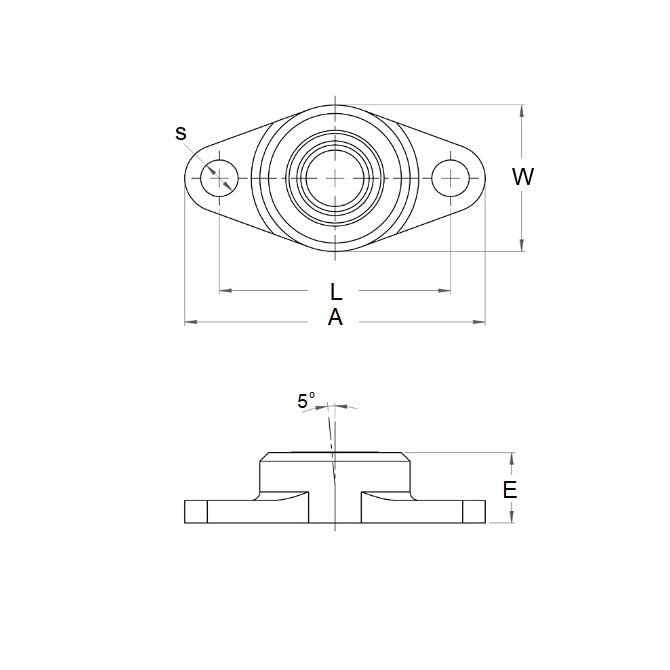

  • Width (W) 63.50 mm
    (Equiv. 2.5 in.)
  • Overall Length (A) 82.50 mm
    (Equiv. 3.248 in.)
  • Overall Height (E) 41.50 mm
  • Min to Max Shaft Dia. 14.989 to 15.000 mm
  • Max. Radial Dynamic Load 3110 N
  • Bolt Hole Centres (L) 22.00 mm
  • Max Speed 16000
  • Material Steel
Country of Origin: US
