T-0143-0254-RC (Each)

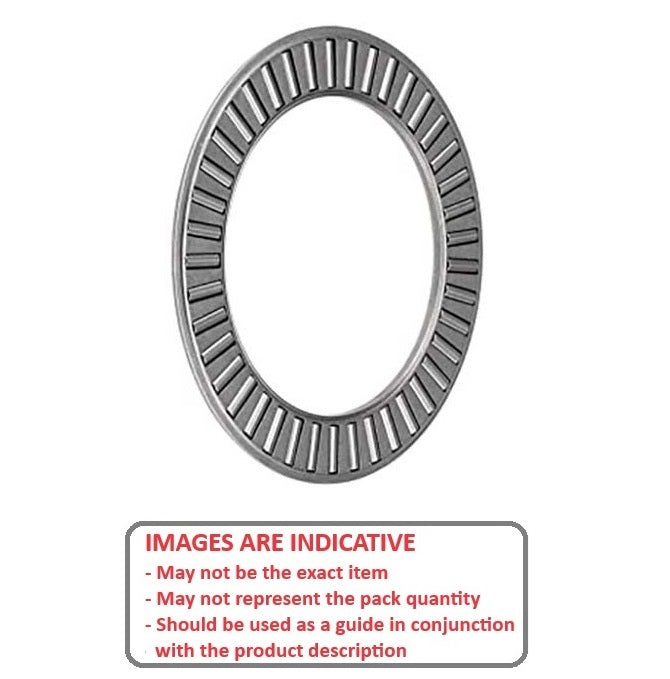

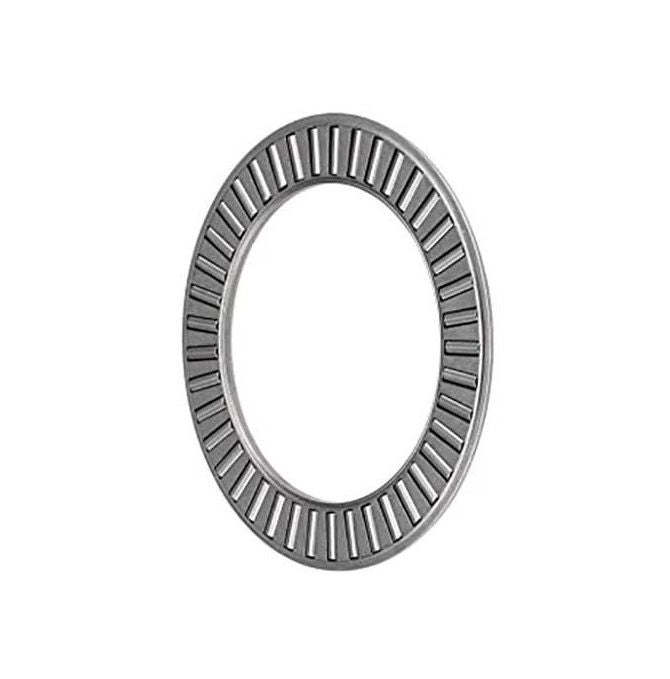

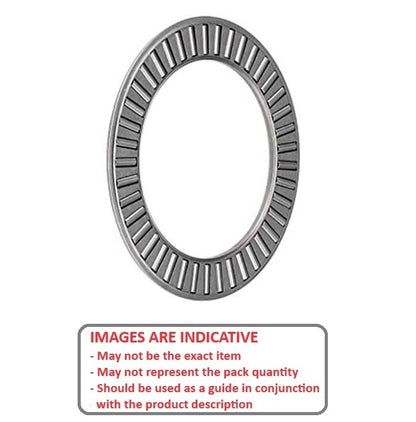

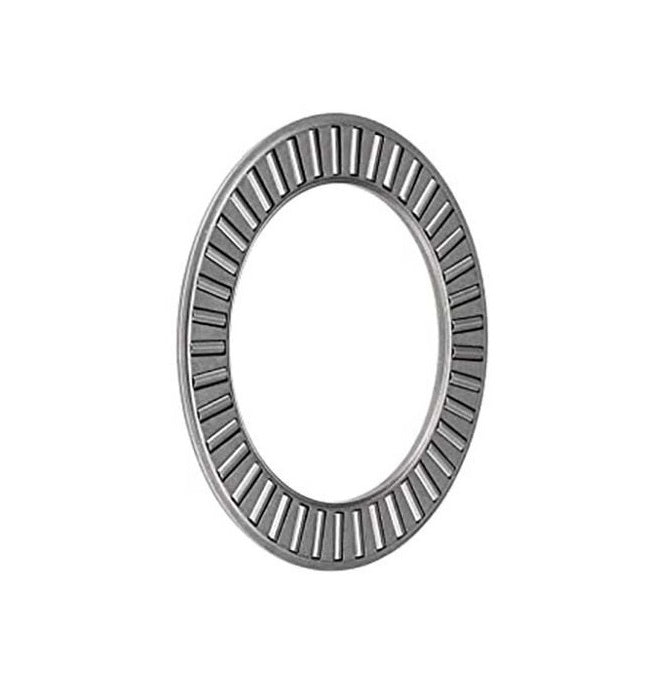

Thrust Roller Bearings - 14.27x25.4 mm - Rollers and Cage / 1.98 mm Cage and Rollers Only - Carbon Steel Bearing
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleOrder 50 or more
for $8.96 AUD Each
14.27x25.4 mm - Rollers and Cage / 1.98 mm Thrust Roller Bearings - Carbon Steel - Sold per Each
Base Category: Bearings - Thrust Roller
Top Level Category: Bearings - Thrust Roller - Cage and Rollers Only
Product Details

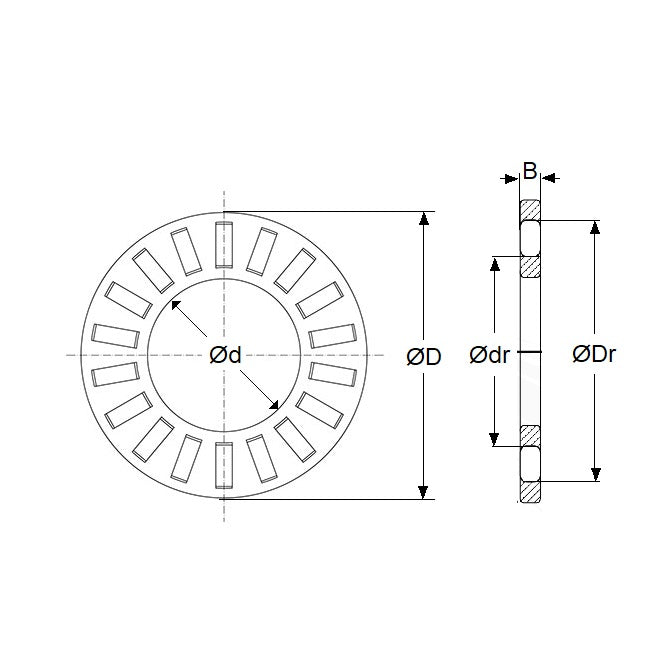

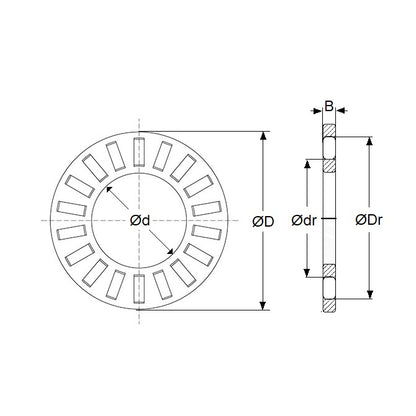

Bore (d Nom.): 14.27mm(14.27mm is 0.562 in.)
Carbon Steel
- Bore (d Nom.): 14.27mm
(14.27mm is 0.562 in.)
- O.D. (D Nom.): 25.40mm
(25.40mm is 1 in.)
- Washer or Bearing: Rollers and Cage
- Nom. Thickness (B Max): 1.98mm
- Basic Dyn. Load Rating: 621kgf
- Basic Stat. Load Rating: 1835kgf
- Limiting Speed: 18000RPM
- Roller OD (Dr): 22.60
- Roller ID (dr): 16.50
- Shaft Pilot Dia. Range (d): 14.19 - 14.27mm
Brand: MBA
Country of Origin: JP
Product Compliance and Data
Similar to
- ALTPART
- 5909K951
- Torrington® NTA-916
- NTA916
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
T01430254RC, T0143
