ECL-0120-0130-C (PK-10)
E-Clips Retaining Rings - 13x12x1.3 mm Basic - Carbon Steel E-Clip
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Assortment Kits
E-Clip Applicators
Order 50 or more packs of 10 (500 pcs)
for $2.57 AUD per 10 pack
Couldn't load pickup availability

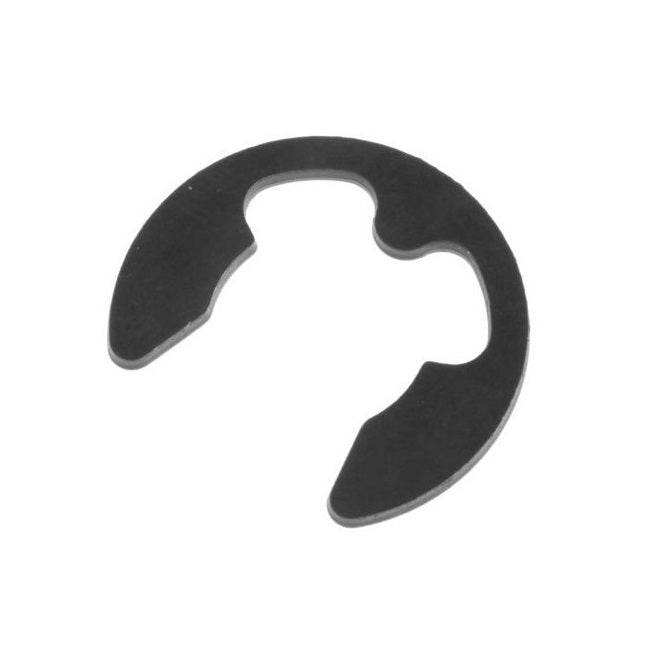

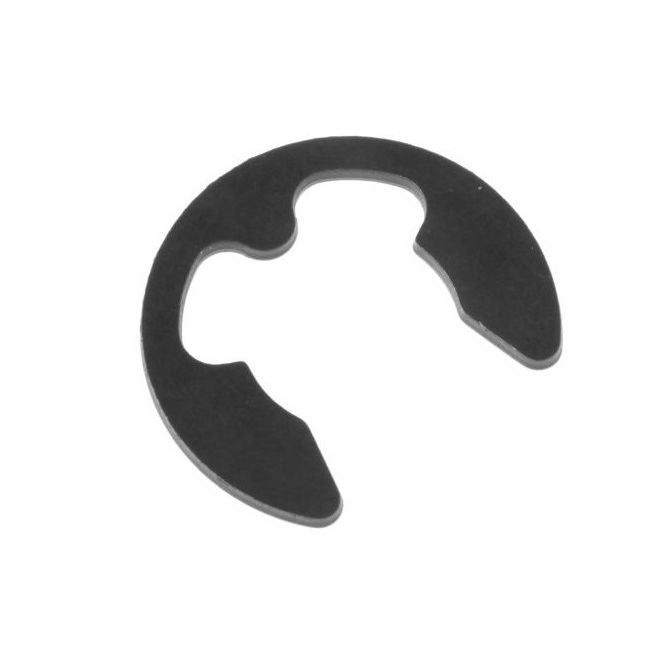

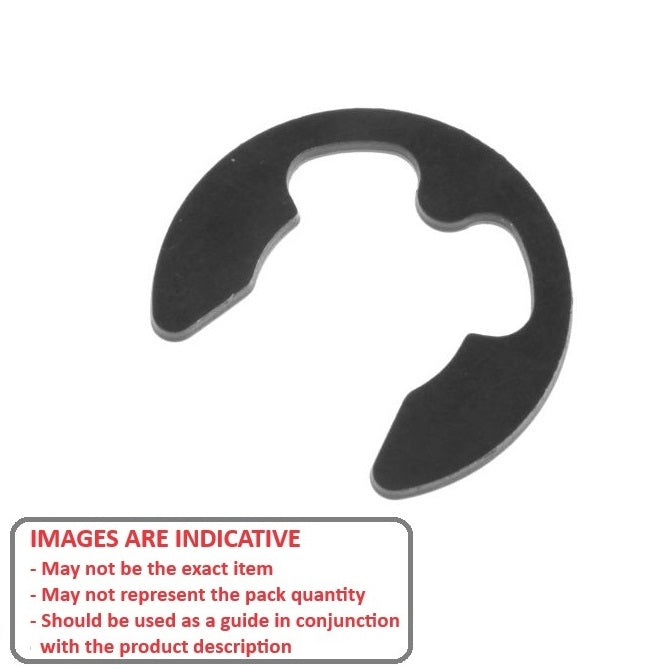

1/2 inch E-Clip - 13x12x1.3 mm E-Clips Retaining Rings - Carbon Steel - Sold per pack of 10:
Base Category: Retaining Rings - E-Clips
Top Level Category: Retaining Rings - E-Clips - Basic - Carbon Steel
Product Details
Additional stock available from USA subject to Prior Sale = 2089

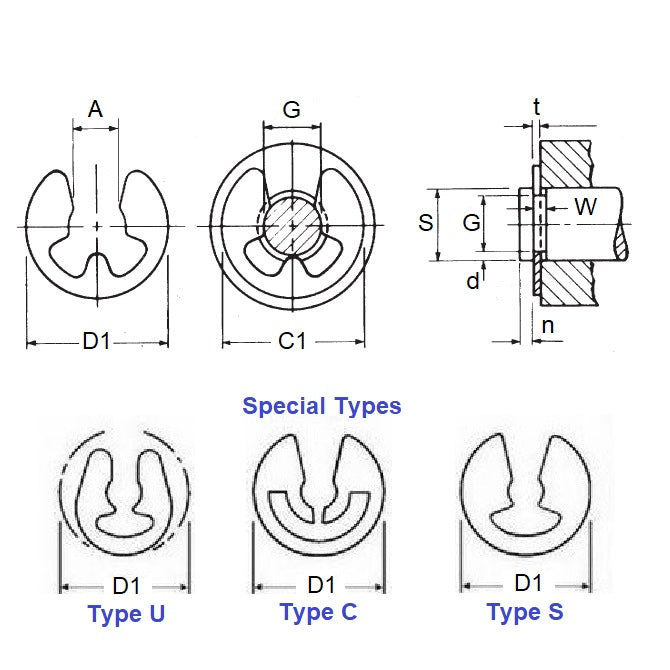

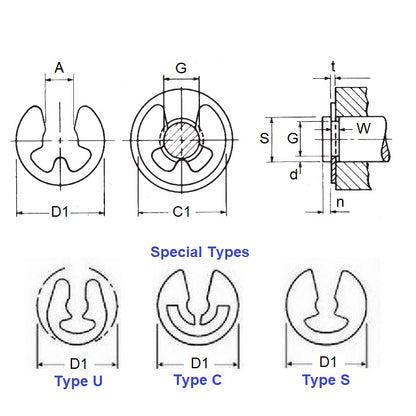

Minimum Rec. Shaft Dia (S): 13.00mm
+ 5.00 / - 0.00
(13.00mm is 0.512 in.)
Carbon Steel
- Minimum Rec. Shaft Dia (S): 13.00mm
+ 5.00 / - 0.00
(13.00mm is 0.512 in.)
- Groove Dia. (Dg): 12.00mm
+ 0.00 / - 0.11
(12.00mm is 0.472 in.)
- Clip Thickness (T): 1.30mm
+/- 0.03
(1.30mm is 0.051 in.)
- Clip OD Loose (D1): 22.65mm
- Groove Width (W): 1.35mm
- Maximum Rec. Shaft Dia (S): 18.00
- Clip OD in groove (C1): 23.40mm
- Loose Clip ID (A): 10.45mm
- Min. Extension (n): 2.50
- Standard: DIN6799
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 98543A219
- Huyett® DE-120
- NoCor® DE-120
- Cirteq RA12.0
- D15000120
- D1500-0120
- DE120
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
ECL01200130C, ECL0120
