ECL-0120-0130-C - Datasheet
MBA
Category Information

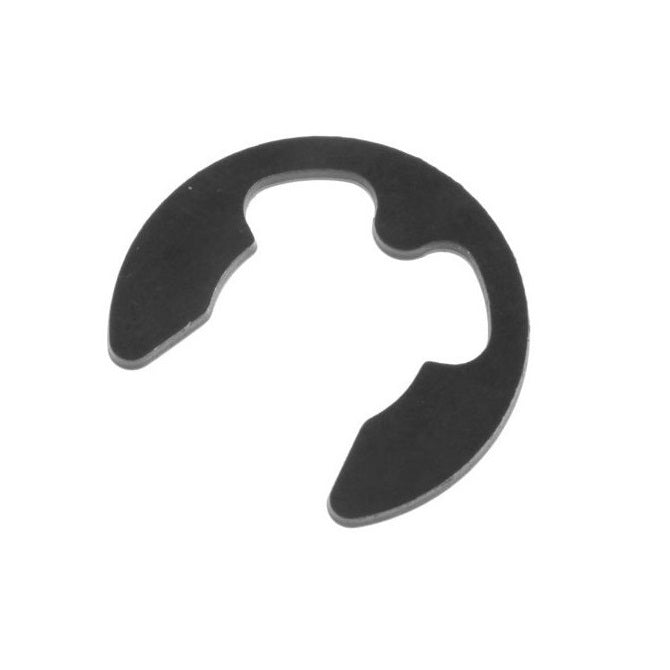

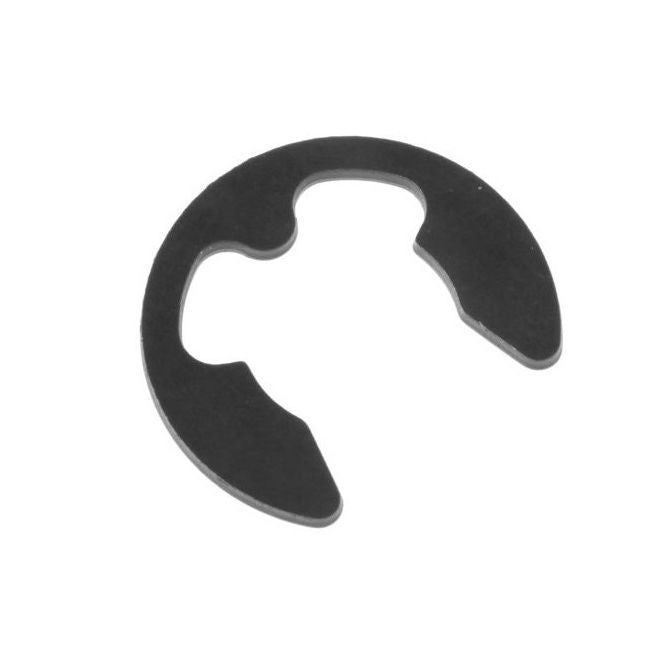

Retaining Rings - E-Clips - Basic - Carbon SteelCarbon Steel Basic E-Clips Retaining Rings. Basic imperial and metric e-clips DIN6799 and N1500. Carbon spring steel including zinc plated and plain.
- An expanded range may be available on special order. Please enquire.
- Not all e-clips are exactly the same style, however all follow the basic principal of a push on clip.
- Includes plain and zinc plated.
Product Data
- Minimum Rec. Shaft Dia (S)
:
13.00
mm
+ 5.00 / - 0.00
(Equiv. 0.512 in.) - Groove Dia. (Dg)
12.00
mm
+ 0.00 / - 0.11
(Equiv. 0.472 in.) - Clip Thickness (T)
1.30
mm
+/ - 0.03
(Equiv. 0.051 in.) - Clip OD Loose (D1) 22.65 mm
- Groove Width (W) 1.35 mm
- Maximum Rec. Shaft Dia (S) 18.00
- Clip OD in groove (C1) 23.40 mm
- Loose Clip ID (A) 10.45 mm
- Min. Extension (n) 2.50
- Standard DIN6799
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 98543A219
- NoCor DE-120
- Cirteq RA12.0
- 15000120
- 1500-0120
- D15000120
- DE120
- D1500-0120
