CCE-13000-C

Name: CCE-13000-C - External Retaining Rings - 130x4x126 mm Circlips - Carbon Steel
Brand: MBA
SKU: CCE13000C
Price: 13.14 AUD
Availability: BackOrder

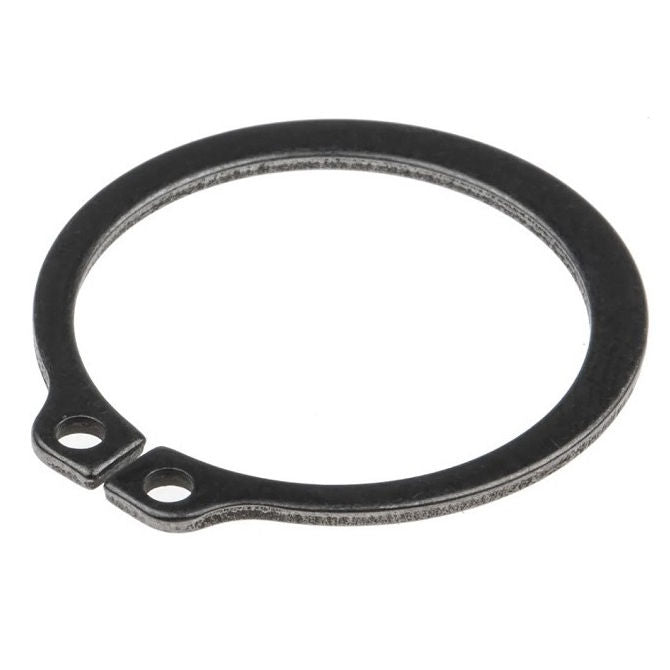

External Retaining Rings - 130x4x126 mm Circlips - Carbon Steel

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Collection, Retail, Distributors, Wholesale

Category: Retaining Rings - External - Circlips - Standard - Carbon Steel

Additional resources:
Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits

Price:

$13.14 AUD

~~$15.76 AUD~~ $13.14 AUD

Each
Backorder
Order 50 or more for $11.83 AUD Each

Product Details:

Additional stock available from USA subject to Prior Sale = 297

Shaft Diameter (Ds): 130.00mm
_{(130.00mm is 5.118 in.)}

Carbon Steel

Clip Thickness (T): 4.00mm
_{+ 0.00 / - 0.63}
_{(4.00mm is 0.157 in.)}
Groove Dia. (Dg): 126.00mm
_{+ 0.00 / - 0.10}
_{(126.00mm is 4.961 in.)}
Approx. Loose Circlip ID (A): 123.00mm
Groove Width (W): 4.15mm
Clearance on Shaft (C1): 150.00mm
Clearance in Groove (C1): 154.40mm
Min. Lug Diameter (h): 4.00mm
Min. Extension (n): 6.00
Standard: DIN471

Brand: MBA
Country of Origin: US

Product Compliance and Data

Alternative Parts Include:

Ellison 471-130
ALTPART 98541A258
Seeger A130
Seeger A-130
Seeger A130-WAS
Seeger A130X4
Bossard BN818-130
Waldes D1400-130
NoCor DSH-130
Rotor Clip DSH-130
Seeger NZT.A130
A130WAS
D1400-1300
D1400130
D14001300
BN818130
DSH130
471130

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
