RS-511 (Pack of 500)
External Retaining Rings - 130x1.83x126.34 mm Spiral Rings - Carbon Spring Steel Spiral Ring
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Spiral Rings and Snap Rings PDF
Order 50 or more packs of 500 (25000 pcs)
for $0.00 AUD per 500 pack
130x1.83x126.34 mm External Retaining Rings - Carbon Spring Steel - Sold Per 500:
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Product Details

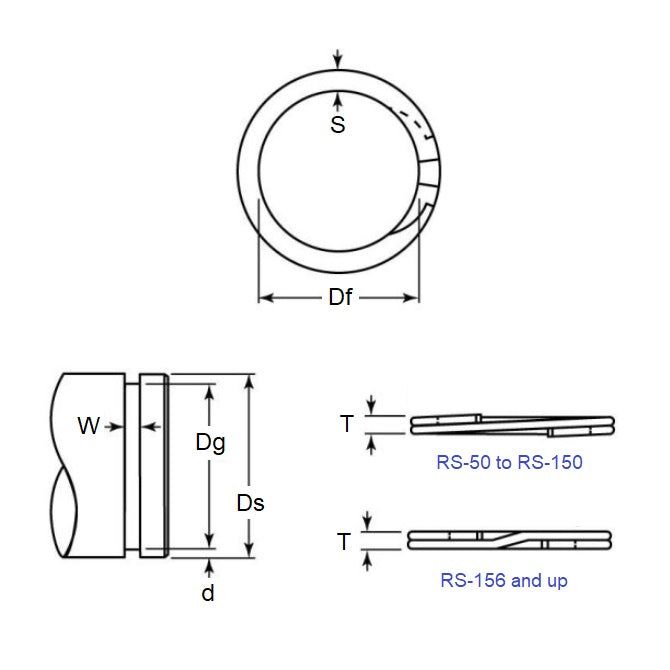

Shaft Diameter (Ds): 130.00mm(130.00mm is 5.118 in.)
Carbon Spring Steel
- Shaft Diameter (Ds): 130.00mm
(130.00mm is 5.118 in.)
- Clip Thickness (T): 1.83mm
+/- 0.10
(1.83mm is 0.072 in.)
- Groove Dia. (Dg): 126.34mm
(126.34mm is 4.974 in.)
- Approx. Loose Circlip ID (A): 122.20mm
+ 0.00 / - 1.02
- Radial Wall (S) Approx.: 6.35mm
+/- 0.13
- Groove Width (W): 2.07mm
+/- 0.15
- Approx. Loose Clip OD: 134.9
+/- 0.06
- Groove Depth (d): 1.83
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Huyett® RS-511
- Smalley® WS-511
- WS511
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
RS511,
